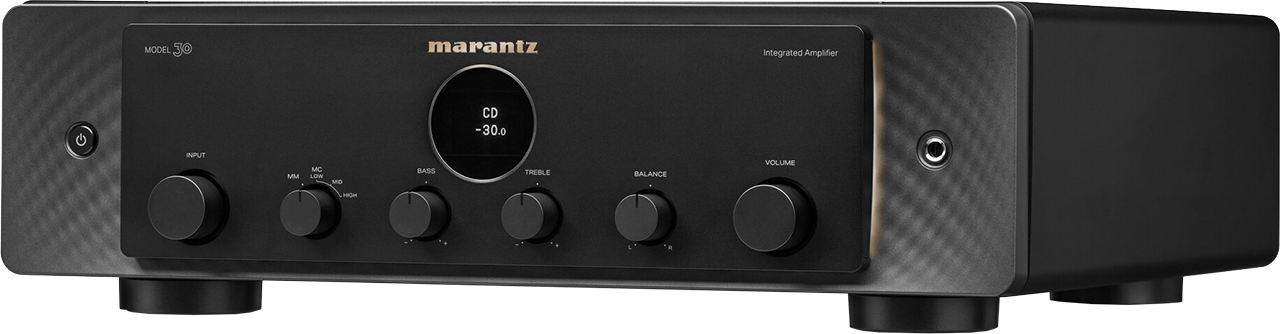

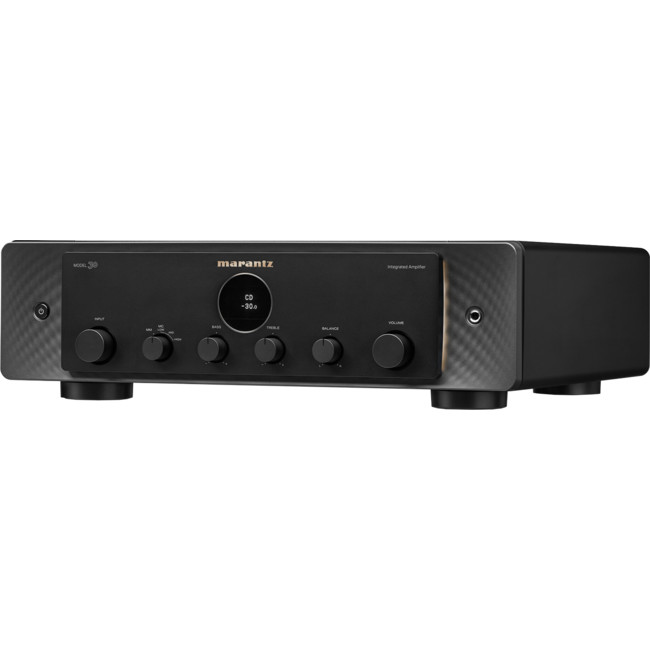

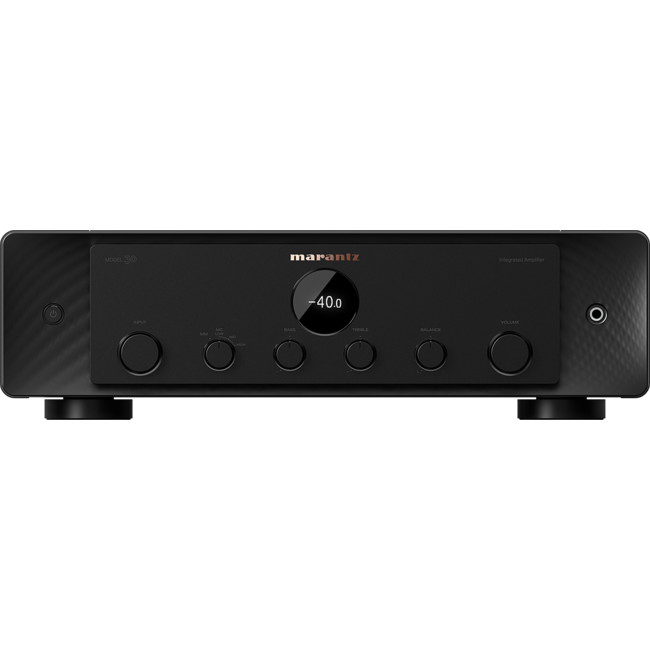

MASTER-TUNED INTEGRATED AMPLIFIER WITH CUSTOM-DESIGNED HDAM
Get the most musical sound possible from this Master-tuned integrated amplifier. Its custom-designed HDAM delivers exquisite detail and unforgettable musicality from any style of music.
A masterpiece of audio architecture
Featuring a fully discrete, two stage design for minimal interference, and unique Marantz HDAM technology for signal purity, MODEL 30 offers exceptional sound quality
Designed To Last
You see and feel it in the build quality and you hear it every time. No matter your musical passions, your music always sounds better with MODEL 30.
Tuned With Passion
Hundreds of hours of thoughtful Sound Master tuning ensure the exquisite detail and musicality Marantz always delivers.
Fully Discrete And Accurate Detailing
Marantz HDAM-SA3 technology is comprised of dozens of independent parts, each hand-selected for pure, detailed Marantz sound.
Extraordinary Sensitivity

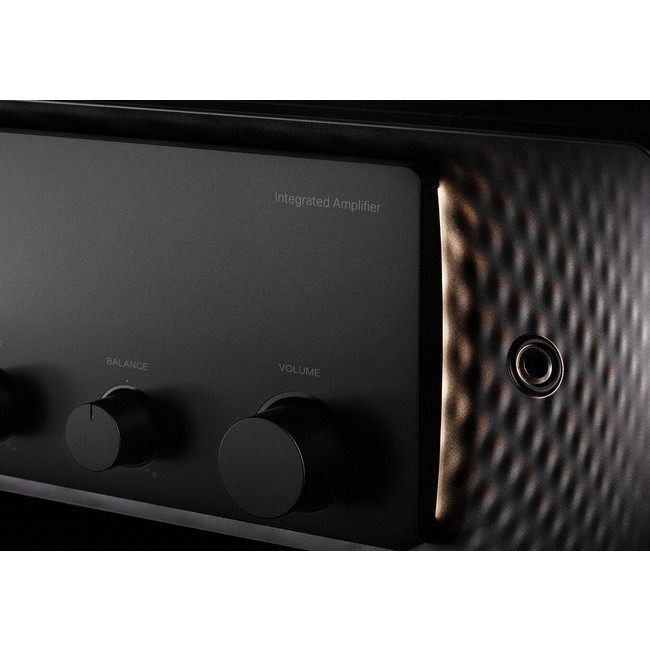

Designed to replicate the sensitivity and feel of a vintage analog amplifier even when simply adjusting the volume.
Exquisite Sound Tuning
MODEL 30 continues the renowned heritage of exquisite Marantz amplifiers. Tuned by the Marantz Sound Master who channeled his passion, experience, and extraordinary ear into the amplifier design.
The Most Musical, Accurate, Detailed Sound

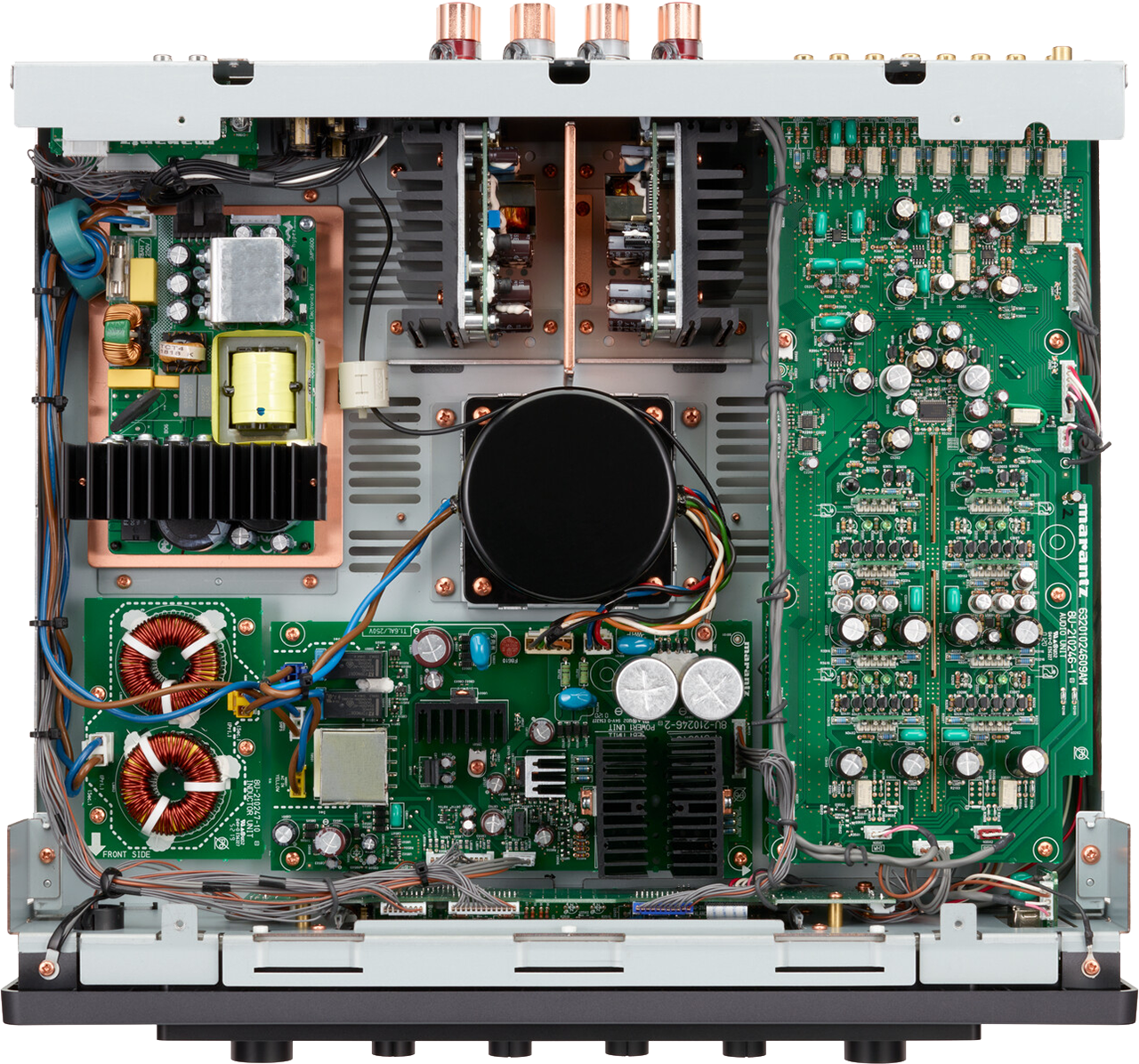

MODEL 30 is built on its own discrete circuit board, the Hyper-Dynamic Amplifier Module, or HDAM. By custom-curating hundreds of individual parts, rather than adopting an off-the-shelf solution, the MODEL 30 HDAM significantly outperforms standard integrated circuits to create the unique musicality you always expect from Marantz.
Marantz Musical Premium Phono EQ
Envisioned to deliver optimal sound quality by simplifying the signal path vital given the delicate nature of phono signals the Phono EQ stage in MODEL 30 can be used with both moving magnet and low-output moving coil cartridges, thanks to a built-in MC head amplifier.

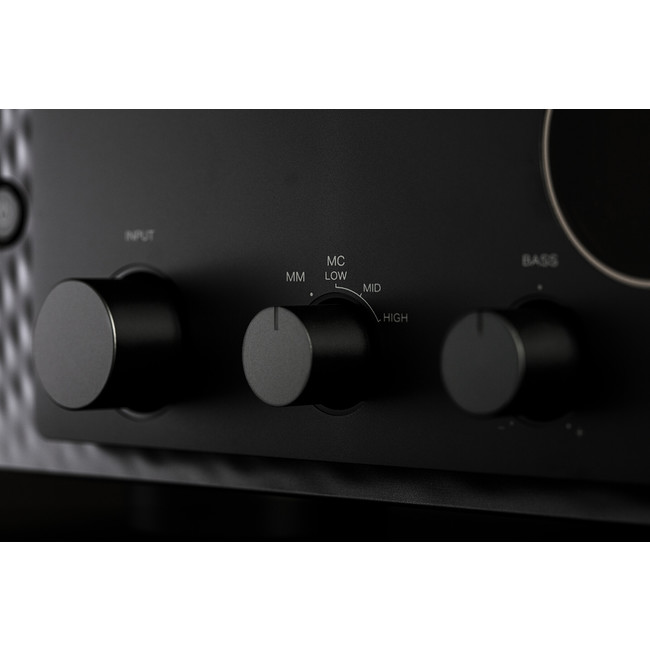

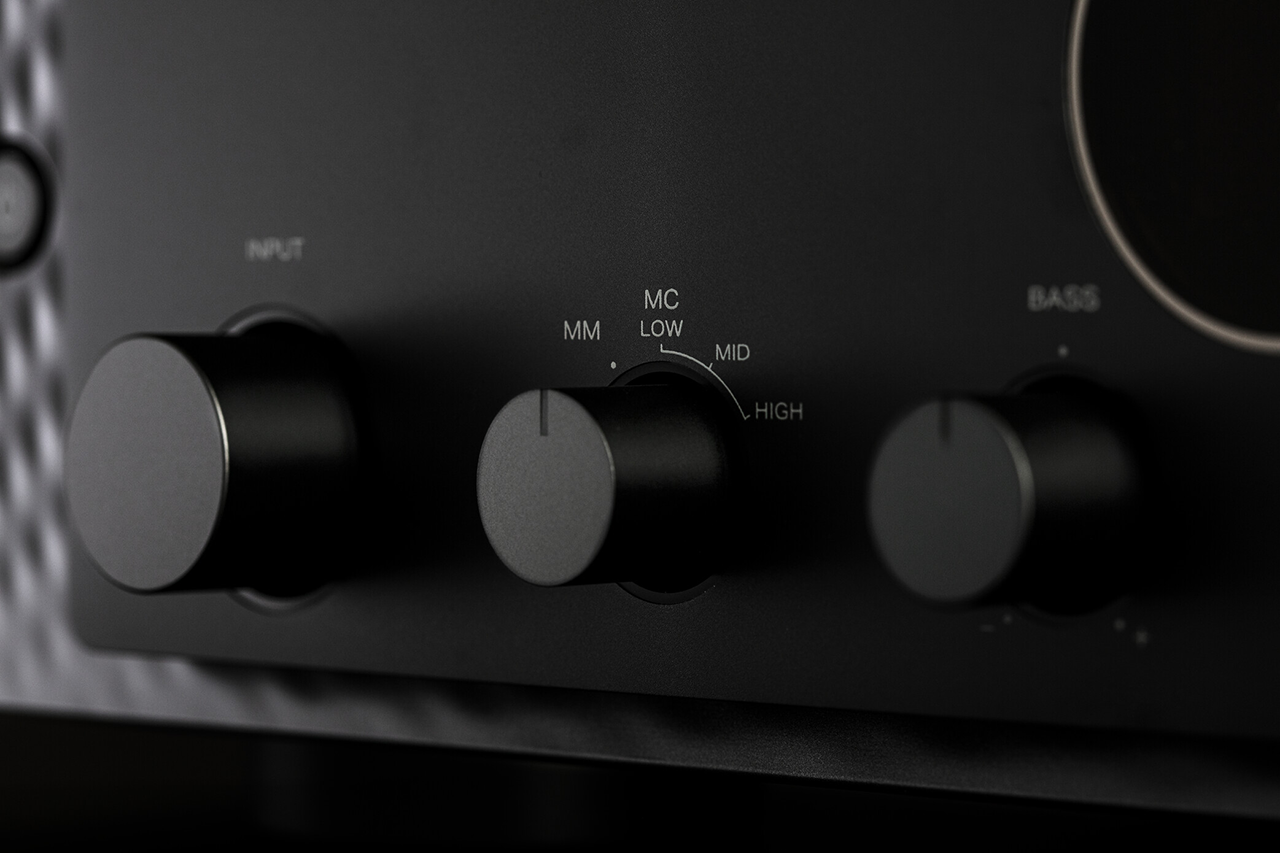

MC / MM Phono Input Impedance Selector
In order to optimize sound performance when using a moving coil (MC) or magnetic moving (MM) cartridge, and to accommodate all configurations as much as possible, MODEL 30 is equipped with an input impedance selector. The input impedance can be adjusted to three different settings: MC LOW (33 ohm), MC MID (100 ohm) and MC HIGH (390 ohm).
Built For Generations
Like its counterpart, the SACD 30n Streaming CD Player, the MODEL 30 Integrated Amplifier is designed to the highest standards.
More Than 65 Years Of Audiophile Heritage
Founded in 1953, Marantz has a long and rich history of designing audio components embraced by music lovers and critical listeners around the world. Because music matters, the MODEL 30 continues Marantz’s long tradition of delivering a best-in-class listening experience for music and cinema. Your music always sounds better on a Marantz.
{tab Specifications}
Technical Specifications
Features
| Aluminium extrusion heat sink | Yes (Separate) |
| Balance / Bass / Treble / Loudness | Yes / Yes / Yes / No |
| Channels | 2 |
| Current Feedback Topology | Yes |
| Customised Components | Yes |
| Digital in: USB-B / optical / coaxial / USB-A | No / No / No / No |
| HDAM version | SA3, SA2 |
| High Grade Audio Components | Yes |
| Phono EQ: Standard / Marantz Musical / Marantz Musical Premium | No / No / Yes |
| Power Transformer: Toroidal / El | SMPS |
| Symmetric PCB Layout | Yes |
General
| Auto Power off | Yes |
| Carton Maximum Dimensions (W x D x H) in mm | 534 x 522 x 255 |
| Carton Weight (inc. product) in kg | 17.6 |
| Detachable Power Cable | Yes |
| Maximum Dimensions (W x D x H) in mm | 443 x 431 x 130 |
| Metal Front Panel | Yes |
| Power Consumption in W | 130 |

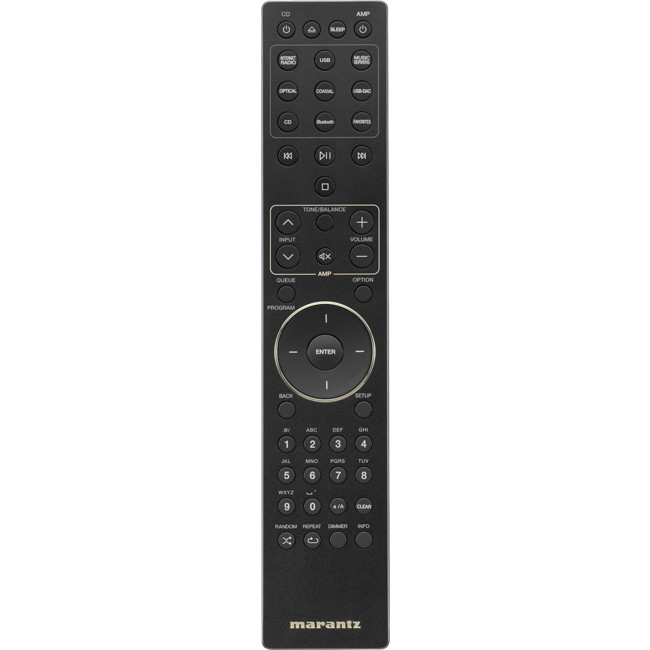

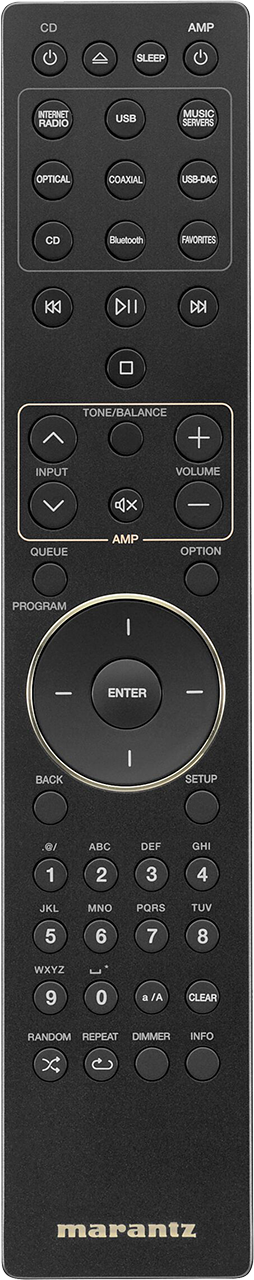

| Remote Control | RC002PMND |
| Standby Consumption in W | 0.2 |
| System Remote Function | Yes |
| Weight in kg | 14.8 |
Inputs/Outputs

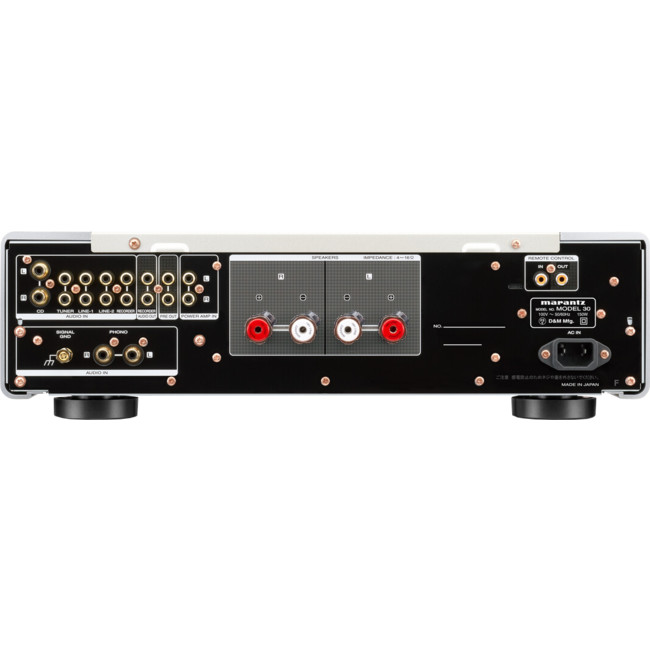

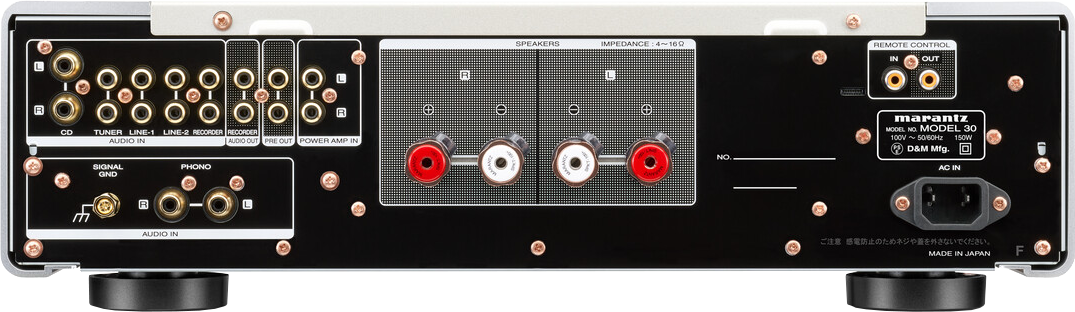

| Audio Inputs | 6 |
| Audio Outputs | 1 |
| Balanced In / Out | No / No |
| D-Bus | Yes |
| Digital in: USB-B / optical / coaxial / USB-A | No / No / No / No |
| Floating Control Bus (3.5 mm mono jack x 2) | No |
| Gold Plated Cinch | Yes |
| HDMI: inputs / outputs | No |
| Headphone Gain Control (low / mid / high) | No |
| Headphone Out | Yes |
| Number of terminals | 2 |
| Phono Input: MM / MC | Yes / Yes |
| Power Amp Direct IN | Yes |
| Pre-out / Main-in | Yes / No |
| Speaker A / B | No |
| Speaker Terminals | Marantz SPKT-100 |
Others
| 5mm aluminium top plate | No |
| BI-AMP and Multichannel option | No |
| Double Layer Bottom Plate | Yes |
| Input buffer amp (all inputs / CD only) | No / No |
| Linear Drive Power Supply | Yes (pre-amplifier stage) |
| Liniear volume control | Yes |
| Low noise LCD display | No |
| Low Noise OELD display | Yes |
| Marantz Musical Digital Filtering | No |
| Power Amp direct | No |
| Shottky diodes | Yes |
| Source Direct | No |
| System block shielding: Copper / metal / none | Yes / No / No |
Specifications
| Damping Factor | 500 |
| Frequency response | 5 Hz - 50kHz |
| Input Sensitivity: Balanced High level | No |
| Input Sensitivity: High level | 220 mV / 13 kohm |
| Input Sensitivity: MC | 250 |
| Input Sensitivity: MM | 2.3 mV / 39 kohm |
| Input Sensitivity: Power Amp Direct IN | No |
| Power Output (8 / 4 Ohm RMS) | 100 W / 200 W |
| Signal to Noise Ratio: High level | 107 dB(2V input/Rated output) |
| Signal to Noise Ratio: MM/MC | 88 / 75 dB |
| Signal to Noise Ratio: Power Amp Direct IN | No |
| Total Harmonic Distortion | 0.005% |
