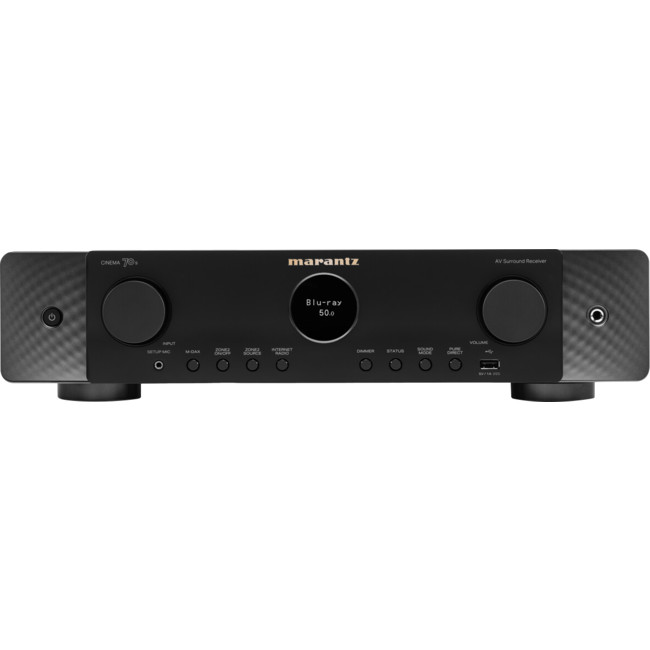

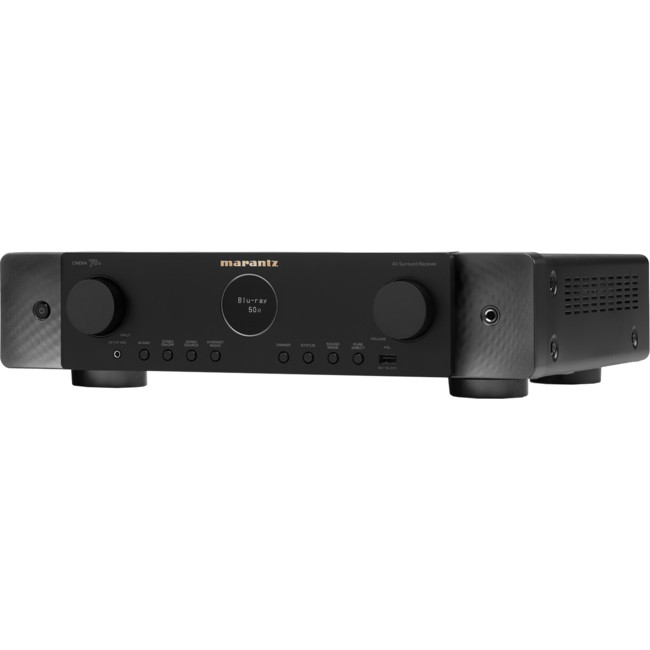

SLIMLINE 7.2 CHANNEL | 50-WATTS-PER-CHANNEL AV RECEIVER
Slimline 7.2 channel 50-watts-per-channel amplification, Dolby Atmos, DTS:X and 8K Ultra HD, and HEOS streaming built-in. CINEMA 70s appears discreet yet remains a highly capable AV receiver.
Excellence Only Begins with Performance
Built upon decades of rich heritage, designed with timeless style, and engineered for utmost performance, Marantz CINEMA Series receivers and amplifiers are the foundation of the world's most demanding home theatres.
Peerless Performance
Immersive spaciousness, warm and rich tone, and lifelike dynamics are legendary hallmarks of Marantz sound.
Leading Technology
CINEMA 70s comes replete with the latest immersive audio formats, 8K video, room optimization, streaming, and more technology to simplify and elevate your enjoyment.
Exquisite Slimline Design

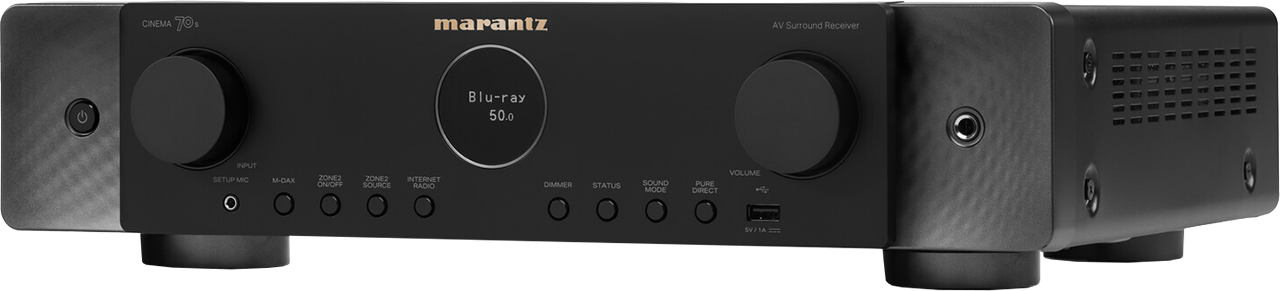

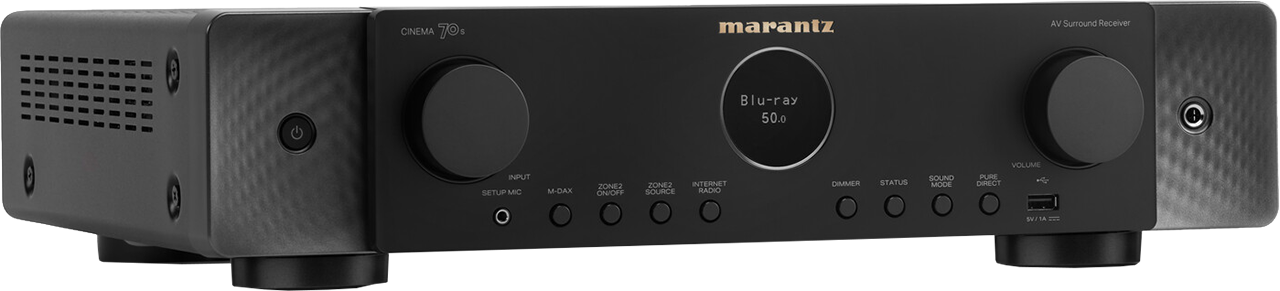

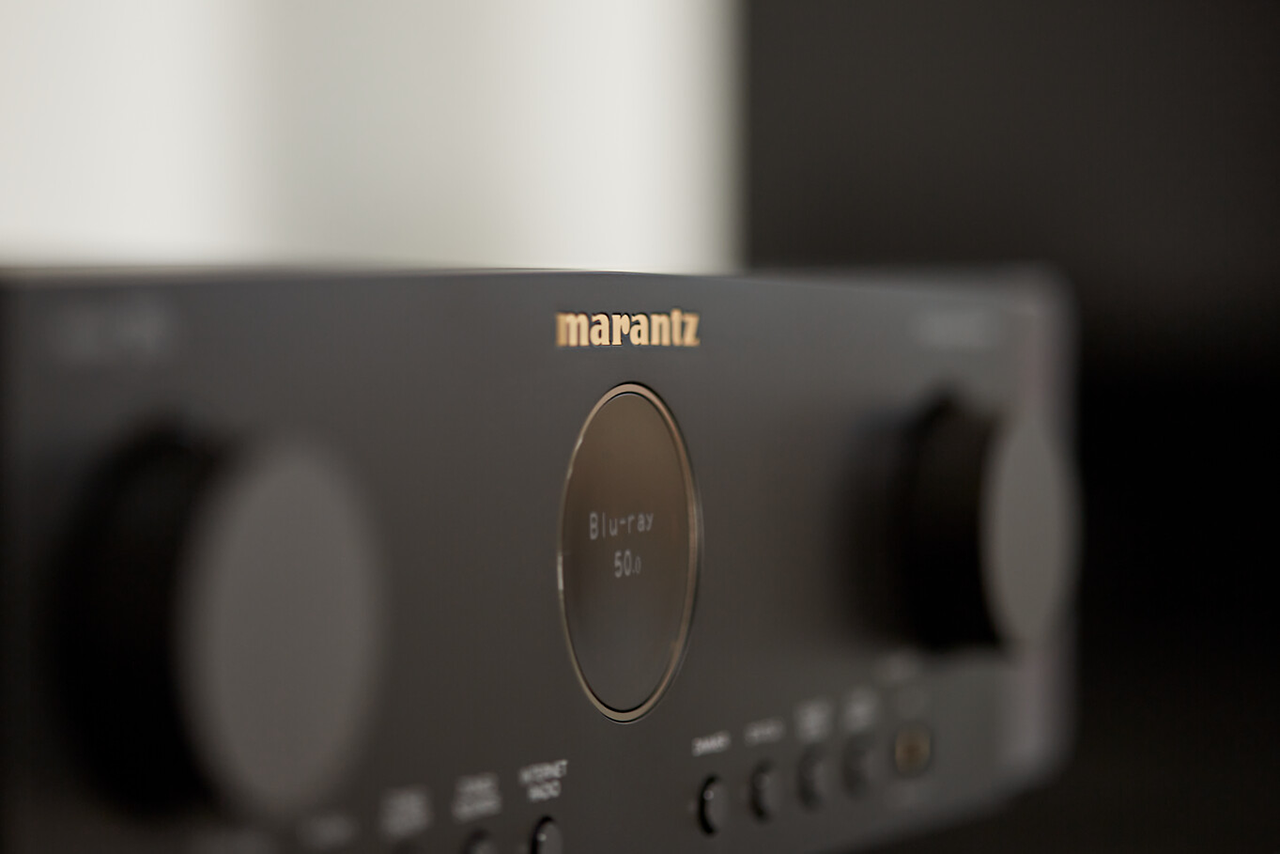

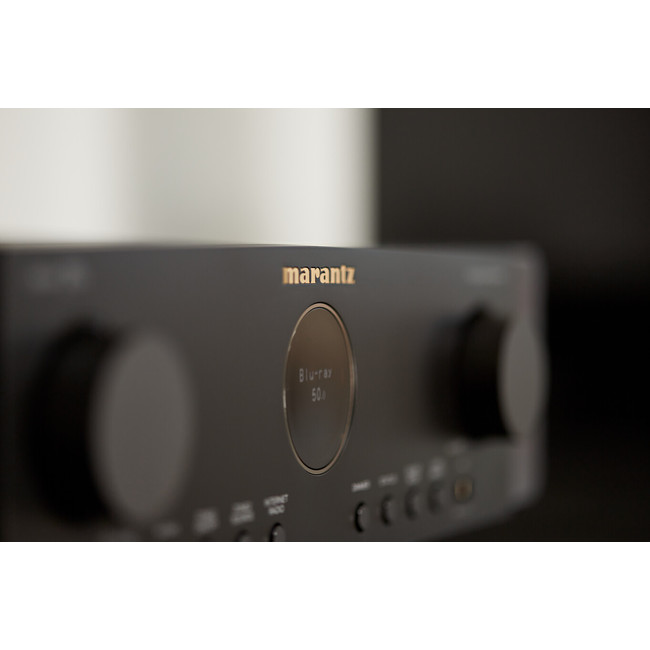

A modern expression of timeless design principles, CINEMA 70s features a highly compact slimline design, the iconic Marantz porthole, and symmetrical design.
Performance
The Marantz Sound Master meticulously tuned CINEMA 70s for amazing performance with careful parts selection to create the Most Musical Sound in your home.
Style

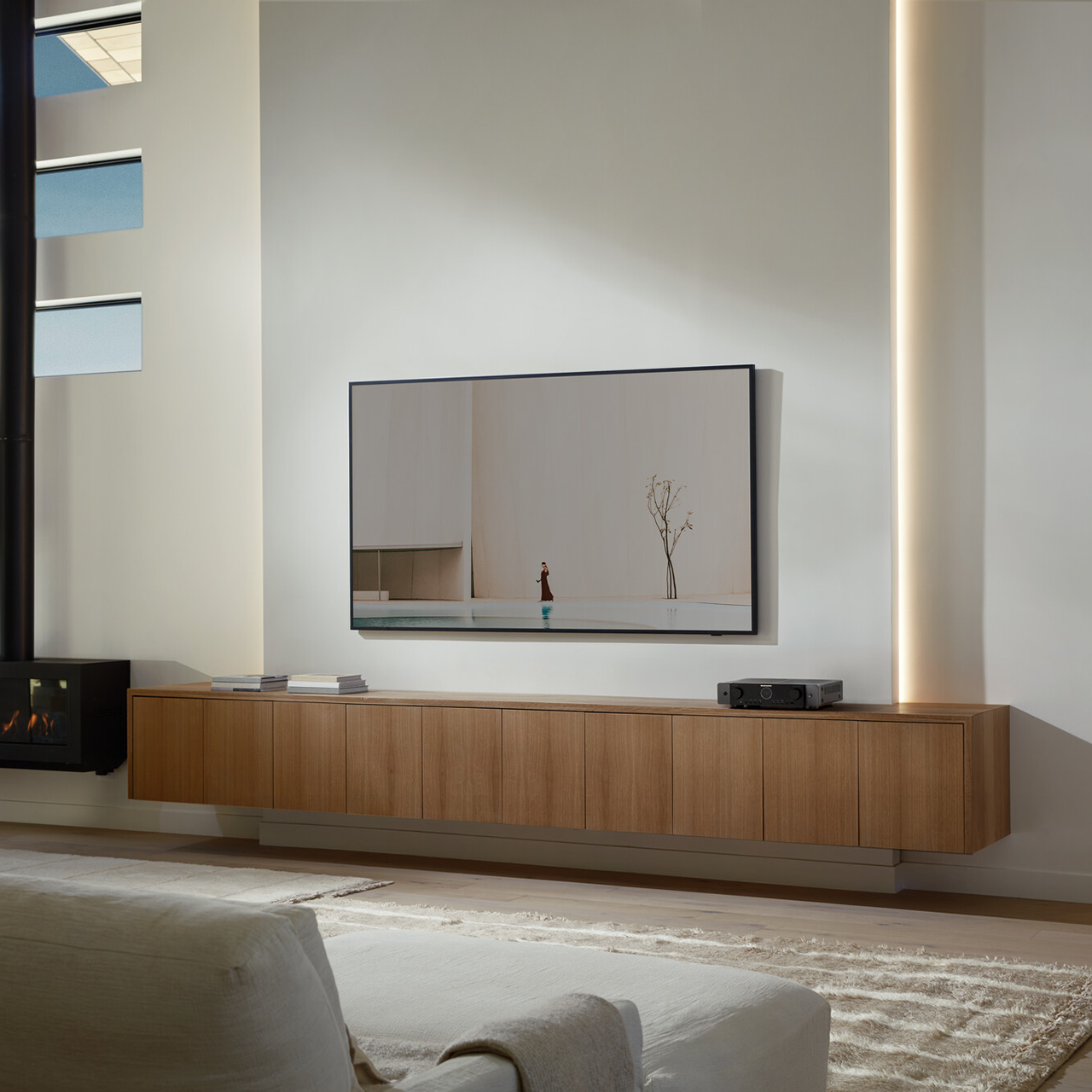

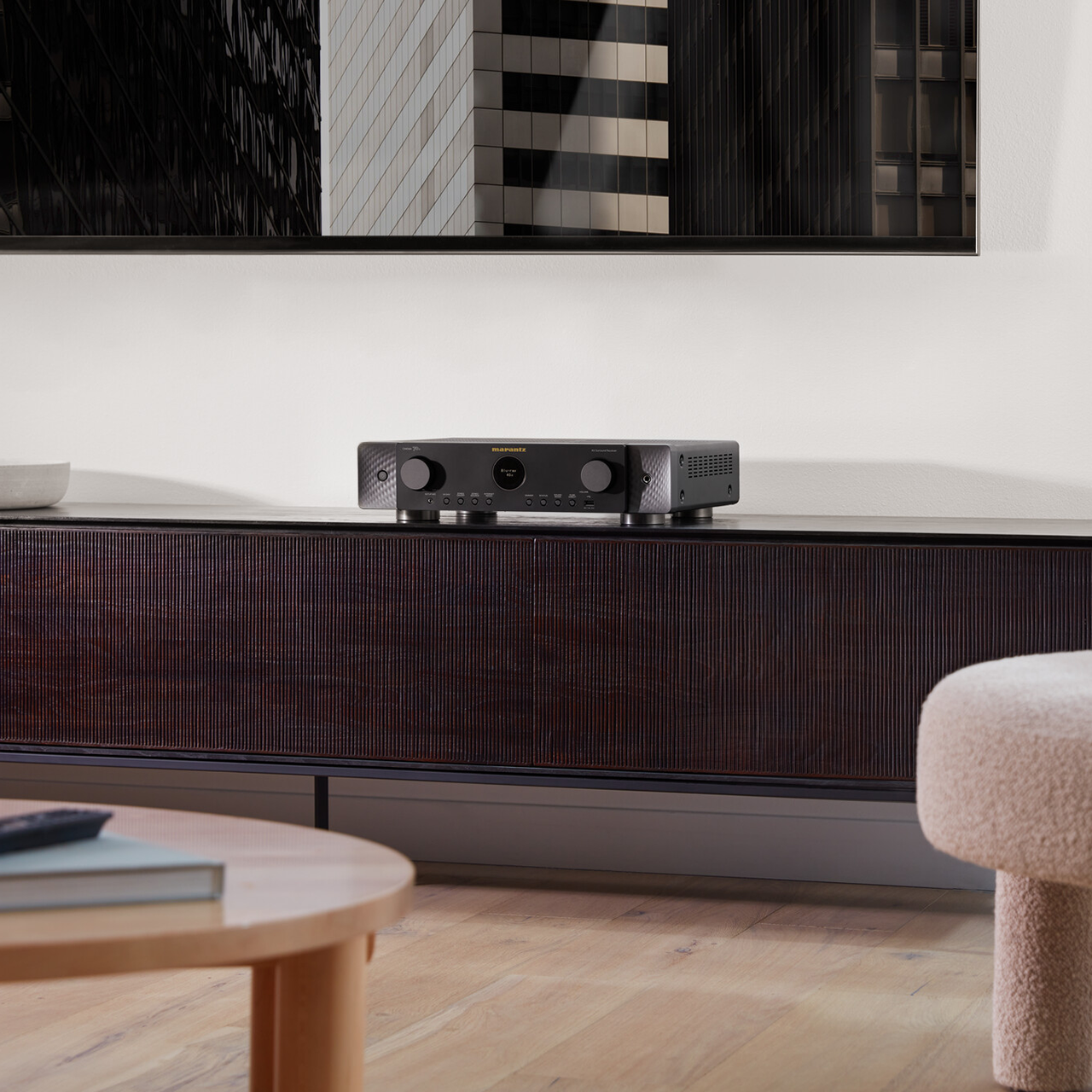

Excellence is heard and seen. CINEMA 70s slimline design is less than half the height of many receivers, but the design remains luxurious with every element carefully considered.
Customizability
Thoughtfully selected connectivity options and fine-tuning ability allow you to make CINEMA 70s your own.
Effortless
Included remote, accessible front-panel controls, and an intuitive on-screen setup process make you feel like an expert user right away.
Compatibility

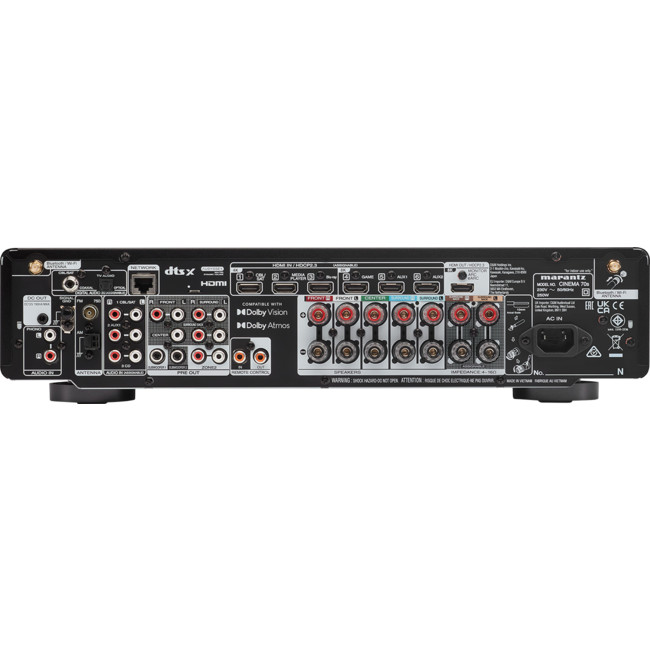

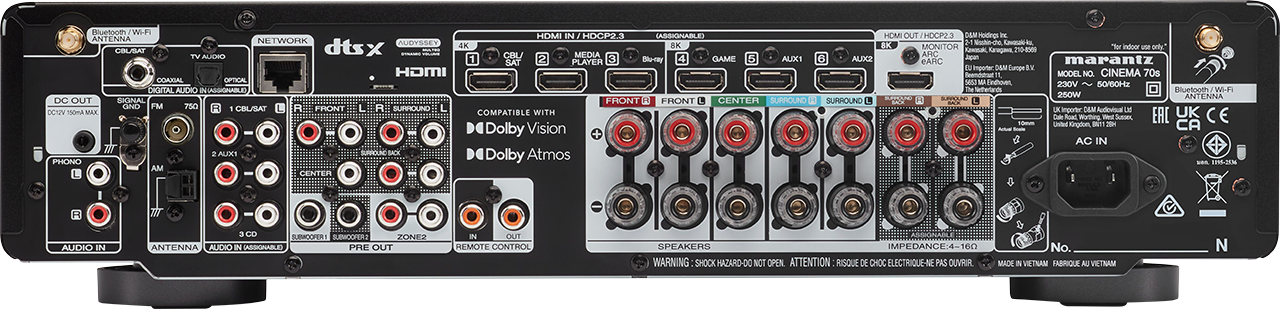

Six HDMI inputs, plus digital, analogue and phono inputs plus loudspeaker and preamp outputs ensure connectivity to virtually any other components you may have.
Upgradeability
Extensive input and output options plus a powerful software ecosystem make CINEMA 70s easy to upgrade as your home theatre grows.
{tab Specifications}\
Technical Specifications
Power Amplifier
| Number of Powered Channels | 7 |
| Power Output (8 ohm, 20 Hz - 20 kHz, 0.08% 2ch Drive) | 50 W |
| Power Output (8 ohm, 20 Hz - 20 kHz, 0.05% 2ch Drive) | - |
| Power Output (6 ohm, 1 kHz, 0.7% 2ch Drive) | 70 W |
| Power Output (6 ohm, 1 kHz, 10% 1ch Drive) | 100 W |
| 70% Guarantee | Yes |
| Discrete Power Amplifier | Yes |
| Amplifier Topology | Class A/B |
| Current Feedback Topology | No |
| Bi-Amp Drive | assignable |
Multichannel Surround Technologies
| DTS | DTS HD Master, DTS:X, DTS Neural:X, DTS Virtual:X |
| Dolby | Dolby TrueHD, Dolby Atmos, Dolby Atmos Height Virtualization, Dolby Atmos Music, Dolby Surround |
| Other | |
| Max Number of Processing (Preamp) Channels | 7.2 |
Inputs/Outputs
| Composite In / Out | 0 / 0 |
| Component In / Out | 0 / 0 |
| HDMI In / Out | 6 / 1 |
| Multi-Room Video Out via HDMI | 0 / 0 |
| Analog In / Fixed Level Out | 3 in / 0 out |
| Phono (MM) In | Yes |
| Digital In: Optical / Coaxial | 1 / 1 |
| Multi-Room Out: analog / digital | 1 / 0 |
| Multichannel Preamp Out | 7.2 |
| Subwoofer Out | 2 |
| 7.1 multichannel input | No |
| Number of Speaker Terminals | 7 |
| Speaker A / B | assignable |
| Multi-Room Speaker Terminal | assignable |
| Front Inputs | USB-A |
| USB Audio | Yes / No / No |
| FM Tuner with RDS | Yes |
| DAB Tuner | No |
HDMI
| Total HDMI Inputs / No. Support 8K | 6 / 3 |
| HDCP2.3 support | Yes |
| HDMI Outputs: Main / Zone | 1 / 0 |
| Analog to HDMI Video Conversion | No |
| HDMI Upscaling | 1080P/4K to 8K |
| Max resolution @ framerate | |
| Audio Return Channel | eARC |
| Video Dynamic Range | HDR / HLG / Dolby Vision / HDR10 / Dynamic HDR |
| ALLM (Auto Low Latency Mode) Pass-through for gaming | Yes |
| Variable Refresh Rate / Quick Frame Transport | Yes / Yes / No |
| HDMI Pass-Through in Standby Mode | Yes |
| CEC | Yes |
| DSD Audio over HDMI | No |
| Auto LipSync | Yes |
Performance Technologies
| Copper Plated Chassis | No |
| Toroidal Power Supply Transformer | No |
| Hyper Dynamic Amplifier Modules (HDAM) (List version) | No |
| Pure Direct Mode | Yes |
| Gold Plated RCA Terminals | No |
| Clock Jitter Reducer | No |
Acoustic / Room Correction
| Audyssey | MultEQ |
| Audyssey Dynamic EQ / Dynamic Volume | Yes / Yes |
| Audyssey LFC | No |
| Dirac Live Support | No |
| Variable Cross Over | Yes |
| Optimized Bass Redirection | Yes |
| Bass Sync | No |
Music File Support
| Lossy Formats | MP3 / WMA / AAC |
| Lossless formats | FLAC HD 192/24 / WAV 192/24 / ALAC 192/31 |
| DSD Audio | 2.8 MHz / 5.6 MHz |
| Gapless Playback | FLAC, WAV ,ALAC ,DSD |
| Compressed Audio Enhancer: MDAX2 | Yes |
| Network Audio Sharing | Yes |
Streaming Services
| HEOS Multi-room and Streaming | Yes |
| AirPlay Audio Streaming | AirPlay2 |
| Internet Radio | TuneIn |
| Spotify* | Spotify Connect |
| Pandora | Yes |
| SiriusXM | Yes |
| Other Streaming Services * | Amazon Music HD/
Amazon Music / TIDAL / Deezer / Napster / Soundcloud / Mood Mix |
| Roon tested | Yes |
Network Connectivity
| Ethernet Ports | Yes |
| Wi-Fi (include version / band) | Yes |
| Bluetooth (Include version) | Yes |
| Bluetooth Re-transmit for Bluetooth headphones | Yes |
Smart Home Integration And Control
| Voice Assistant Compatibility | Alexa / Google Voice Assistant / Apple HomePod |
| App for Smart Phones & Tablets (iOS & Android) | Marantz AVR App |
| HEOS Multi-Room Integrated | Yes |
| HEOS Link Compatibility: IR/ IP | Yes /Yes |
| Multi-Room zones | 2 |
| Zone Audio Source: HDMI / Opt, Coax / Network, USB / Analog | 2 Ch / 2 Ch / Yes / Yes |
| Zone Audio Output: Speaker / Preout | Yes / Yes |
| Zone HDMI Output from HDMI Source | No |
| Control Connectivity | IP Control / Web Control / App Control |
| IR Flasher In | Yes |
| Marantz Remote Bus | Yes |
| DC Trigger Output | 1 |
| HDMI Diagnostics | Yes |
Others
| Front Display | port hole OLED |
| Primary Display Size (diagonal in/mm) | |
| Secondary Display Size (diagonal in/mm) | |
| GUI Languages | 9 |
| Setup Assistant | Yes |
| Smart Select on Remote | Yes |
| Firmware Update by Network / USB | Yes / Yes |
| ECO Mode | Yes |
| Auto Power off | Yes |
| Sleep Timer | Yes |
General
| Availabe colours | Black/Silver-Gold |
| Metal Front Panel | No |
| System Remote Control | RC-050SR |
| Power Consumption in W | 250 |
| Power Consumption No-Sound (ECO on/off) in W | 30 W / 40 W |
| Standby Consumption in W | 0.2 |
| CEC Standby Consumption in W | 0.5 |
| Network Standby Consumption in W | Less than 2.0 |
Maximum Dimensions
Antenna:Horizontal:(W x D x H) in mm
Antenna:Vertical :(W x D x H) in mm
W/o Antenna:(W x D x H) in mm | 442 x 384 x 109
( 442 x 384 x 178 )
? 442 x 372 x 109 ? |
| Weight in kg | 8.7 |
| What's in the box | Main unit, remote control, batteries, AM/FM antennas, wire labels, quick start guide, Audyssey microphone, card board microphone stand, 2 External Detachable Antenna, AC cord |
