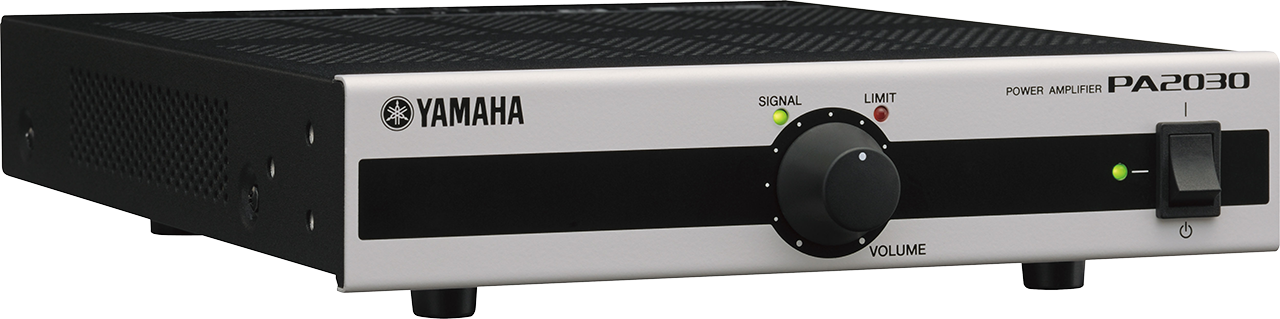

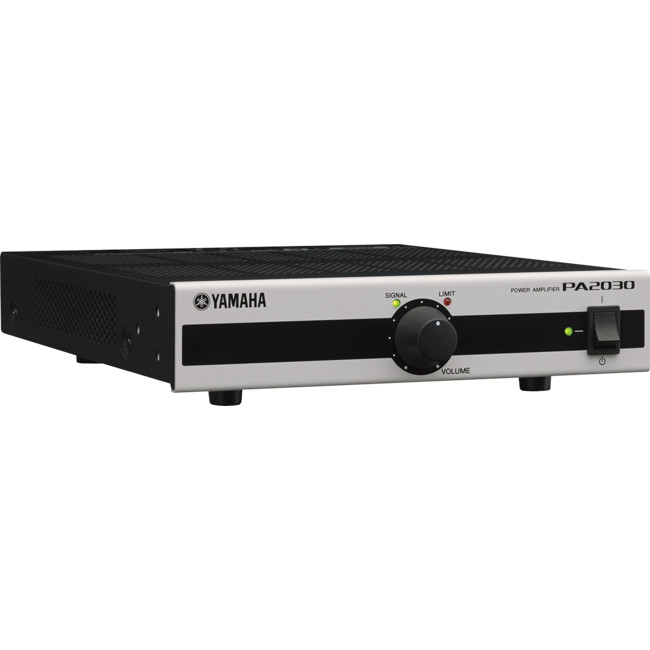

PA2030A 60W POWER AMPLIFIER

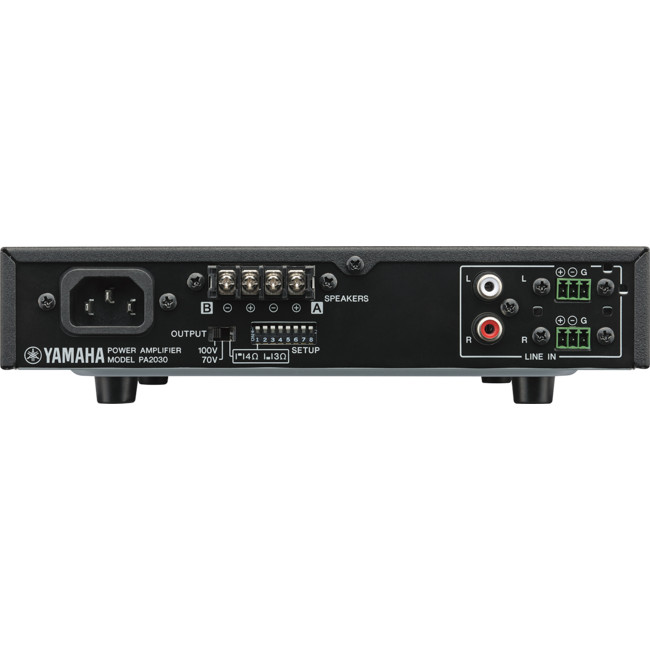

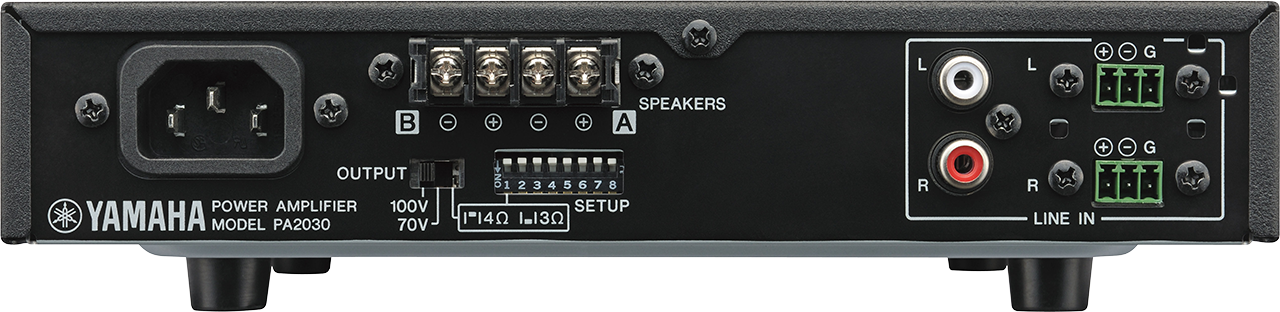

The PA2030A includes a speaker EQ that can be selected via a rear-panel DIP switch to provide ideal equalization for Yamaha VXC or VXS series speakers.

• Easy setup, and a user-friendly interface for effortless operation
• Ideal partner for the MA2030A mixer amp with 3 stereo inputs and 2 microphone inputs
• Switchable for Lo-Z (3 ohm / 4 ohm) or Hi-Z (70V/100V) speaker systems
• Built-in EQ for optimum Yamaha VXC/VXS series speaker performance
• by adding a PA2030A Service zones can be expanded
• Remote volume control and microphone on/off switching via the optional DCP1V4S control panel
• Yamaha quality control ensures safe, reliable operation
• Space-saving 1U half-rack size*
• * Sufficient space must be provided above and below the unit for airflow and cooling.

With a quick, easy setup and simple intuitive operation, it's never been easier to bring your commercial space to life than with Yamaha's newest additions to their Commercial Installation Solutions lineup, the MA2030A and PA2030A compact power amplifiers.

Whether providing background music for a cafe or restaurant, or powering a conference room or any number of applications requiring a microphone, the MA2030A and PA2030Aprovides you with a compact, yet powerful tool to help shapeyour ideal commercial sound environment.

The MA2030A Mixer Amplifier and PA2030A Power Amplifier feature interfaces that have been specifically designed for effortless operation.

A layout that gives priority to the frequently used output volume knob while other controls are visually subdued, for example, significantly enhances control efficiency in normal day-to-day operation.

And there's no need for computers or complex programming procedures for installation or operation.

After a quick, easy setup procedure that requires no special knowledge or skill, the system is ready to deliver outstanding sound in a wide range of applications.

Both the MA2030A and PA2030A directly support low impedance and high impedance speaker systems without the need for additional transformers or other hardware that can take up valuable installation space.

When used to drive a 3 ohm or higher low-impedance speaker system (3 ohm / 4 ohm selectable) the amplifiers deliver up to 30W per channel into two channels.

With a high-impedance 70V or 100V line connection output is a single channel at up to 60W.

That's ideal output power for a variety of small installations.

And since the MA2030A and PA2030A can be used with all Yamaha commercial installation speakers*, you have the choice and flexibility to design a sound system that ideallymeets your specific requirements.

*Includes the VXS series, VXC series, VS series, S series, NS-AW series and NS-IC series.

At the heart of both the MA2030A and PA2030A is a high-efficiency Class D amplifier that delivers sufficient power for small scale applications while consuming minimal mains power during operation.

For absolutely quiet operation as well as superior reliability, both models feature thermal designs that achieve efficient cooling without the need for cooling fans.

Intelligent protection functions inherited from our flagship models are included in the power supply and amplifier sections to prevent damage to the amplifier as well as the connected speaker system in the case of overload.
