Offering high-end performance at affordable cost. Think of TOA when you need amplifiers for commercial audio applications.

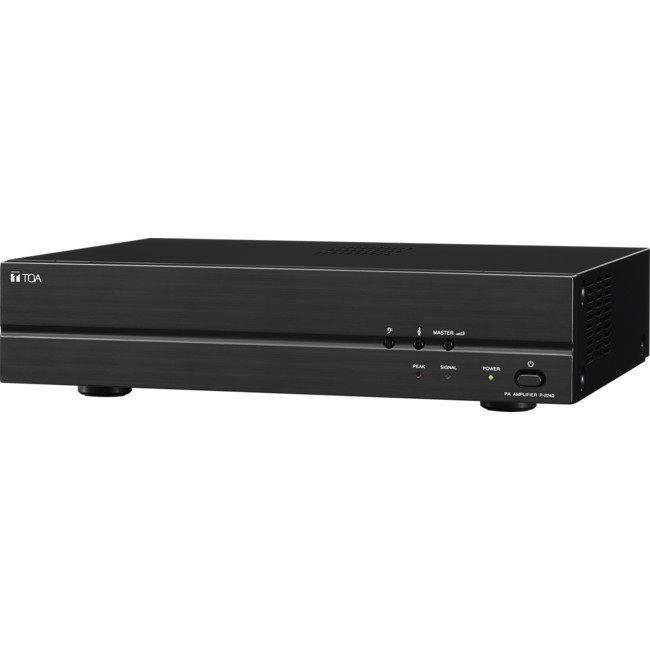

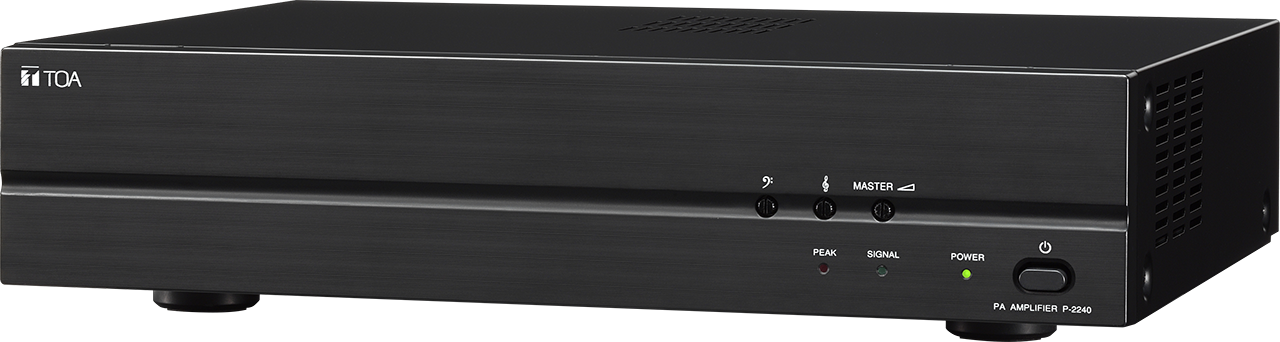

The P-2240 offers a high performance-to-cost ratio, andcan be used with TOA’s A-2000 Series mixer power amplifiers. Because the P-2240 features
a 100V line input, it can be connected to the speaker line from another amplifier. Also, the P-2240’s power can be switched on and off by remote control, allowing it to be operated independently of the A-2000 Series.
| Model No. | A-2030 | A-2060 | A-2120 | A-2240 | P-2240 |
| Power Source | 220 – 240V AC or 24V DC |
| Rated Output | 30W | 60W | 120W | 240W | 240W |
| Power Consumption | 34W (EN60065), 78W (AC operation atrated output), 2A (DC operation at rated output) | 72W (EN60065), 150W (AC operation at rated output), 4A (DC operation at rated output) | 124W (EN60065), 260W (AC operation at rated output), 8A (DC operation at rated output) | 238W (EN60065), 520W (AC operation at rated output), 15A (DC operation at rated output) | 238W (EN60065), 520W (AC operation at rated output), 15A (DC operation at rated output) |
| Frequency Response | 50 – 20,000Hz (±3dB) |
| Distortion | Under 1% at 1kHz, 1/3 rated power |

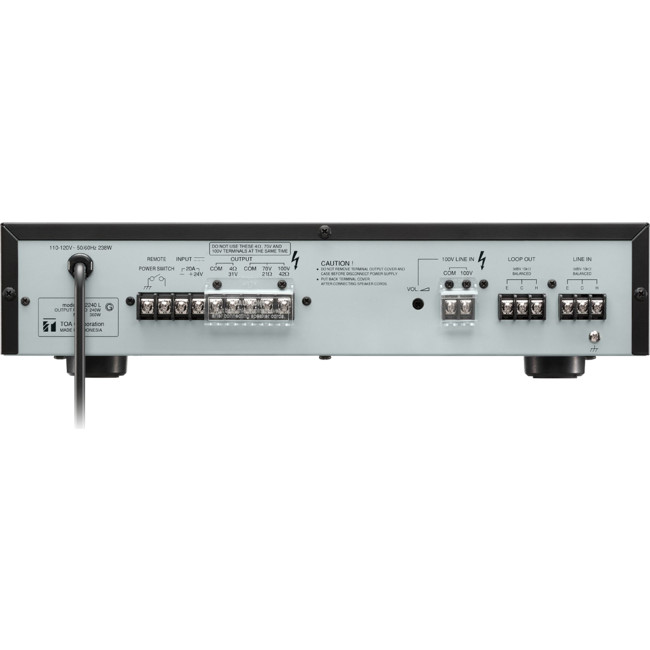

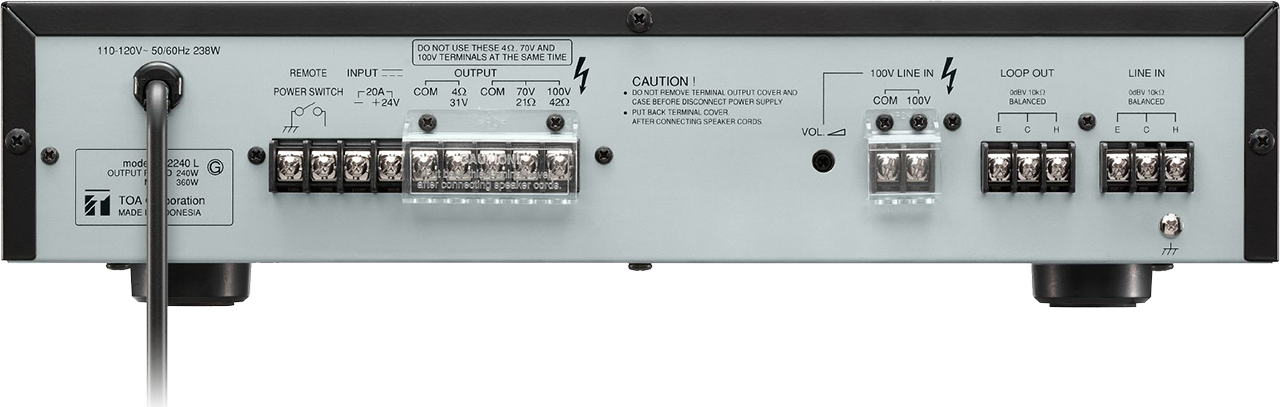

| Input MIC | MIC 1 – 3: -60dB*, 600Ω, electronically balanced, XLR3-31 type AUX 1, 2: -20dB*, 10kΩ, unbalanced, RCA pin jack Mute: Contact screw terminal (for MIC 1) | Line in: 0dB*, 10kΩ, balanced, screw terminal 100V line in: 40dB*, 330kΩ, unbalanced, screw terminal Power remote control: Make contact |
| Output - Loop out | — | — | — | — | 0dB*, 10kΩ, balanced, screw terminal |
| Output - Speaker out | Balanced (floating) | Balanced (floating) | Balanced (floating) | Balanced (floating) | Balanced (floating) |
| Output - High impedance | 330Ω (100V), 170Ω (70V) | 170Ω (100V), 83Ω (70V) | 83Ω (100V), 42Ω (70V) | 42Ω (100V), 21Ω (70V) | 42Ω (100V), 21Ω (70V) |
| Output - Low impedance | 4Ω (11V) | 4Ω (15.5V) | 4Ω (22V) | 4Ω (31V) | 4Ω (31V) |
| Output - Rec. out | 0dB*, 600Ω, unbalanced, RCA pin jack | 0dB*, 600Ω, unbalanced, RCA pin jack | 0dB*, 600Ω, unbalanced, RCA pin jack | 0dB*, 600Ω, unbalanced, RCA pin jack | — |
| Phantom Power | DC 21V (MIC 1) | — |
| S/N Ratio | Over 60dB |
| Ventilation | — | Fan cooling |
| Tone Control | Bass: ±10dB at 100Hz/Treble: ±10dB at 10kHz |
| Muting | MIC 1: Mutes other input signals by 0 – 30dB attenuation | — |
| Indicator | Power. signal, peak |
| Finish | Panel: ABS resin, black/Case: Steel plate, black |
| Dimensions | 420 (W) × 100.9 (H) × 280.3 (D)mm | 420 (W) × 100.9 (H) × 360.3 (D)mm | 420 (W) × 100.9 (H) × 351.3 (D)mm |
| Weight | 5kg | 7kg | 10.8kg | 13.2kg | 13.2kg |
