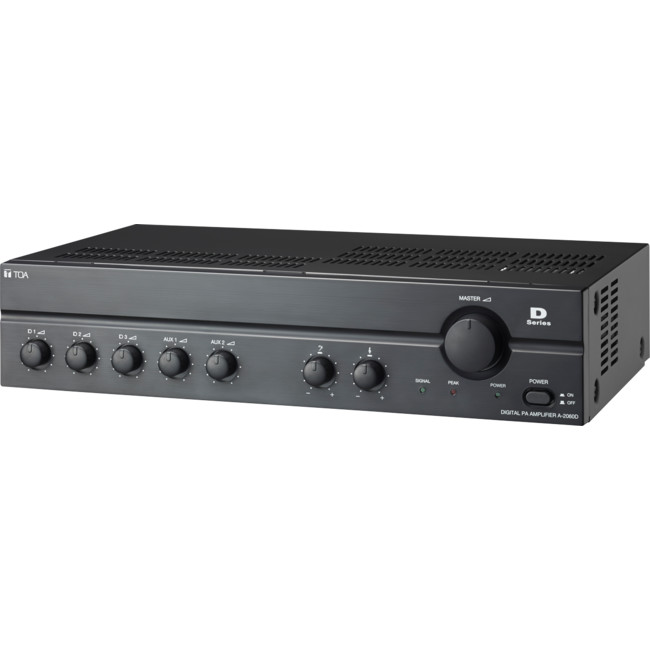

60W A-2000D Series 100v ( only )mixer amplifier
The A-2000D series is a range of high performance digital mixer power amplifiers suited for broadcasting paging and/or background music in schools, retail shops, offices, factories, houses of
worship and large function rooms.
A-2000D Series Mixer Power Amplifiers are designed to be highly cost effective solutions to the demands of PA applications.
. The A-2000 series makes available a wide range of power outputs (A-2030D: 30W, A-2060D: 60W, A-2120D: 120W, A-2240D: 240W), with a frequency response of 50 – 20,000 Hz and distortion under 1%.
Three balanced/XLR3-31 type MIC inputs and two unbalanced/RCA pin jack AUX inputs, along with high impedance balanced (floating) speaker outputs and unbalanced REC outputs ensure operational versatility.
Phantom power and Vox muting are available on MIC 1, along with tone control for bass and treble.
Power, signal and peak indicators are provided.
All 2000D Series Mixer Amplifiers Feature:
- 100 volt output
- 3 balanced XLR microphone inputs with phantom power onmic 1
- Vox muting on mic 1
- Bass and treble control with boost and cut
- 50Hz to 20kHz frequency response
- 240VAC or 24VDC operation
- Rack mountable with MB25B brackets
- 3 year warranty
Specifications
| MODEL | A2060D |
| Power Source | 220 – 240V AC, 50/60 Hz |
| Rated Output | 60 watt |
| Power Consumption | 16W (AC operation at 1/8 maximum output without clip) |
| Frequency Response | 50 – 20,000Hz (±3dB) |
| Distortion | Under 1% at 1 kHz, 1/3 rated power |
| Input | MIC 1 – 3: -60dB*, 600Ω, Balanced, 3P XLR AUX 1, 2: -20dB*, 10 kΩ, Unbalanced, RCA pin jack |
| Output | Speaker out: Balanced (Floating) High Impedance: 170 Ω (100V) Rec out: 0 dB*, 600Ω, Unbalanced, RCA pin jack |
| Tones | Nil |
| Phantom Power | DC 21V (MIC 1) |
| Signal to noise ratio | Over 60dB |
| Tone Control | Bass: ±10dB at 100Hz/Treble: ±10dB at 10kHz |
| Muting | MIC 1: Mutes other input signals by 0 – 30dB attenuation |
| Indicator | Power LED, peak LED, signal LED |
| Dimensions | 420 (W) × 100.6 (H) × 280.3 (D) mm |
| Weight | 4.6 kg |
| *0dB = 1V | |
