Outline |
Type | 2-way Bi-amp Powered Speaker with mixer | 2-way Bi-amp Powered Speaker with mixer |

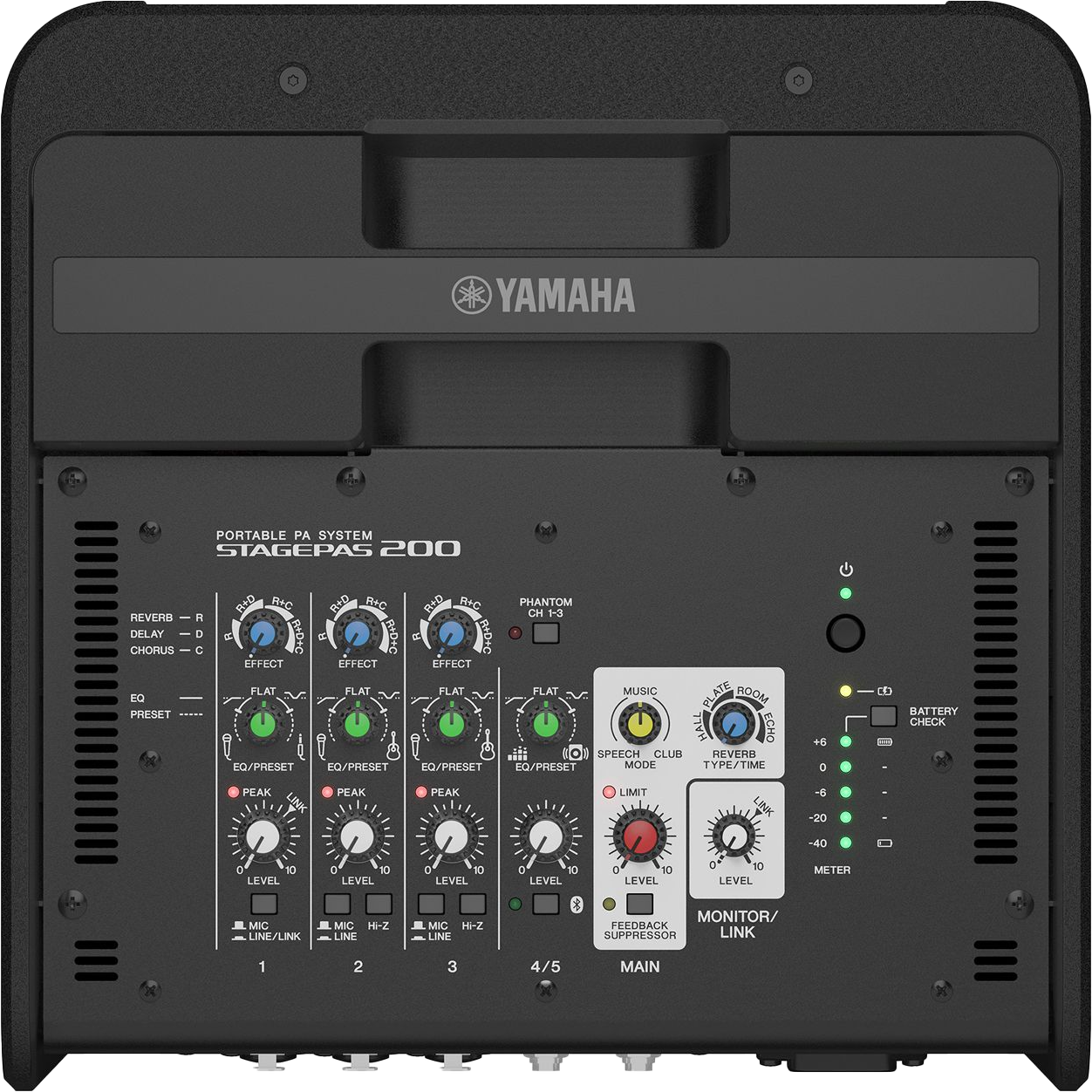

Mixing capability | Mixing channels | 5 (Mono x3 Stereo x1) | 5 (Mono x3 Stereo x1) |
Input channel functions | Hi-Z: CH2/3, 1-knob EQ/Preset: CH1-3/ST | Hi-Z: CH2/3, 1-knob EQ/Preset: CH1-3/ST |
Output channel functions | MODE (SPEECH/MUSIC/CLUB) | MODE (SPEECH/MUSIC/CLUB) |

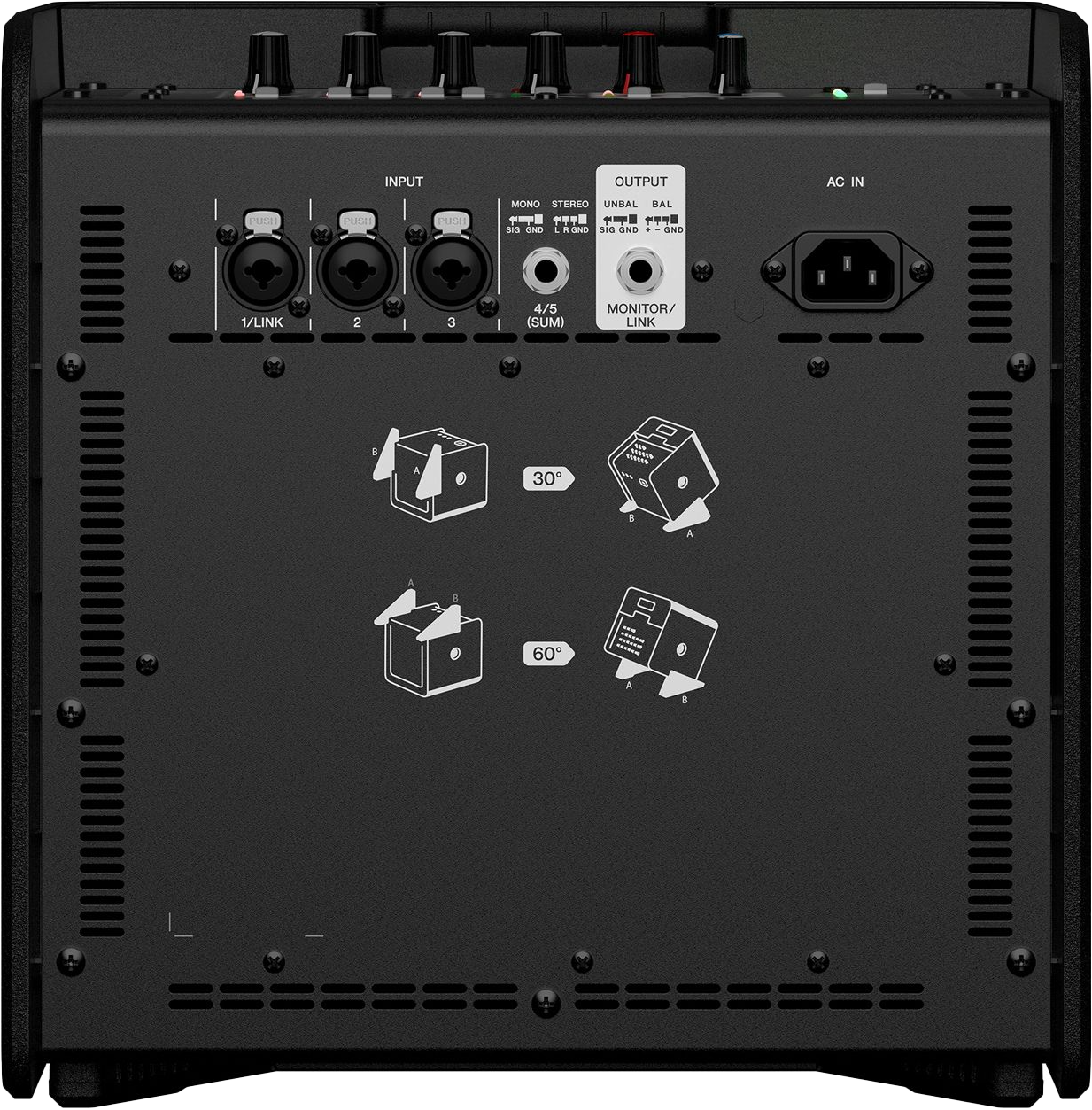

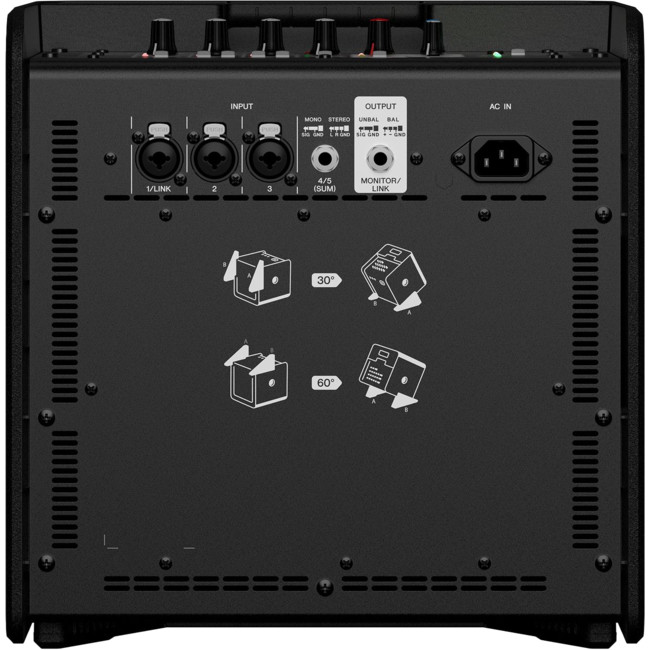

I/O | Inputs | Mono x3 (mic/line) Stereo/Mono x1 (line) | Mono x3 (mic/line) Stereo/Mono x1 (line) |
Outputs | Monitor/Link out x1 | Monitor/Link out x1 |
Bluetooth | Ver.5.0, A2DP (SBC, AAC), Class 1 | Ver.5.0, A2DP (SBC, AAC), Class 1 |
Control and others | STAGEPAS Controller (iOS/Android app) | STAGEPAS Controller (iOS/Android app) |
On-board processors | DSP | SPX digital reverb (4 program, parameter control), delay, chorus | SPX digital reverb (4 program, parameter control), delay, chorus |
General specifications |
Speaker type | Coaxial speaker with compression driver | Coaxial speaker with compression driver |
Frequency range (-10dB) | 60 Hz – 20 kHz | 60 Hz – 20 kHz |
Coverage area | H90? x V90? | H90? x V90? |
Crossover | 2.0 kHz | 2.0 kHz |
Maximum output level (1m; on axis) | 125 dB SPL *1 | 125 dB SPL *1 |
Components | LF | 8" Cone, 2.0" voice coil | 8" Cone, 2.0" voice coil |
HF | 1" throat compression driver, 1.4" voice coil | 1" throat compression driver, 1.4" voice coil |
Amplifier class | Class-D | Class-D |
Power rating | Dynamic | 180 W (LF: 150 W, HF: 30 W) | 180 W (LF: 150 W, HF: 30 W) |
Cooling | Natural convection (no fan) | Natural convection (no fan) |
Power consumption | 10 W (Idle), 20 W (1/8 power) | 10 W (Idle), 20 W (1/8 power) |
Power requirements | 100-240 V 50/60 Hz, or 29.6 Vdc | 100-240 V 50/60 Hz, or 29.6 Vdc *2 |
Battery | Type | Rechargeable Lithium ion battery pack | - |
Capacity | 79.92 Wh (2700 mAh, 29.6 V) | - |
Operating Time | Maximum 10 hours, 1/16 power continuous 8 hours | - |
Charging Time | Approx. 4 hours | - |
Cabinet material | Plastic (ABS) | Plastic (ABS) |
Handle | Top x1 | Top x1 |

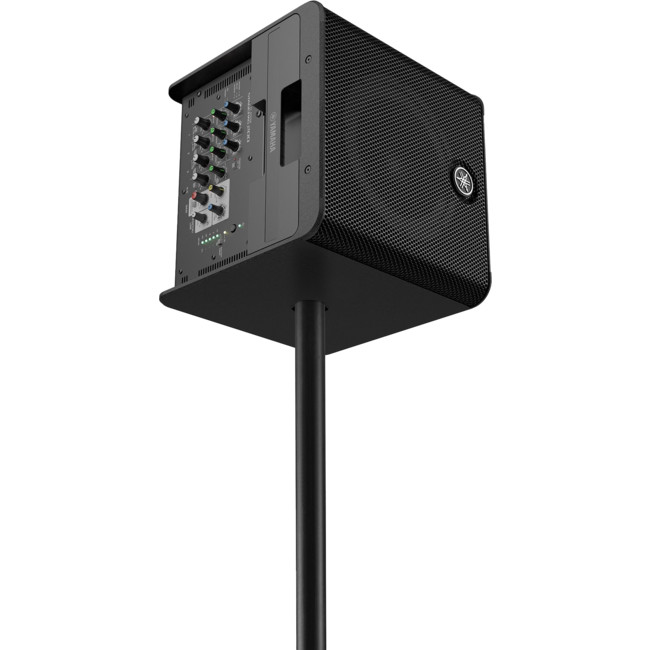

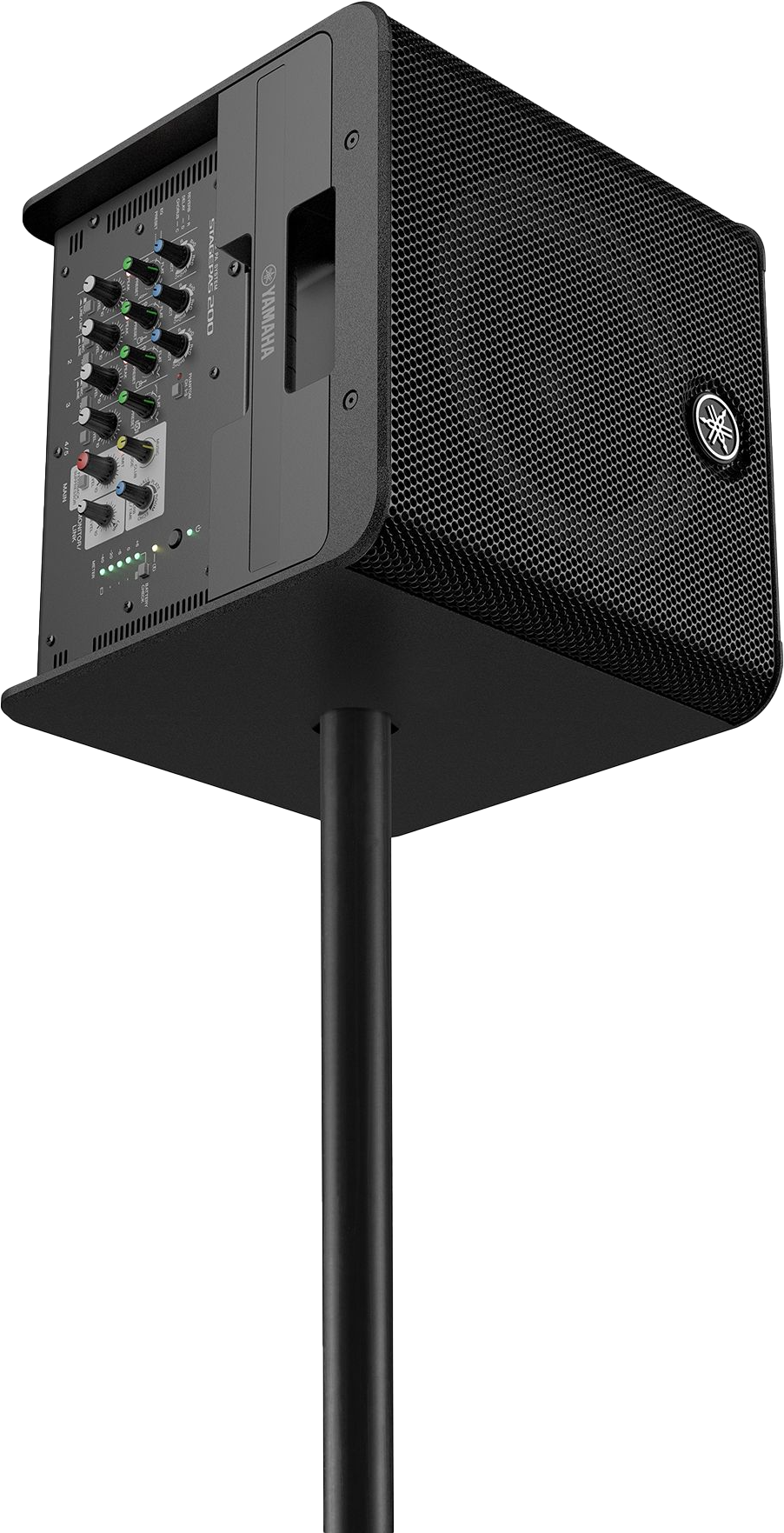

Pole socket | Φ35 mm x1 (Side) | Φ35 mm x1 (Side) |

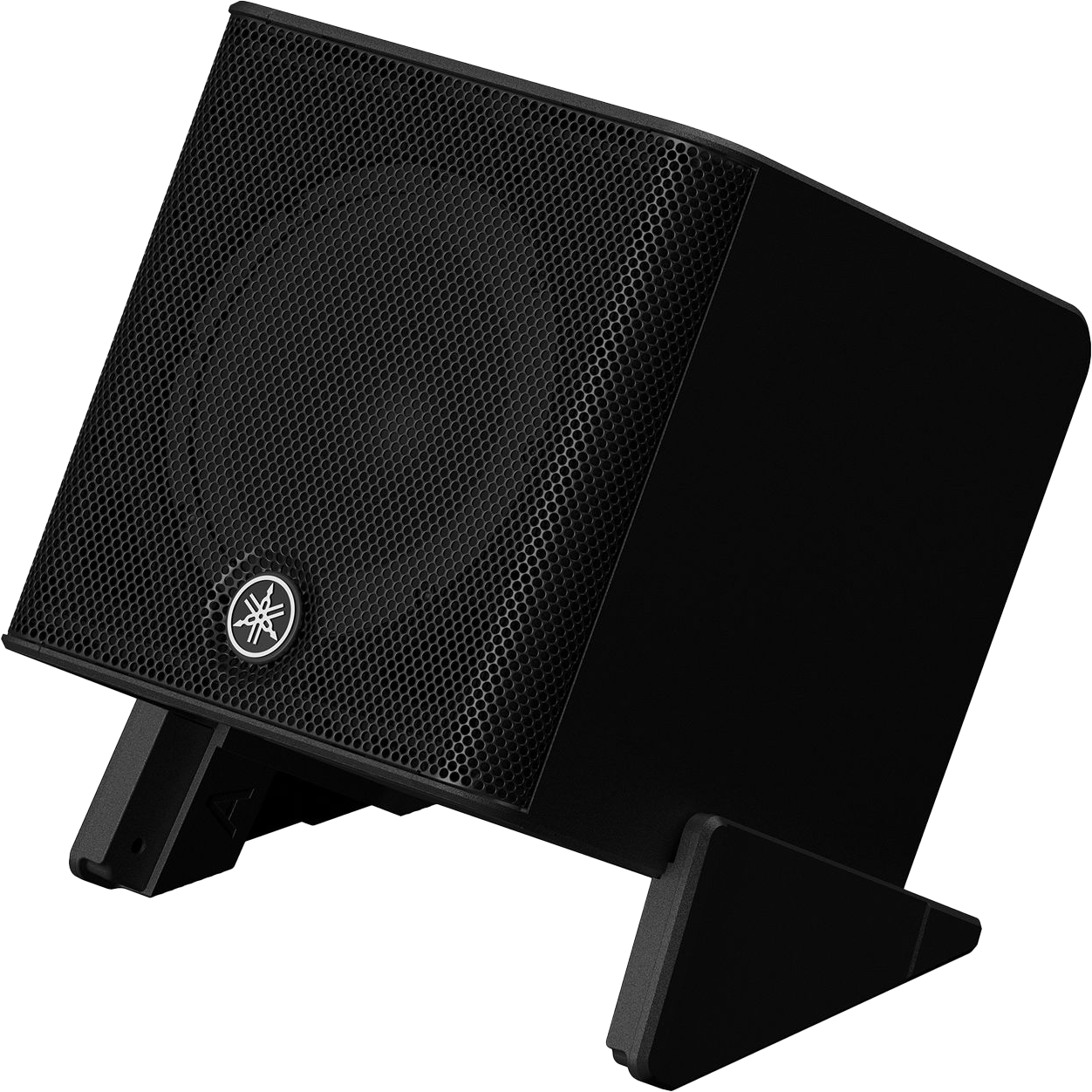

Floor Monitor Angle | 30 or 60 | 30 or 60 |
Dimensions (W x H x D) | 300 x 308 x 301 mm (11.8" x 12.1" x 11.9") | 300 x 308 x 301 mm (11.8" x 12.1" x 11.9") |
Weight | 12.5 kg (27.6 lbs) (Including battery) | 12.0 kg (26.5 lbs) |
Accessories | Power cord x 1, Battery x 1 | Power cord x 1 |
Options | Battery: BTR-STP200, Carry case: CASE-STP200 | Battery: BTR-STP200, Carry case: CASE-STP200 |
