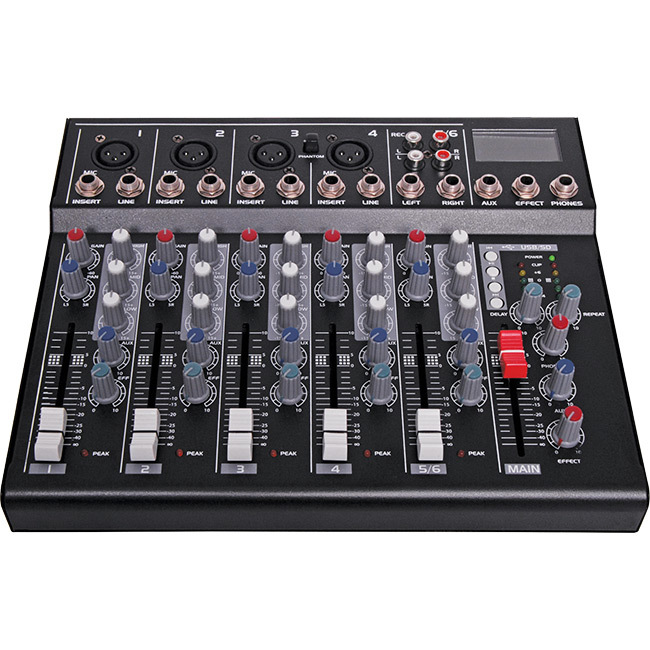

This compact high performance desk mixer is ideal for live/stage sound mixing in small applications such as theatre, bands, function centres and venues. It offers added flexibility for audio playback with a USB and SD card input on the rear panel. Playback is controlled via the transport controls located next to the dual VU meters. Channels 1 to 4 are identical and feature: - balanced XLR, unbalanced 6.35mm and insert input for external effects - separate high, mid, low frequency controls - gain, effects level and left/right pan. Channels 5 and 6 are combined on the single fader and feature the same adjustments. Dual 6.35mm outputs (L&R) are provided for connection to amplifier. Includes power supply Important: USB/SD & channel 5/6 are a combined input, if used simultaneously, this will result in a mixed output
Features:
All inputs top mounted for easy access Dual 6.35mm TRS outputs LED VU meters USB/SD card MP3 playback with transport controls Repeat and delay effects External effects send & return Phones/monitor output & level Selectable phantom power Gain, monitor, effect, pan, high, mid & low levels controls on all channels Record RCA output LCD readout for USB playback
Specifications:
Mic: 14dB to 60dB (120dB SNR) Line: -6dB to 38dB (95dB SNR) Stereo: -8dB to 15dB (96dB SNR) Equalisation Low: 50Hz±15dB Mid: 700Hz±15dB High: 10KHz±dB Main outputs: 28dB bal / 22dB unbal. Frequency response: 20Hz - 20KHz Power: 12V ac Dimensions: 270W x 235D x 68Hmm Weight: 2kg
