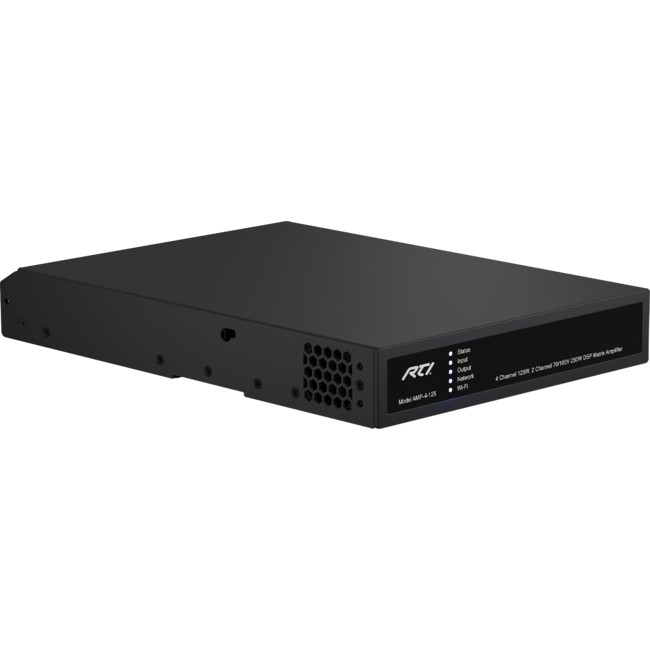

AMP4125 4 CH HI / LOW Z DSP MATRIX AMPLIFIER

RTI AMP4125 - 4ch DSP Matrix amplifier- 4x 125w at 8 ohm - 2x 250w at 70/100v

The AMP-4-125 power amplifier delivers configurable and reliable high-performance audio power amplification for commercial and hospitality applications requiring a mix of low-impedance and high-impedance outputs. Featuring a compact 1U half-rack design, this DSP-enabled Class-D amplifier supports low-impedance 4Ω to 16Ω loudspeakers and high-impedance 70V/100V transformer-coupled loudspeakers. The AMP-4-125 accepts four analog inputs and one stereo S/PDIF digital input, delivering four low impedance mono channels (or two low impedance stereo zones) at 125W per channel, or two 70V/100V mono channels at 250W per channel.

For setup, the RTI web GUI offers effortless browser-based configuration of the installed system. DSP configuration options include multi-zone setup, input mixing, priority and ducking, restrictions, input and output EQ, S/PDIF output routing, high-pass filtering, speaker presets, delay, Wall-S1 controller configuration, sine wave generation, and more.

Key Features:

• Four analog audio source input channels (balanced or unbalanced) and one digital input (S/PDIF).
• Two Lo-Z stereo or four Lo-Z mono output zones, two Hi-Z mono output zones, or a mix of them.
• A Class D amplifier provides a robust and clear audio experience with 125 Watts @ 4Ω/8Ω per channel or 250 Watts @ 70V/100V per channel.
• Daisy-chain multiple amplifiers to expand the number of zones by distributing up to two audio inputs or zones.
• Built-in DSP allows fine-tuning of acoustic characteristics for each zone.
• Easy configuration via LAN or Wi-Fi.
• Offers IP and GPIO control options.
• Free-standing installation or rack-mount (rack-mount kit included)

Extra Details

• 2 Sources / 4 Channels
  • Two analog audio source inputs (balanced or unbalanced) and one digital input.
• 2 Zones
  • Choose between standard stereo zones or a 70V/100V sound system.
• Full Matrix
  • Distribute two audio source inputs to two zones, with the ability to expand to additional zones by daisy-chaining multiple AMP-4-125 units.
• Powerful Stereo Output
  • Delivers 125W power output per channel for stereo zones.
• Powerful 70V/100V Output
  • Provides 250W per channel for 70V/100V zones.
• Built-In DSP
  • Easily configure and optimize DSP and matrix settings through the intuitive web user interface.
• Ultra-Efficient
  • Cool Power® Class D amplifier technology ensures efficient heat dissipation and low power consumption.
• Audio Source Versatility
  • Supports a combination of analog and digital audio sources for flexibility.
• Control
  • Seamlessly integrate with RTI or third-party control systems via IP, or use GPIO control for volume, standby, mute, or trigger functions.
• Mounting Options
  • Supports free-standing installation with included rack ears and adhesive rubber feet. Rack-mount kit sold separately.

Specifications:

In the box:

• AMP-4-125, power cord
• 6-pin Phoenix input connectors (2)
• 4-pin Phoenix output connectors (2)
• 8-pin Phoenix GPIO socket connector (1)
• adhesive rubber feet (4)
