BAR20239413 ANNUNCICOM MPI400 PoE PACKAGE WITH DANTE

Code: 01450875

EACH
Special
Buy-In
$1085 inc GST
Increase value Decrease value
Qty Each (inc GST) Each
Request Price Match
Interested in purchasing this product?
This product is a special buy-in. Special buy-in products are goods especially bought in on customer's request. After acceptance, special buy-in products cannot be cancelled or the goods returned, unless Radio Parts and its supplier agrees to the cancellation of the corresponding order and return of goods. Prices are subject to change and in the event that our purchase price has changed, we will notify you before finalising your order. Please call us on (03) 93218300 for availability, ETA, or if you have further questions.
Click here if you agree to these terms and to show the Add To Cart button.
View Product
Enter 4 digit postcode

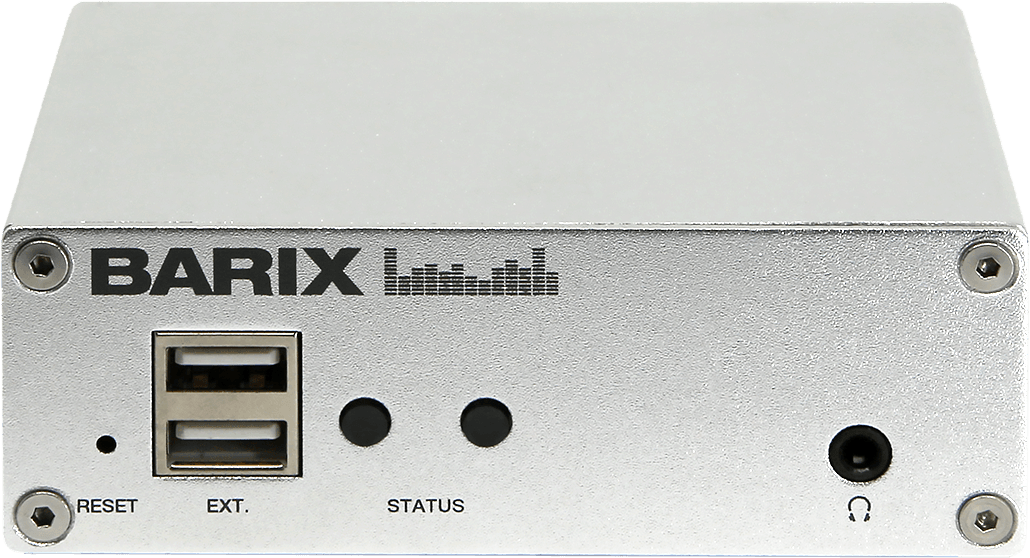

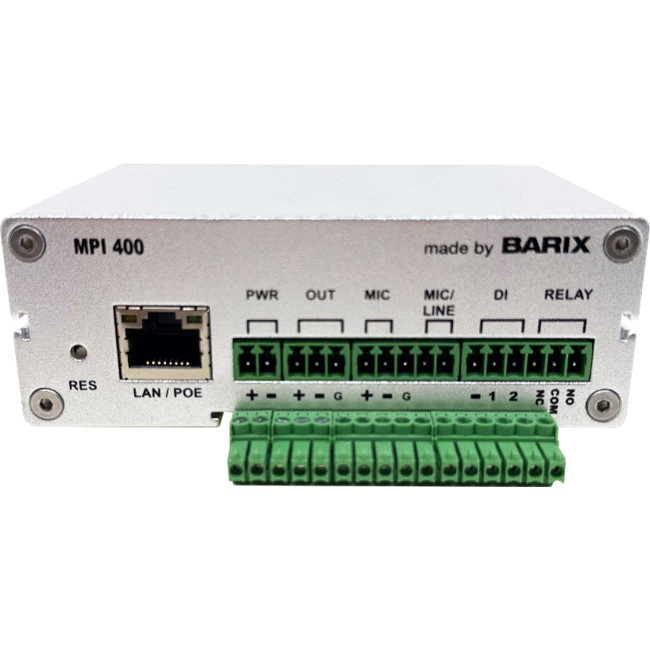

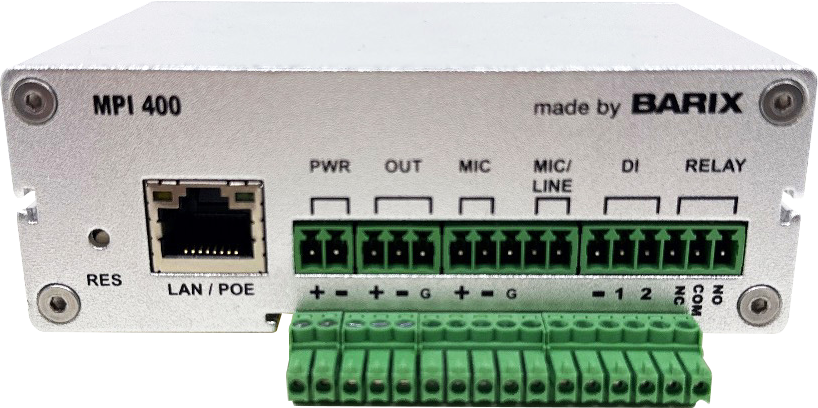

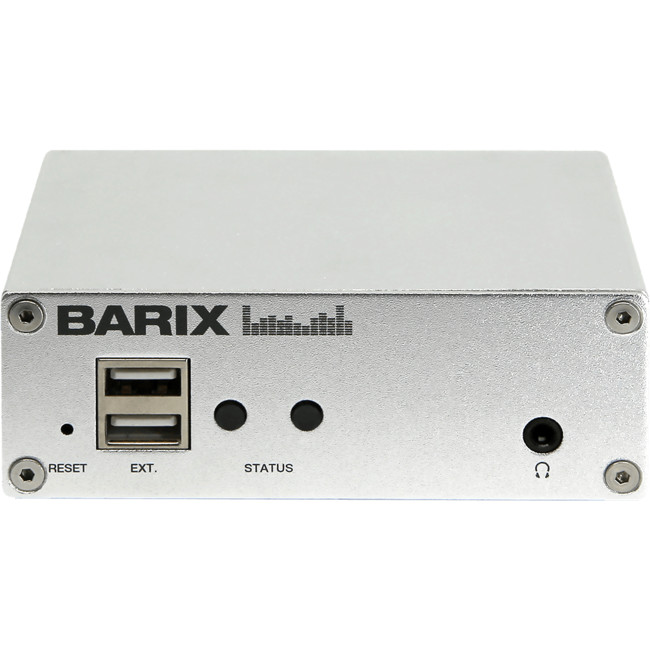

Barix Annuncicom MPI400

Intercom / Paging device with contact closure inputs, relay outputs, Line and Mic / Speaker support.

The Annuncicom MPI400 is a versatile Audio over IP device designed to serve as an end point or gateway between IP based intercom (VoIP/SIP or streaming) and traditional paging/intercom systems, microphone/speakers or an amplifier. The modern, robust & powerful hardware/software architecture provides a future proof platform that meets modern internet security requirements and can easily be adapted to individual customer needs. A wide variety of audio environments, such asDante®, SIP,InformaCastandSyn-Appsare supported. Codecs include PCM, AACplus, MP3, OPUS, G.711, G.722 that can be streamed using HTTP and RTP. Audio files can be stored on the internal memory and their playback can be triggered via a simple UDP command or scheduled. Thanks to the priority handler, the Annuncicom MPI400 can be configured to switch between sources according to one of the five priority settings and therefore eliminates the need for anaudio matrix



.



Specifications

We’re here to help... Our friendly staff are here with technical advice to help you find the right solution for your needs.
The Radio Parts team of industry experts have extensive knowledge in everything electronic.
Call (03) 9321 8300 Contact Us About Us

Be the first to hear about it!

CPU / Memory
  • Barix IPAM400 Processor Module
  • Quad-Core ARM CortexTM -A7
  • 256 MB DDR3 SDRAM
  • 16 MB SPI Flash

Operating System

  • Embedded Linux based on Yocto

Power interface

  • 24 VDC, /- 20%, 12 Watt max.
    on detach. screw terminal block
  • IEEE 802.3af PoE

Network interface

  • 10/100Mbps auto-sensing
  • RJ-45 connector with integrated Link /Activity LED
  • IPv4/IPv6 capable

Protocols

  • TCP/IP, HTTP, UDP, RTP, SIP, DHCP, Multicast capable
  • Dante® Support – Requires extra license
  • Singlewire InformaCast compatibility– requires extra license
  • SynApps Revolution compatibility

USB Interface

  • 2x USB 2.0 type A interfaces
 Discrete I/O

On detach. screw terminal block:

  • 1x Normally open relay 30V 0.5A
  • 1x Normally closed relay 30V 0.5A
  • 2x digital dry contact inputs

Audio input interfaces

On detach. screw terminal block:

  • Line level input 4dBu max, mono, unbalanced
  • Microphone input, balanced, 18V phantom powered
  • Microphone input, electret, unbalanced, 2.1V bias

Audio Output interfaces

On detach. screw terminal block:

  • Audio output (mono), suitable to drive a speaker or a balanced output (exclusive output).Speaker: 1W @8ohms
    Line out: symmetric/balanced,
    non-isolated, with DC offset, 10dBu (unbalanced: 4dBu)volume level software controlled
  • 3.5mm headphone output
 IP Audio formats
  • FDX/HDX SIP client support
  • HTTP(S) and (S)RTP Streaming
  • Large variety of codecs can be supported (e.g. MP3, PCM, G.711, G.722, AAC , OPUS)

User Interface

  • Web interface for configuration
  • 2 x Multicolor LED Status indicators
  • Reset & Factory Defaults Button

Mechanical

  • Aluminum case, 265 g
  • Dimensions 108 x 38 x 78.7mm
    (4.25 x 1.5 x 3.1 inch) rack and wall mountable using accessories
