ES120 ES SERIES 120W MIXER AMPLIFIER

100V AUSTRALIAN MONITOR

Code: 01450615

9.00 kg
9323383020054
EACH
Low Stock
TRADE ALERT!
$790 inc GST
Increase value Decrease value
Qty Each (inc GST) Each
Request Price Match
Enter 4 digit postcode

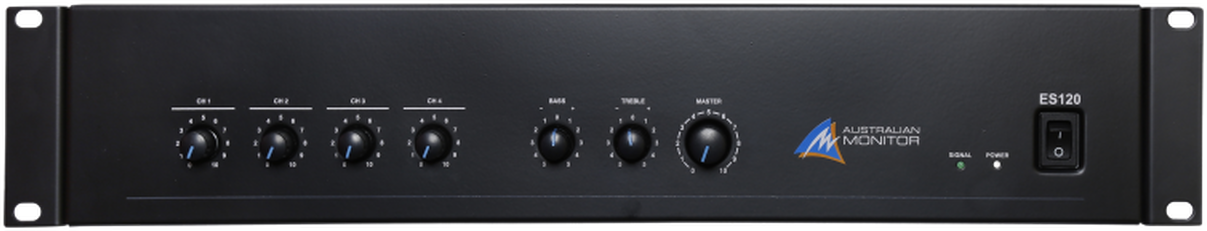

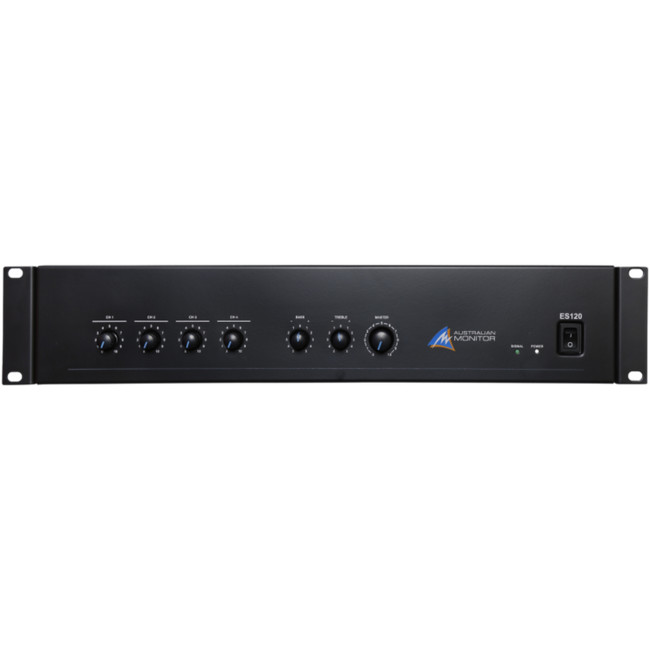

Australian Monitor - ES120 120W Mixer Amplifier




The Australian Monitor ES Series is the latest evolutionof our Essentials series of Mixer Amplifiers, now featuring 2 channels of priority VOX muting, integrated tone generator(120/250 models) and a modern look and finish.

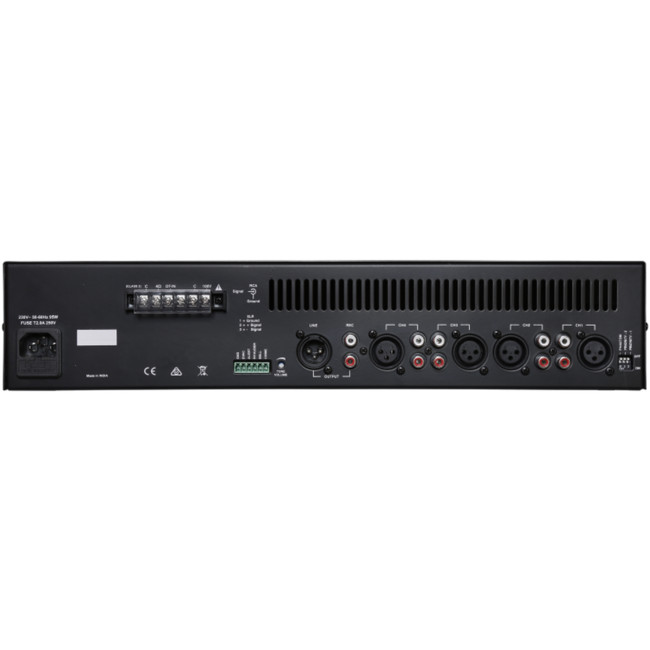

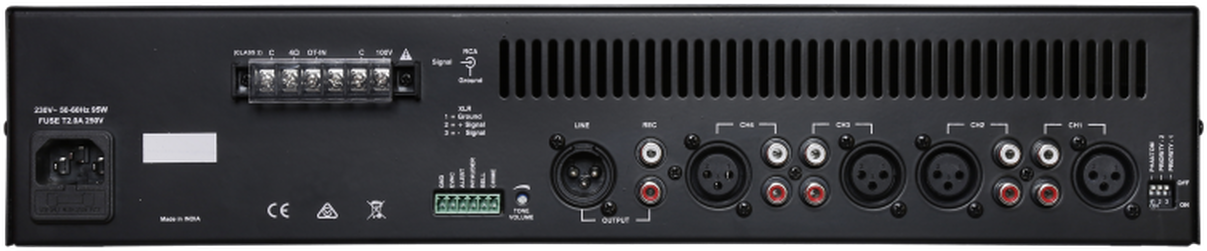

The ES mixer amplifiers maintain the core features you expect including four XLR mic/dual RCA line inputs, record and line outputs, low impedance or constant voltage outputs and 12V phantom power.

The ES series offers the latest features to meet projects requiring the most cost-effective solutions.

Key Features

  • 120 Watt mixer amplifier
  • 4 XLR microphone/dual RCA line inputs
  • 100 volt or 4 ohm output
  • Input 1,2 vox muting priority
  • Integrated tone generator. Evac/Alert/Intruder/Bell/Chime tones
  • 12VDC phantom power
  • 2 RU rack mountable chassis

Specifications

Output Power per Channel 120W Frequency Response 55Hz - 20kHz
Output Mode 4 Ohm-100V THD N < 0.2%
Input Channels 4 MIC or Line Signal to Noise Ratio > 85dB
Input Voltage 230Vac 50Hz Input Sensitivity MIC: 1.2mV - Line: 160mV
Mounting 2RU Cooling Fan-assisted
Warranty 5 years
Product Dimensions
(W x D x H)
483mm x 305mm x 88mm Shipping Dimensions
(W x D x H)
541mm x 396mm x 156mm
Net Weight 7.1 Kg Shipping Weight 9.4 Kg
GTIN EAN 9323383020054
