ES250P 250W 100V - 4 OHM POWER AMP

AUSTRALIAN MONITOR

Code: 01450608

14.30 kg
9323383020085
EACH
ETA
2025-01-28
$1035 inc GST
Increase value Decrease value
Qty Each (inc GST) Each
Request Price Match
Enter 4 digit postcode

ES250P - 250W Power Amplifier

The ES250P power amplifier delivers 250 watts at 100 voltor 4 ohm in a 2 RU package.

The ES series booster amplifiers give the audio contractor a reliable, low cost booster amplifier for applications that are price sensitive but still require highquality commercial sound reinforcement.

Key Features

  • 250W power amplfiier
  • 4 ohm and 100 volt output options
  • Rear panel volume control
  • Balanced input and thru out
  • Fan cooled
  • 2 RU

The ES amplifiers all feature a rugged power amplifier with short-circuit, over-load, and thermal protection.

Built for reliable, long term performance at a great price point.



The ES power amplifiers all offer 100V and 4? output options so you can choose the required output for your speaker application.

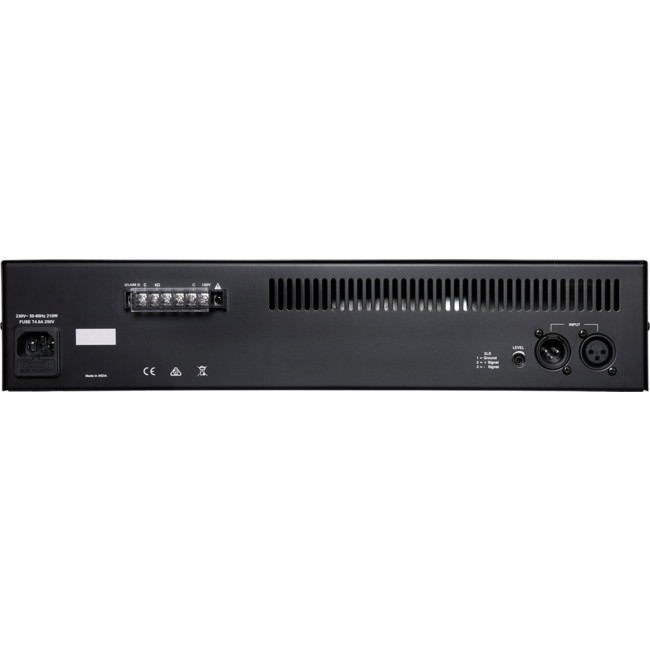

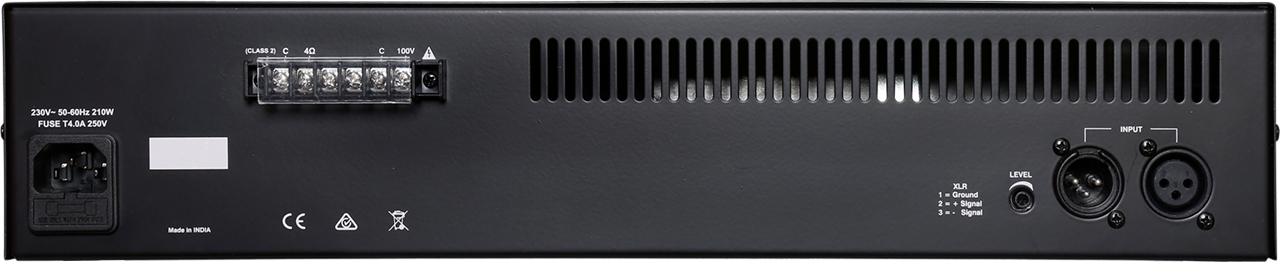

XLR INPUT AND THROUGH OUTPUT

The ES power amplifiers feature a female XLR input as well as a male XLR through output.
This allows easy cable daisy chaining of multiple amplifiers from a single audio source without cable splitting.

An input level attenuator is also provided to trim the input audio signal to the desired level for the amplifier.



Specifications

Output Power per Channel 250W Frequency Response 40Hz - 20kHz
Output Channels 1 THD N < 0.3% (-3dB)
Output Mode 4 Ohm-100V Signal to Noise Ratio > 80dB
Input Voltage 230Vac 50-60Hz Input Sensitivity 160mVrms
Mounting 2RU Cooling Fan-assisted
Warranty 5 years
Product Dimensions
(W x D x H)
483mm x 353mm x 88mm Shipping Dimensions
(W x D x H)
545mm x 460mm x 160mm
Net Weight 11.4 Kg Shipping Weight 12.3 Kg
GTIN EAN 9323383020085
