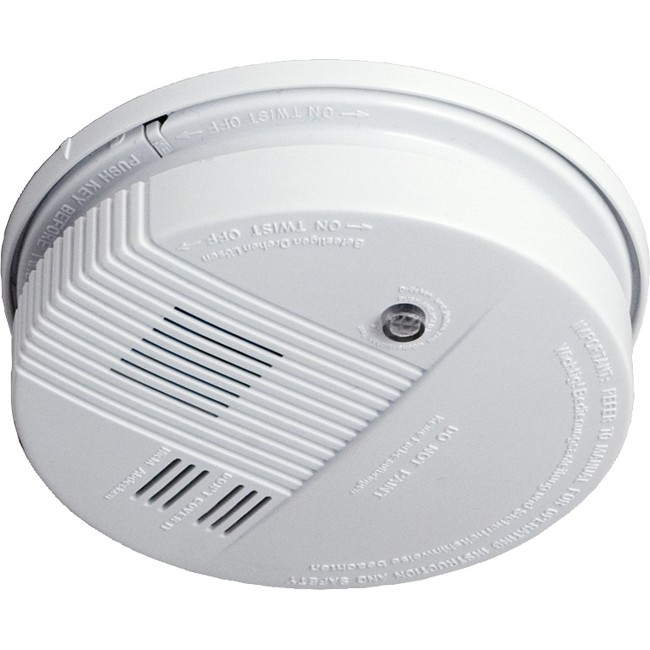

106-040 RADIO SMOKE ALARM / DETECTOR

106-040 Ness Radio Smoke detector

RSM Radio Smoke detector

FEATURES:

• The Ness RSM Radio Smoke Detector provides a photoelectric smoke alarm option for any Ness control panel with wireless options.

• Photoelectric smoke detection technology

• Test button to test sounder and transmitter

• Delayed transmit function for testing

• Sends Alarm, Restoral, Supervision & Low Batt signal

• High volume sounder on-board

• Compatible with all Ness receivers

• One 9V Lithium battery powers smoke detector and radiotransmitter

• Compact slimline housing

SPECIFICATIONS:

• Smoke Sensor Technology; Photoelectric.

• Visual display; Red alarm LED.

• Audible output; Piezo sounder.

• Led indicator; Normal condition: 1 flash every 30 seconds. Alarm condition: Continuous flash.

• Low battery warning; Smoke sensor will chirp once every 30 seconds until the battery is replaced.

• The radio transmitter will send a low battery signal once per hour.

• Alarm period; Until sensing chamber is clear of smoke.

• Operating Voltage; Ultralife U9VL Lithium battery.

• Current draw; Standby <15µA, Alarm <12mA

• Radio Transmitter; Type SAWR stabilised

• Radio Frequency; 304MHz, 868MHz, 434MHz depending on model and region.

• Radio compatibility; All Ness radio receivers. All Ness control panels with radio options fitted.

• Dimensions; 133mm diameter x 40mm

• Models; 106-040 304MHz Standard Ness model.
