{tab Overview}

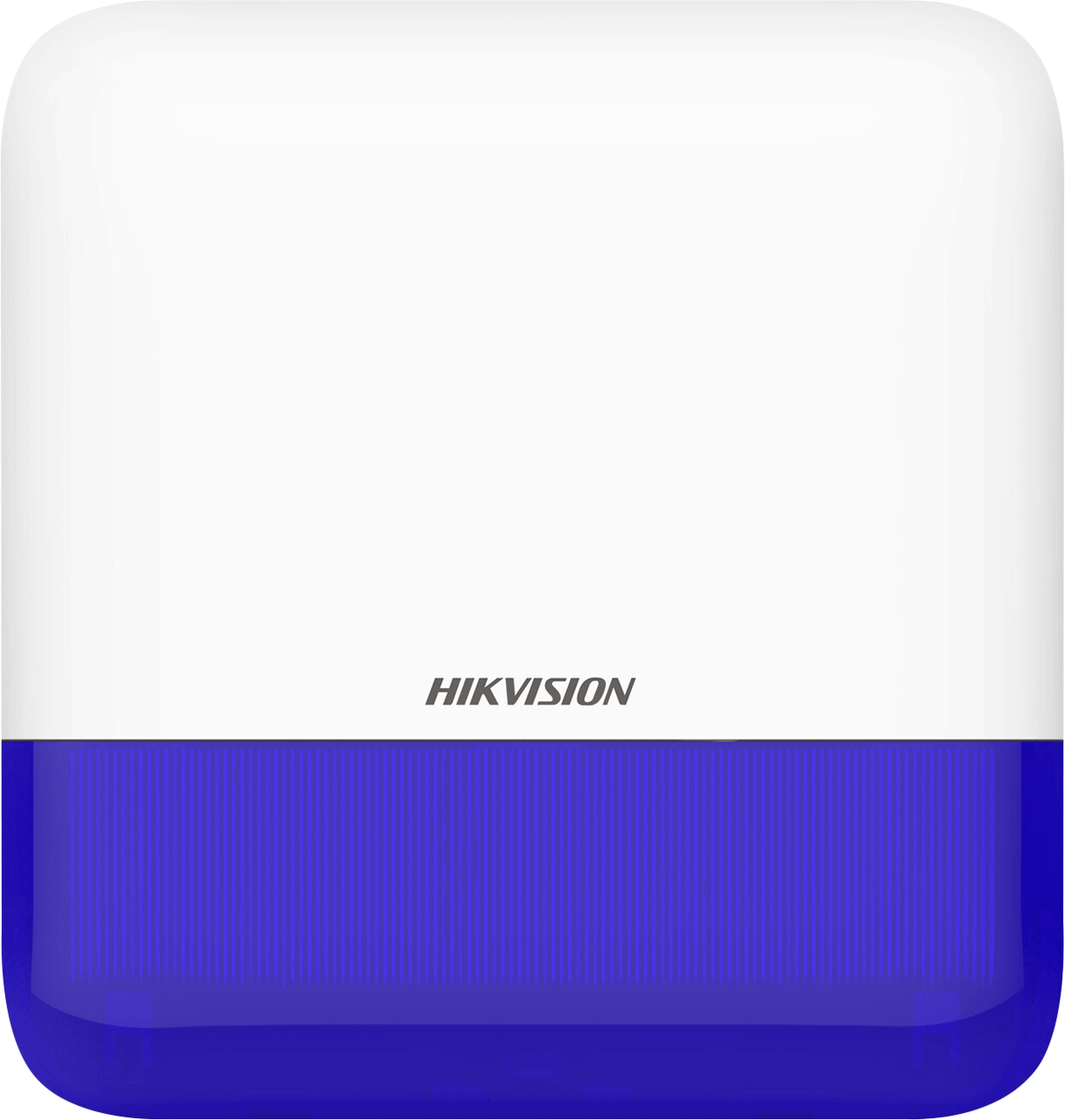

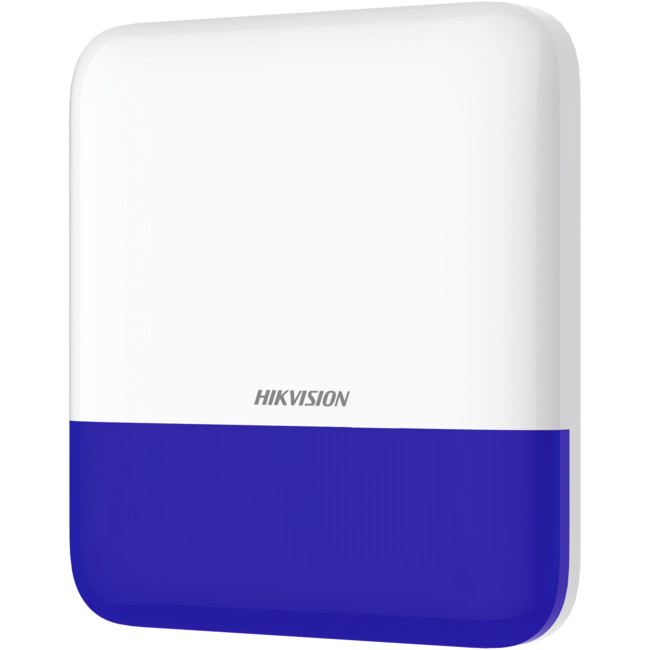

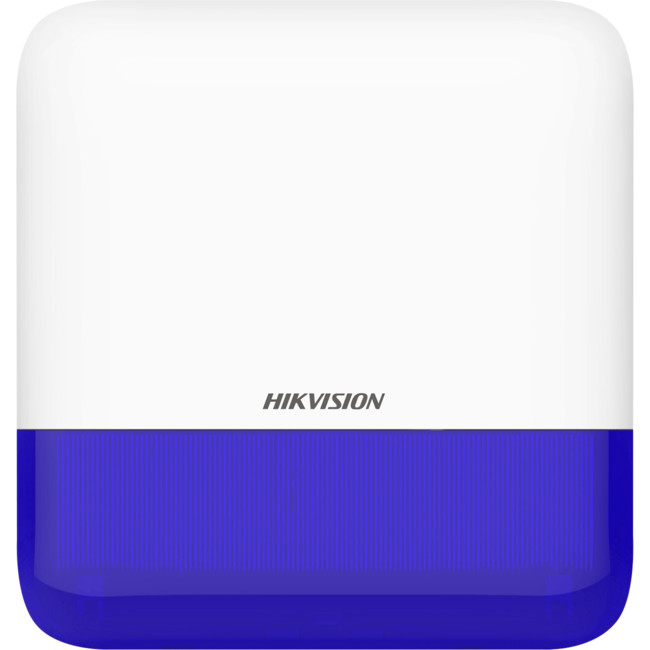

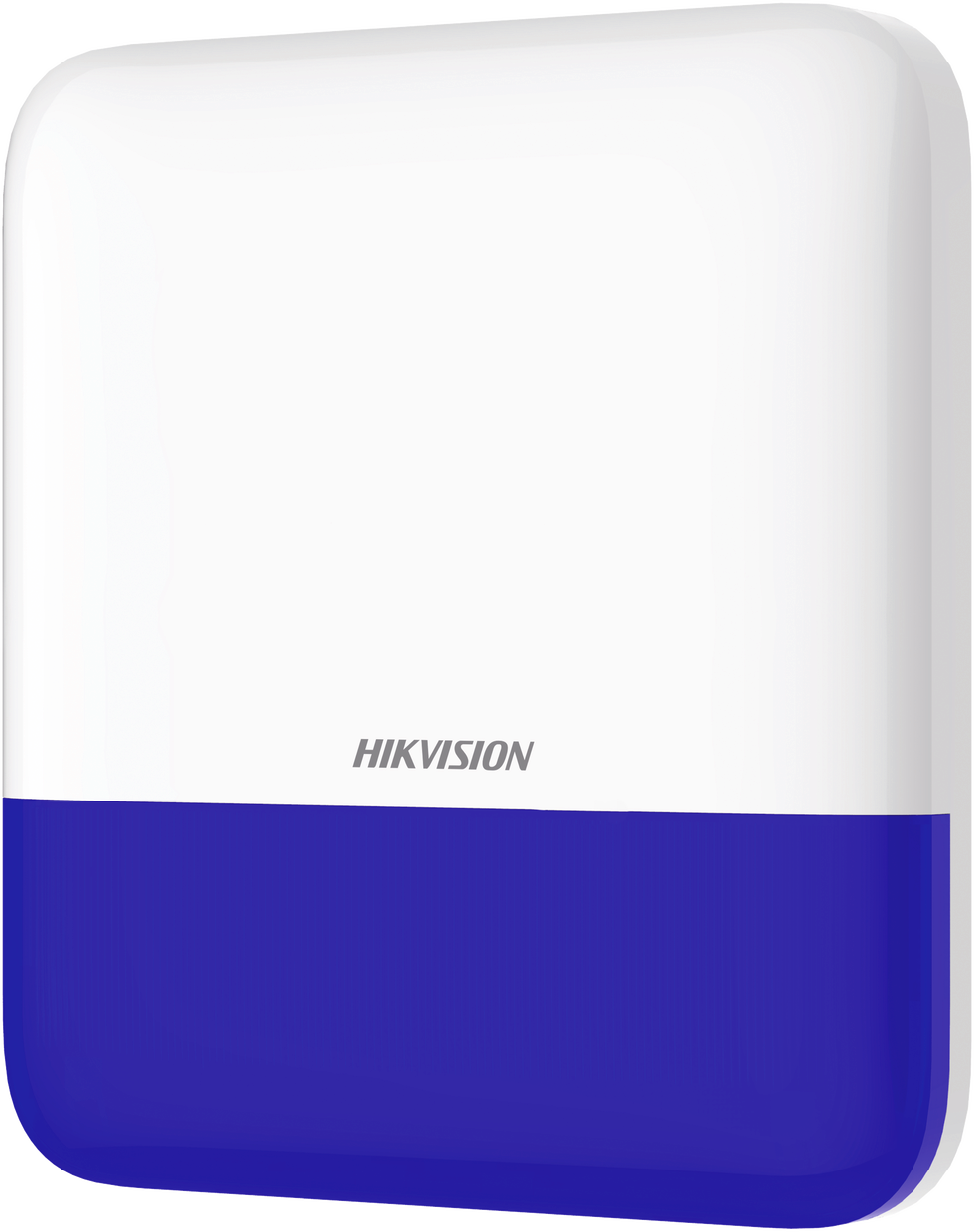

The wireless external sounder, supporting 433 MHzwireless communication, Tri-X wireless protocol, multiple enrollment methods, two-way wireless communication, multiplealarm sounds, and strobe light indication, is used for instant alarm alerting
Features:
{tab Specs}
Model
DS-PS1-E-WB
RF
Frequency
433 MHz
Modulation
2GFSK
Method
Two-way communication
RF encryption
AES-128
RF distance
900m (open area)
Electrical & battery
Power
Battery (default power supply method) or 12 VDC
Consumption
Static consumption: 30 to 40uA
Battery life span
4 CR123A, 3 yearsin work status (triggered every two weeks and alerting 90 s for each triggering)
Interface and component
Power switch
Supported
Tamper switch
Supported, Front and rear tamper-proof
Indicator
Indicator: Red/Green Strobe light: Blue
Buzzer
Decibel: 110 dB
General
Operation temperature
-20 C to 60 C (-4 F to 140 F)
Operation humidity
10% to 90% (no condensing)
Color
White
Material
PC ABS
Dimension (W H D)
190 200 47. 3mm .(7.48" 7.87" 1.86")
Weight
606.5 g (21.4 oz)
Protection level
IP65
Installation
Wall mounting
Approvals
FCC
CE/CB
RCM
Rohs/Reach/WEEE
{/tabs}
