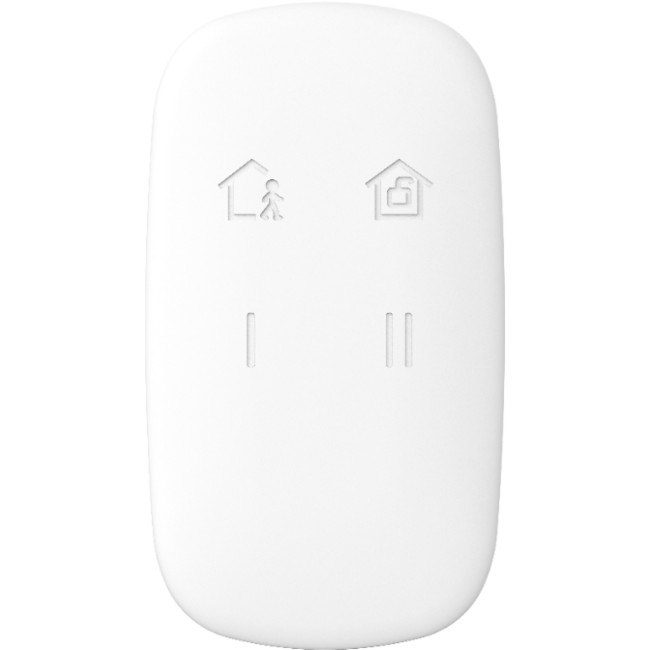

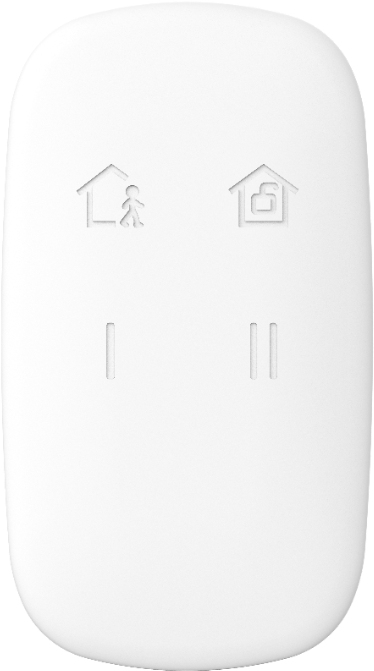

DS-PKF1-WB series keyfob supports instant operation of stay/away arming and disarming. It is a part ofsecurity control system.
Features:
{tab Specs}
Frequency 433 MHz
Modulation 2GFSK
Distance 500m (open area)
Indicator Three-color LED
Key 4
Power Consumption Quiescent current: 1.13 uA Max current: 34.3mA
Voltage: 3 VDC Min. operation voltage 2.1V /- 5%
Battery type CR2032 x 1 (included),
3V Battery life span Standby time more than 3 years
Operation humidity 10% to 90% (No condensing)
Operation temperature -10 C to 55 C (-4 F to 122 F)Color White
Material Panel (plastic) gasket(rubber)
Dimension (W x H x D) 35.2 (1.39")mm x 63.2 (2.49") mm x 11.3 (0.45")mm
Weight 16 g (5.64 oz)
