PAC2 TWO DOOR ACCESS CONTROLLER

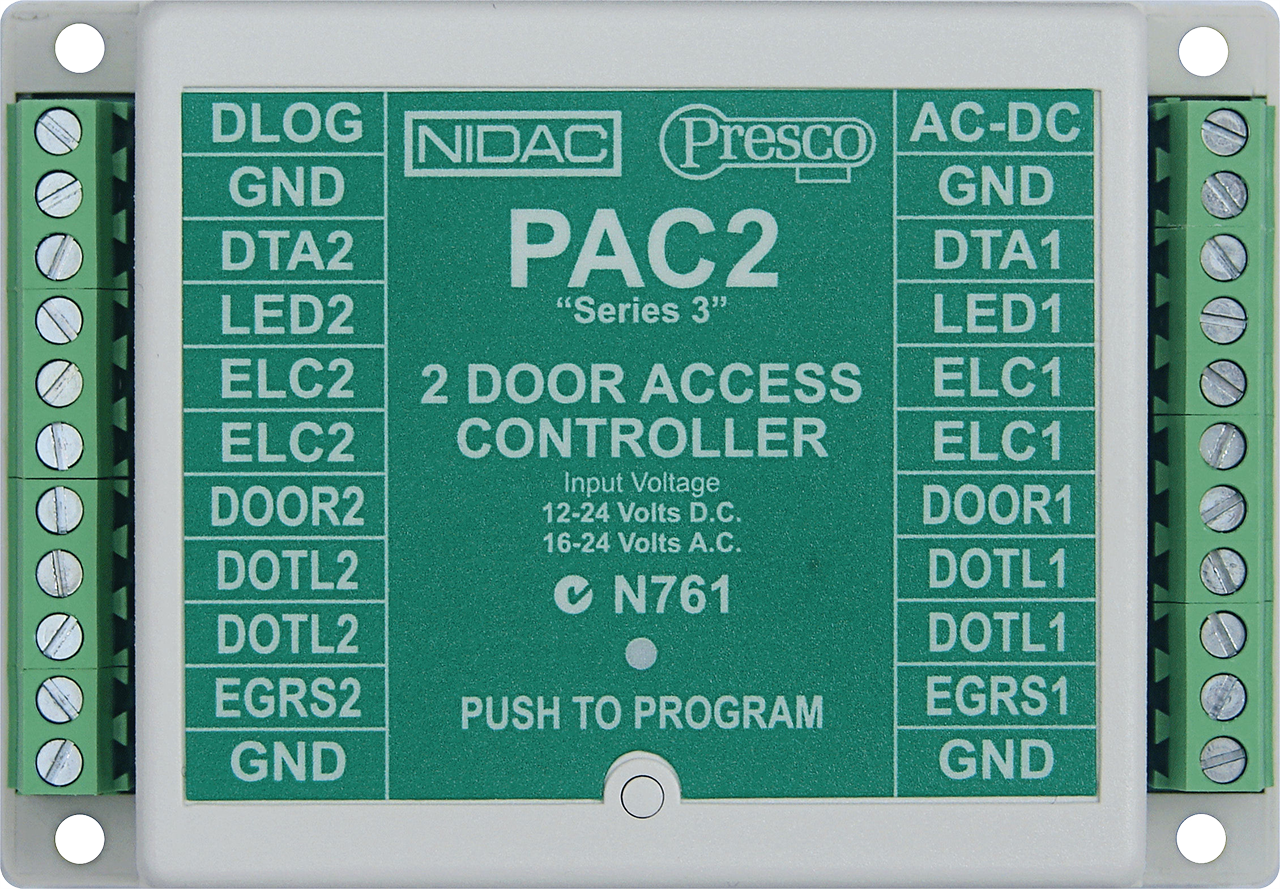

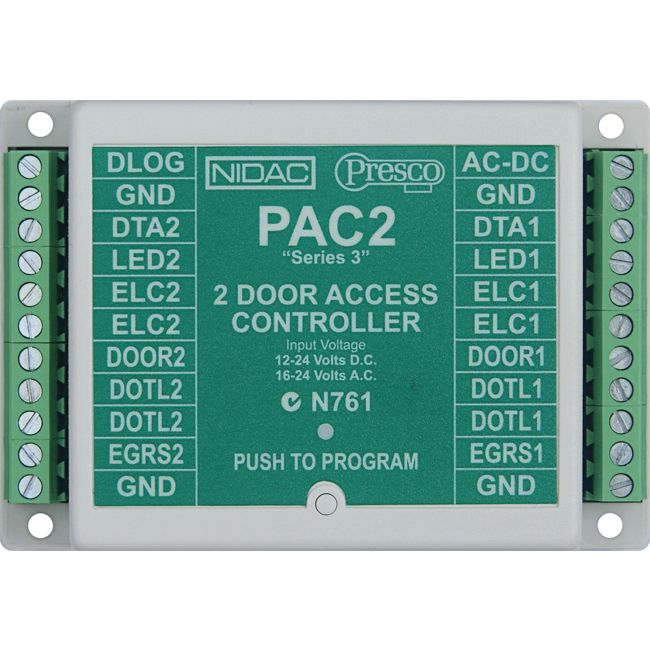

Presco PAC-2 Two Door Access Controller

Presco™ access control is designed for maximising security using a split system allowing the PAC door controllers to do the code processing in remote protected areas

Using the latest microprocessing technology the PAC controllers operate most electric door locking devices on the market

The controller together with the Presco™ keypads ( PRE / PSE-IL / PTKR / VR ), proximity reader ( PRO2410 ) or a Presco™ interface module ( PIM ) with a clock and data ( magnetic card format ) or wiegand output reader offers access control to restricted areas.

Features:

• Two door control module
• 800 User codes
• Support for bulk adding of User codes
• 10 Readers can be connected to each PAC
• Multiple configurations for DTA inputs, Dedicated DTA input per door control, One DTA input to control both doors,Both DTA inputs control door 1 only
• Compatible with PAC-DL data logger
• Split system for maximum security
• System uses low cost non-shielded cable
• 12 - 24 Volts DC, 16 - 24 Volts AC
• Heavy duty relay contacts for door control
• Non-volatile memory will store all information for 10 years without power
• 1 minute lockout after 5 invalid attempts at entering a code ( programmable)
• Egress & Door Open Too Long ( DOTL) facility
• Door Forced Open detection
• Automaitic Re-lock feature
• Accepts N.O or N.C request to Exit (RTE) devices
• Progammers code facility

Click here for brochure

PAC2 Series 3 User Code Programming Manual

Video - PAC2
