D8XDNAV D8XD PANEL WITH NAVIGATOR

KEYPAD NESS

Code: 01301628

4.74 kg
EACH
Low Stock
$409 inc GST
Increase value Decrease value
Qty Each (inc GST) Each
Request Price Match
Enter 4 digit postcode

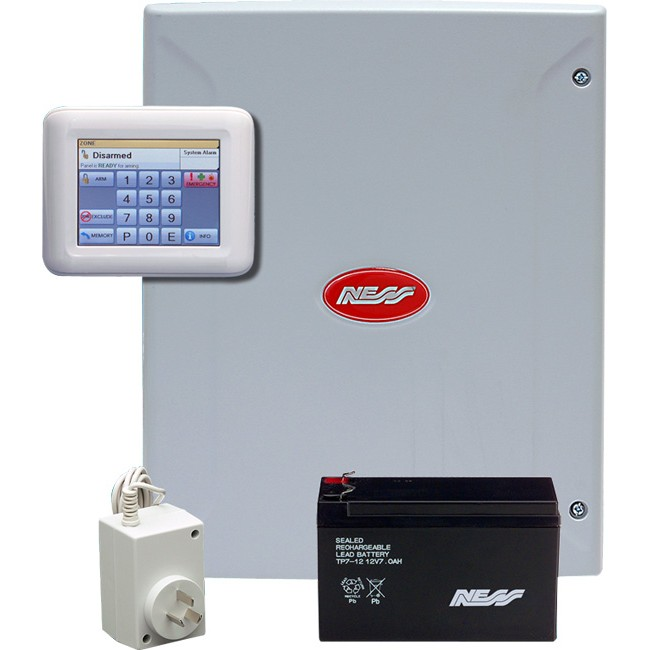

 Ness D8x NAVIGATOR PANEL

Description:
  • The Ness D8x is the most versatile Ness 8 zone controlpanel ever!
  • The D8x NAVIGATOR PANEL is supplied with the Ness Navigator Touch Screen Keypad - The new face of your alarm system.
  • Navigator Touch Screen Keypad is surely the best looking and most functional alarm interface ever made.
  • Navigator provides both the user and the installer with unrivalled ease of use.
  • Its self-explanatory operation guides provide you withplain English displays and intuitive touch screen operation.
  • Navigator's many display screens make it easy to view all your zones with your own text decriptions, get help and prompts for arming. disarming, operating outputs, emergency alarms and much more.
  • Supplied with a Navigator Touch Screen Keypad, Plug Pack, Battery, Telephone Lead, Housing and Manuals.
MAJOR FEATURES
  • 8 Zones Tamper
  • Onboard 3 Door Access Controller
  • Auto-Time Control via onboard Real-Time Clock
  • Optional Radio Interface for integrated wireless security
  • Onboard Vibration Sensor Analyser
  • Multiple programmable EOL resistor values from 0k to 22k
  • 4 programmable auxiliary outputs
  • Direct Connect or Dial-up programming via NessComms™
  • Contact ID and VOICE reporting dialler
  • Remote control of outputs via telephone
  • Box size: 235mm (width) * 300mm (height) * 90mm(depth)
  • Up to 56 User Codes (PIN, RADIO KEY or PROX CARD)
