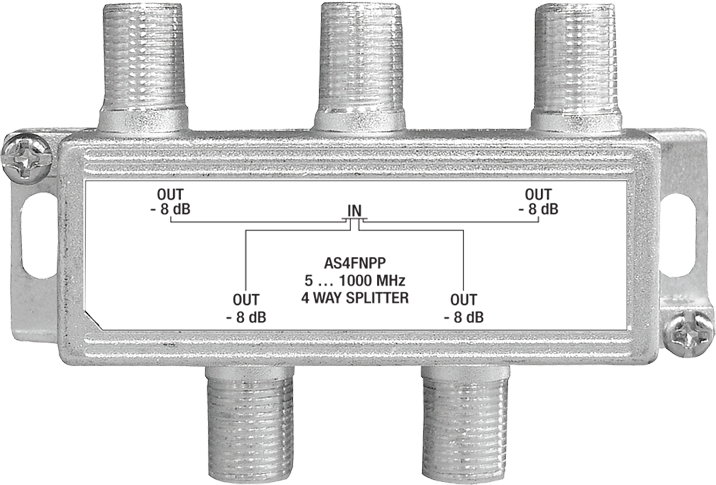

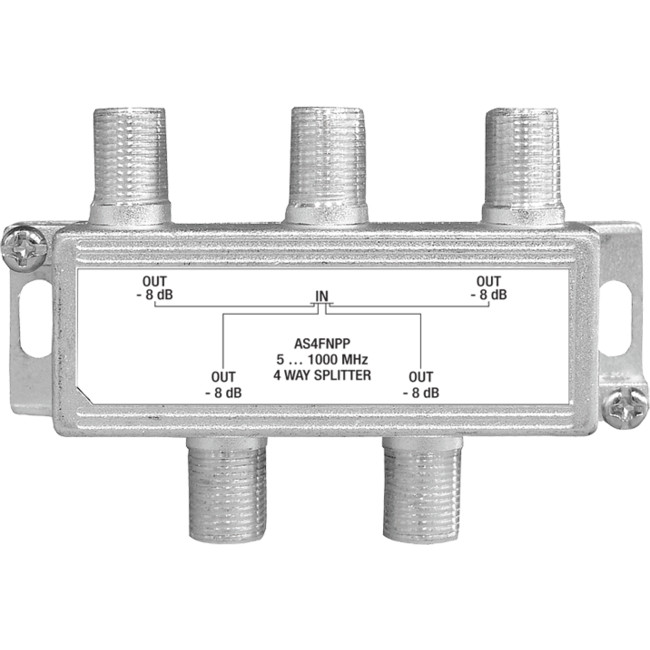

AS4FNPP 4 WAY F-TYPE SPLITTER

FOXTEL APPROVED F30225

Code: 00845504

0.0620 kg
EACH
Low Stock
TRADE ALERT!
$18.95 inc GST
Increase value Decrease value
Qty Each (inc GST) Each
Request Price Match
Enter 4 digit postcode

AS4FG2 4 WAY F TYPE SPLITTER 5 - 1000MHz FOXTEL APPROVEDF30225

Features:

  • Superior intermodulation distortion and second harmonic performance
  • Excellent return loss and port-to-port isolation in the return band
  • Patented DSM seizure technology provides increased spring retention for better surface contact (patent#6450836)
  • Gold-plated, beryllium copper construction for better corrosion resistance, impedance matching, and prevention of common path distortion
  • 6 kV surge withstand, guaranteed second orderharmonics performance after 5 surges to each port of 6 kV (per IEEE.C62.41.1991 Category A3)
  • Tin-plated back plate provides minimum -110 dB shielding effectiveness and superior defence against long-term corrosion factors
  • -60 dBmV spurious signals and 2nd harmonics with a 55 dBmV input carrier
  • Weather-sealed “F” ports
  • Machine threaded, flat “F” ports

Specs:

  • Nominal Impedance 75 Ohms
  • Flatness (Tap & Out) 0.5 dB
  • RFI -110 dB
  • Spurious Signals Including 2nd Harmonics -60 dBmV measured with a 55 dBmV return input carrier
  • (-45 dBmV, after 5 surges of 6 kV on eachport measured with a 55 dBmV return input carrier)
  • Blocking Capacitors All ports
  • Surge Withstand IEEE C62.41-1991 CategoryA3 (6000 V, 200 Amp, 0.5 s-100 kHz Ring Wave)
  • Operating Temperature -40 to 60 C (-40 to 140 F)

Frequency Insertion Loss Out-to-Out Isolation Input Return Loss Output Return Loss
5 - 15 MHz 7.0 42 29 33
16 - 42 MHz 6.9 44 34 36
43 - 65 MHz 6.9 44 35 35
66 - 250 MHz 6.9 41 29 31
251 - 450 MHz 6.9 35 28 31
451 - 550 MHz 6.9 33 28 31
551 - 750 MHz 7.3 32 27 30
751 - 860 MHz 7.3 31 27 29
861 - 1002 MHz 7.5 31 26 28
