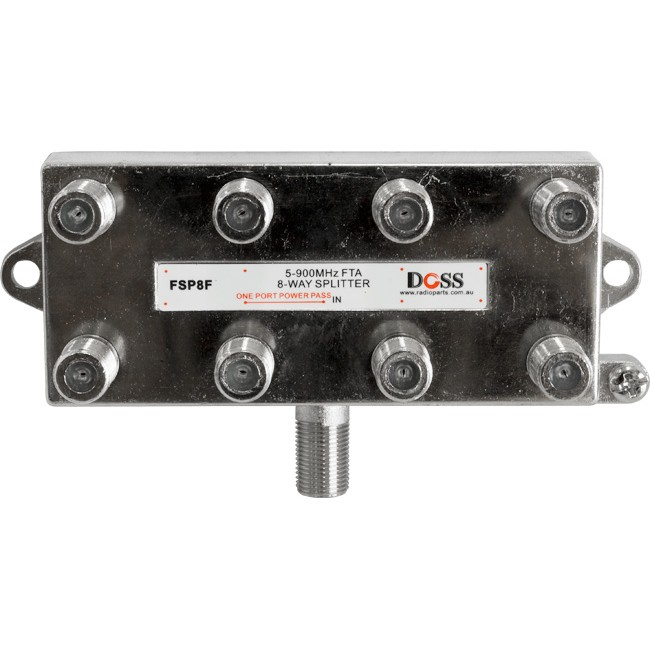

FSP8F 8 WAY 'F' SPLITTER FREE TO AIR

1X DC POWER PASS 900MHZ

Code: 00845438

0.1610 kg
9328202020901
EACH
100
In Stock
TRADE ALERT!
$13.95 inc GST
Increase value Decrease value
Qty Each (inc GST) Each
Request Price Match
Enter 4 digit postcode
  • 8-Way 75 ohm coaxial splitter
  • 5~900MHz Splitters with power pass on one leg
  • Metal shielded case with "F" type sockets

Specifications:

    FSP2F FSP3F FSP4F FSP6F FSP8F
  Frequency Range(MHz) Nominal Nominal Nominal Nominal Nominal
Insertion Loss 5-47MHz 4.2 5.8 8.2 11.5 12.5
(Max dB) 48-450MHz 4.2 5.8 8.2 11.5 12.5
  451-750MHz 4.2 6.5 8.2 11.5 12.5
  751-900 MHz 4.2 7 8.2 11.5 12.5
ISOLATION 5-47MHz 20 20 20 20 20
Out-out 48-450MHz 20 20 20 20 20
(Min dB) 451-750MHz 20 20 20 20 20
  751-900 MHz 20 20 20 20 20
Return Loss 5-47MHz 18 18 18 16 18
Input 48-450MHz 18 18 18 16 18
(Min dB) 451-750MHz 18 16 16 16 16
  751-900 MHz 18 16 16 16 16
Return Loss 5-47MHz 18 18 18 16 18
Output 48-450MHz 18 18 18 16 18
(Min dB) 451-750MHz 18 16 16 16 16
  751-900 MHz 18 16 16 16 16

Note:
Doss splitters will also function as combiners.

  • When combining modulated signals, leave at least a 2 channel separation i.e. Channel 21 for the first channel and Channel 24 for the next etc.
  • It is also recommended that if you also have an antenna connected to the system, you use a Digiair Pro when selecting the appropriate channels. The spectrum analyser function will display where there are the lowest levels of interference i.e. where the modulated should be placed in the radio spectrum.
