MHV25F 25DB VHF MASTHEAD AMPLIFIER

KINGRAY

Code: 00760785

0.1990 kg
9319493261784
EACH
20
In Stock
DON'T PAY $74
$59.95 inc GST
Increase value Decrease value
Qty Each (inc GST) Each
Request Price Match
Enter 4 digit postcode

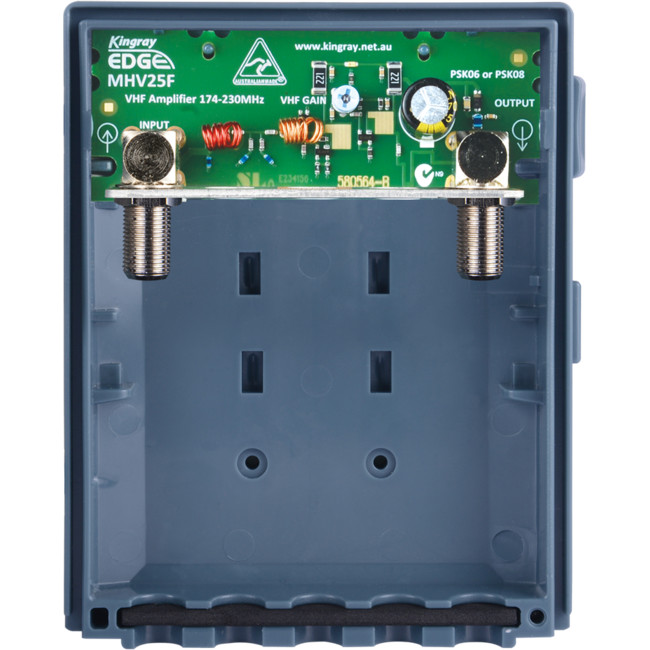

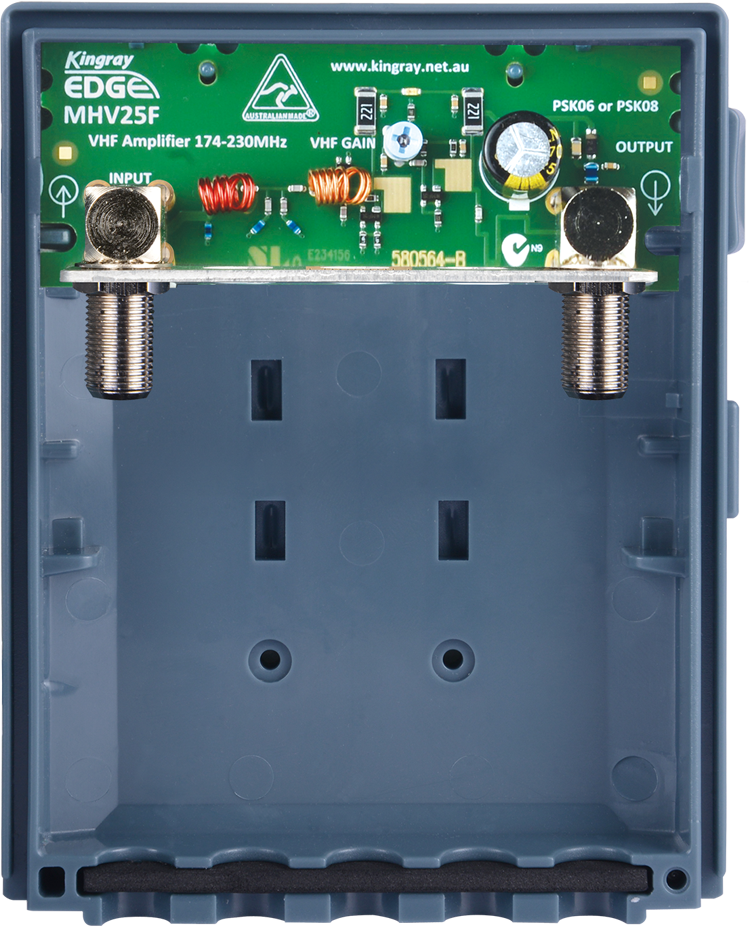

MHV25F 25DB VHF MASTHEAD AMPLIFIER - KINGRAY

Kingray are the only manufacturer still producing television amplifiers in Australia and are proud to announcethe release of the latest addition to the Edge Series of masthead amplifiers.
Local design and manufacturing allows Kingray to gather market feedback and develop products which suit
Australia?s unique digital television environment.
The MHV25F is designed for todays digital television environment and specifically for areas where there is
VHF transmission only.
The Band 1,2,4 and 5 filtering ensure only channels 6 to 12 are amplified, eliminating all unwanted frequencies
including those in the LTE band.
The amplifier is designed to provide a very flat response across Band 3, the maximum output of 25dB with
a 10dB gain control and 50dB of LTE rejection makes the MHV25F the ideal amplifier for VHF only installations.

Features:

  • High output
  • Low noise
  • Adjustable gain
  • AC or DC power supply compatible
  • LTE and low band filtering
  • LED power indicator

Specifications:

Frequency range: VHF: 174 - 230 MHz

Max gain: VHF: 25 dB

Noise figure: VHF: < 2.5 dB

LTE rejection: > 50 dB

Output figure: 105 dB DIN45004B @ (-60 dB IMR)

Gain control: 10 dB

Supply: PSK08/F or PSK06/F
