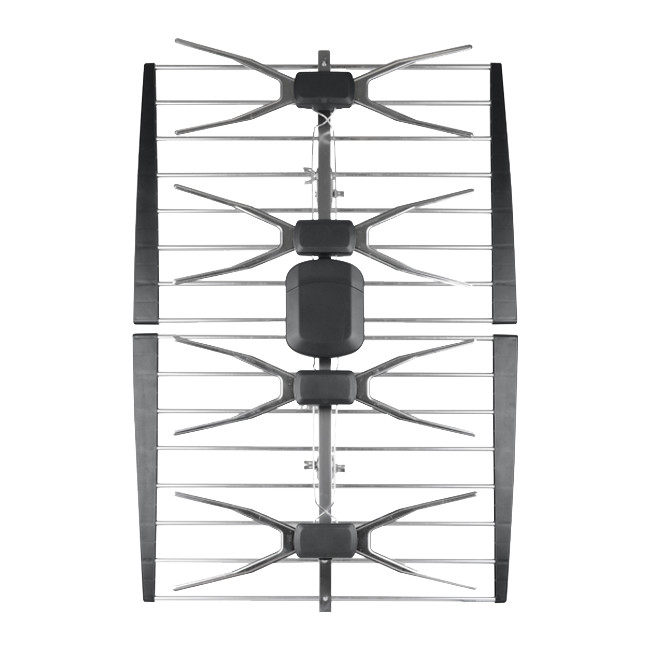

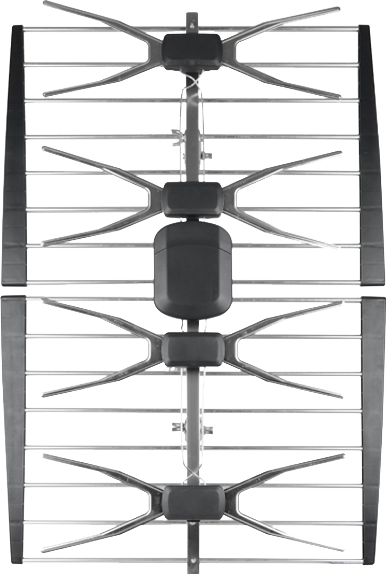

K-PANEL UHF PHASED ARRAY ANTENNA - KINGRAY

Kingray are proud to announce the release of the Kingray K-PANEL UHF phased array digital TV antenna. The design is based on the successful DIGIGRID01 with the added improvements of a longer waterproof boot to accommodate the longest of compression connectors. The colour of UV stabilsed plastics has been chosen to match the Kingray masthead housing to provide an aestehetically pleasing installation.
The rugged and robust construction ensures it will stand up to the harshest of Australian environments, while it's performance is as you would expect from a Kingray product.

{tab Features}

• Rugged construction

• F type connection
• 4G 694 MHz low pass filter

• Easy to install

• Horizontal and vertical operation

• Heavy duty mounting bracket

• Includes twist on F connector

{tab Specifications}

• Gain : 12.5dB
• Wind load (N): 78
• Frequency (MHz): 470-694

• Beamwidth (Hor): /-25 degrees
• Weight(Kg): 1.65
• Channel: 28-51

• Beamwidth (Ver): /-20 degrees
• Size (mm): 815 x 545
• F connector: yes

• Front to Back ratio: 22dB
• No of Elements: 4 Impedance: 75 ohm
• 4G 694 MHz low pass filter
