4PAVS MULTI AV TO HDMI CONVERTER

4 PORT MULTI A/V TO HDMI PRESENTATION SWITCH

Features

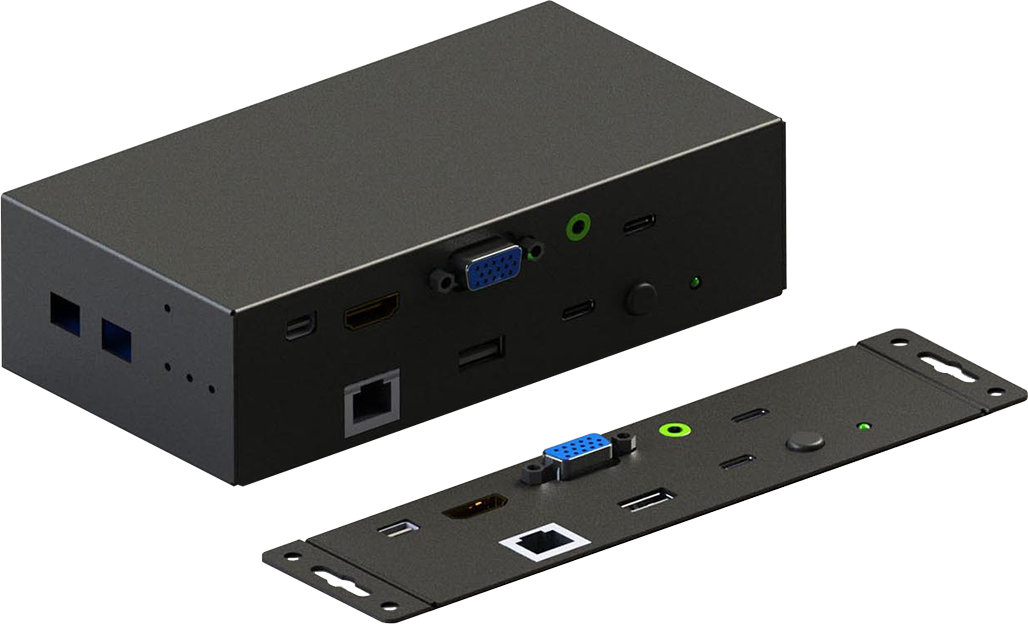

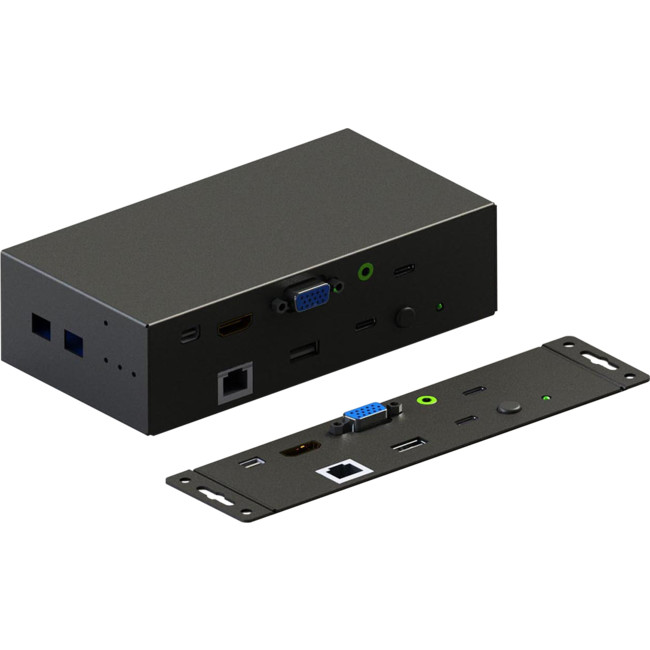

Krysma 4-port Multi A/V to HDMI Presentation Switch features a concealed, in-table design that lets you connect VGA, Mini DisplayPort, HDMI or USB Type C video source device to an HDMI TV or projector. It can also be used as a desktop unit.

This switch features with USB charging ports to charge your mobile device and an Ethernet pass-through port for Internet connectivity in boardrooms where WiFi is not available. This switch is suitable for integrating multiple video sources to a HDMI display in a meeting room, conference room, classroom, lecture hall or auditorium.

• Solution for integrating multiple devices in to meeting/conference/class room or auditorium
• Convert multiple analogue & digital inputs to a HDMI output
• Features VGA & Audio, Mini DisplayPort, USB Type Cand HDMI inputs
• USB (Type A & Type C) charging and Ethernet pass-through ports
• Power Adapter with screw-lock connector

Specifications

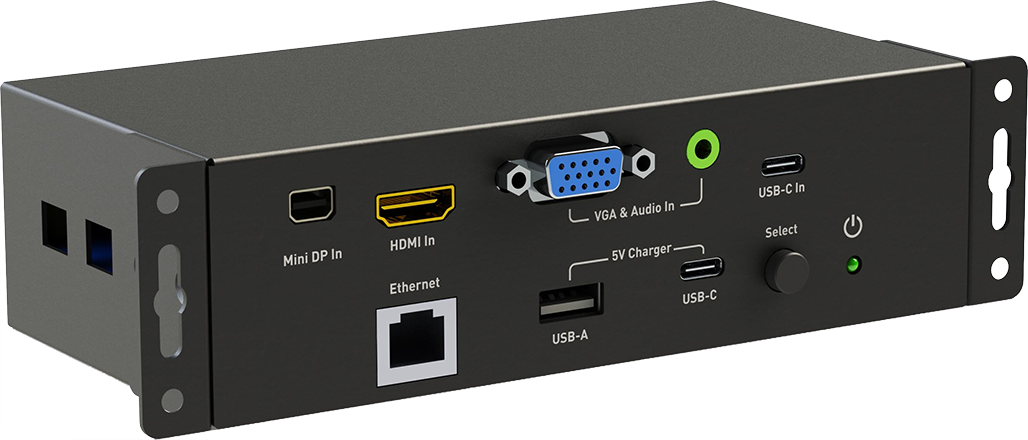

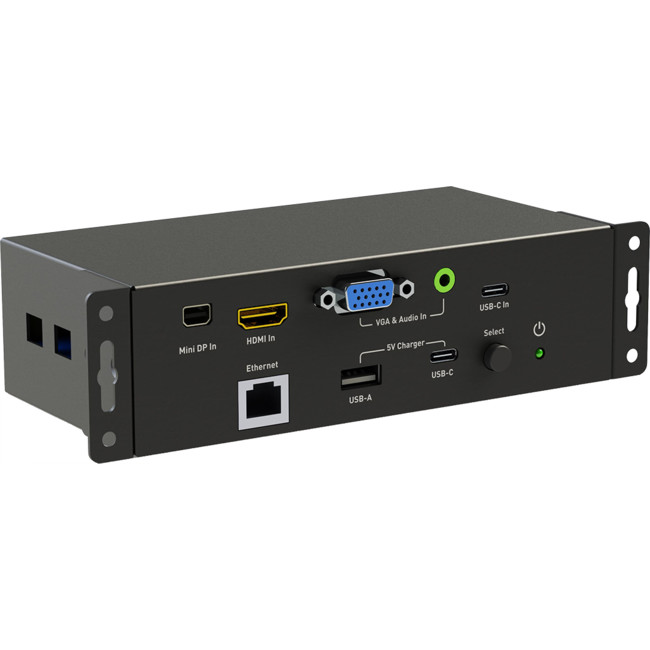

• HDMI A Female
• Mini DisplayPort Female
• VGA 15 Pin Female
• 3.5mm Audio Female
• USB Type C DP Alt
• RJ45 Female Ethernet (Pass-through)

• HDMI A Female
• RJ45 Female Ethernet (Pass-through)
  • USB Type A & Type C Female (5V 1.5A Power Only)

• Support Ethernet Bypass Function
• Source Auto Detect Function
• Maximum Analogue Video Input: 1920×1080 60Hz
• Maximum Digital Video Input: 4Kx2K @ 60Hz
• Analogue Audio Support: 2 Channel Stereo (3.5mm)
• Digital Audio Support: up to 7.1 Channel Surround Sound (HDMI, Mini DisplayPort, USB Type C)
• Dimensions: 14x9x5cm
• Weight: 0.600kg (approx)

Package Contents

• Multi AV Input to HDMI Presentation Switch
• 2x Installation Bracket
• 2x Desk Mount Hooks
• 24V 1.5A Power Adapter (w/ screw-lock connector)
• User Manual
