{tab Features}

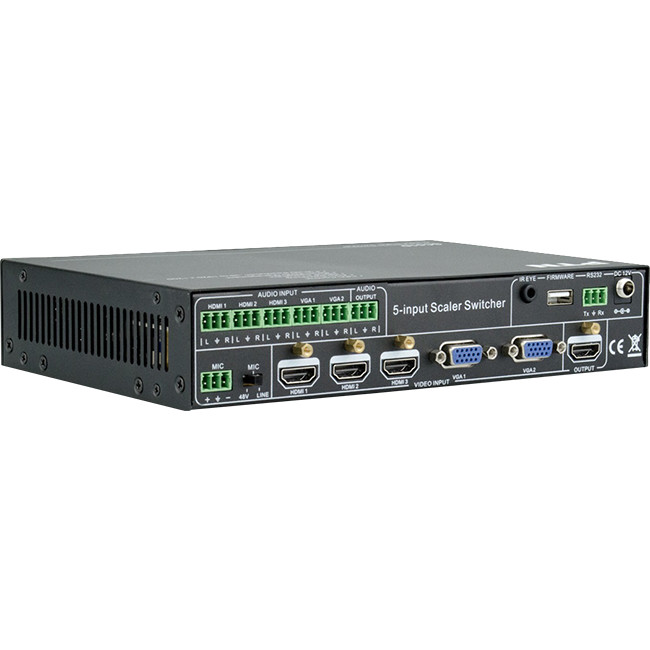

SC51D is a full HD scaler switcher with 5 video, 5 audio &1 MIC inputs, it scales & switches any video signalto HDMI output up to 1920*1200, controllable via button, IR and RS232.
{tab Specifications}
Video Input
3 HDMI(Female HDMI); 2 VGA (Female 15 pin HD);0.5V~2.0Vp-p; 75Ohm
Video Input Signal
HDMI, VGA, YPbPr,C-video
Video Output
1 HDMI (Female HDMI); 0.5V~2.0Vp-p; 75Ohm
Video Output Signal
HDMI, DVI
Audio Input
3 Dual-mono stereo audio for HDMI,>10kOhm 2 Dual-mono stereo audio for VGA (Supports C-VIDEO, YPbPr, VGA), >10kOhm All 3P captive screw connectors (3.81mm);
Audio Output
1Stereo audio,3P captive screw connector (3.81mm); 50KOhm
Resolution
1024x768, 1280x720, 1280x800, 1920x1080, 1600x1200, 1920x1200
Gain
0 dB
Bandwidth
HDMI:4.95Gbps(1.65Gbps per color) C-Video:150MHz YPbPr: 170MHz VGA: 375MHz
Maximum Pixel Clock
165MHz
DVI/HDMI Standard
Compliant with HDCP, DVI & HDMI 1.3
Control
Buttons, IR remote & RS232 (Captive screw connector)
Power Supply
DC12V±0.5V;8W
Temperature
-20 ~ 70°C
Humidity
10% ~ 90%
Chassis Dimension
W220 x H44 x D148mm
{tab Download}
AVG-SC51-D User Manual
