HDMI5SM 5 WAY MINI HDMI SWITCHER

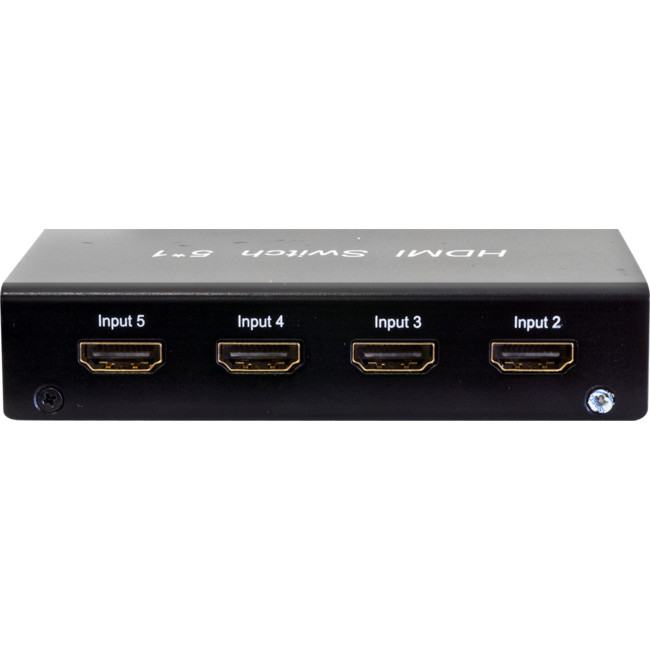

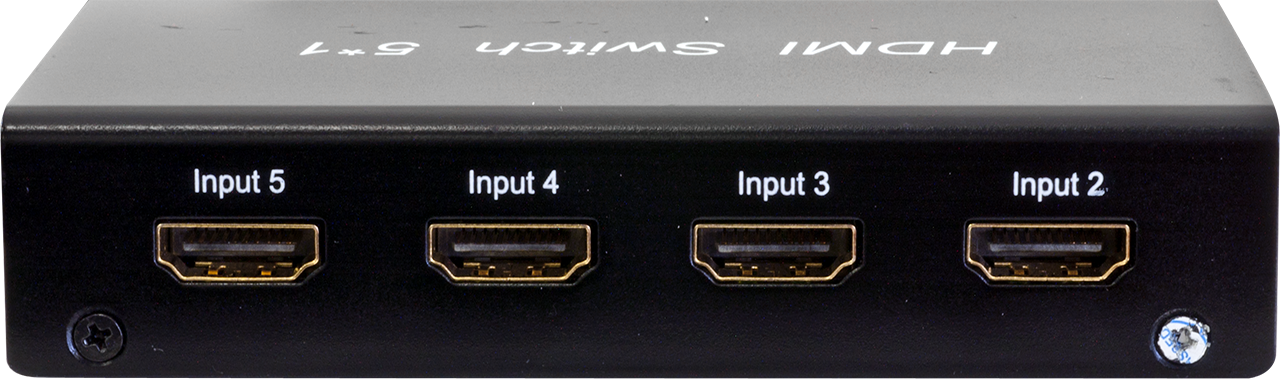

• Switch between 5 HDMI inputs to 1 HDMI output
• Supports Resolutions up to 1080p/24fps
• Supports Deep Colour (10/12-bit), xvYCC and 3D Video.
• Support High Definition Audio: Dolby TrueHD / DTS-HD Master Audio
• HDMI 1.3 / HDCP 1.2 Compliant

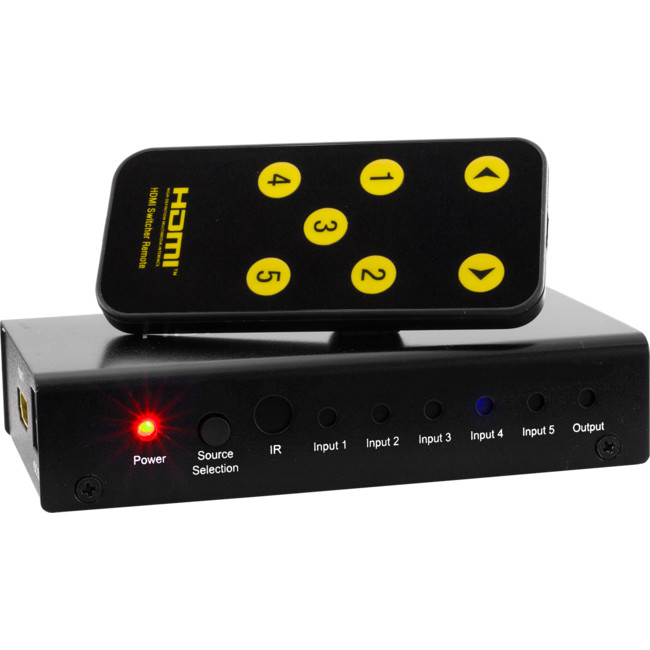

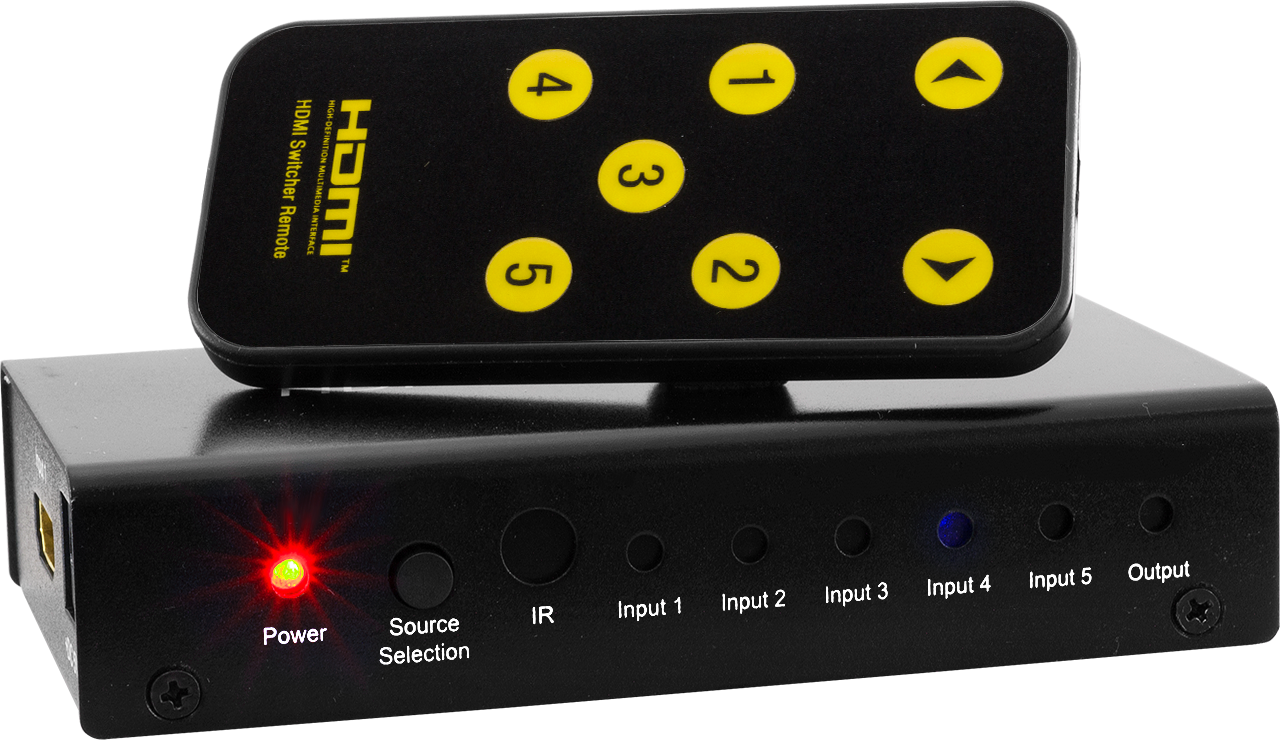

• Change input source with IR Remote Control or Input Button on unit
• Will select next input when no signal is detected
• Easy to install and operate
• Supports switching DVI signal when DVI-HDMI cable or adapter is used
• Use of power supply optional
• Auto Signal Boosting improves signal quality after long distance transmission (only when power supply is used*)

*Power Supply included but not required
The product has been tested without a power supply to a total distance of 30m using quality Pro2 leads.

By adding a power supply, signal can be boosted. If higher loss HDMI leads are used or long distances are required, we recommend using the power supply.

• 1x HDMI5SM 5:1 Switching unit

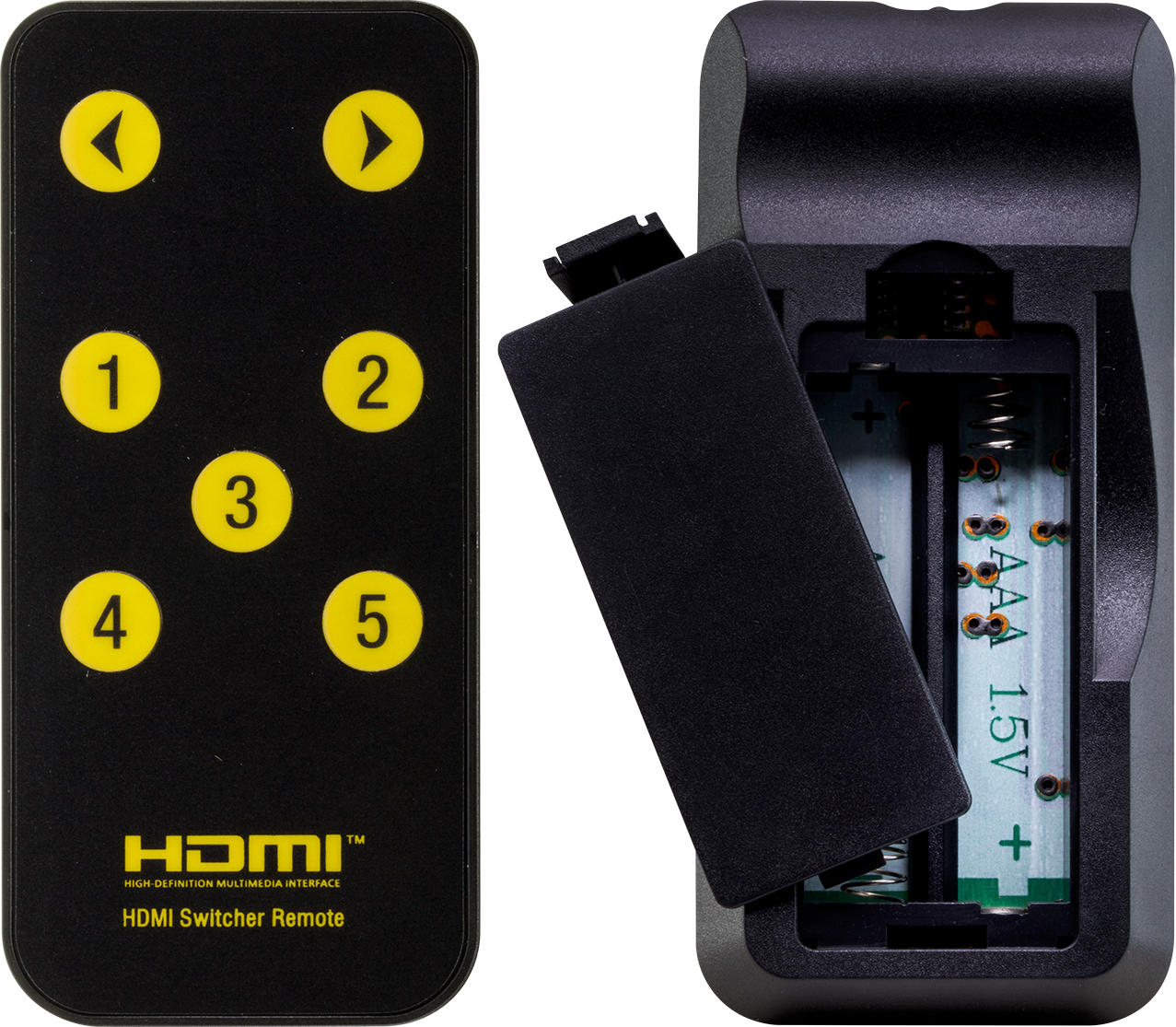

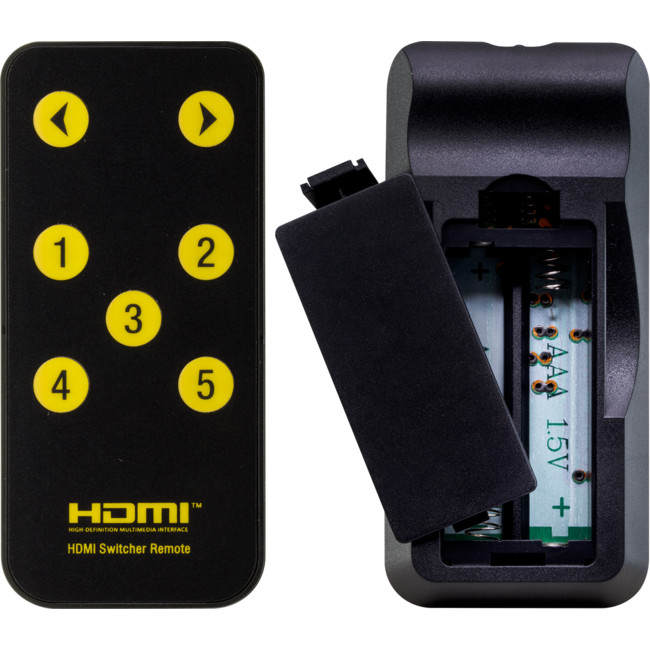

• 1x IR Remote control
• 1x User Manual
• 1x 5VDC Power adaptor

Q. Why is my remote not switching between sources?

A. The HDMI5SM will only switch between active HDMI inputs. IF the HDMI source (eg. Bluray player) is off or in stand-by, it will not be recognised by the HDMI switch as an input.
