MFP31 PORTABLE MULTI FORMAT SWITCH

Blustream MFP31 Portable Multi-Format Presentation Switch

Blustream's MFP31 is a portable multi-format presentationswitch, featuring HDMI, DisplayPort and USB-C inputs to a single HDMI output, with manual or auto source selection.

The MFP31 supports HDMI 2.0 18Gbps specification including pass-through of all formats of HDR and HDMI audio.

The MFP31 is an ideal product for your boardroom or huddlespace application.

Key Features

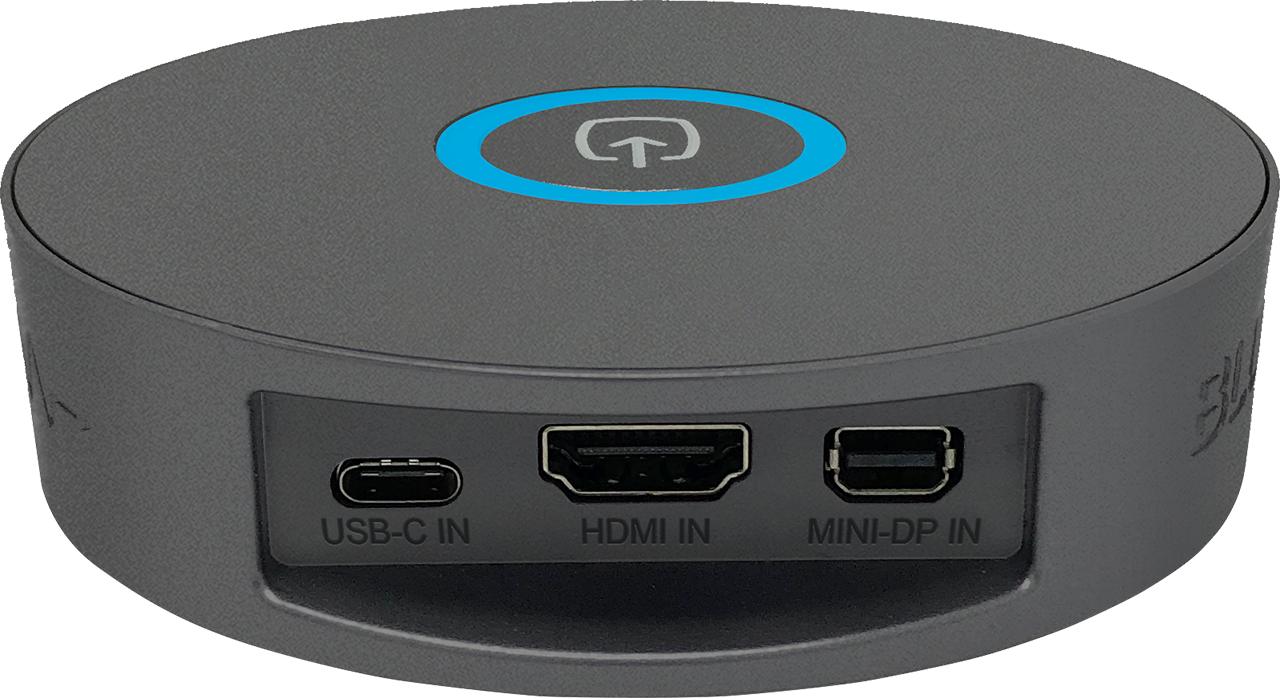

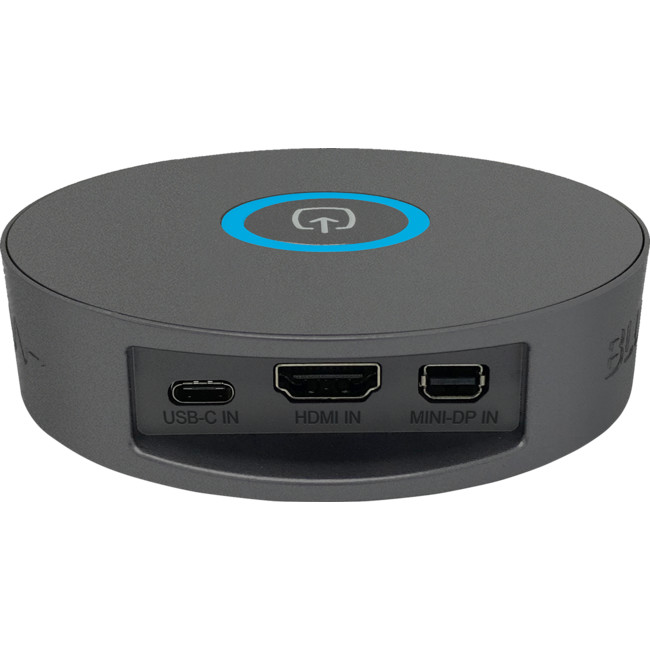

• Features 1 x HDMI, 1 x USB-C and 1 x Mini DisplayPort™ input which can be switched to a single HDMI output

• Supports HDMI 2.0 18Gbps specification including HDR

• Supports resolutions up to 4K UHD 60Hz 4:4:4

• Supports all known HDMI audio formats including Dolby TrueHD, Dolby Atmos, Dolby Digital Plus and DTS-HD Master Audio transmission

• Supports Mini DisplayPort™ up to 4K UHD 60Hz 4:4:4, DP1.2

• Supports USB Type C up to 4K UHD 60Hz 4:4:4, DP1.2

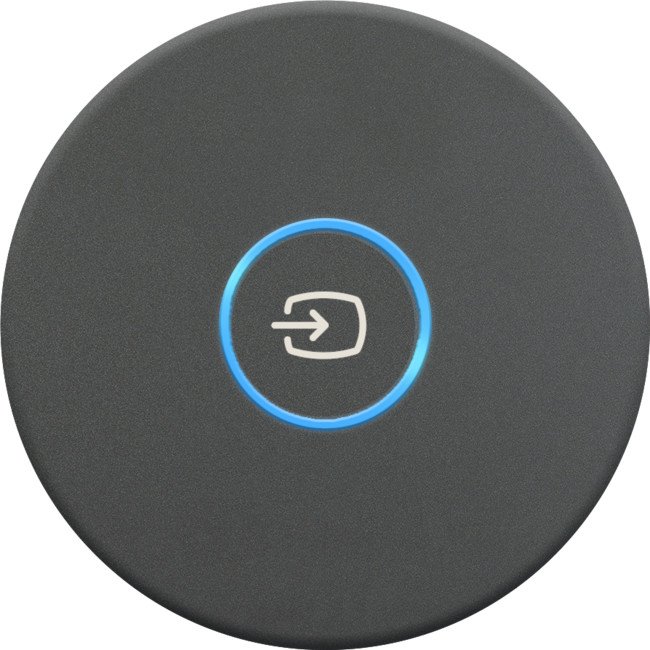

• Supports both manual or automatic source selection

• HDCP 2.2 compliant

Specifications

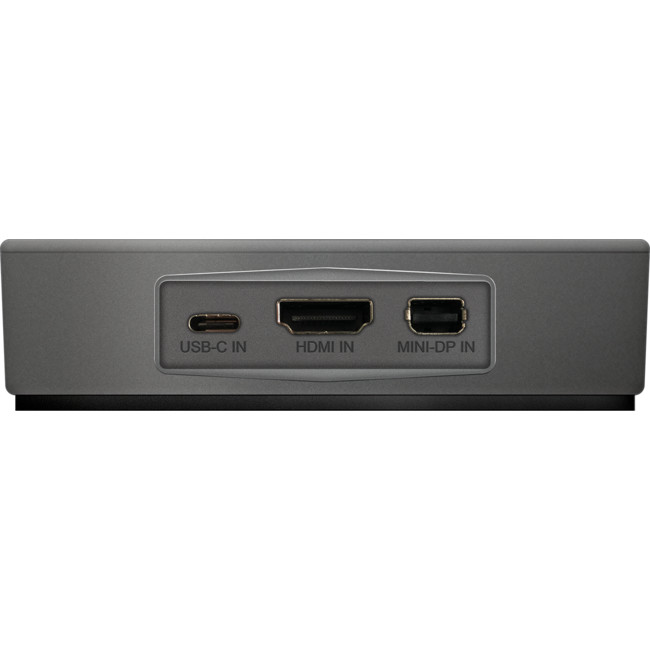

• Video Input Connectors: 1 x HDMI Type A, 19-pin, female, 1 x USB-C Type C, 1 x Mini Display™ Port

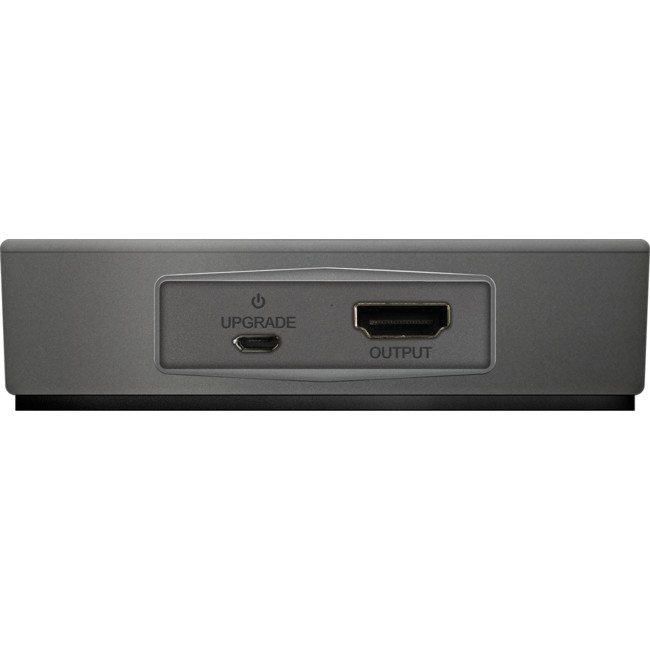

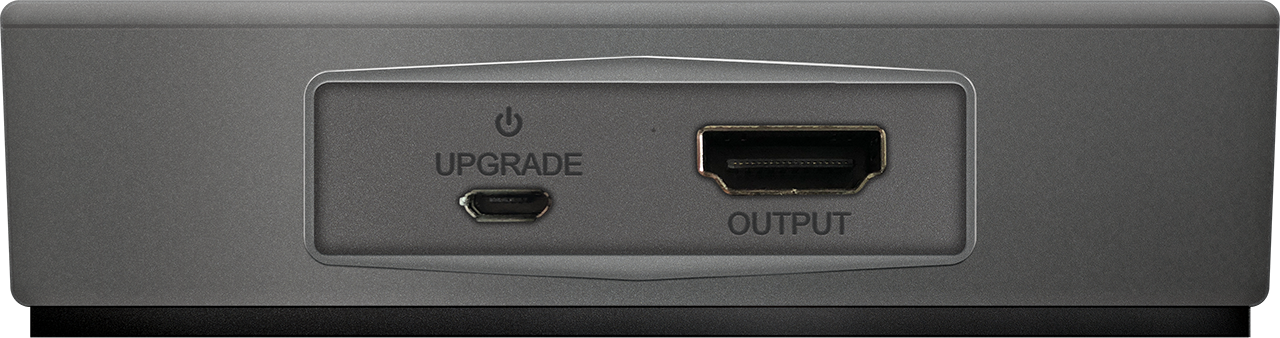

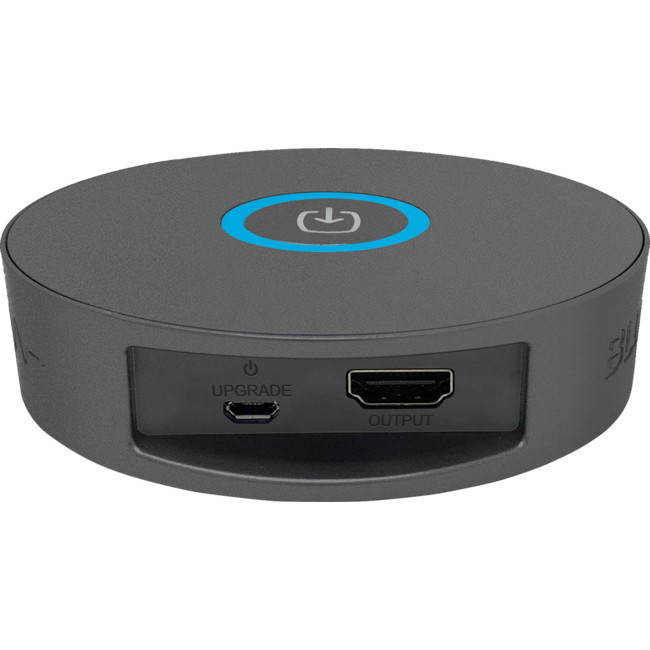

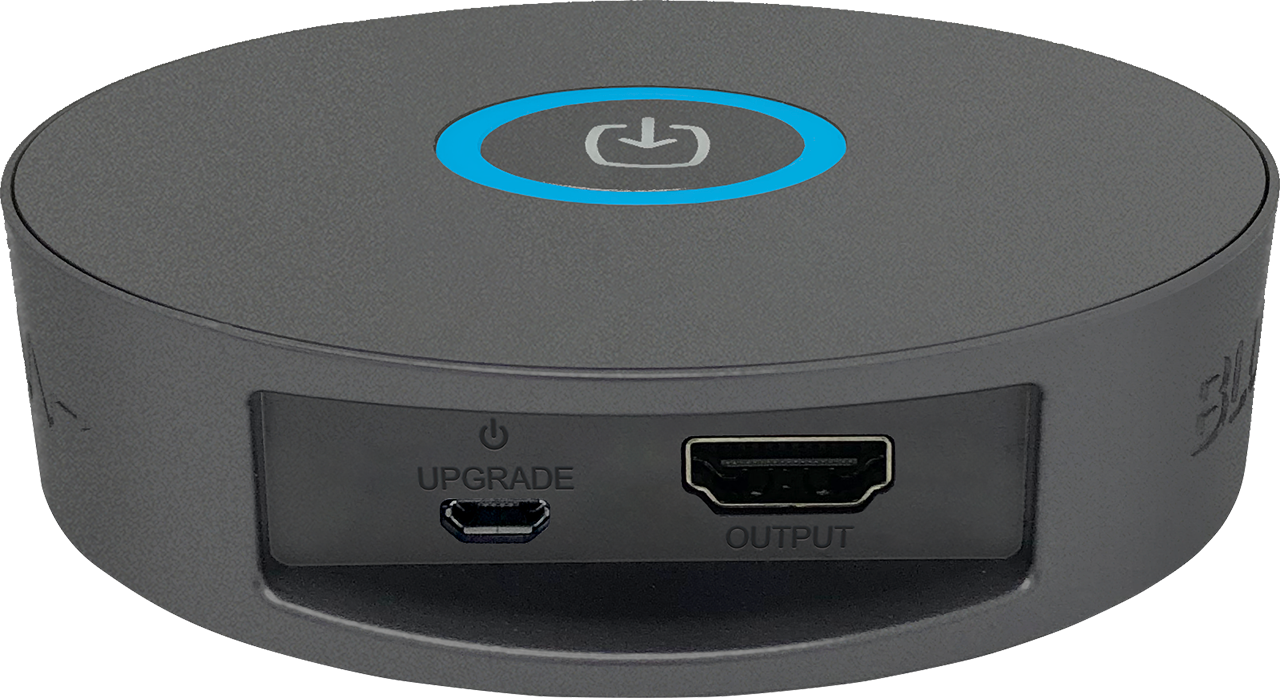

• Video Output Connectors: 1 x HDMI Type A, 19-pin, female

• Local power input: 1 x Micro USB, female

• Casing Dimensions (Dia x H): 105mm x 25mm

• Operating Temperature: 32°F to 104°F (0°C to 40°C)

• Storage Temperature: -4°F to 140°F (-20°C to 60°C)

• Power Supply: 5V/1A DC

What's in the Box

• MFP31 Switch
• Power Supply 5V/1A DC
• Power Cable 1 x USB to Micro USB
