MV41 4 WAY MULTIVIEW HDMI SWITCHER

{tab overview}

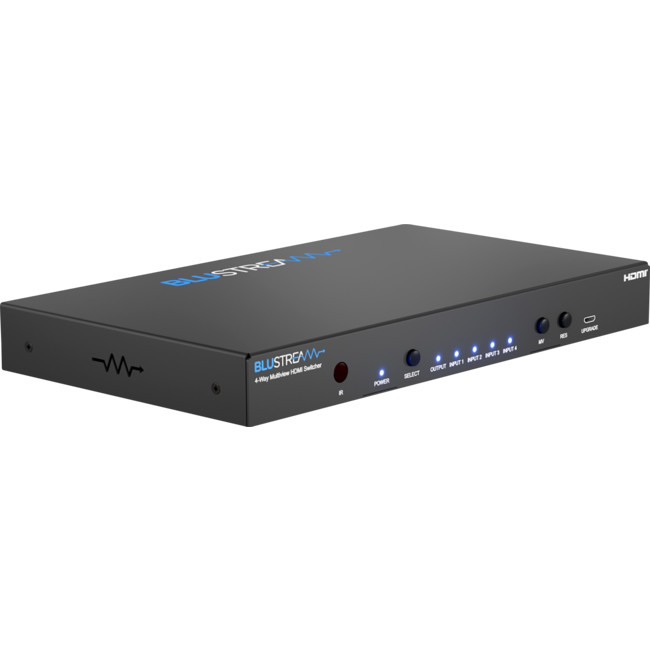

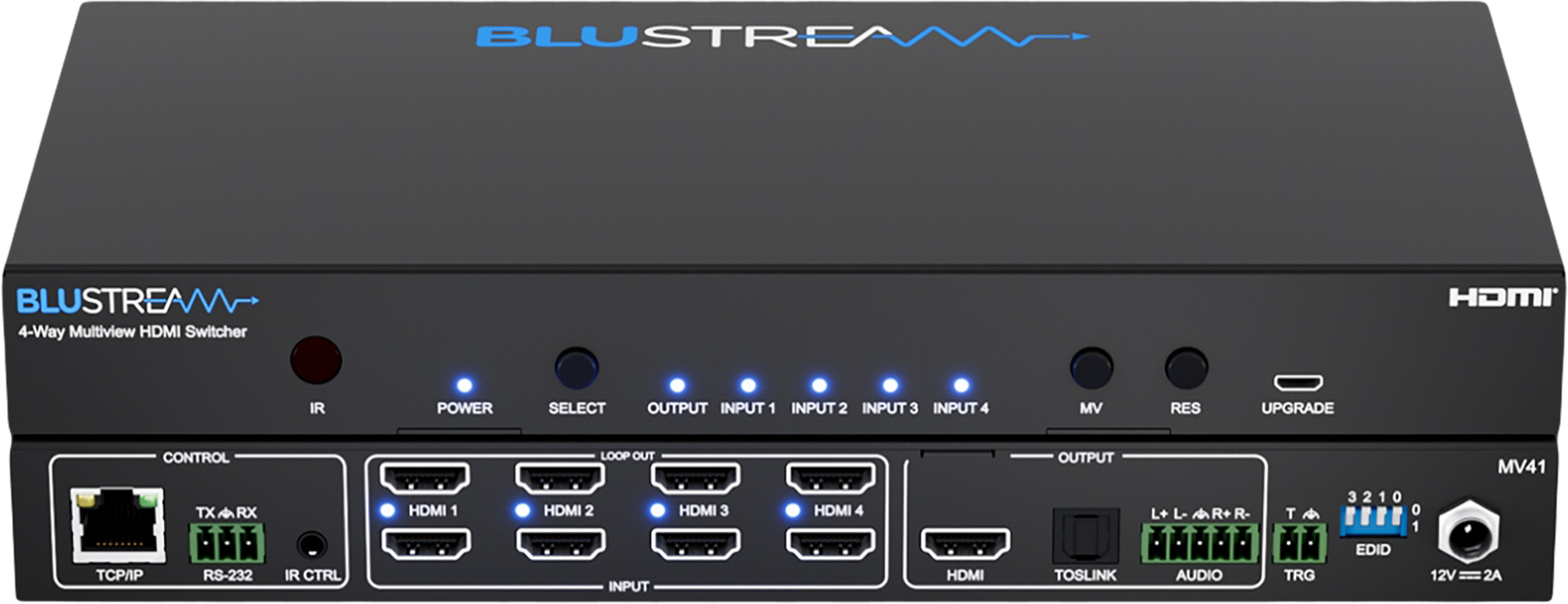

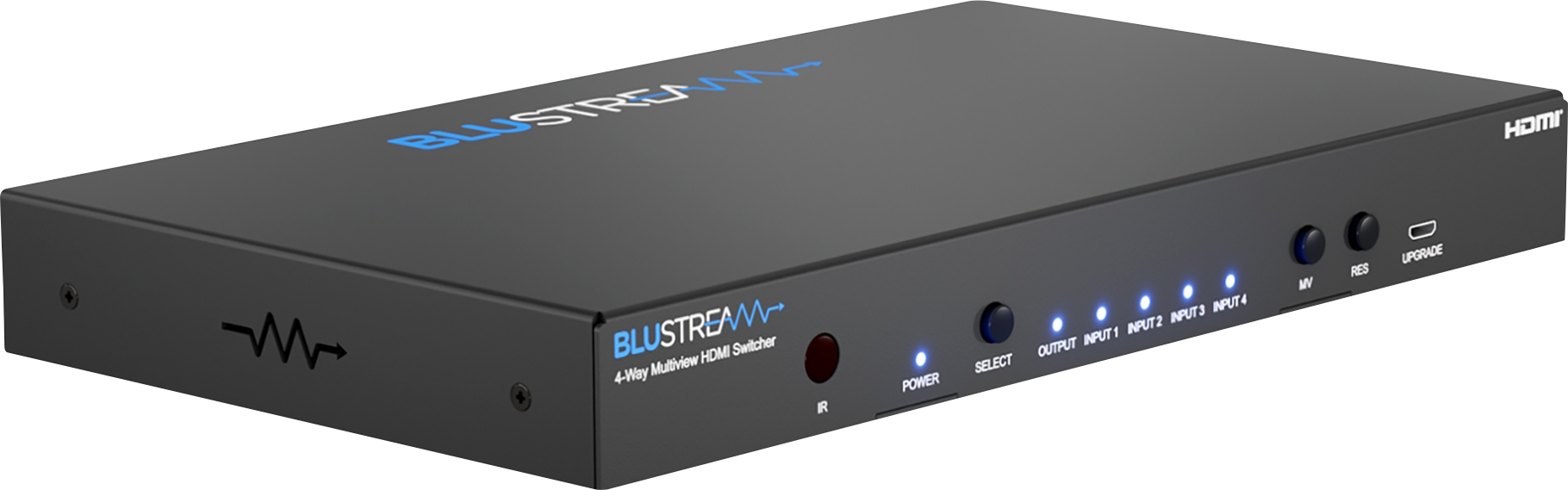

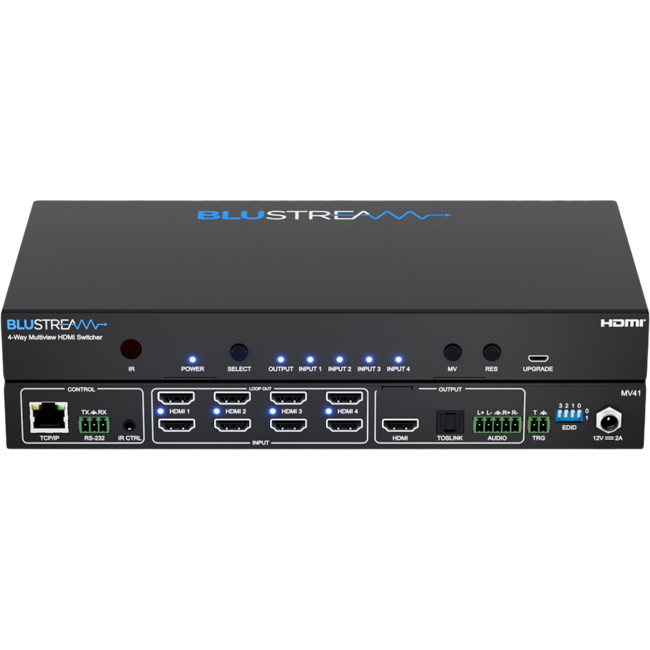

Blustream MV41 4-Way Multiview HDMI Switcher

{tab Key features}

• Advanced 4x HDMI input switch with multi-view HDMI output

• Features 4x HDMI loop out for integrating local displays or cascading to multiple devices

• Supports PIP, PBP, POP, Dual, Triple and Quad-windows layouts with pre-defined and customisable configurations

• Supports video down-scaling and HDR to SDR conversion on HDMI multiview output

• Supports HDMI2.0 4K UHD 60Hz 4:4:4 18Gbps specification including HDR

• Supports all industry standard video resolutions including VGA-WUXGA and 480i-4K

• Supports all known HDMI audio formats including Dolby Atmos, Dolby TrueHD, Dolby Digital Plus and DTS-HD Master Audio transmission

• HDMI audio breakout to analogue L/R audio, and optical digital outputs concurrently

• Analogue L/R audio outputs support both balanced and unbalanced audio signals

• Control via front panel, IR, RS-232, TCP/IP, web-GUI and 12V trigger

• Supplied with Blustream 5V IR receiver and remote control

• 3rd party drivers available for all major control brands

• HDCP2.3 compliant with advanced EDID management

{tab Specifications}

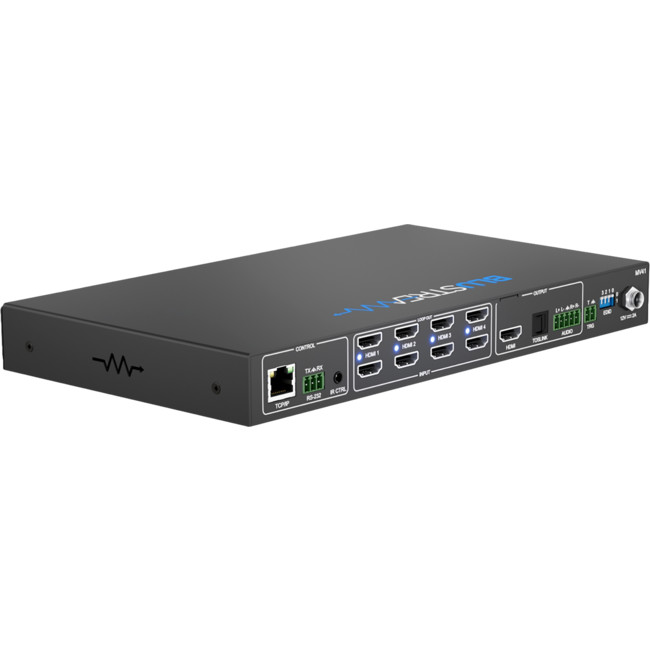

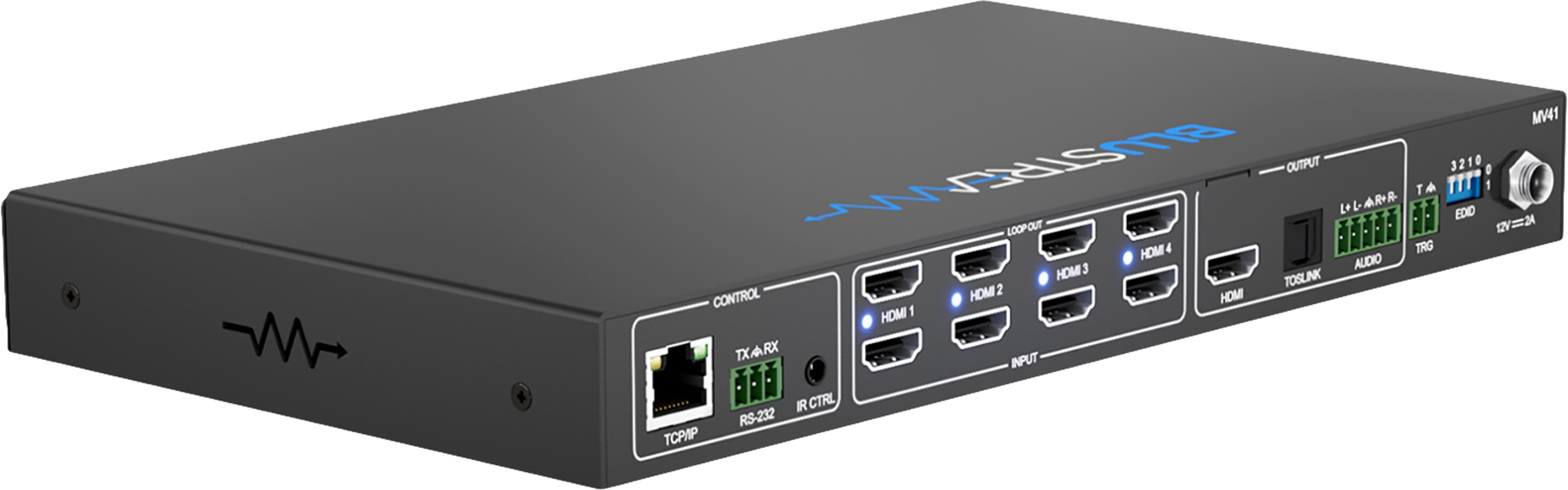

• Video Input Connectors: 4 x HDMI Type A, 19-pin, female

• Video Output Connectors: 5 x HDMI Type A, 19-pin, female

• Audio Output Connectors: 1 x Optical (S/PDIF), 1 x 5-pin Phoenix connector

• TCP/IP Control: 1 x RJ45, female

• RS-232 Port: 1 x 3-pin Phoenix connector

• 12V Trigger Port: 1 x 2-pin Phoenix connector

• IR Input Ports: 1 x 3.5mm stereo jack

• Firmware Upgrade: 1 x Micro-USB UART port

• Operating Temperature: 32 F to 104 F (0 C to 40 C)
• Dimensions (W × D × H): 265mm × 152mm × 30mm

• Shipping Weight: 1.5kg

• Storage Temperature: −4°F to 140 F (−20°C to 60°C)

• Power Supply: 12V/2A DC, screw connector

{tab Box Contents}

• 1 x MV41

• 1 x IR receiver

• 1 x IR remote control

• 1 x 5-pin phoenix connector

• 1 x 3-pin phoenix connector

• 1 x 2-pin phoenix connector

• 1 x 19" rack mounting kit

• 1 x Quick reference guide

• 1 x 12V/2A DC power supply
