PRO48HBT70CS CUSTOM PRO 4X8 HDBASET CSC

MATRIX - SMART SCALE TECH

Code: 64510292

EACH
Special
Buy-In
$5994.45 inc GST
Increase value Decrease value
Qty Each (inc GST) Each
Request Price Match
Interested in purchasing this product?
This product is a special buy-in. Special buy-in products are goods especially bought in on customer's request. After acceptance, special buy-in products cannot be cancelled or the goods returned, unless Radio Parts and its supplier agrees to the cancellation of the corresponding order and return of goods. Prices are subject to change and in the event that our purchase price has changed, we will notify you before finalising your order. Please call us on (03) 93218300 for availability, ETA, or if you have further questions.
Click here if you agree to these terms and to show the Add To Cart button.
View Product
Enter 4 digit postcode

PRO48HBT70CS

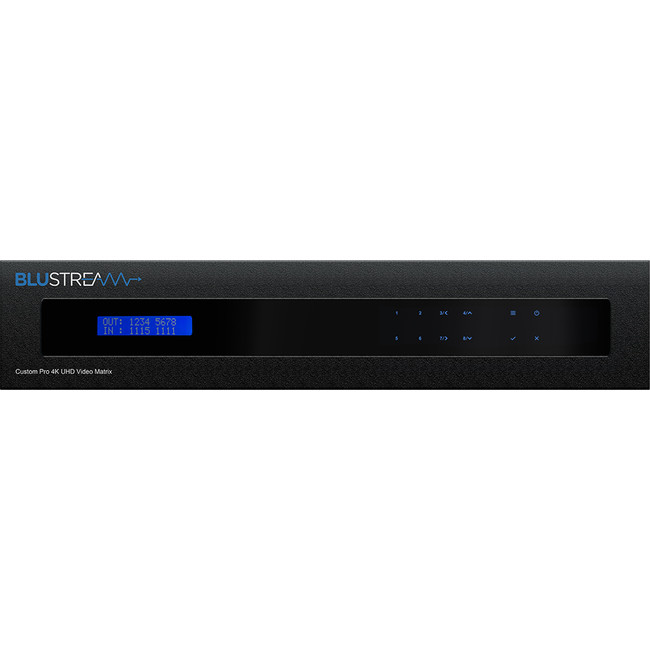

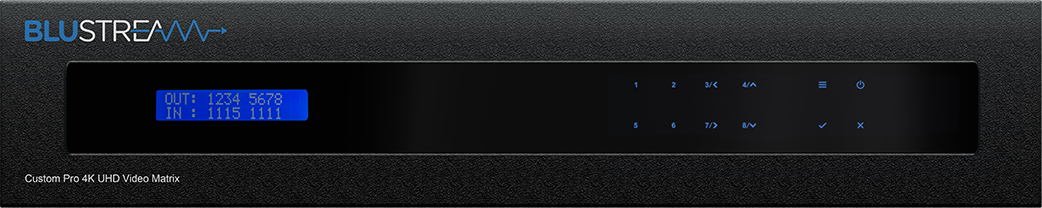

Custom Pro 4x8 HDBaseT CSC Matrix (4K 60Hz 4:4:4 up to 40m) - Supports 4K HDR, IP Control, PoE, 2-Way IR and Audio Breakout



tech1.jpg tech2.jpg


tech4.jpg tech5.jpg



Blustream's Custom Pro 4x8 HDBaseT™ CSC Matrix offers unprecedented 4K HDR performance for the custom installation market.

The PRO48HBT70CS is a HDMI2.0 4K 60Hz 4:4:4 HDCP2.2 Matrix utilising CSC technology to deliver HDMI, Bi-directional IR, PoH (PoE) up to lengths of 70m over a single CAT cable (4K with HDR up to 40m), with independent down-scaling of 4K video inputs on the CSC HDBaseT™ outputs to allow displays only capable of supporting lower video resolutions to receive 4K video while still showing maximum original 4K UHD resolution on the higher-definition displays.

The Matrix also provides advanced features including audio breakout and a web browser interface module for control and configuration of the matrix.

Key Features

  • HDBaseT™ technology offeringdistribution of video and audio over a single CAT cable
  • Advanced Colour Space Conversion (CSC) supports HDMI2.0 18Gbps specification including HDR
  • Features 4x HDMI inputs which can be independently routed to 8 x HDBaseT™ outputs
  • Supports 4K 60Hz 4:4:4 UHD video up to 40m
  • Independent down-scaling of resolutions up to 4K60Hz 4:4:4 video input to the following formats:
    • 1080p 60Hz (for screens that do not support 4K)
    • 4K 60Hz 4:2:0 (for screensthat do not support full 4K 60Hz 4:4:4)
  • Supports 4K HDR
  • Extends HDMI 1080p video up to 70m
  • Supports all industry standard video resolutions including VGA-WUXGA and 480i-4K HDR
  • Supports all known digital HDMI audio formats including Dolby TrueHD, Atmos; DTS-HD Master Audio and DTS:Xtransmissions
  • Analogue audio input can be embedded onto any HDMI input
  • Web interface module for control and configuration of Matrix
  • Supports bi-directional IR
  • Supplied with Blustream IR receivers and emitters
  • Control via front panel, IR, RS-232 and TCP/IP
  • Supports PoH (Power over HDBaseT™) to power compatible HDBaseT™ receivers
  • 3rd Party drivers available for all major homecontrol brands
  • 2U Design for 19" rack mount integration - Mounting kit included
  • Advanced EDID management
  • HDCP2.2 compliant
  • To be used with the HEX70CS-RX receivers



Specifications

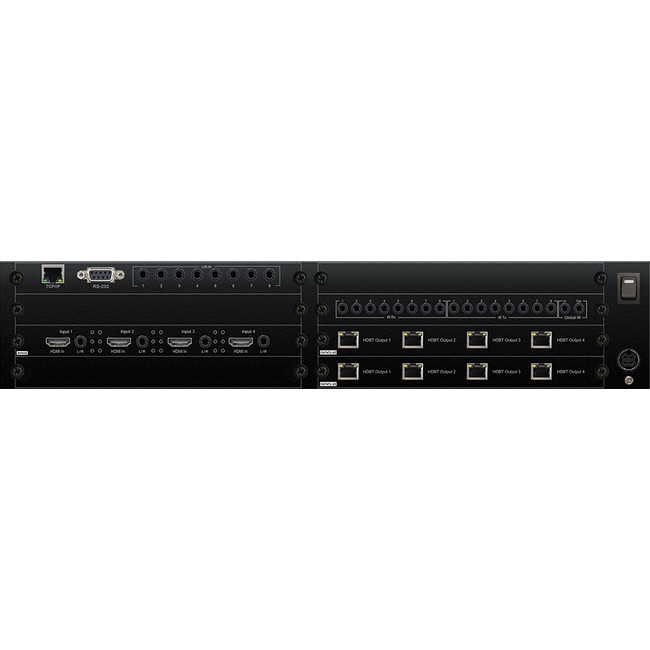

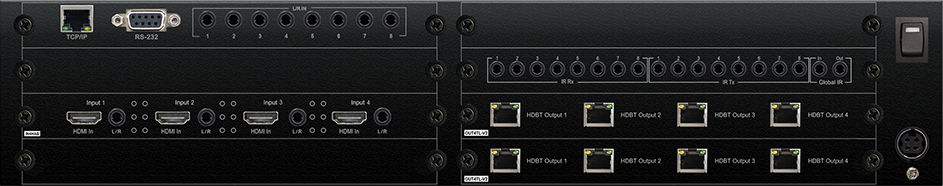

  • Video Input Connectors: 4 x HDMI Type A, 19-pin, female
  • Video Output Connectors: 8 x HDBaseT™ RJ45 connector
  • Audio Input Connectors: 8 x 3.5mm stereo jack (L/R)
  • TCP/IP Control: RJ45, female
  • Ethernet/Network: RJ45, female
  • IR Input ports: 9x 3.5mm stereo jack
  • RS-232 serial port: DB-9, female
  • Rack-Mountable: 2U rack height, rack ears included
  • Casing Dimensions (W x H x D): 440mm x 87mm x 282m without feet
  • Dimensions Including Connections (W x H x D): 440mm x 94mm x 288mm with feet
  • Shipping Weight: 5kg
  • Operating Temperature: 32°F to104°F (0°C to 40°C)
  • Storage Temperature : -4°F to 140°F (-20°C to 60°C)
  • Power Supply: 12V/6A DC
