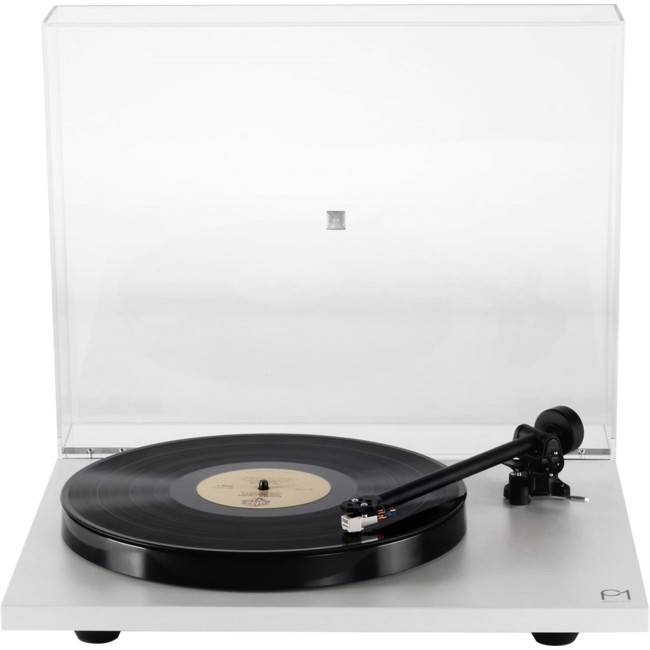

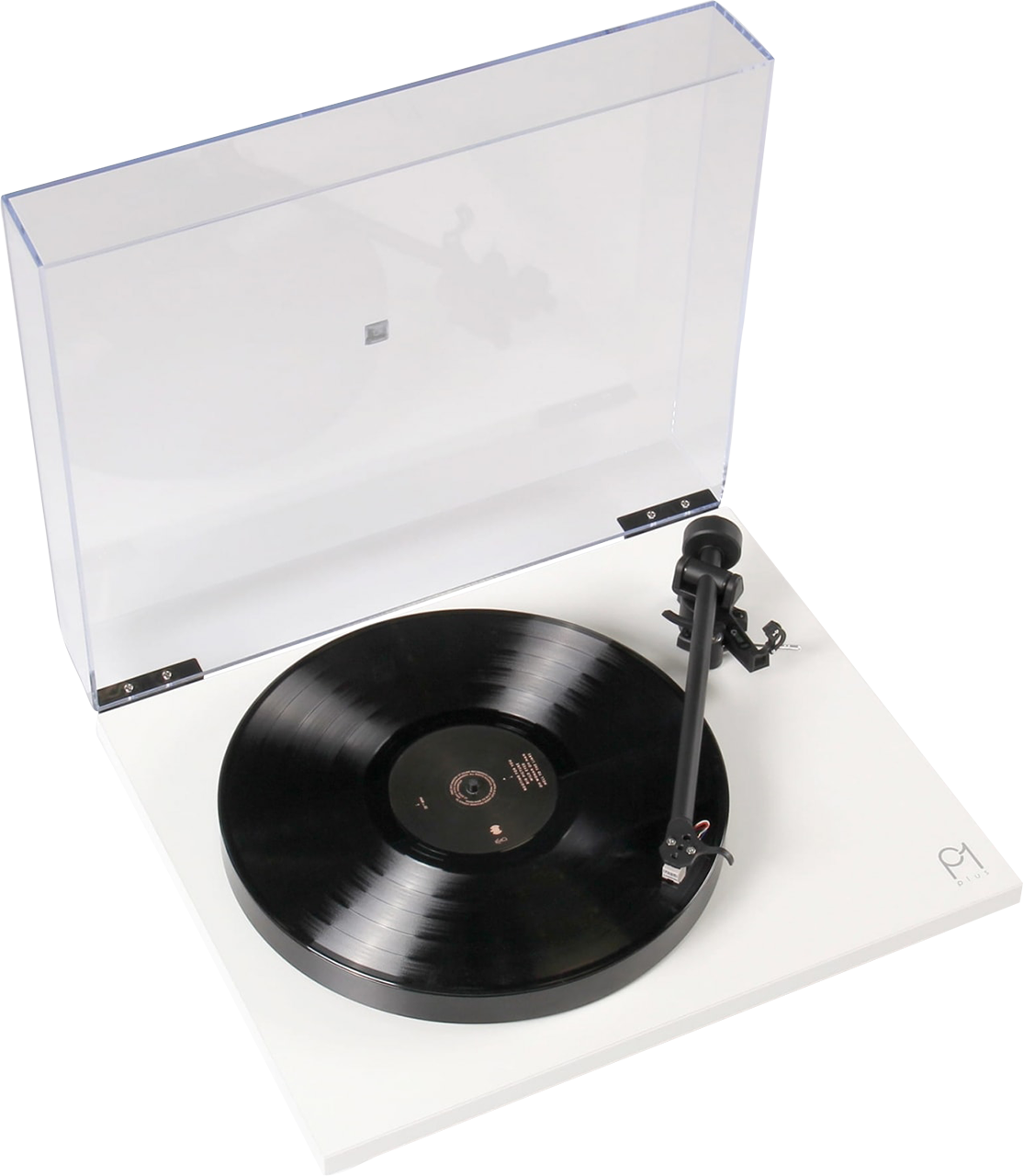

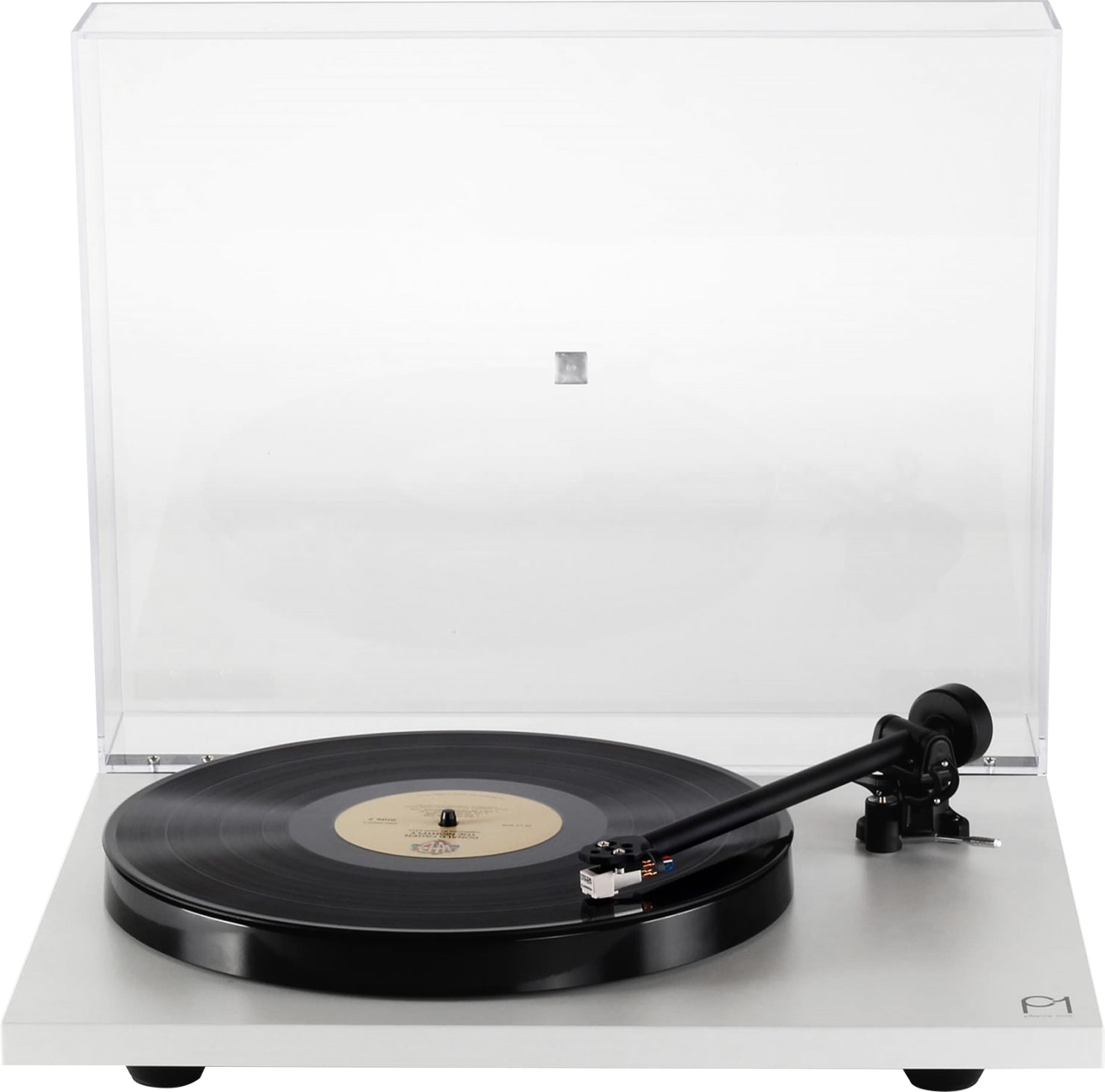

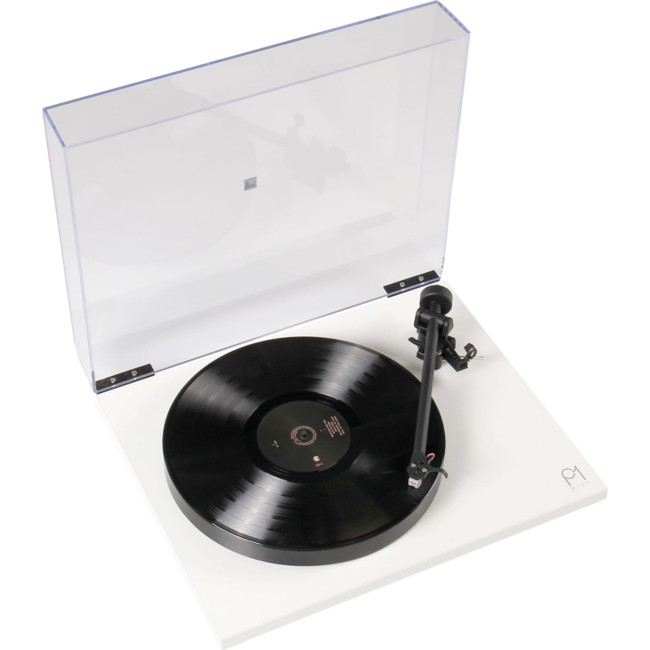

Planar 1 Plus Turntable - White
Introducing the brand new Planar 1 Plus turntable
Rega asked them selves, how do we make the most successful turntable we have ever made sound better, be eveneasier to use and be more accessible to a wider audience?
The answer was simple; their engineers added a custom designed, high quality, moving magnet phono stage based around the multi-award winningWhat Hi-Fi? 5 Star Fono Mini.
For the Planar 1 Plus, they wanted to optimise this circuit forultimate performance so they removed the USB interface and used the money saved to improve what was already a stunning discstage.

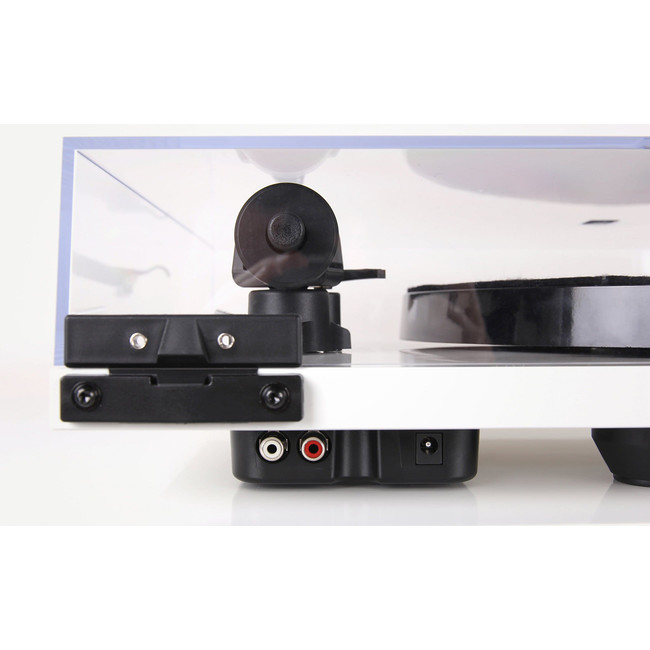

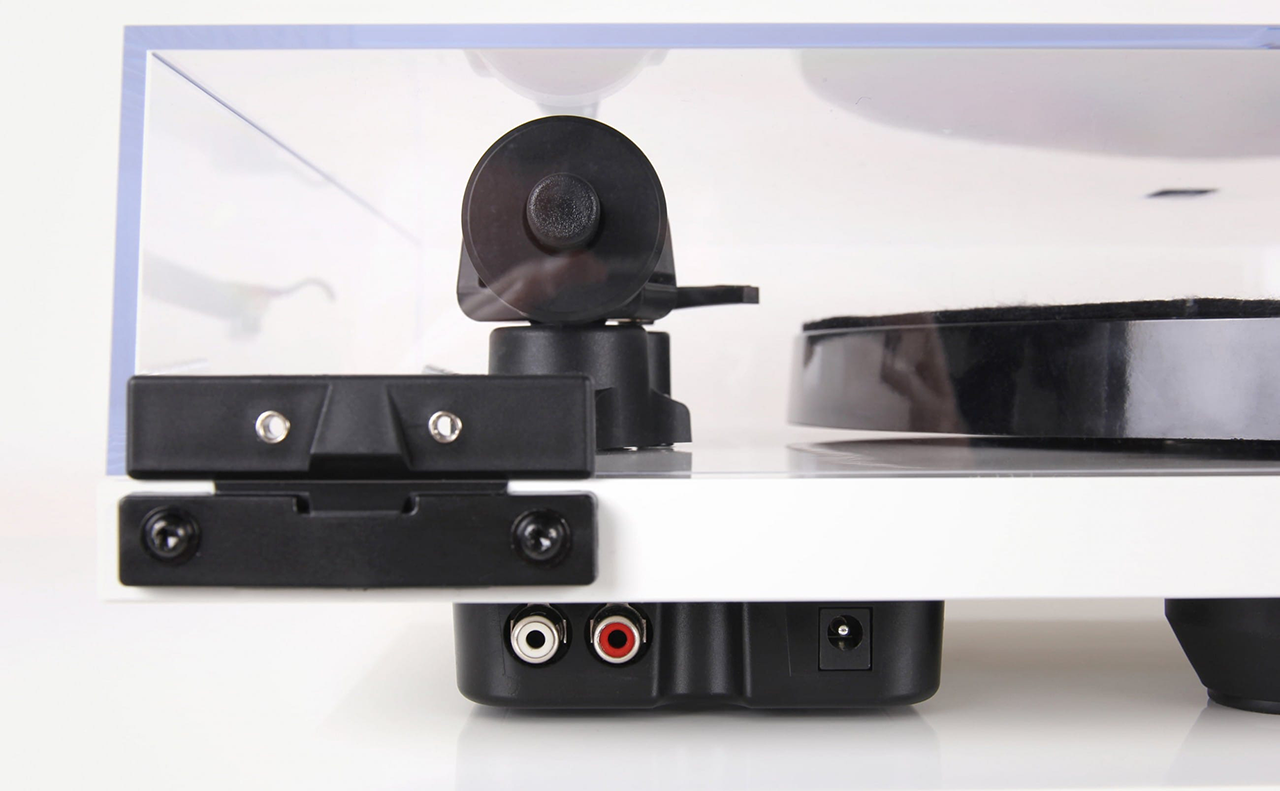

The new built in stage offers the ability to connect the Planar 1 Plus directly to almost any system that has a standard line input via a standard phono to phono cable (supplied) or phono to 3.5mm lead. Simply put, there is no need to purchase a stand alone phono stage or use an amplifier with a built in stage.

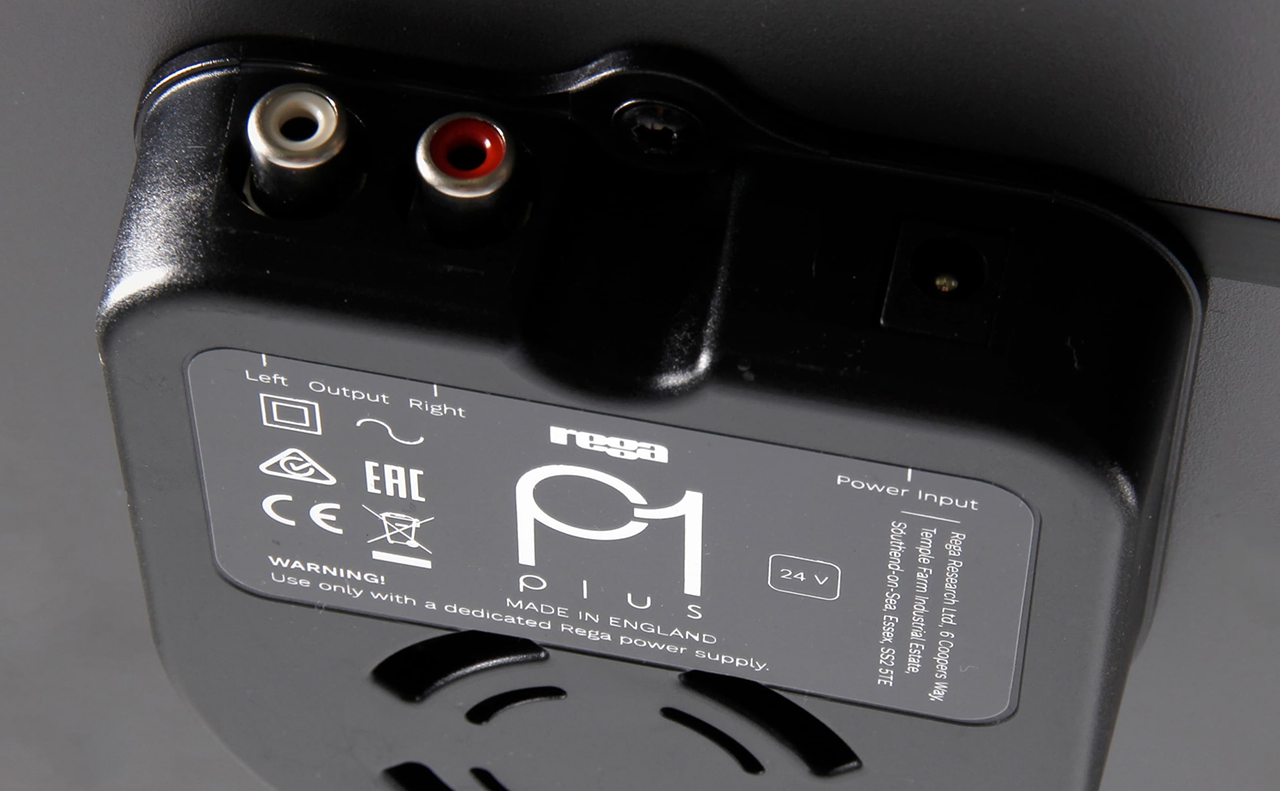

Your Planar 1 Plus will connect directlyto any standard Line Level input (such as you would connect a CD player to).
There are obvious audio advantages to housing the phono stage directly beneath the tonearm.
The carefully shielded tone arm wire is soldered directlyto the stage which prevents any unwanted pick up via the usual external cable between the arm and stage.
The Planar 1 Plus benefits from all of the advantages of its sibling, the Planar 1, such as a low noise 24v motor, precision hub bearing assembly and hand made RB110 tone arm with a factory fitted Rega Carbon cartridge.
Set-up remains possible in under 30 seconds making this the easiest to use, and most flexible Rega turntable to date.
Stick on your favourite LP, sit back and enjoy!
Key Features
Built-in PhonoStage
The built-in phono stage is a high specification pre-amplifier.
It is designed to amplify the signal from a moving magnetcartridge to a suitable level for all line level inputs of an appropriate system or audio amplifier.
This allows simple connection to a wide variety of products using either the standard twin phono to phono lead (supplied) or phono to 3.5 mm plug (not supplied).
Tonearm
Brand new RB110 tonearm built with the new Rega designed, bespoke, zero play bearings with ultra-low friction performance (Patent Pending).
New bias assembly and integrated arm clip.
Includes automatic bias adjustment negating the need for the user to set bias, making this the most ‘Plug &Play’turntable we have ever manufactured.
New ergonomically, re-designed and stiffer headshell for improved usability and appearance.
Cartridge
Rega Carbon moving magnet cartridge supplied fitted as standard.
Motor
24v, synchronous AC motor with a new motor PCB and aluminium pulley offering low noise and better speed stability.
Plinth
Brand new Thermoset, gloss laminated plinth with vastly improved appearance and new ergonomically positioned on/off switch located on the underside.
Two stunning plinth finishes available, black and white.
Central Bearing housing

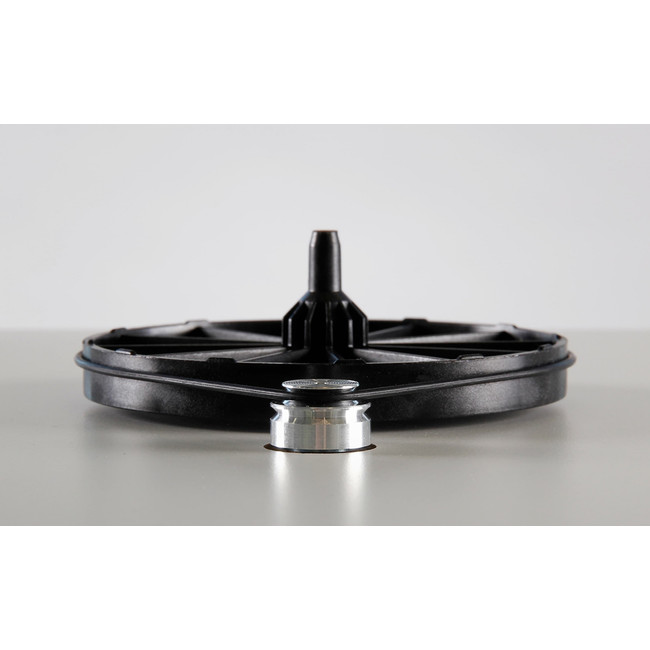

Re-designed brass main bearing, offering improved fit and removing stress on the bearing itself while minimising the transfer of potential energy. (Patent pending)

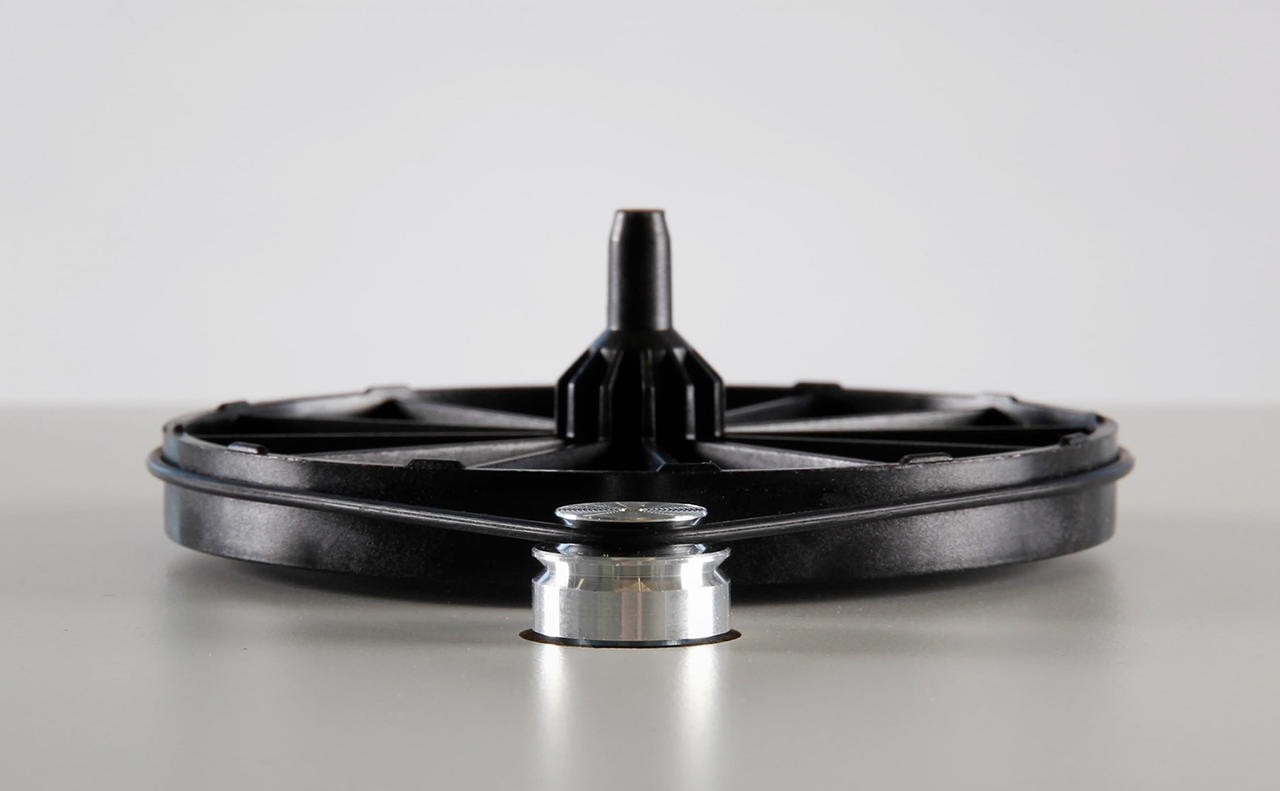

Platter

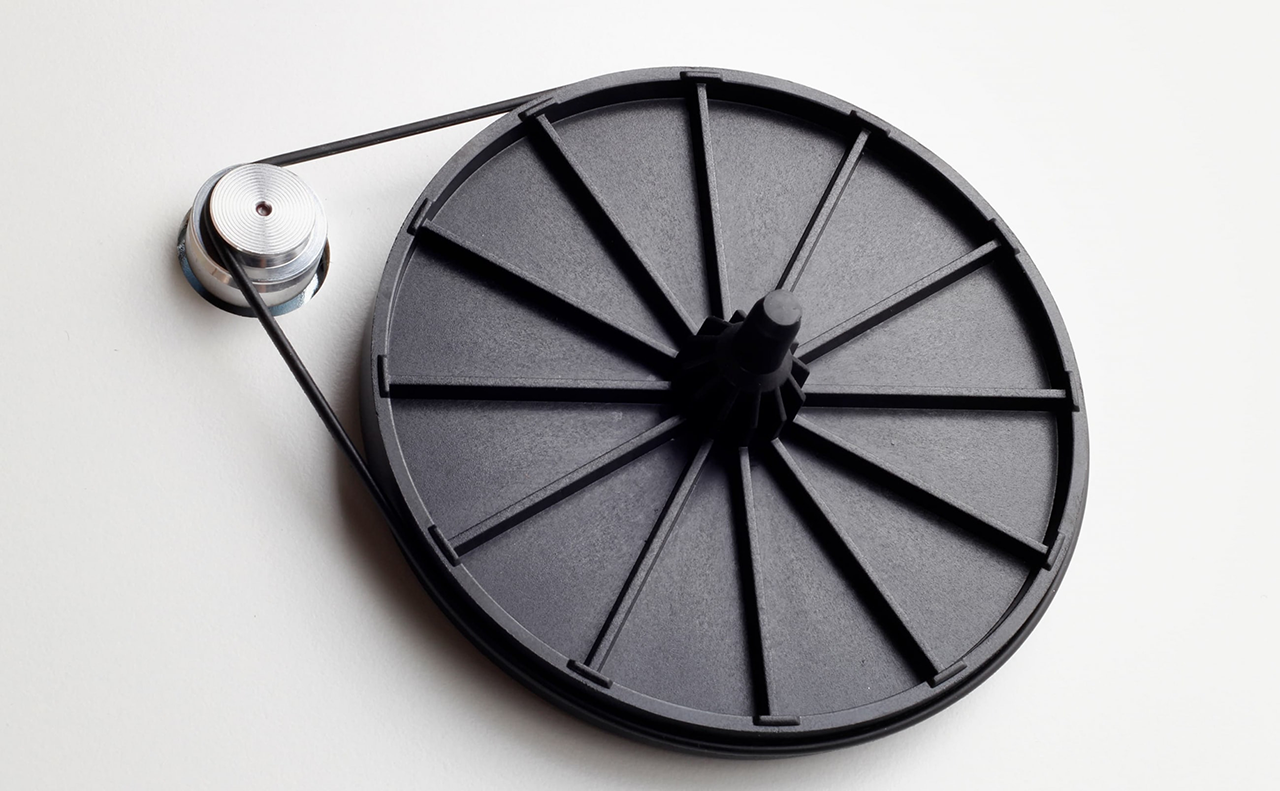

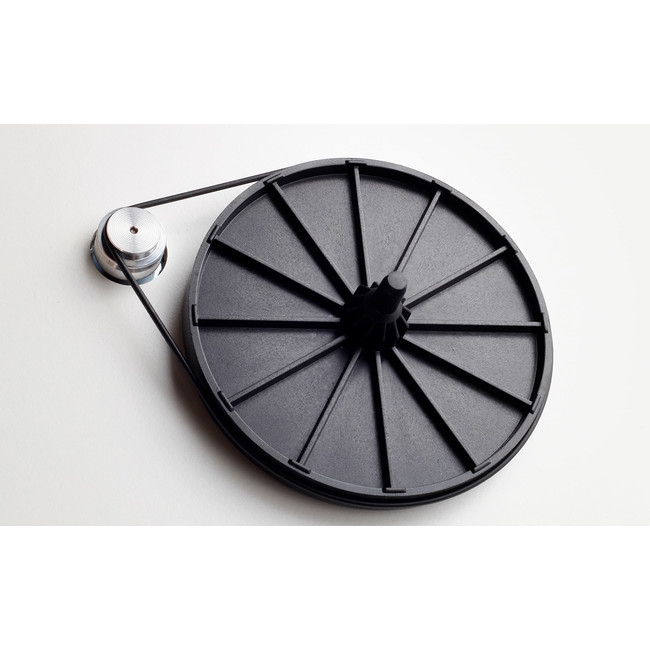

23mm, highmass, phenolic platter with improved flywheel effect for improved speed stability.
Re-Designed feet
New improved feet to increase stability and reduce vibration transfer.

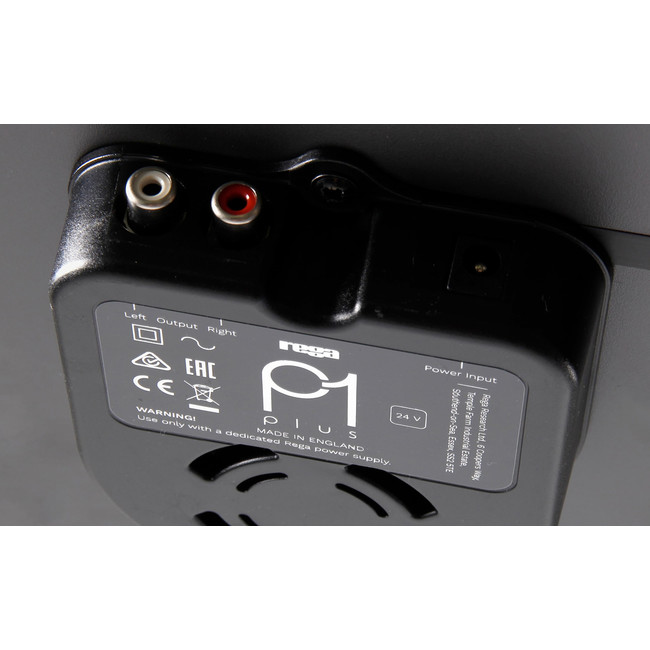

Motor cover tray
New motor cover tray with integrated cooling.
Balance Weight
New 111g ‘Plug and Play’ balance weight.
Specifications
- Use only with a Rega PS1 350 mA power supply.
- 50 Hz: 24 V AC 0.142 mA maximum power consumption 3.4 W.
- 60 Hz: 24 V AC 0.129 mA maximum power consumption 3.1 W.
- Maximum Output Level (3.54 cm/s RMS 45 degreesCBS STR100 Band 6a and 7a): 370-410 mV
- Output Impedance: 1 kΩ
- Frequency Response (pre-amplifier only): 14 Hz (-3 dB Point) to 100 kHz (-0.6 dB Point)
- RIAA Accuracy (pre-amplifier only): (100 Hz to 20 kHz)± 0.4 dB typically better than ± 0.25 dB
- Pre-amplifier Gain: 40 dB
- Pre-amplifier Input Loading: 47 kΩ in parallel with 220 pF
- Signal to Noise Ratio: -75 dB A-weighted ref maximum output.
- Power Requirements: 50 Hz 24 V AC 0.142 mA 3.4 W ? 60 Hz 24 V AC 0.129 mA 3.1 W
- Dimensions(lid closed) H 11.7 x W 44.7 x D 36 cm
- Weight 4.35kg
