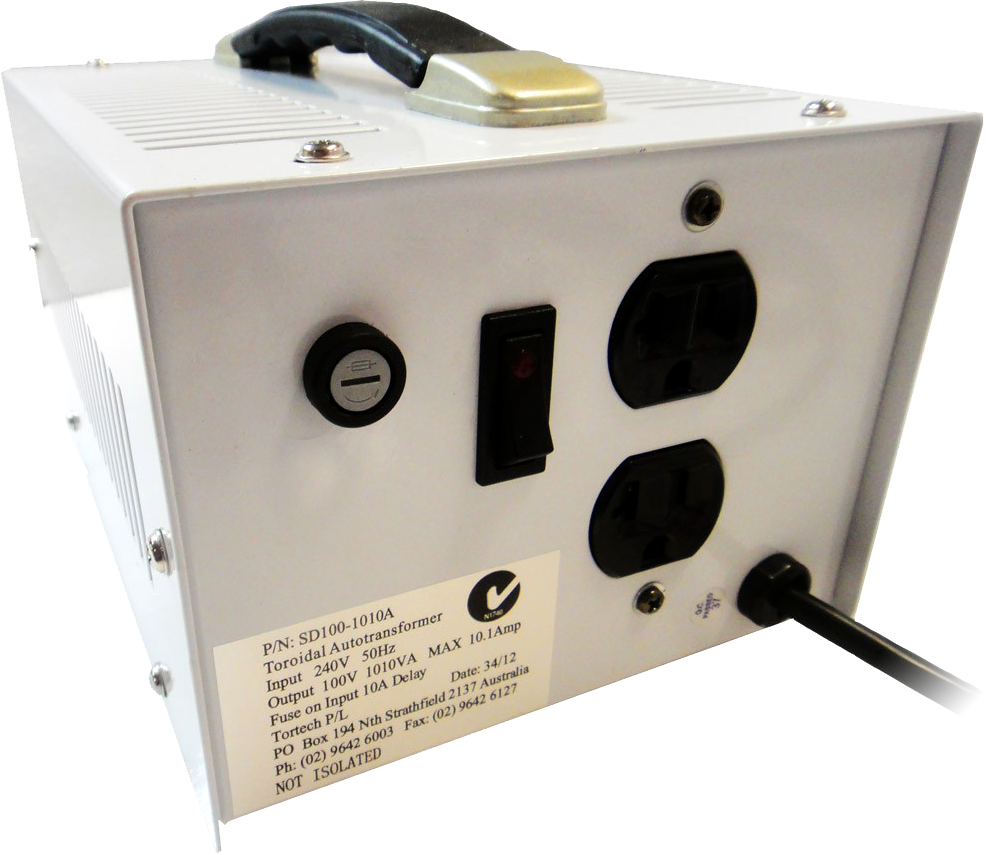

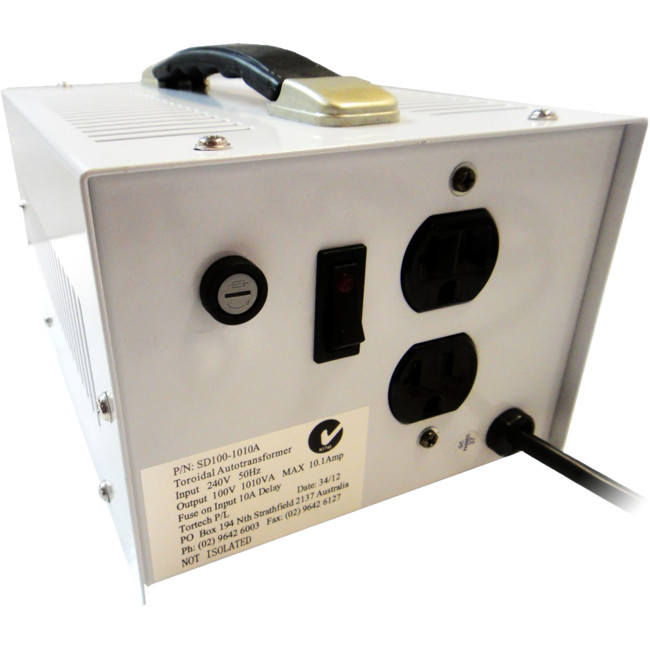

SD100-1010A 1010W JAPANESE AUTO STEPDOWN

*NOT DIELECTRICALLY ISOLATED*

Code: 54153393

7.76 kg
793591006260
EACH
Out of Stock!
$199 inc GST
Increase value Decrease value
Qty Each (inc GST) Each
Request Price Match
Enter 4 digit postcode

Economy Japanese Step Down Transformer– The Economy Japanese Step Down transformers can operate your Japanese 100 Volts rated appliance on the Australian 240 Volts power mains supply.

Our Tortech Economy transformers include a fuse and thermal cut-out protection to ensure the transformer cannot be overloaded. Our other transformer type of the Isolated transformer model includes these protection features and also additional features including voltage spike protection and can help assist noise filters (seeherefor Isolated version).

This model is a single wound toroidal transformer, and is designed to only convert the voltage from 240 Volts Australian mains supply down to 100 Volts Japanese rating,thus allowing your Japanese device to run in Australia.

Simply plug your transformer into the Aussie power wall outlet and then connect your Japanese device into the power socket on the unit. Once they are both connected, switch the power on at the wall socket and for the step down unit, and you’re ready to go!

Protect your Japanese appliance - Buy a Step Down that is guaranteed safe:

  • Our transformers are made to thehighest quality standards
  • All voltage converters come with a 1 Year Money Back Warranty
  • Designed to protect your device
  • Unlike others, our voltage converters are designed to run continuously 24/7 -read why important
  • Quality casing & included Safety Fuse protection
  • This new range is lighter & more compact
  • Safety fuse protection (50W and above)
  • Strong carry handle, enclosed and strong metal construction rubber feet (500W and above)
  • Thermal overload in the winding of the transformer
  • Thermally tested to Australian Standard AS/NZS61558

Unit Details:

  • Converts voltage down from 240 volts to 100 volts Japanese
  • Fully enclosed unit with a white powder coated finish(300W and above)
  • Fully enclosed unit with compact black housing (100W only)
  • Safety fuse protection(300W and above)
  • Auto transformer construction
  • 1 or 2 power outlets (1 outlet for 500W and below, 2 outlets for1000W and above)

Model Comparison:

Part Number Watts Output Amps Dimensions (l x w x h) Weight Outlets
SD100-100A 100W 1.0A 125mm x 90mm x 70mm 1.42kg 1
SD100-300A 300W 3.0A 210mm x 158mm x 115mm 4kg 1
SD100-500A 500W 5.0A 210mm x 158mm x 115mm 4.9kg 1
SD100-1010A 1010W 10.0A 240mm x 160mm x 130mm 7.39kg 2
SD100-2000A 2000W 20.0A 260mm x 185mm x 130mm 12.25kg 2
