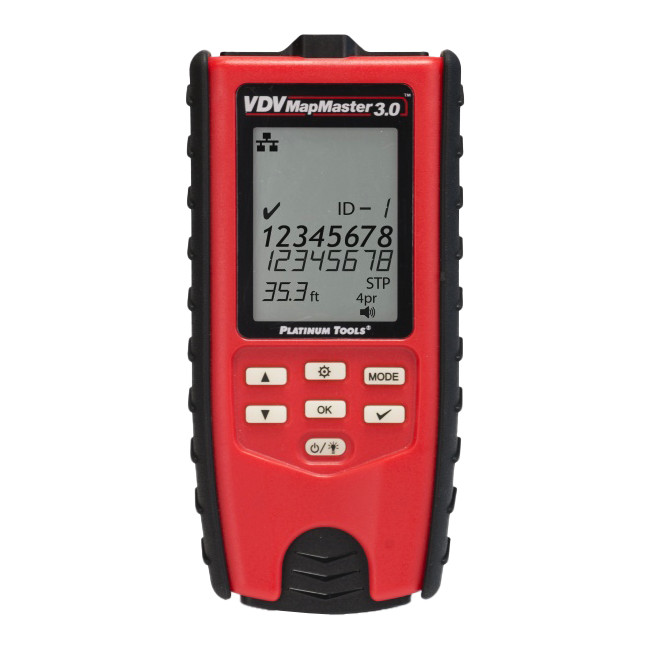

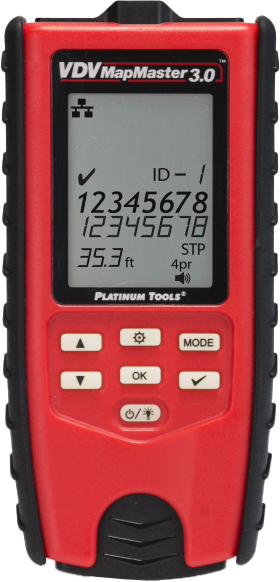

T130K4 VDV MAPMASTER 3.0 CABLE TESTER FIELD KIT

The VDV MapMaster 3.0 combines continuity testing, mapping, generating tones and length measurement functions into a single easy-to-use unit for installation, troubleshooting, and maintenance for telco, network, or coax cable. The back-lit display, glow-in-the-dark keypad, and a built-in flashlight help you to work in the dark. Whether your jobs are commercial or residential, the versatility and added features of the VDV MapMaster 3.0 make it a best value cable verifier for the professional installer!

Key Features

• Detects Open, Shorts, Miswires, Reverses & Split Pairs
• Tests to T568A/B wiremap configuration: shorts, opens, miswires, reverses, and split pairs
• Single-ended Testing for Shorts & Split Pairs
• Measures Length in Feet/Meters
• Identifies cable location on active ports using flashing Port Link Light

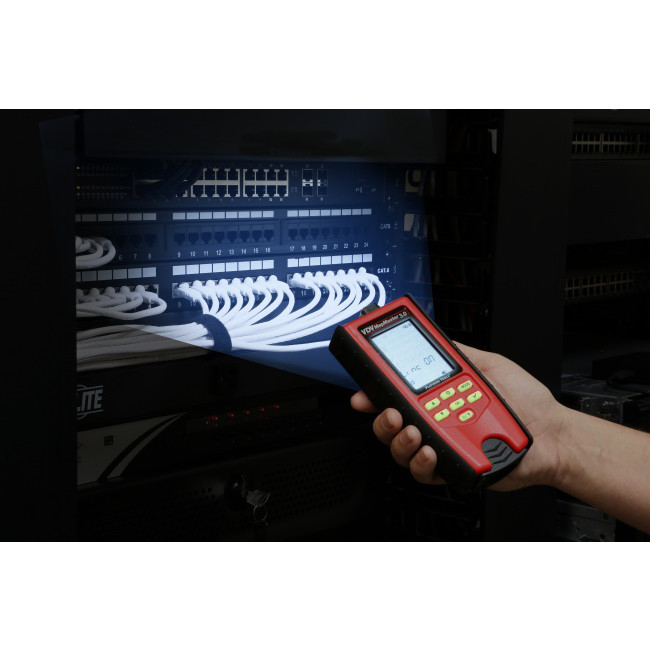

• Easy to read, backlit LCD screen with large icons, glow-in-the-dark keypad, and built-in LED flashlight for use in dark areas
• Identify up to 20 network or coax cable runs at a time
• Audible Tone Generator, 4 selectable cadences
• Tests Voice (6 wire), Data (8 wire) and Video (coax)
• Works with Cable Tester Smart Remotes (#1-8)
• Verifies continuity for multiple cable types (LAN, Phone, and Video)
• Measures cable length, and distance to open and break specific wires, pairs, or all wires simultaneously
• The master remote stored in the main unit
• Voltage detection warning icon
• Continuous loop test mode for troubleshooting
• Auto-off and timed backlight in any mode for low power consumption and long battery life
• Audible beep for additional feedback

Specifications

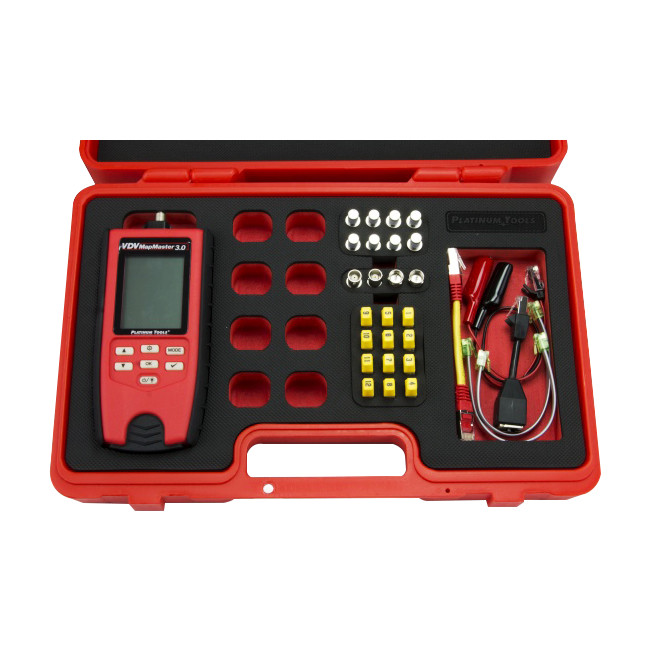

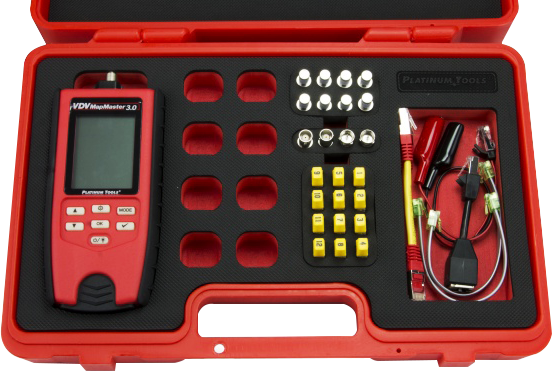

What is in the box?

• VDV MapMaster 3.0 Main Unit
• ID only network remotes, #1-12
• ID only coax remotes, #1-8
• Cable assembly, RJ45 to Alligator clip
• FTP patch cable, 5" Cat6, (2)
• No-fault RJ12 cable (2)
• RJ45 port saver
• BNC/F adapter kit
• 9V battery
• Durable plastic case

VDV MapMaster 3.0 Cable Tester
