{tab Features}
- Qualifies - Sees if your existing cabling has the bandwidth to support voice, 10/100, VoIP or Gigabit Ethernet
- Troubleshoots - shows why existing cabling cannot support the network's bandwidth requirement (e.g. crosstalk at 11 meters)
- Discovers - detects what's at the end of any cable and displays device configuration (speed/duplex/pairing)
- Identifies unused switch ports that can be reallocated
- Graphically maps wiring configuration and shows distance to faults with Intelligent Wiremap
- Tests all copper cabling media: twisted-pair, coax, and audio cabling
The network tech's vision into cabling bandwidth

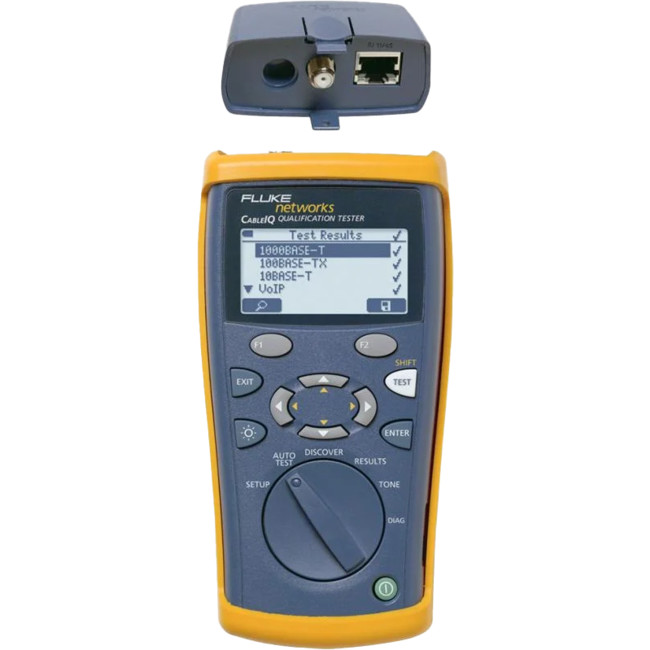

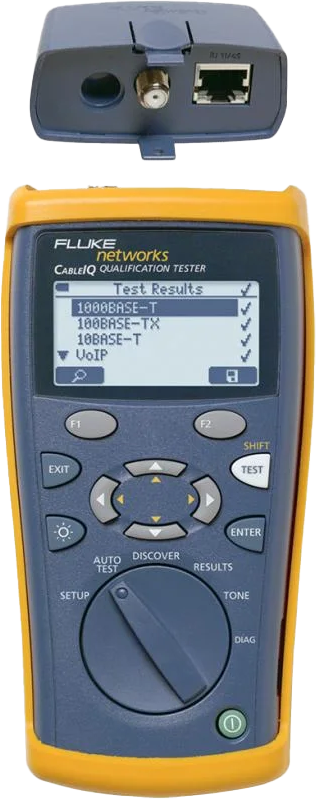

CableIQ is the first cabling bandwidth tester for networktechnicians. It gives even the most novice tech the vision to see what speeds existing cabling can support, quickly isolate cabling from network problems, and discover what is at the far end of any cable. That means network techs can close trouble tickets faster, reduce on-call time, and save money by better utilizing their existing infrastructure.
Reduce escalated problems by as much as 30%
CableIQ's powerful troubleshooting capability and intuitive interface enable your frontline technicians to identify and troubleshoot a wider range of problems within your infrastructure. Is the port active? Are the duplex settings matched? Is it a network problem or a cable problem? Can the cable support the required network bandwidth? CableIQ is the only tool that can answer all these questions before trouble tickets are escalated to the next level reducing problem escalation by up to 30%.
Bandwidth Qualification
When you deploy Voice over IP (VoIP) or Gigabit Ethernet,you want to make sure that the existing cabling will supportthe bandwidth requirements of your new equipment. Your cabling was certified, but moves adds and changes have rendered many links incapable of running desired speeds. CableIQ quickly reveals whether a link, including patch cords, is qualified for voice, 10/100BASE-T, VoIP, or Gig. Knowing your cabling's bandwidth capabilities before upgrading can prevent countless hours of future downtime andlabor hours wasted on unnecessary troubleshooting.
{tab Specifications}
| Cable types supported | UTP, STP, FTP, SSTP, RG6, RG59, audio and security |
| Qualification autotests | 1000BASE-T, 100BASE-TX, 10BASE-T, VoIP, 1394b S100, TELCO, Wiremap only, Coax |
| Supported tests | Wiremap, length, cable signal performance, digital toner, analog toner, Ethernet port detection and identification, analog telephone detection, blink port light, continuity, speaker test, cable fault finding, video signal detection. |
| Wiremap | Can detect single wire faults and supports MultiMap mode with up to seven remote office identifiers. Draws proportional wire length to breaks. Detects split pairs. |
| Find fault | Measures crosstalk and impedance and compares against appropriate limits based on qualification test selected. Detects location of large point sources as well asdistributed sources in the cabling if they are sufficient to disqualify the application |
| Results storage | Up to 250 qualification test results |
| Power | Battery type: 4 AA (NEDA 15A, IEC LR6) alkaline batteries |
| Battery life | 20 hours of typical use, without backlight |
| Other battery types supported | 4AA photo lithium, NIHM, NICAD |
| Dimensions and weight | 7in x 3.5in x 1.75in (17.8cm x 8.9cm x 4.5cm) 1.2 lb (0.55 kg) |
{tab Contents}

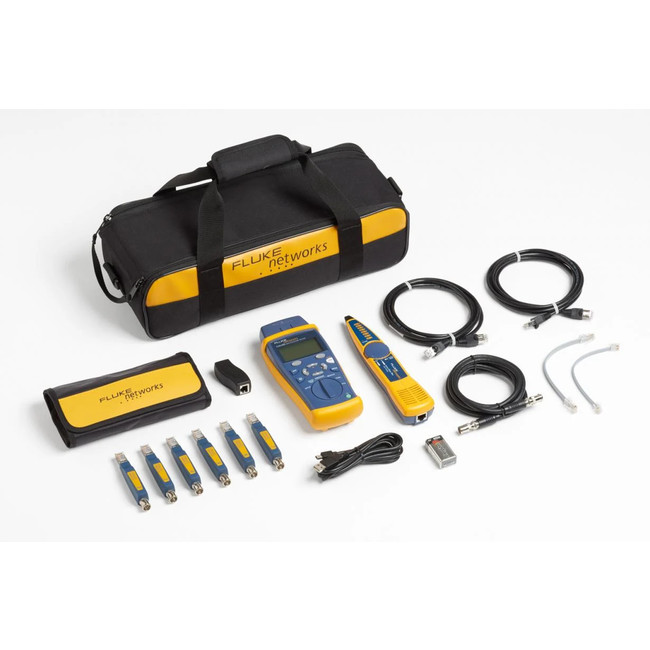

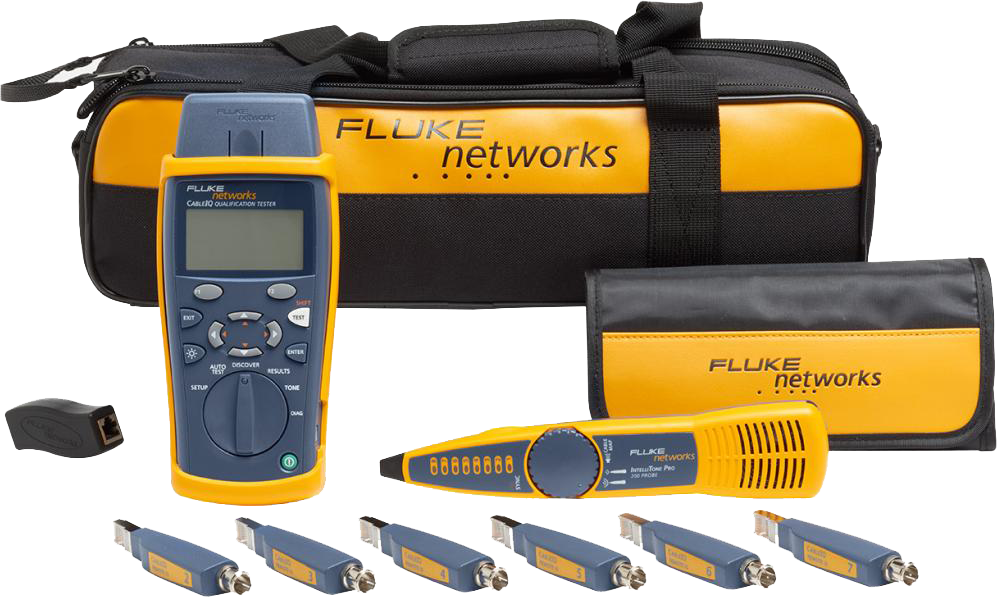

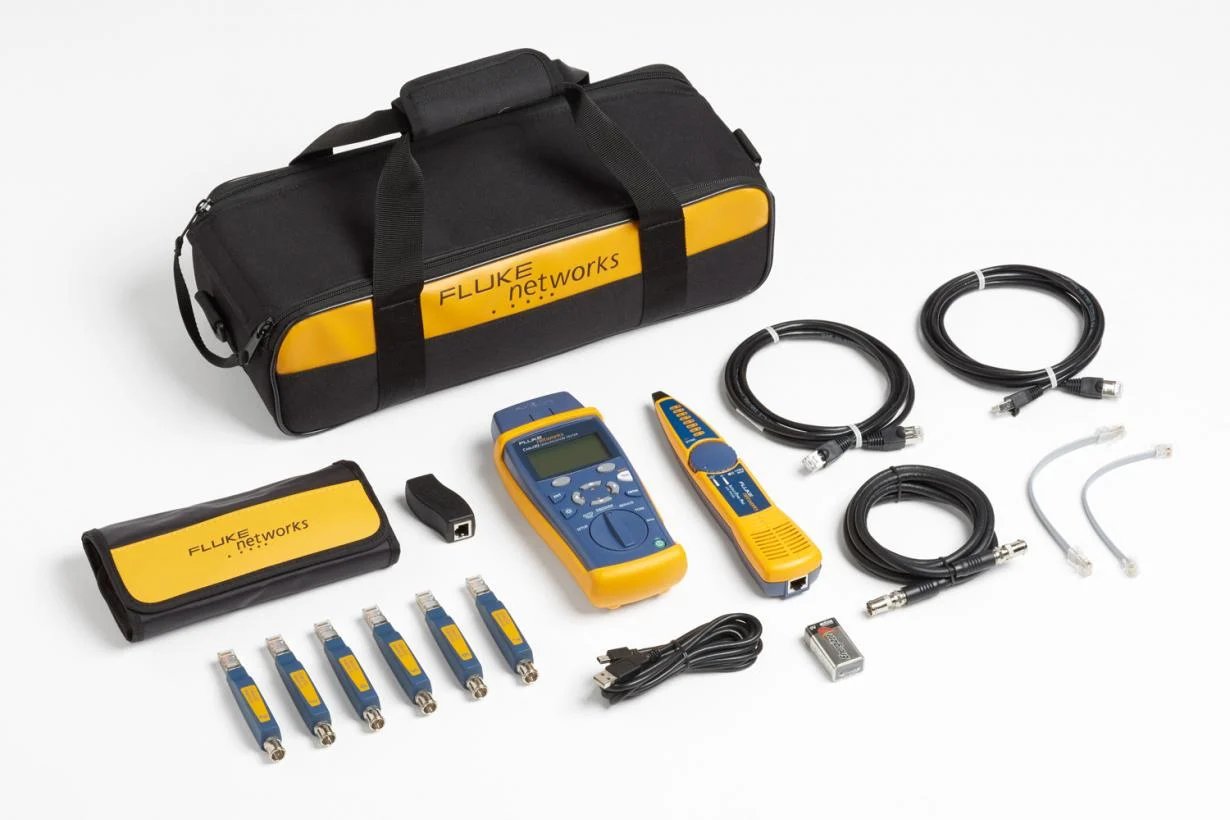

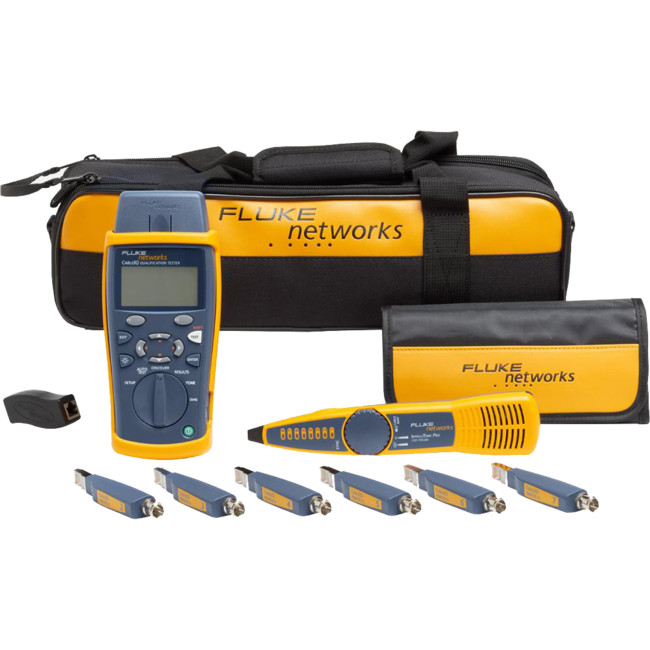

Kit Includes:
- CableIQ Qualification Tester
- Remote adapter
- CableIQ Reporter software CD
- IntelliTone 200 Digital Probe
- Remote IDs #2-7
- (2) RJ45-RJ45 patch cord
- USB cable
- coax "F" push-on adapter
- 75-ohm coax patch cord
- RJ45/11 universal coupler
- RJ11-RJ11 patch cord
- owners CD and quick start guide
- (4) AA batteries
- test accessory soft pouch
- hard carry case
