UTI120MS APPLE IOS SMARTPHONE THERMAL IMAGER

IR 120x90 LIGHTNING PLUG

Code: 47032512

0.1850 kg
6935750512661
EACH
4
Low Stock
$299 inc GST
Increase value Decrease value
Qty Each (inc GST) Each
Request Price Match
Enter 4 digit postcode

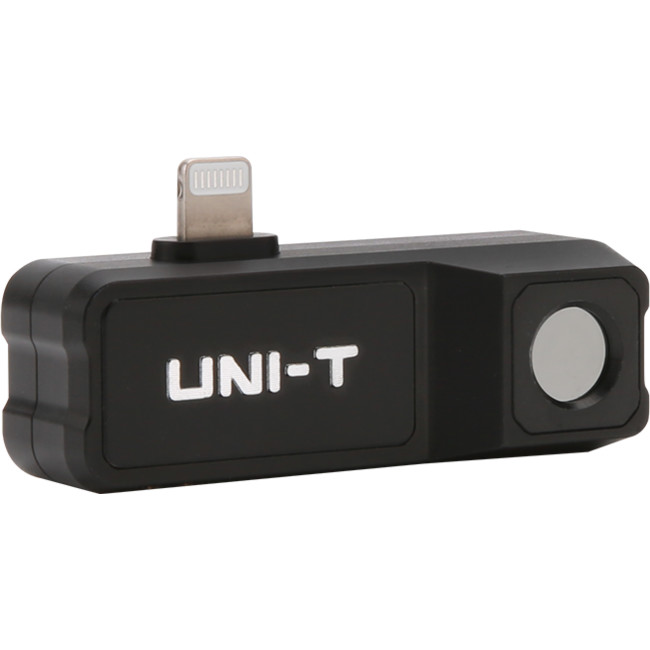

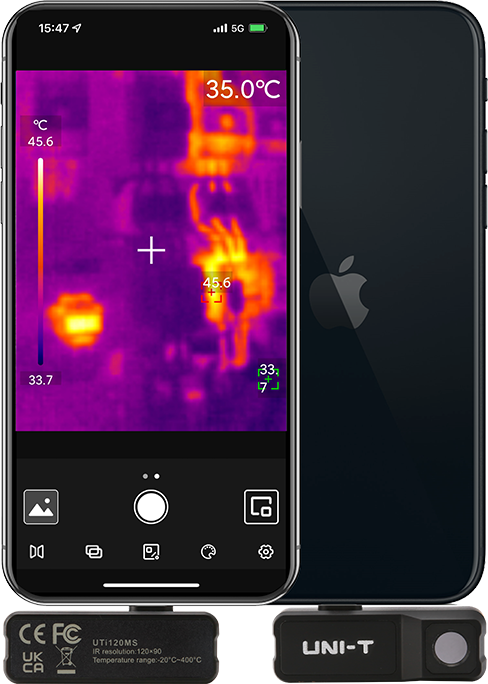

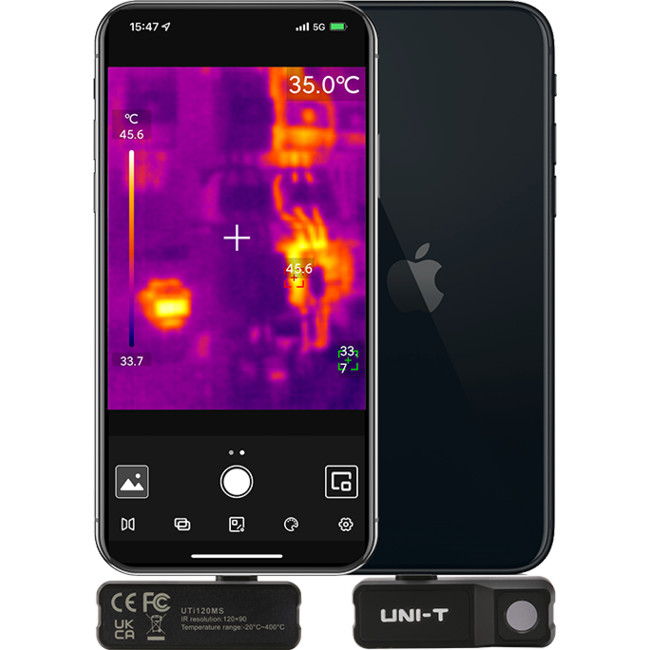

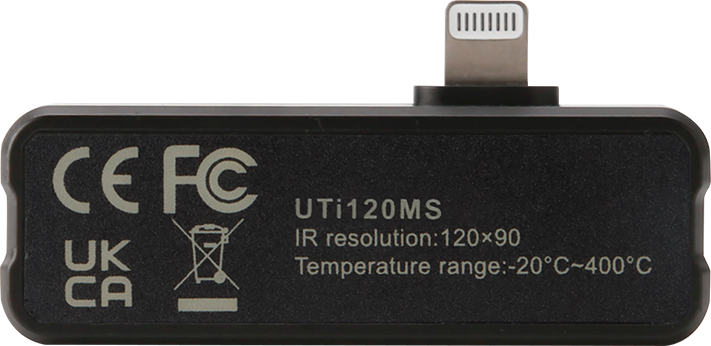

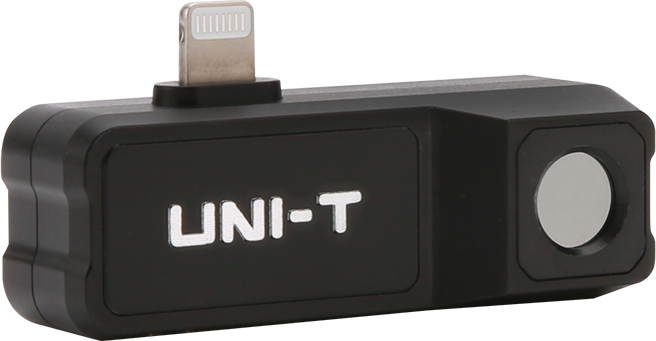

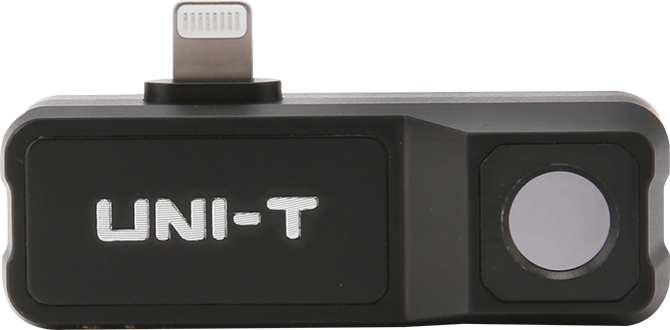

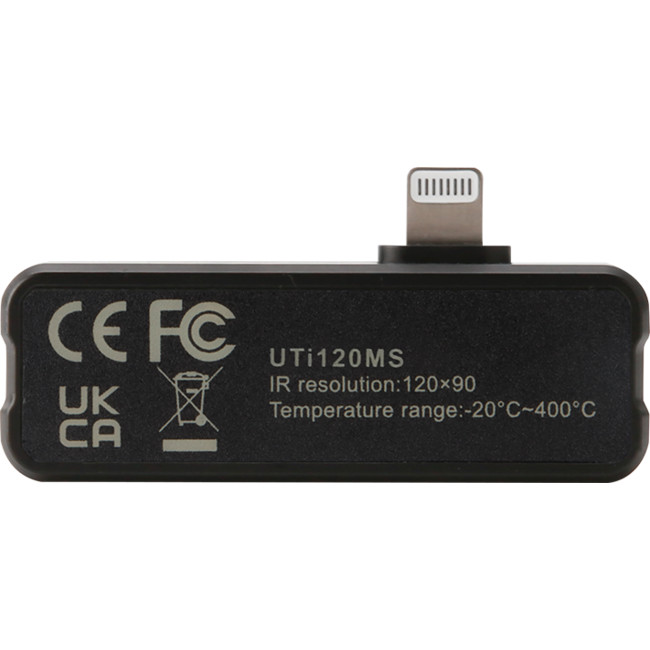

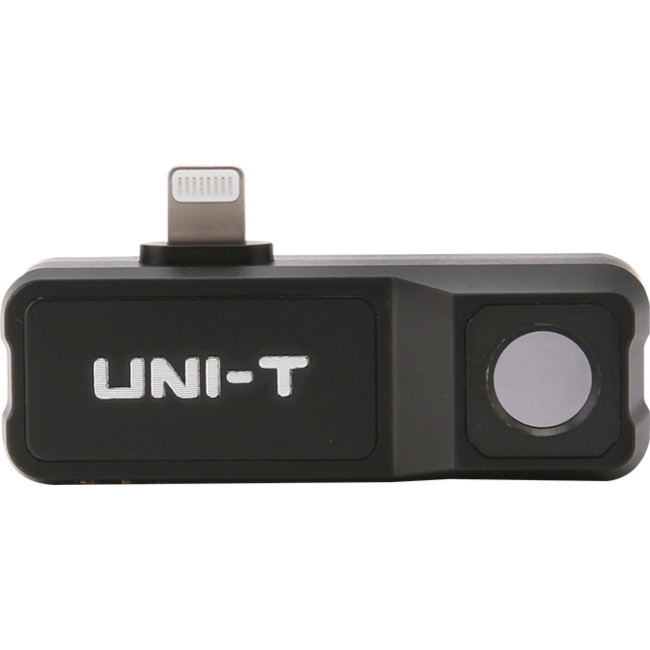

UTi120MS Thermal Camera Module for iPhone

UTi120MS is a professional smartphone thermal camera module for iPhone with lightning socket, which is compact, portable, and easy to operate through connecting with mobile phones. UTi120MS provides clear image with a fast response, and can also detect temperature up to 400°C. Users can troubleshoot HVAC problems or investigate heat source issues around the house faster and easier with this thermal camera module. It is a perfect tool for DIY homeowners,outdoor lovers, engineers, contractors and builders etc.

Features

  • Designed for iOS device with lightning port
  • Plug and play with "Thermal Mobile" APP
  • IR Resolution: 120×90
  • Temperature measurement range: -20°C to 400°C / -4°F to 752°F
  • Compact size and easy to carry
  • Auto alarm for high/low temperature
  • Auto tracking for hot spot/cold spot
  • On display screen analyzer: 6 Points / 6 Lines / 6 Rectangles / 6 Circles
  • Image capture
  • Video recording
  • Color palettes: 7 (White hot, Black hot, Red hot, Ironbow, Lava, Rainbow, Rainbow HC)
  • Phone: USB Lightning (iPhone)
  • 1m drop proof
  • Create report with on screen analyzer in the APP

Applications

  • Manufacturing Machine Inspection
  • PCBA Inspection
  • Freezer Inspection

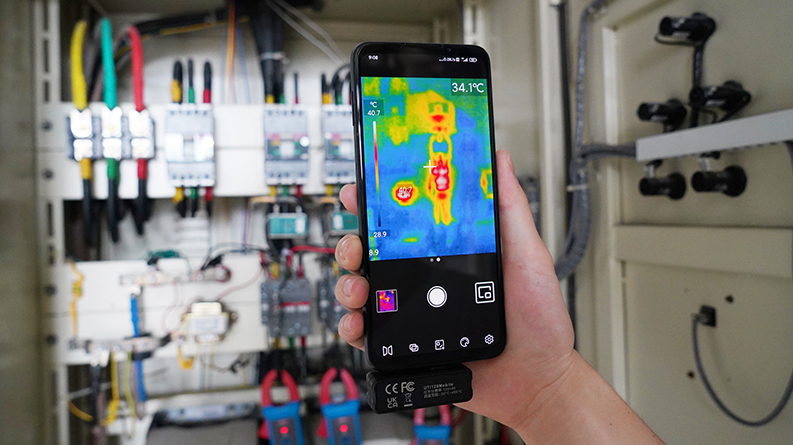

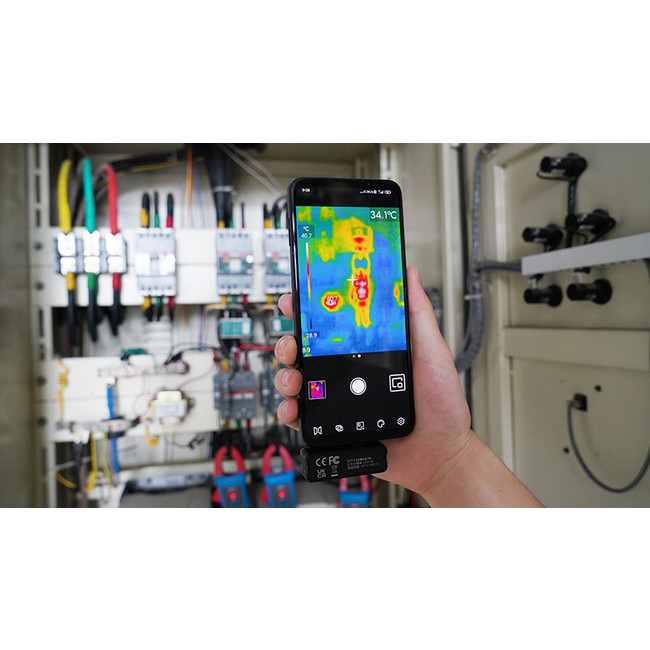

  • Electricity Inspection
  • Pipeline Inspection
  • Motor Inspection

Specifications

Technical Data
IR resolution (Pixels) 120×90
Field of view(FOV) 50 H×38 V
Thermal sensitivity(NETD) ≤60mK  @25°C
Spatial resolution(IFOV) 7.3mrad
Frame rate ≤25Hz
Spectral range 8~14µm
Focus Focus free
Lens focal length 2.28mm
Temperature measurement range  -20°C ~ 400°C
Temperature display Center Spot, High Spot, Low Spot
Accuracy For temperature > -10'C, ±2% or±2'C(whichever is greater, ambient temperature 25'C)
Emissivity 0.01~1.00 adjustable (0.95 default)
Functions
Color palettes 7 (White hot, Lava, Ironbow,Black hot, Red hot, Rainbow, Rainbow HC)
Temperature units °C, F
Temperature resolution 0.1
Image modes Thermal,Fusion,PIP
PIP Display visual image (on phone) and infrared image simultaneously
On screen analyzer 6 Points/6 Lines/6 Rectangles/6 Circles
Hi/Lo temperature alarm Yes
Hi/Lo tracking Real-time tracking of Hi/Lo spot in the thermal images
Image editing Saved images can be edited, but videos cannot
Video recording Yes (via the phone)
General Characteristics
USB Lightning
Operating temperature 0- 45 C
Storage temperature -20- 60 C
Relative humidity 10%-85%RH, non-condensing
Altitude 2000m
Drop proof 1m
Image/Video storage format JPEG, MP4
Certificates CE,UKCA,FCC,RoHS,MFi
Product net weight 25g
Product size 53mm×18.2mm×18.5mm

What is in the box?

  • UTi120MS x 1
  • UTi120MS case x 1
  • English manual x 1
  • Documents download operation guide card x 1
  • Cleaning cloth x 1
