ST8809A LIGHT METER W/LCD DISPLAY USB

40K FC/ 400K LUX STANDARD

Code: 46950010

1.76 kg
9328202032492
EACH
5
Low Stock
$249 inc GST
Increase value Decrease value
Qty Each (inc GST) Each
Request Price Match
Enter 4 digit postcode

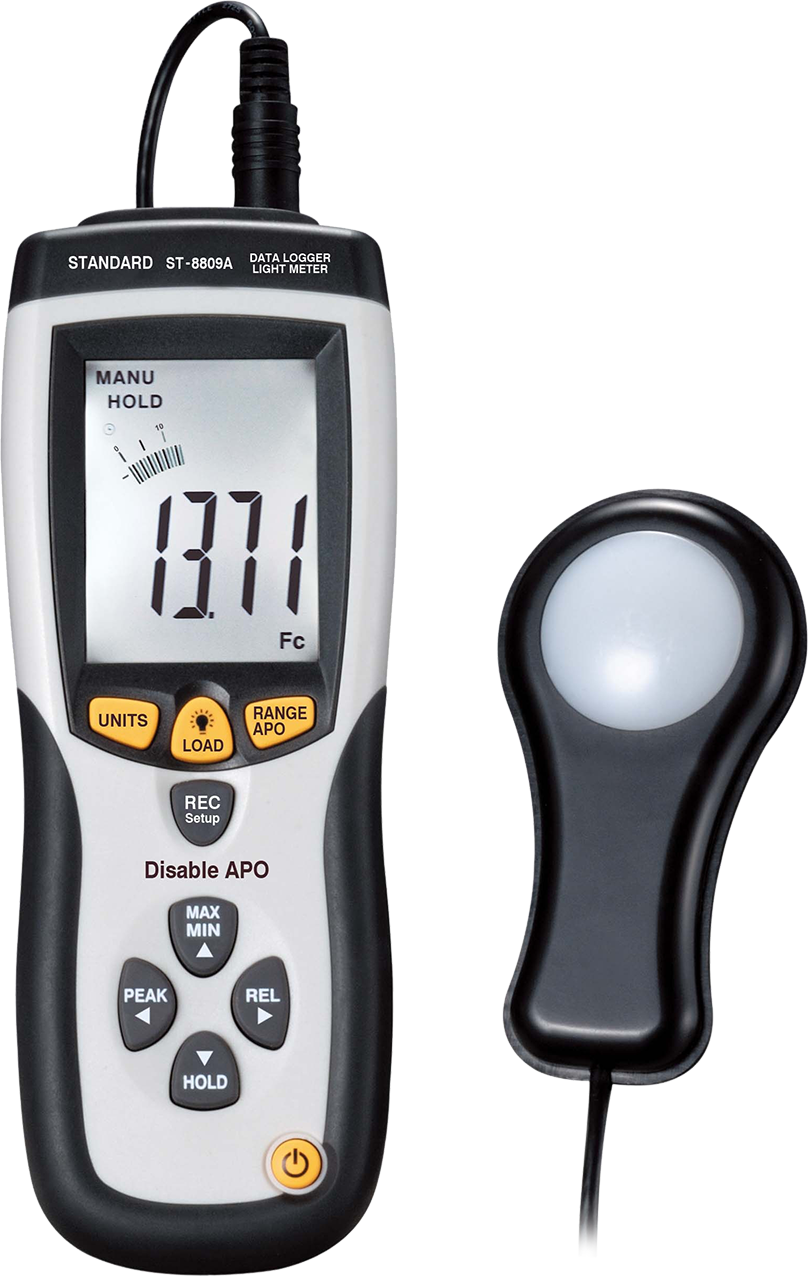

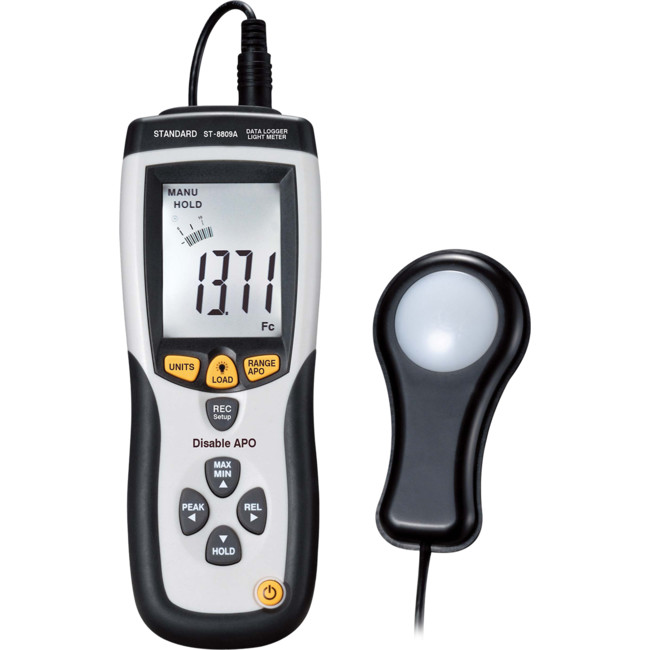

ST8809A provides accurate display light level in terms of Foot candles (FC) or LUX over wide range. Just turning the function switch to select the "lux" scale and setting the range to desired range, then moving the photo detector to the light source in a horizontal position and reading the illuminance norminal from the LCD display. When the measurement is completed, remove the photo detector from the light source.

Features:

  • Over range indication
  • Long life silicon photo diode inside
  • Measurement rate: 1.5 times per second
  • Wide range to 40,000FC/400,000 lux
  • LCD display counts: 4000
  • Auto ranging
  • Analog bargraph/segments: 41 segments
  • Peak hold
  • Relative mode
  • Max and Min hold
  • Auto power off
  • Low battery indication
  • User selectable FC/Lux
  • Output: USB
  • Capacity for data logging 99
  • Total accuracy: for C.I.E standard illuminate A (2856K)
Click on images for larger version
Product picture

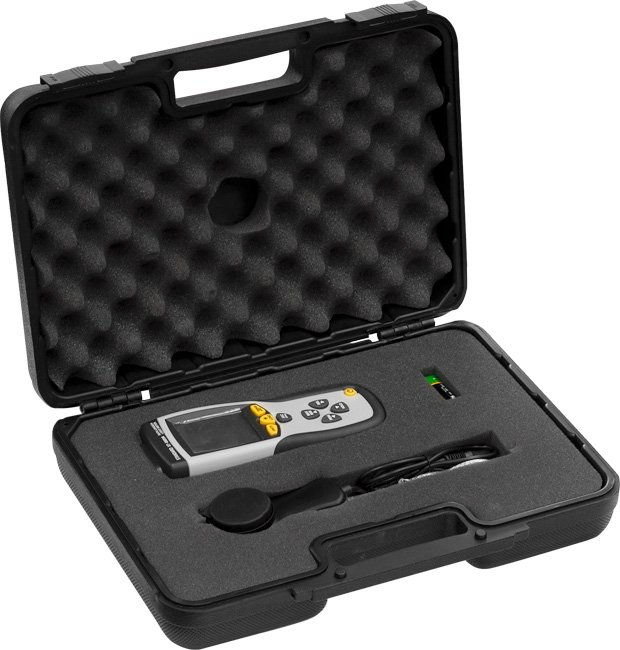

Includes durable carry case with padded foam
Product picture

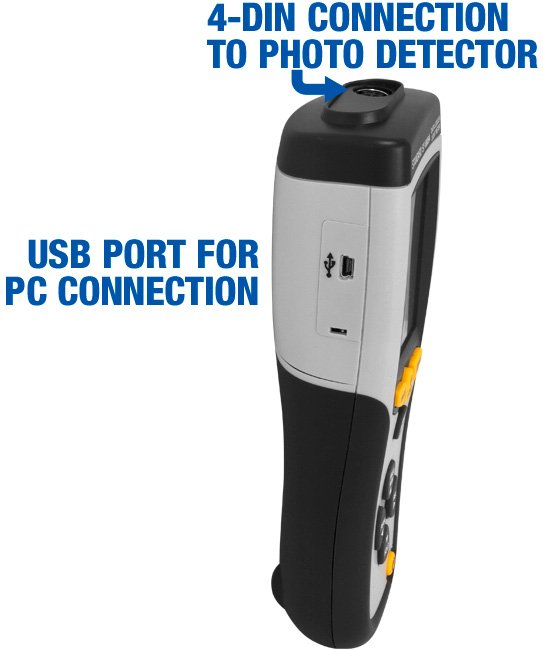

Side port for USB connection to PC
Product picture

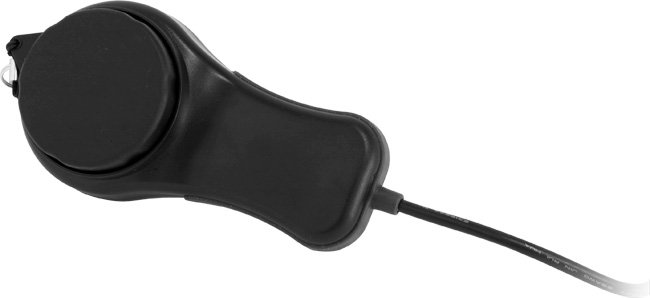

Photo detector comes with an attached cover for protection
Product picture

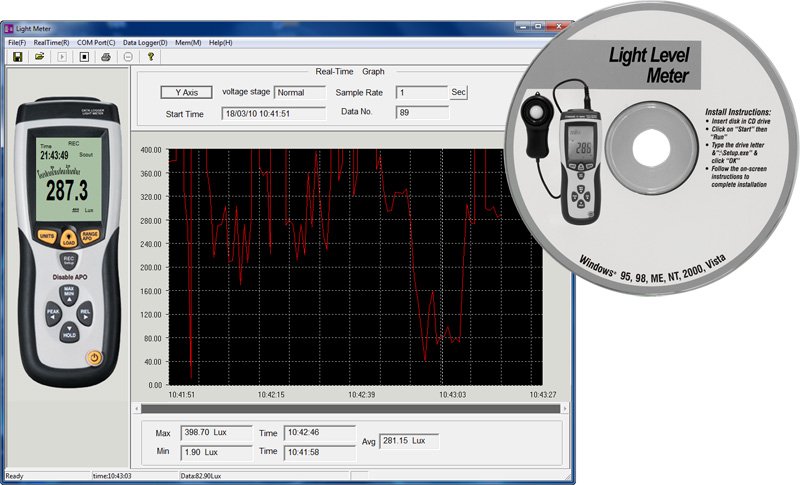

Connect the light level meter to your PC for real time monitoring and data logging

Specifications:

  • Max range: 400,000 Lux
  • Accuracy: ±5% ±10d (<10,000Lux); ±10% ±10d (>10,000Lux)
  • Max resolution: 0.1Lux/0.01Fc
  • Measuring rate: 1.5 times/second
  • Photo detector: 115mm x 60mm x 27mm
  • Size (HxWxD): 203mm x 75mm x 50mm
  • Weight: 280g
Accessories:
  • 9V battery
  • USB A to mini B cable
  • Software CD
  • Carry case
