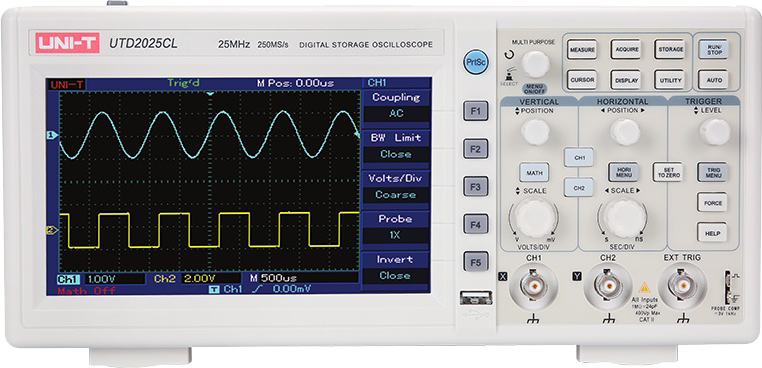

UTD2025CL COLOUR OSCILLOSCOPE 25MHZ

DIGITAL STORAGE UNI-T

Code: 46412017

3.05 kg
6935750590126
EACH
2
Low Stock
$369 inc GST
Increase value Decrease value
Qty Each (inc GST) Each
Request Price Match
Enter 4 digit postcode

Features

UTD2000CL series is an economical bench-type digital storage oscilloscope, meeting needs of basic measurements. The simple and clear front panel design provides convenient operations for users.
Applications:
Serial data analysis, jitter analysis, data storagedevice testing, electric vehicle and electronics equipment design, evaluating frequency response of sound equipment, troubleshooting automotive engines, electronics technician repair and maintenance.
  1. 25MHz/50MHz bandwidth
  2. 250MS/S or500MS/s real-time sampling rate
  3. Low noise, wide vertical range: lmV/div~20V/div
  4. System software upgradable with USB drive
  5. Auto measurements of 28 waveform parameters
  6. More than 2,000wfms/s waveform capture rate
  7. 7-inch TFT LCD, WVGA (400X 240)
Specifications
Model UTD2025CL
Bandwidth 25MHz
Channels 2
Sampling rate 250MS/s
Rise time <14ns
Memory depth 25kpts
Waveform capture rate >2, 000wfms/s
Vertical scale (V/div) 1mV/div?20V/div
Time base scale (s/div) 10ns/div?50s/div
Storage methods Setup, waveform, bitmap
Trigger specifications
Frequency counter 6 bits
Trigger types Edge, pulse width, video, alternate
Level range Internal ±8div from screen center
EXT ±3V
Holdoff range 80ns?1.5s
Edge trigger types Rise, fall, rise & fall
Interfaces Pass/Fail (UTD2025CL), USB-OTG
General Characteristics
Power 100V?240V ACrms, 50Hz/60Hz
Display 7-inch TFT LCD, WVGA (400x240)
Product color White and grey
Product net weight 2.2kg
Product size 306mm x 147mm x 122mm
Standard accessories Probe x 2 (1x, 10x switchable), power cord, USB interface cable, PC software CD
Standard individual packing Carton box
Standard quantity per carton 2pcs
Standard carton measurement 450mm x 420mm x 280mm
Standard carton gross weight 7.1kg



Product manual PDF file
UTD2000L Software Compressed file
