1051KY VERSATILE DIGITAL MULTIMETER

KYORITSU VERSATILE DIGITAL MULTIMETERS

KEW1052 - PREMIUM MODEL WITH TRMS AND MEAN MODES AS WELL AS DATA LOGGING AND PC COMMUNICATION

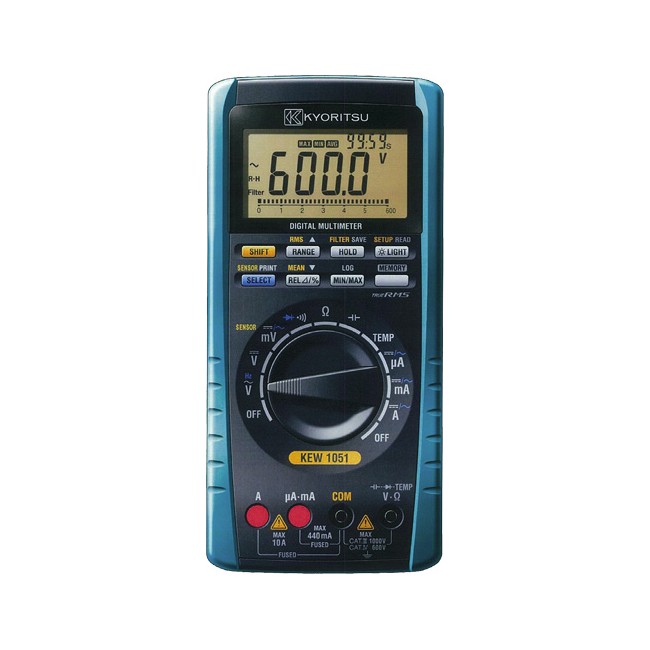

KEW1051 - VERSATILE MODEL WITH TRMS

Kyoritsu Digital Multimeters Brochure (PDFfile)

FEATURES:

High Accuracy, High Performance and Reliable Measurements

• 0.09% basic DC accuracy
• Large display with 6,000 counts
• True-RMS Measurements
• True-RMS or MEAN value detection mode can be selected *
• Low-pass filter for motor drive measurements
• User calibration function

Safety design for industrial use

• Complies with IEC 61010-1 CAT.IV 600V, CAT.III 1000V
• Terminal shutter to prevent incorrect test leads' insertion in current terminals
• Very wide operating temperature range from -10 to 55ºC

Reliable support for data management (* Only for KEW 1052)

• Large data internal memory*: KEW 1052: 1,600 data (logging), 100 data (manual)
• Download data and Live Monitoring on a PC via the USB interface
• (Option for USB Communication set) *

SPECIFICATIONS:

KEW 1051 KEW 1052 Detection mode RMS MEAN/RMS (switch) DC V 600.0mV/6.000/60.00/600.0/1000V (Input impedance: 10MO [600mV/60/600/1000V], 11MO [6V]) dgt (Basic accuracy) AC V [RMS] 600.0mV/6.000/60.00/600.0/1000V (Input impedance: 10MO<200pF [600mV], 11MO<50pF [6V], 10MO<50pF [60/600/1000V]) gt (Basic accuracy) DC A 600.0/6000µA/60.00/440.0mA/6.000/10.00A gt (Basic accuracy) AC A [RMS] 600.0/6000µA/60.00/440.0mA/6.000/10.00A dgt (Basic accuracy) O 600.0O/6.000/60.00/600.0kO/6.000/60.00MO gt (Basic accuracy) Continuity buzzer 600.0O (The buzzer turns on for resistances lower than 50±30O) Diode test 2.000V Open curcuit voltage: <3.5V (Approx. 0.5mA Measuring Current) Capacitance 10.00/100.0nF/1.000/10.00/100.0/1000µF (Basic accuracy) Frequency 10.00~99.99/90.0~999.9Hz/0.900~9.999/9.00~99.99kHz dgt (Basic accuracy) Temperature -50~600 C K-type Temperature probe) Other functions Data Hold (D/H), Auto Hold (A/H), Range Hold (R/H), Maximum value (MAX) *, Minimum value (MIN)*, Average value (AVG) *, Zero Adjustment (Capacitor, Resistance), Save to Memory *, LCD backlight Withstand voltage 6,880V/5 sec. Application standards IEC 61010-1 CAT.IV 600V, CAT.III 1000V Pollution degree 2, IEC 61010-031, IEC 61326-1 (EMC) Power source R6 (1.5V)x4 (Auto power off:approx. 20 minutes) Dimensions 192(L)x90(W)x49(D) mm Weight Approx. 560g (including batteries) Accessories 7220 (Test Leads), R6x4, Instruction manual, 8926 (Fuse [440mA/1000V])x1 (included) 8927 (Fuse [10A/1000V])x1 (included) * Only for KEW 1052 Accessories Description Model Specification Crocodile clip test lead 7234 < Alternate Products True 1 Quick View 7220KY 1080MM REPLACEMENT TEST LEADS FOR KYORITSU 46010104 High performance test leads from the world class manufacturer, Kyoritsu. Length: 1080mm Applicable Kyoritsu models: 1051, 1052, 1061, 1062 $49.50 Low Stock Increase value Decrease value Add to cart True 1 Quick View 7234KY 1080MM REPLACEMENT TEST LEADS WITH CLIPS FOR KYORITSU 46010106 High performance test leads from the world class manufacturer, Kyoritsu. Length: 1080mm With clips Applicable Kyoritsu models: 1051, 1052, 1061, 1062 $89.00 Special Buy-In View Product Increase value Decrease value Add to cart True 1 Quick View 8405KY CERAMIC SURFACE TEMP. PROBE 500¦C TEMPERATURE TEST 46010112 High performance temperature probe from the world class manufacturer, Kyoritsu. Length: 1400mm Connection: 4mm Banana Plug Applicable Kyoritsu models: 1051, 1052, 1061, 1062 Max. 500 C, Surface type $695.00 Special Buy-In View Product Increase value Decrease value Add to cart True 1 Quick View 8406KY SURFACE TEMPERATURE PROBE 500¦C TEMPERATURE TEST 46010114 High performance temperature probe from the world class manufacturer, Kyoritsu. Length: 1380mm Connection: 4mm Banana Plug Applicable Kyoritsu models: 1051, 1052, 1061, 1062 Max. 500 C, Surface type $549.00 Special Buy-In View Product Increase value Decrease value Add to cart True 1 Quick View 8407KY LIQUID / SEMI SOLID TEST PROBE 700¦C TEMPERATURE 46010116 High performance temperature probe from the world class manufacturer, Kyoritsu. Length: 1540mm Connection: 4mm Banana Plug Applicable Kyoritsu models: 1051, 1052, 1061, 1062 Max. 700 C, Liquid, Semi-solid $495.00 Special Buy-In View Product Increase value Decrease value Add to cart True 1 Quick View 8408KY AIR / GAS TEMPERATURE PROBE 700¦C TEST METER 46010118 High performance temperature probe from the world class manufacturer, Kyoritsu. Length: 1540mm Connection: 4mm Banana Plug Applicable Kyoritsu models: 1051, 1052, 1061, 1062 Max. 600 C, Air, Gas $495.00 Special Buy-In View Product Increase value Decrease value Add to cart True 1 Quick View 8115KY AC/ DC CURRENT CLAMP SENSOR 12MM O/D SENSOR - KYORITSU 46010190 Permits extension of the AC and DC current ranges of almost any Digital Multimeter (DMM) while not breaking the circuit under test. Using KEW8115 with the KEW1051/1052 meters, the display can be set for direct reading in Amps $825.00 Special Buy-In View Product Increase value Decrease value Add to cart We’re here to help... Our friendly staff are here with technical advice to help you find the right solution for your needs. The Radio Parts team of industry experts have extensive knowledge in everything electronic. Call (03) 9321 8300 Contact Us About Us Be the first to hear about it! Sign up to our email newsletter and receive the latest and greatest deals, news and promotions! We promise, we are very conservative with how much we send! Sign Up Our Store About Us Privacy Policy Terms and Conditions Latest News Promotions Forms and Documents Radio Parts Accounts and Trade Enquiries Monthly Newsletter Preferred Installer List Showroom 360 Catalogue Service Agents Case Studies Careers Contact Us Ordering Info RA Request FAQs Freight Product Suggestion Special Buy-In Order Form Price Match Guarantee Apply for a 30-day Account Trade Card Application Online Access Make a Payment UnLock B2B Store Hours Monday 7:30am - 5:30pm Tuesday 7:30am - 5:30pm Wednesday 7:30am - 5:30pm Thursday 7:30am - 5:30pm Friday 7:30am - 5:30pm Saturday 8:00am - 1:00pm Sunday Closed Contact Radio Parts Free Call: (03) 9321 8300 Free Fax: (03) 9321 8333 Email: info@radioparts.com.au Address: 562 Spencer St, West Melbourne, VIC, 3003 © Copyright 2024 Radio Parts Pty Ltd. All rights reserved.
