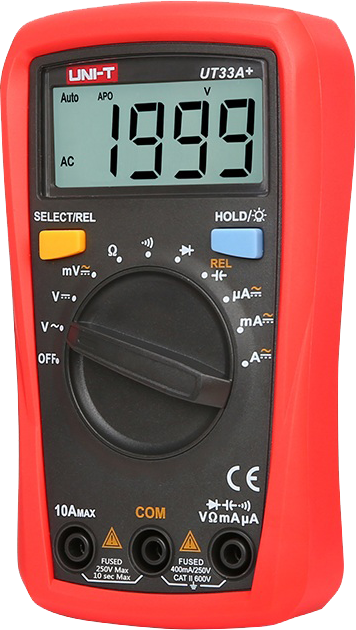

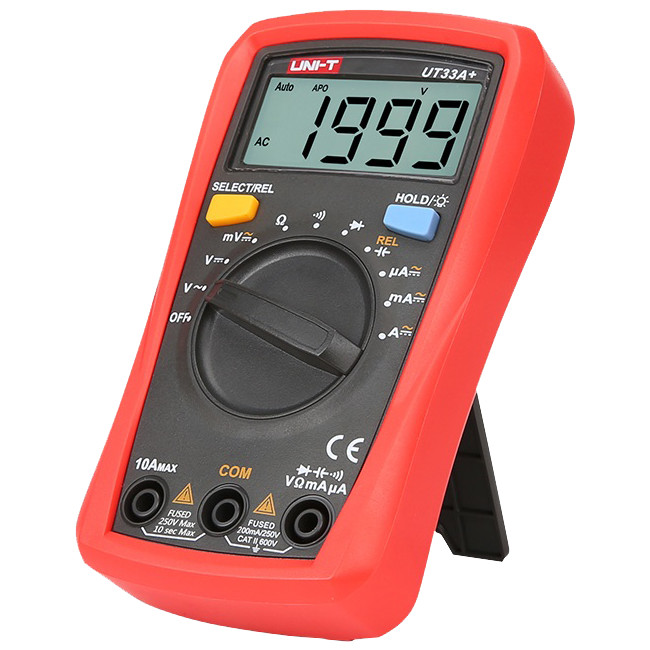

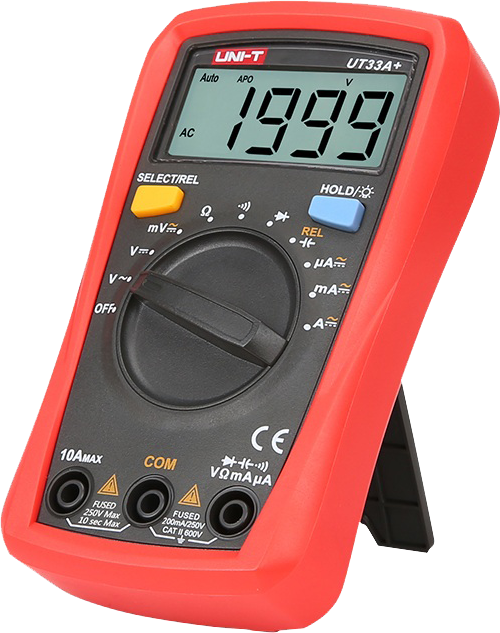

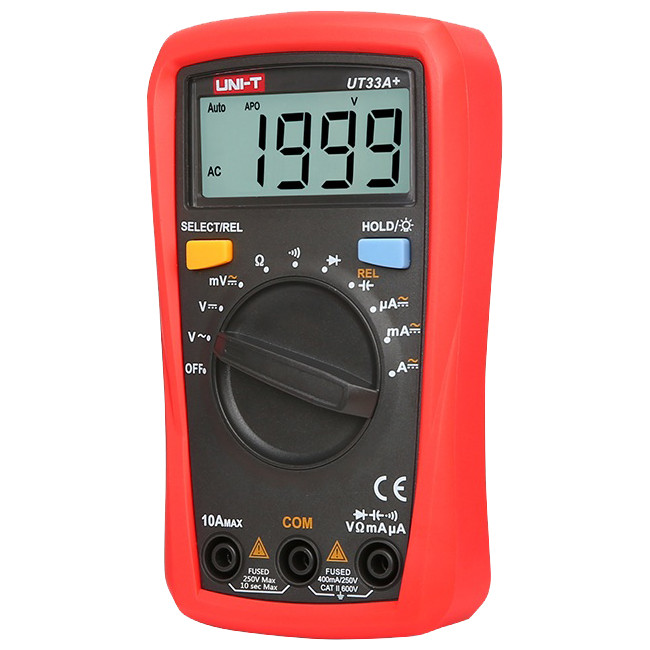

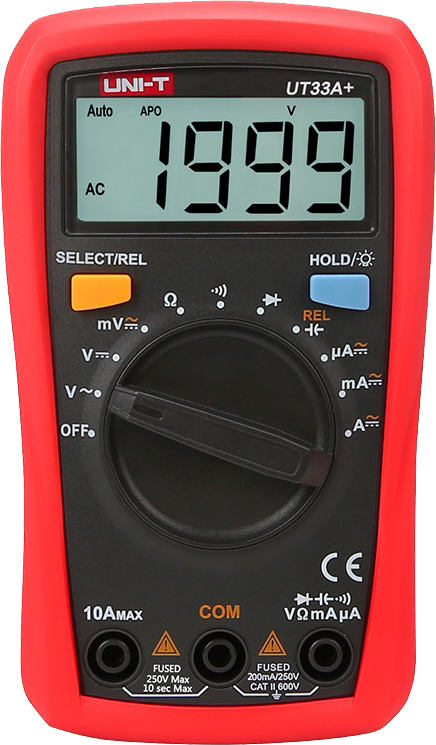

UT33A+ PALM SIZE DIGITAL MULTIMETER

AUTO-RANGING

Code: 44488226

0.3100 kg
6935750533147
EACH
60
In Stock
$26.95 inc GST
Increase value Decrease value
Qty Each (inc GST) Each
Request Price Match
Enter 4 digit postcode

UT33A+ Palm Size Multimeter

The new generation UT33+ series redefines the performancestandards for introductory digital multimeters. Our innovative industrial design makes sure that these products can withstand 2 meters drop. The new LCD display layout provides a better user experience. The UT33+ series safety standards have also been enhanced to ensure that users can work safely in CAT ll 600V environment.

Main features

  • LCD display
  • Equipped with comfortable protective cover, test lead hanging slot
  • 2m drop proof with precision protection
  • Auto power off
  • Auto backlight off
  • Loud buzzer
  • Ergonomically designed rotary switch

Specification

Specifications Range Accuracy
UT33A+
DC voltage (V) 200.0mV~600V ±(0.5%+3)
AC voltage (V) 200.0mV~600V ±(0.7%+3)
200.0V~600V
DC current (A) 200.0µA~10.00A ±(1.0%+3)
AC current (A) 200.0µA~10.00A ±(1.2%+3)
Resistance (O) 200.0O~200.0MO ±(1.0%+2)
200.0O~20.00MO
Capacitance (F) 2.000nF~2.000mF ±(3%+5)
Features
Max display 1999
Auto power off v
Auto backlight off v
Diode test v
Continuity buzzer v
Drop test 2m
Test probe holder v
Safety rating CAT ? 600V
Range selection Auto
Battery test
Temperature (°C/°F)
NCV
General Characteristics
Power AAA battery (zn-mn) 1.5Vx2
LCD size 66mm*51mm
Product color Red and grey
Product net weight 473g
Product size 131mmx95mmx58mm
Standard accessories Test lead, manual
Standard individual packing Gift box, manual
Standard carton measurement 640mmx310mmx350mm
