The VIGI professional surveillance system by TP-Link is dedicated to protecting the business that you've worked hard to build whenever, wherever. Our outstanding functions, reliable quality guarantees, and implified installation work together to ensure your business stays safe and sound.
| VIDEO AND AUDIO | IP Video Input | 8-Channel, up to 8MP Resolution |
|---|
| Incoming Bandwidth | 80 Mbps |
| Outgoing Bandwidth | 60 Mbps |
| HDMI Output Resolution | 1 Channel, Resolution: 3840×2160/30Hz, 1920×1080/60Hz, 1680×1050/60Hz, 1440×900/60Hz, 1280×1024/60Hz, 1280×720/60Hz |
| VGA Output Resolution | 1 Channel, Resolution: 1920×1080/60Hz, 1680×1050/60Hz, 1440×900/60Hz, 1280×1024/60Hz, 1280×720/60Hz |
| Video Output Mode | HDMI/VGA Simultaneous Output |
| Multi-View Display | 1 / 4 / 6 / 8 |
| DECODING | Audio Compression | G.711A/G.711U/G.726 |
|---|
| Video Compression | H.265+ / H.265 / H.264+ / H.264 |
| Record Resolution | 8MP / 5MP / 4MP / 3MP / 1080p / UXGA / 720p / VGA / 4CIF / DCIF / 2CIF / CIF / QCIF |
| Synchronous Playback | 8-Channel¹ |
| Capability | 25fps:- 2-Channel @ 8MP
- 4-Channel @ 4MP
- 8-Channel @ 2MP
30fps:- 2-Channel @ 5MP
- 4-Channel @ 3MP
|
| RECORD MANAGEMENT | Record Mode | - Manual Recording
- Scheduling Recording
- Motion Detection Recording
|
|---|
| Playback Mode | - Instant Playback
- Regular Playback
- Tag Playback
- Event Playback
|
| Backup Mode | - Regular Backup
- Video Clip Backup
|
| Playback Function | Play, Pause, Stop, Fast Forward, Fast Backward, Play By Frame, Full Screen, Video Clip, Export Clip, Digital Zoom, Lock Recording, Audio On/Off |
| NETWORK | Protocol | - UPnP (Plug and Play)
- NTP (Network Timing)
|
|---|
| Mobile Phone Access | Android, iOS |
| Web Browser | Chrome (57+), Firefox (52+), Edge (91+) |
| Interoperability | ONVIF, CGI |

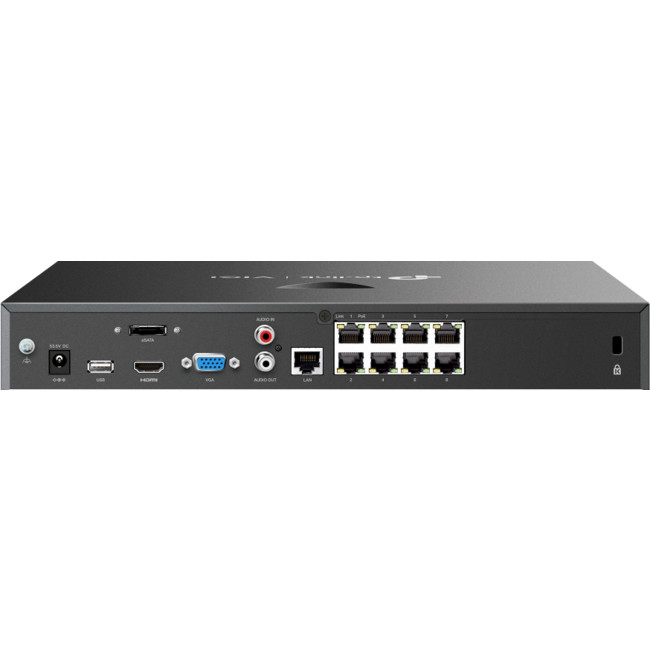

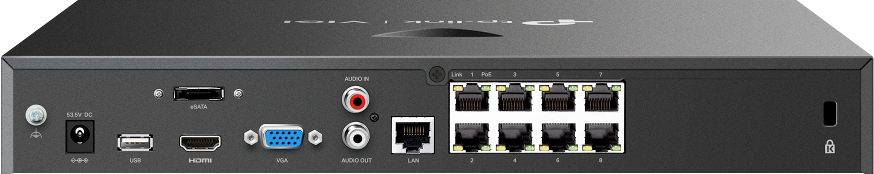

| EXTERNAL INTERFACE | Network Interface | 1 × RJ-45 10/100Mbps Self-Adaptive Ethernet Interface |
|---|
| USB Interface | 2 × USB 2.0 |
| Audio Interface | - 1 × Audio In
- 1 × Audio Out
|
| Alarm In/Out | N/A |
| Serial Interface | N/A |
| Power | 1 × DC Jack |
| Reset Button | 1 |
| Speaker | N/A |
| eSATA | N/A |
| HDMI | 1 |
| VGA | 1 |
| HARD DISK | SATA | 1 × SATA Interface |
|---|
| Capacity | Up to 16TB Capacity for Each HDD*² |
| PoE | Standard | 802.3at/af Compliant |
|---|
| Interface | 1-8, RJ-45 10/100Mbps Self-Adaptive Ethernet Interface |
| PoE Budget | 53W available for all PoE+ ports, 30W max. per port |
| ALARM | General Alarm | - Motion Detection
- Video Tampering
- Scene Change Detection
- Line-Crossing Detection
- Intrusion Detection
- Region Entering Detection
- Region Exiting Detection
- Loitering Detection
- Object Abandoned/Removal Detection
- Vehicle Detection
- Human Detection
- Abnormal Sound Detection
- Smart Frame
Note: The alarm function requires the use of a camera.
|
|---|
| Anomaly Alarm | - Video Loss
- Offline and IP Conflict
- Disk Exception
- Login Exception
Note: The alarm function requires the use of a camera.
|
| Alarm Linkage | - Recording
- White Light Alarm
- Buzzer
- Log
- Audible Alarm
Note: The alarm function requires the use of a camera.
|
| GENERAL | External Power Supply | 53.5V DC / 1.31A |
|---|
| Power Supply | 53.5V DC / 1.31A |
| Power Consumption | - Without Disk: 2.38W
- With Disk: 12.94W
|
| Certifications | CE, EAC, UKCA, RCM, Triman, BSMI, VCCI, FCC, IC, HDMI |
| ENVIRONMENT | Storage Temperature | −40~70°C |
|---|
| Working Temperature | - NVR: −10~55°C
- Power Adapter: 0~40°C
|
| Storage Humidity | 10%~90% RH Non-Condensing |
| Working Humidity | 10%~90% RH Non-Condensing |
| PACKAGING | Dimensions (W×D×H) | 294mm × 180mm × 44mm |
|---|
| Net Weight | 1.12kg |
| Gross Weight | 2.06kg |
| Package Contents | - VIGI Network Video Recorder
- Power Adapter
- HDD Screws
- Quick Installation Guide
|
