1: 300-day battery life is based on TP-Link laboratory tests with 230s of use per day. Increased usage of 360s per day reduces battery life to 180 days. Actual battery life may vary due to device settings, router specifications, usage, and environmental factors.
2: IP66 weatherproof only applies for TC85 camera.
3: microSD card purchased separately. Actual storage capacity depends on the size of the microSD card used.
4: Subscribe For Cloud Storage
5: Compatible with Alexa and Google Assistant supported displays. User experience is dependent on the connected device’s specifications.
| CAMERA | Image Sensor | 1/3″ Progressive Scan CMOS Starlight Sensor |
| Lens | - Focal Length: 2.1mm
- Aperture: F2.1
- Field of View:
- Diagonal: 150°
- Horizontal: 134°
- Vertical: 77°
|
| Night Vision | - 850nm IR LED (49ft / 15m)
- Full-Color Night Vision
|
| Lighting | - 4 × Built-in IR LED
- 4 × Built-in WHITE LED
|
| Interface & Button | - 1 × Switch Button
- 1 × Reset Button
- 1 × MicroSD Card Slot
|
| SOLAR PANEL | Connection Capacity | A solar panel can only connect to one camera. |
| Output Port | Type-C*
*A Type-C to Micro USB adapter (Included) is required for a camera with a Micro USB charging port |
| VIDEO & AUDIO | Maximum Resolution | 2K QHD 4MP (2560px × 1440px) |
| Frame Rate | 15/20/(25/30)fps |
| Video Compression | H.264 |
| Live View | |
| Image Enhancement | |
| Audio Input & Output | Built-in Microphone and Speaker |
| Audio Communication | Two-Way Audio with Noise Cancellation |
| Siren Volume | 94 dB (Level measured at 4″/10cm distance) |
| STORAGE | Local Storage | Supports microSD Card (Up to 512GB)*³ |
| Cloud Storage | Tapo Care Cloud Storage Services (Subscription Required)*⁴ |
| DETECTION & NOTIFICATIONS | Sensor | - Single Motion Sensor (FOV: 130° horizontal)
- Single Ambient Light Sensors
|
| AI Detection | - Motion Detection
- Person Detection
- Pet Detection
- Vehicle Detection
|
| Activity Zones | |
| Output Notification | - System Notification
- System Notification with Snapshot (Tapo Care Services)*⁴
|
| NETWORK | Network Connectivity | Connect via Wi-Fi |
| Wireless Connectivity | IEEE 802.11b/g/n, 2.4 GHz Wi-Fi |
| Security | - 128-bit AES Encryption with SSL/TLS
- WPA/WPA2-PSK
|

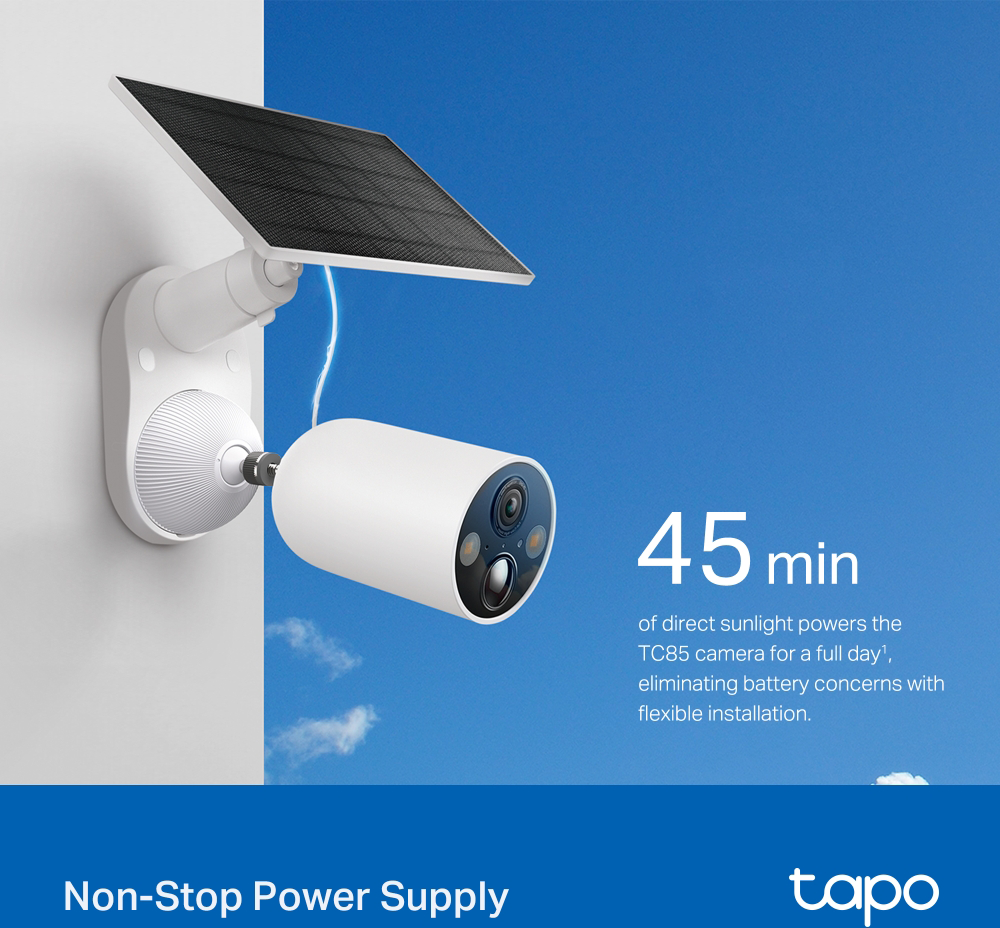

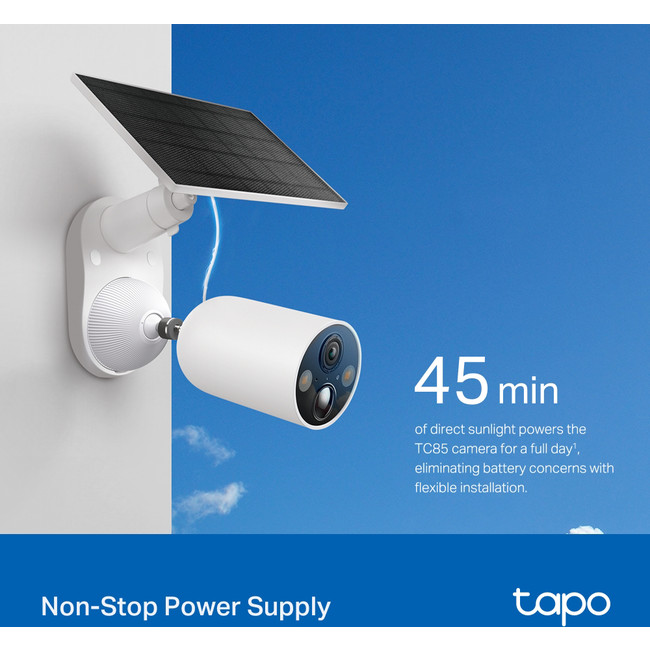

| POWER | Power Source | - 10000 mAh Built-in Rechargeable Lithium-ion Battery
- Solar Panel: Tapo A201
|
| Input Voltage | Adapter Input: 100-240V, 50/60 Hz (Not Included) |
| Output Voltage | - Adapter Output: 5.0V, 2.0A (Not Included)
- Solar Panel Max. Charging Voltage: 5.2V
- Solar Panel Max. Charging Power: 2.5W
|
| ENVIRONMENT | Operating Temperature | −20°C~45°C |
| Storage Temperature | −20°C~60°C |
| Operating Humidity | 10%~90% RH, Non-condensing |
| Storage Humidity | 5%~90% RH, Non-condensing |
| Charging Temperature | 0°C to 45°C |
| GENERAL | Smart Integration | Google Assistant, Amazon Alexa |

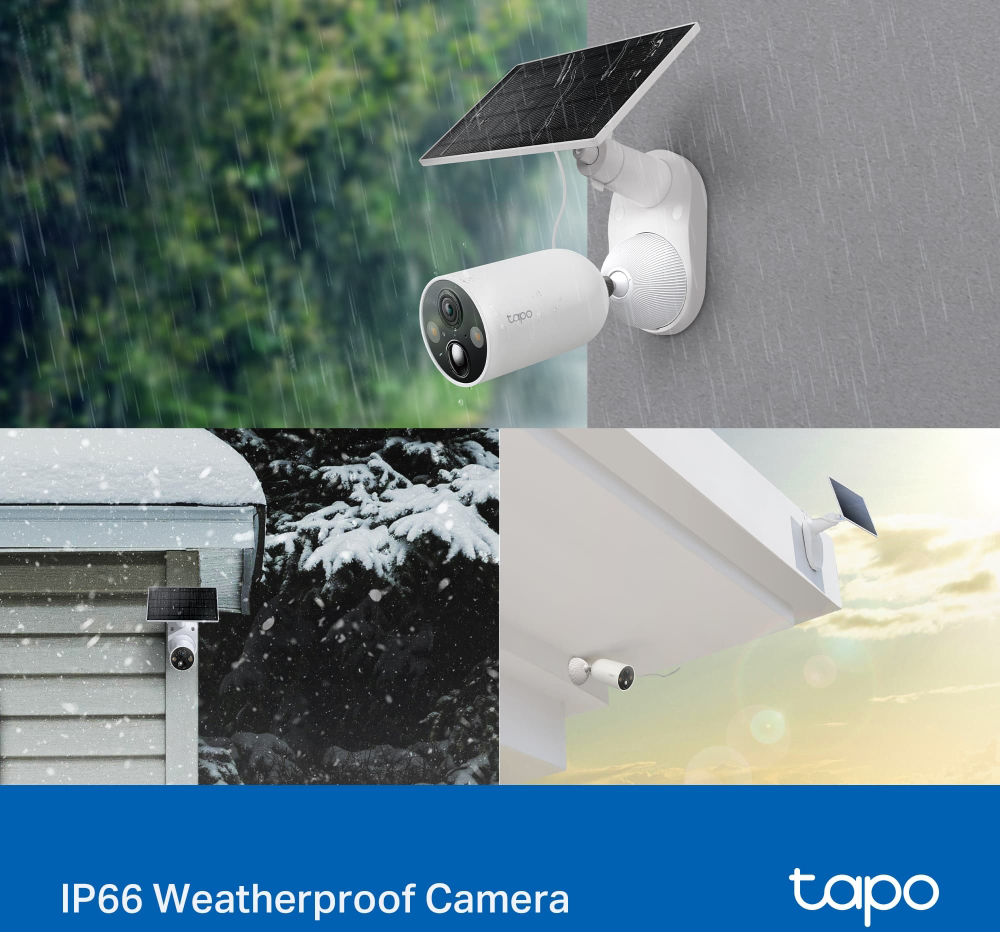

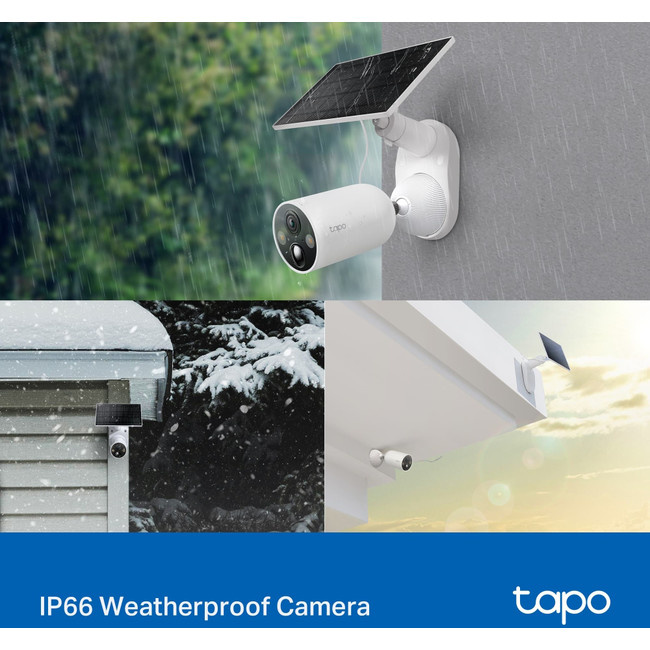

| Weather Resistance | IP66 |
| System Requirements | Tapo App: iOS 9.0 or higher, Andriod 4.4 or higher |

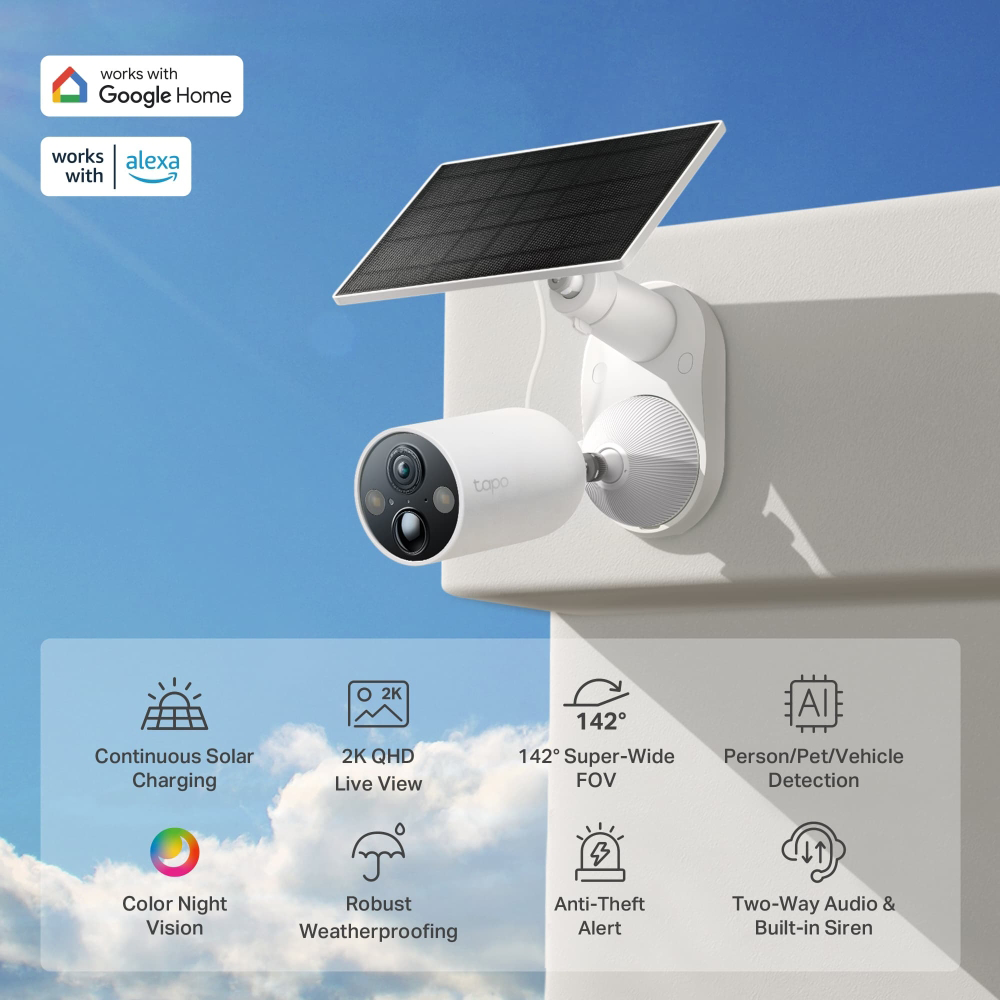

| Mounting Options | Ceiling-Mounted, Wall-Mounted |
| Camera Dimensions, Without Brackets (W×D×H) | 116.2mm × 64.8mm × 64.8mm (4.57″ × 2.55″ × 2.55″) |
| Solar Panel Dimensions (W×D×H) | 173.42mm × 120.42mm × 15.7mm (6.83″ × 4.74″ × 0.62″) |

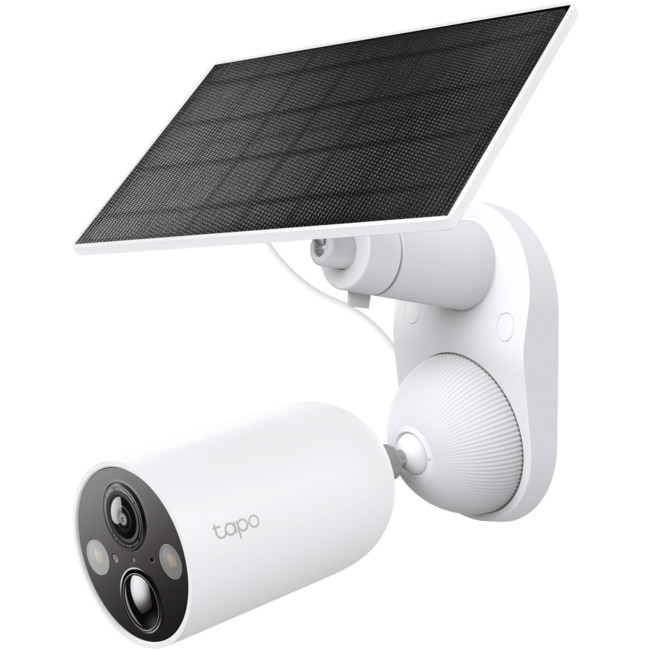

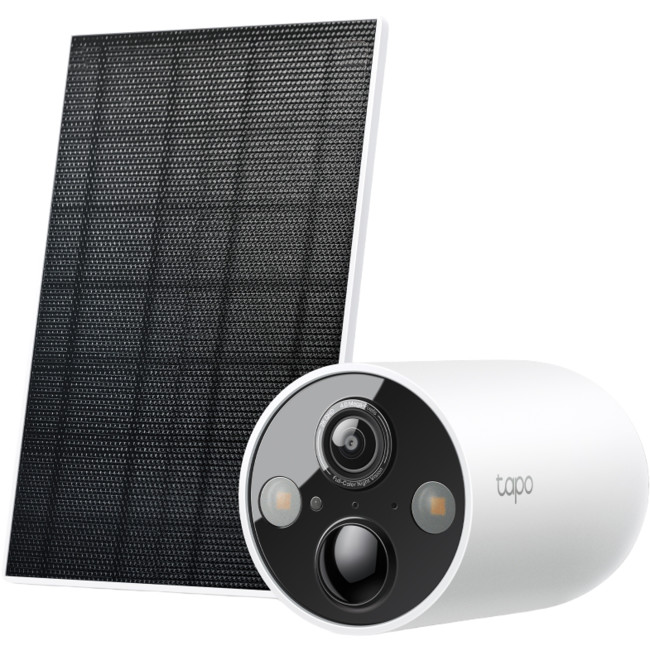

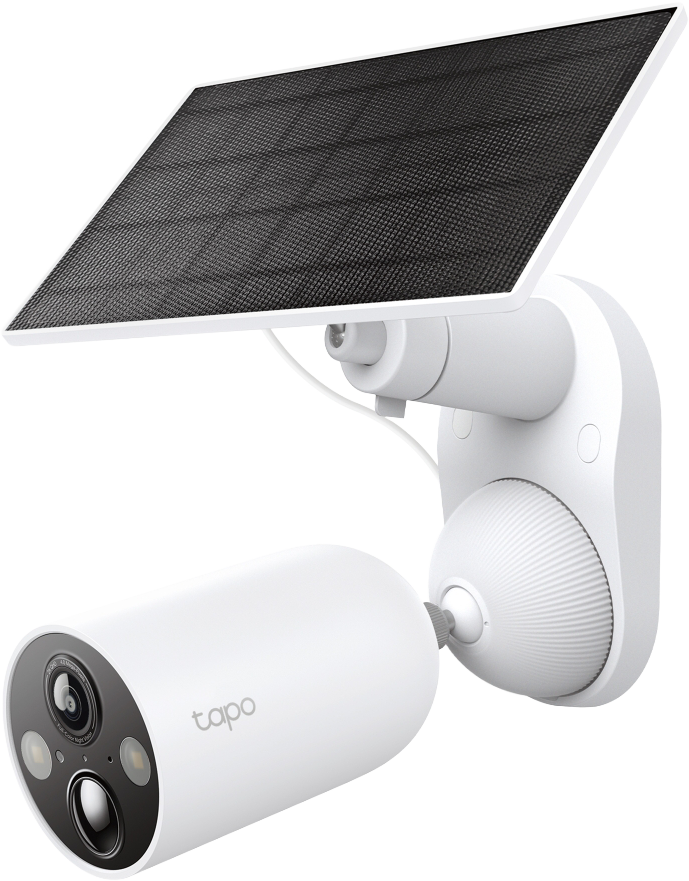

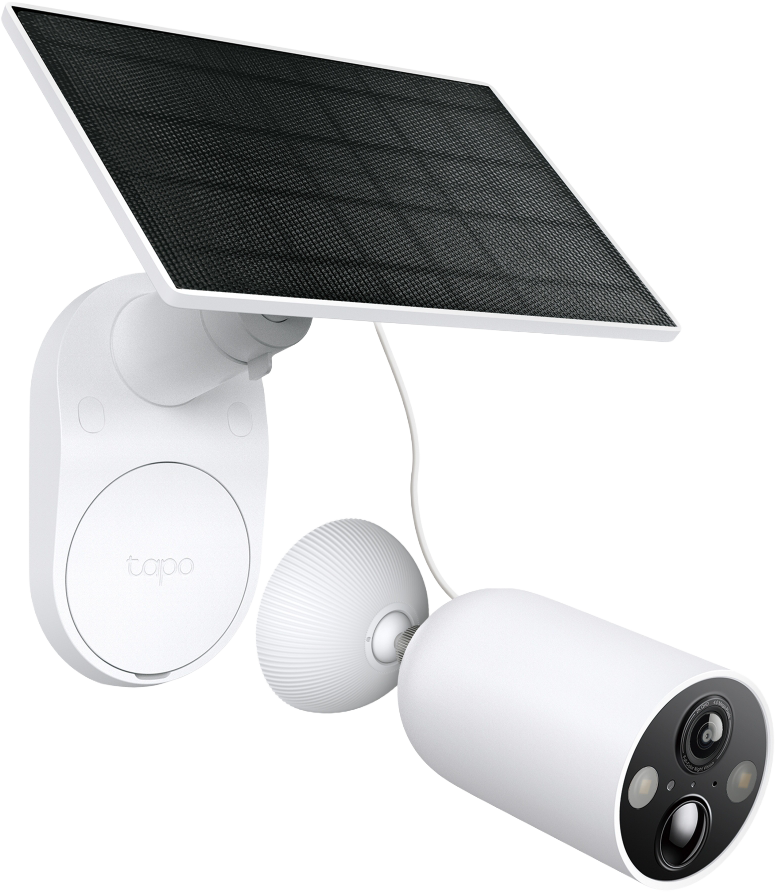

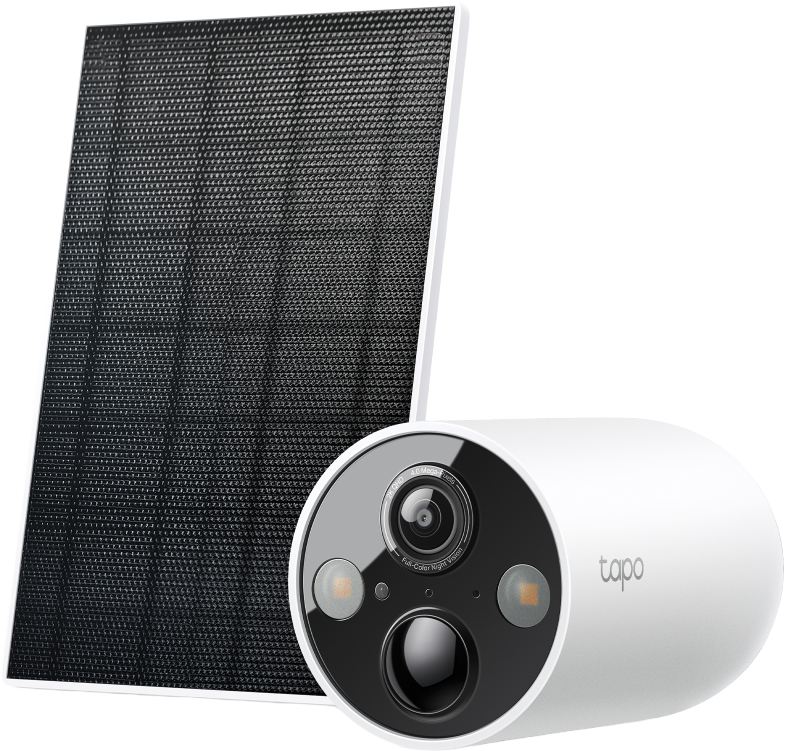

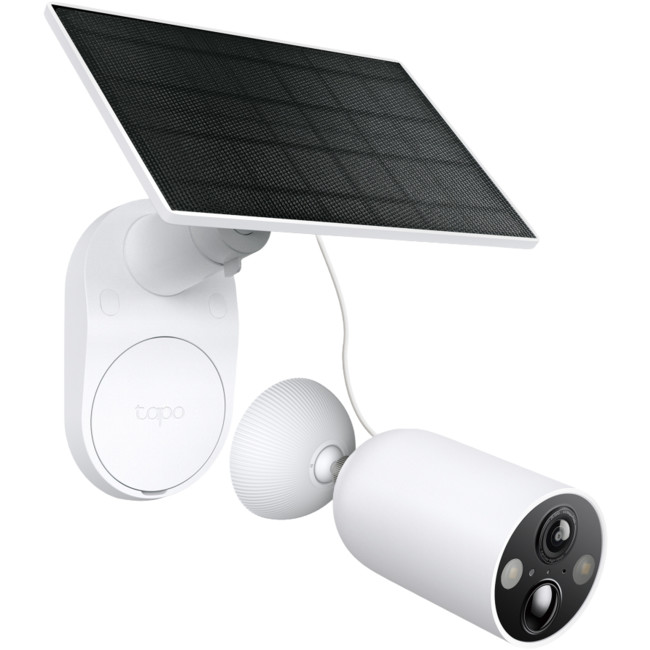

| Package Contents | - 1 × TC85 Camera
- 1 × Tapo A201 Solar Panel
- 1 × Camera Bracket
- 1 × Extension Wire
- 1 × Decorative Cover Plate
- 1 × Mounting Template
- 1 × Type-C to Micro USB Adapter
- 6 × Mounting Anchors
- 6 × Mounting Screws
- 2 × Waterproof Seals
- 1 × Battery Charger Cable
- 1 × Cable Tie
- 2 × Screw Caps
- Quick Start Guide
|
| Certifications | CE, FCC, DOE, CEC, RCM, KC, NCC, BSMI, NTRA |
1: 300-day battery life is based on TP-Link laboratory tests with 230s of use per day. Increased usage of 360s per day reduces battery life to 180 days. Actual battery life may vary due to device settings, router specifications, usage, and environmental factors.
2: IP66 weatherproof only applies for TC85 camera.
3: microSD card purchased separately. Actual storage capacity depends on the size of the microSD card used.
4: Subscribe For Cloud Storage
5: Compatible with Alexa and Google Assistant supported displays. User experience is dependent on the connected device’s specifications.
