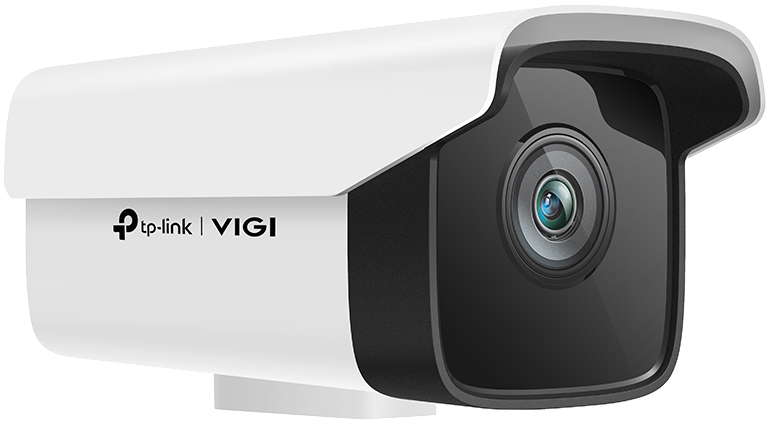

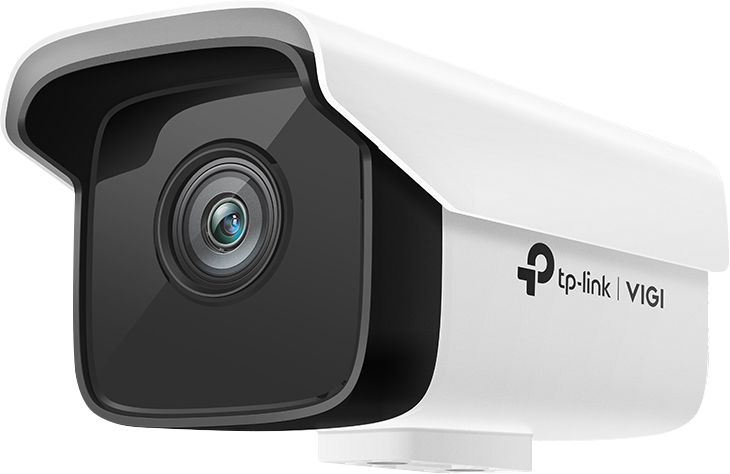

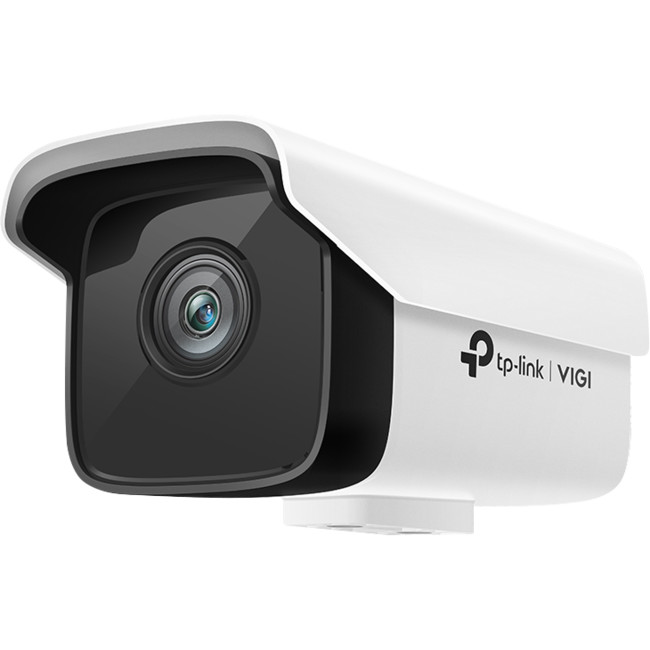

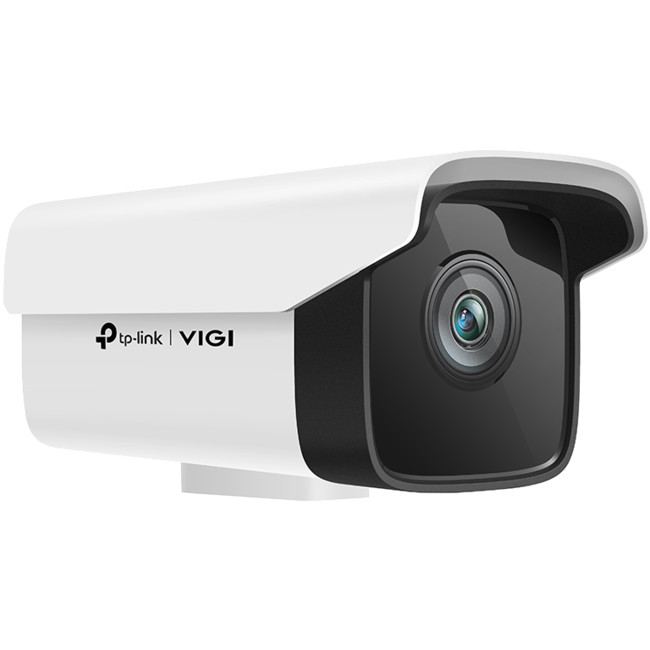

C300HP VIGI 3MP Outdoor Bullet Network Camera 4MM LENS
3MP Ultra-High Definition
Looking for a higher resolution? It's right here. The VIGI C300 camera comes with 3MP more than enough pixels to pick up some of the more discrete details.
4/6 mm Lens
Choose the right lens for your security. Whether you need a wide angle lens to cover enclosed spaces like elevators or a higher millimeter lens for longer distances in open spaces like parking lots, C300 comes with two different lens versions to better suit your security needs.
Smart Detection
Keep an eye on your business. Receive notifications and check feeds when someone crosses a boundary, enters an area you've set, or obstructs the camera.
SmartVid Smart Video Enhancement
Never miss a detail.
- Smart IR: Keeps objects from being under-rendered when far away or over-exposed when close to camera at night.
- Wide Dynamic Range: Adjusts for lighting contrast to minimise shadowing effects and renders images true to life.
- 3D DNR: Removes abnormal pixelation to provide clearer video andeliminate distortion.
Night Vision
Around-the-clock protection. A robust night vision system ensures your camera performs well in low light conditions and records what’s happening for future inspection.
H.265
More compression. More savings. Same quality. Without using any extra bandwidth, your cameras transmit compressed crystal-clear video to save disk space, ease network loads, and reduce monitoring costs without sacrificing image quality.

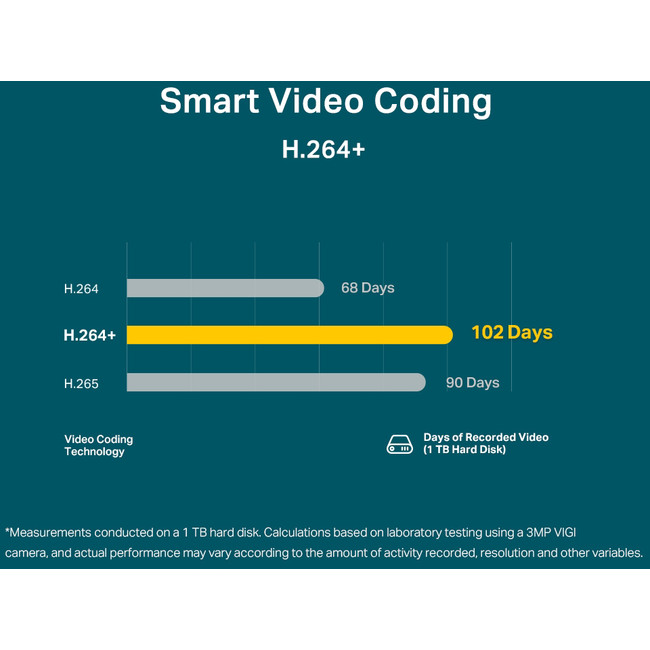

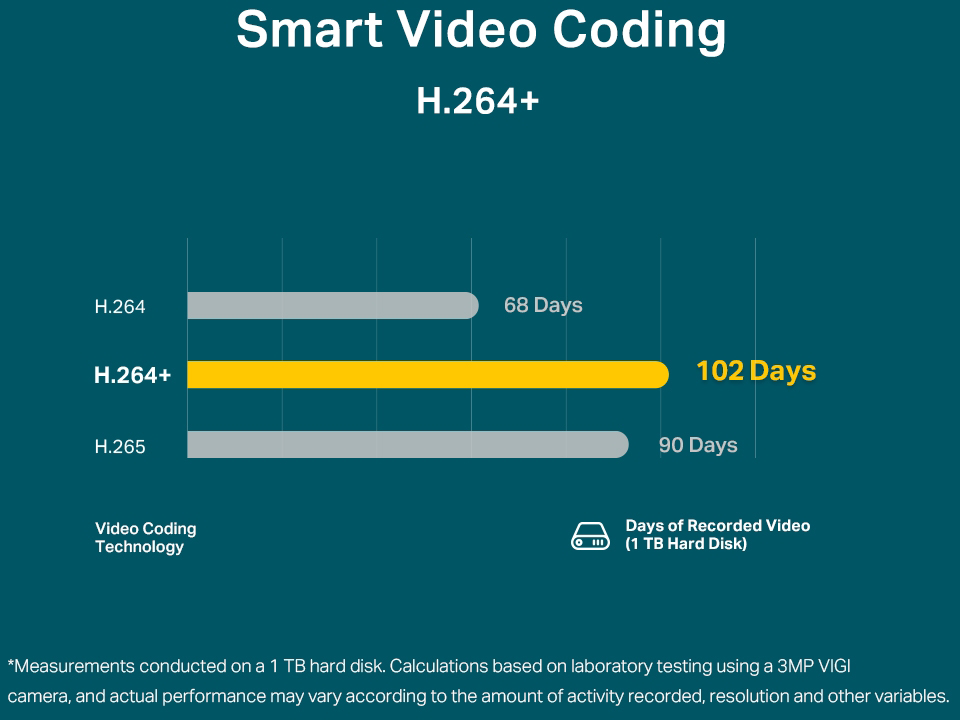

Days of Recorded Video (1TB HardDisk):
- H.264: 68 Days
- H.264+: 102 Days
- H.265: 90 Days
- H.265+: 205 Days
IP67 for Better Protection
Capable of withstanding temperatures from −30°C~60°C (−22°F~140°F), VIGI performs well even in harsh environments with rain and dust.
Power Over Ethernet (PoE)/12V DC
Discover the best way to power your camera. Two power supply options not only give you more convenience but also make your wiring remarkably easy.

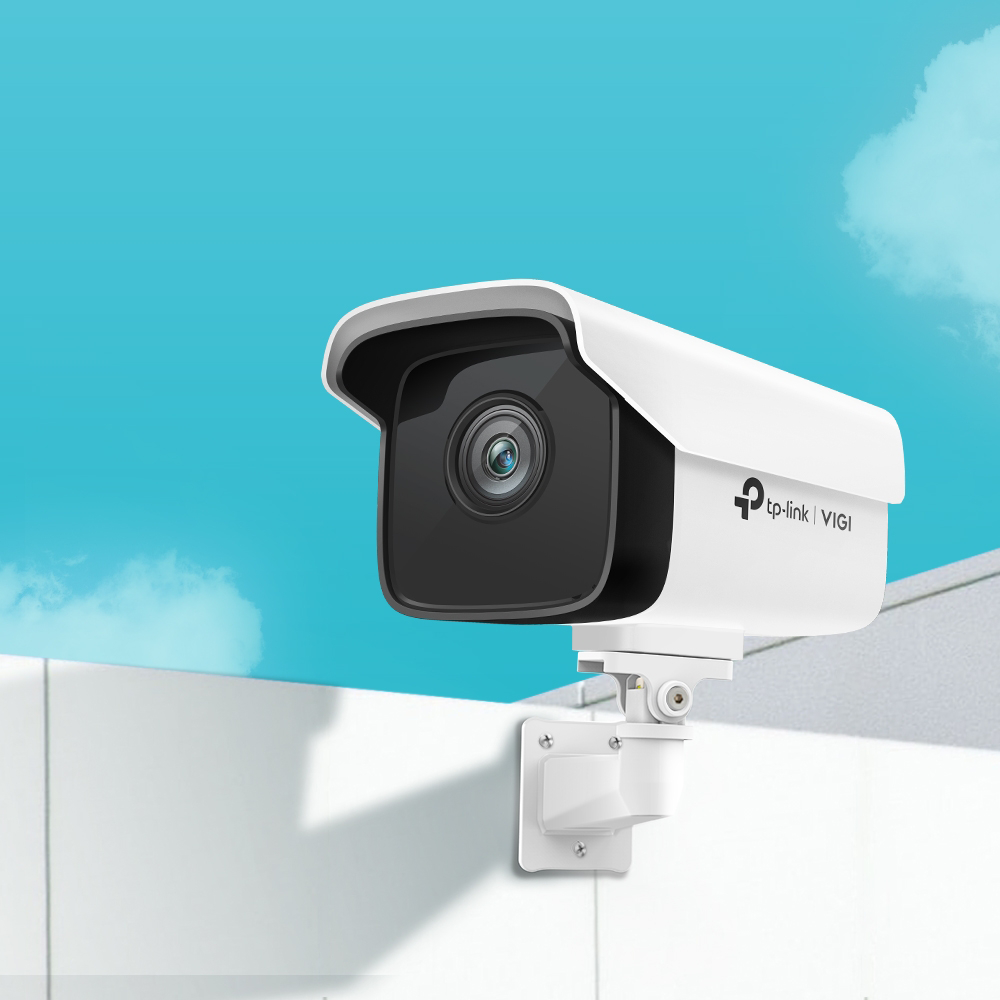

Flexible Installation Gives You More Convenience
Find the perfect vantage point by simply securing your camera to an overhead or wall mounting bracket.
Three-Way Management
Take full control over your security. Anytime, anywhere.
- NVR: Build your network and manage your cameras all through your connected NVR. On-site management allows you to readily fix issues as they arise and check your system without any additional equipment.
- VIGI App: Manage your security from the palm of your hand with theVIGI app.
- Easily choose a camera from the multi-display profile and move it to the top for a larger view to see more details.
- Choose and adjust specific smart detection functions for customised monitoring.
- Play back video feeds and find events in the video schedule.
- VIGI Security Manager: When you are at home, control your security system from the convenience of your desktop, or laptop. Simply keep a tab on your web browser for easy, quick access to your video feeds.
The VIGI Solution
Run your business with peace of mind. The VIGI professional surveillance system by TP-Link is dedicated to protecting the business you’ve worked hard to build – whenever, wherever. The outstanding functions, reliable quality guarantees, and simplified installation work together to ensure your business stays safe and sound.
{tab Specifications}
Specifications
CAMERA | Image Sensor | 1/2.7″ Progressive Scan CMOS |
---|
Lens | 4mm / 6mm |
Aperture | |
Viewing Angle | 4mm:- Horizontal FOV: 92°
- Vertical FOV: 48°
- Diagonal FOV: 114°
6mm:- Horizontal FOV: 51.9°
- Vertical FOV: 28.7°
- Diagonal FOV: 60°
|
Lens Mount | M12 |
Day/Night Mechanism | IR Cut Filter |
IR Working Distance | 30m |
Minimum Illumination | Colour 0.1 Lux @ F2.0; 0 Lux with IR |
Weatherproof Rating | IP67 |
Digital Noise Reduction | 3D DNR |
WDR | DWDR |
VIDEO/IMAGE | Video Streaming | |
---|
Video Compression | - Main-Stream: H.265/H.264
- Sub-Stream: H.265/H.264
|
Frame Rates | 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps |
Resolutions | 2304×1296, 2048×1280, 1920×1080, 1280×720, 704×576, 640×480, 352×288, 320×240 |
Image Enhancement | - BLC / 3D DNR
- Prevent Overexposure to Infrared Light
|
Image Settings | Adjustable by Client Software: - Mirror
- Brightness
- Contrast
- Saturation
- Sharpness
- Exposure
- WDR
- White Balance
|
Video Bit Rate | 64Kbps to 6Mbps |
NETWORK | Security | - Password Protection
- HTTPS Encryption
- IP Address Filter
- Digest Authentication
|
---|
Protocol | TCP/IP, UDP, ICMP, HTTP, HTTPS, DHCP, DNS, RTSP, NTP, UPnP UDP, SSL/TLS |
API | ONVIF |
Simultaneous Live View | 4 × Main Streams & 3 × Sub-Streams, or 3 × Main Streams & 5 × Sub-Streams |
Network Interface | 1 × RJ45 10/100M Self-Adaptive Ethernet Port |
SMART FEATURE-SET | Smart Event | Area Intrusion Detection, Line-Crossing Detection |
---|
Basic Event | - Motion Detection
- Camera Tampering Detection
- Exception (Illegal Login)
|
Linkage Method | Trigger Notification: ONVIF, HTTPS |
Region of Interest | 1 Region |
POWER | Power Requirements | - 12V DC: ±5%, 5.5mm Coaxial Power Plug
- PoE: 802.3af/at, class 0
|
---|
Power Consumption | - 12V DC: Max 3W
- PoE: Max 4W
|
GENERAL | Operating Temperature | −30°C~60°C |
---|
Certifications | CE, FCC, RCM, BSMI, VCCI, IP67, RoHS |
General Features | - Two Streams
- Mirror
- Privacy Masks
- Password Reset via E-mail
- HTTP Listening
|
PACKAGING | Dimensions (H×W×D) | 164.9mm × 87.4mm × 83.4mm |
---|
Material | Plastic |
Weight | 283.5g |
Package Contents | - VIGI Network Camera
- Quick Start Guide
- Waterproof Cable Attachments
- Mounting Bracket
- Mounting Accessories (Screws, Drywall Anchors, Hex Key)
|
