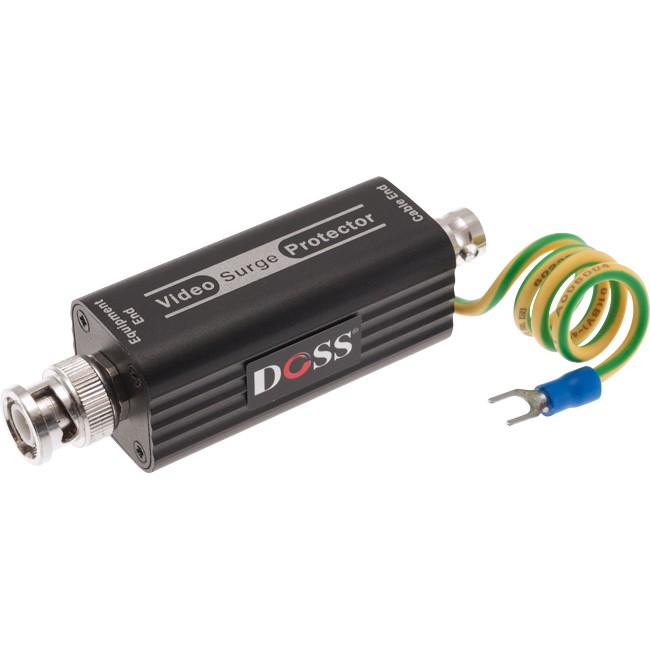

VSP01 COAXIAL VIDEO SURGE PROTECTOR

BNC

Code: 43151078

0.0900 kg
9328202015242
EACH
In Stock
DON'T PAY $19
$11 inc GST
Increase value Decrease value
Qty Each (inc GST) Each
Request Price Match
Enter 4 digit postcode

Coaxial Video Surge Protector

The VSP01 is a signal channel coaxial video surge protector designed according to IEC and GB standards. It adopts BNC connectors, features quicker response time, lowerresidual voltage output and lower insertion loss with internationally recognised branded semiconductor components to protect devices from lightning strikes or damage by overvoltage, overcurrent or surge voltage. It is widely usedin cable CCTV transmission, and the protection of electronicmonitoring systems such DVRs, LETs and cameras etc

Features

  • Designed with lower value capacitors results in lowerinsertion loss and quicker response time
  • Large through-flow capacity, long life
  • Adopts internationally recognised branded components
  • Multi-level protection
  • Low residual votage
  • Easy installation and convenient maintainence
  • Frequency bandwidth: 0~300MHz

Specifications

Application CCTV transmission,
Electronic monitoring devices such as DVR, LET and cameras etc..
Video Connector BNC connector
Normal Operating Voltage) 6V
Max Continuous Operating Voltage) 8V
Nominal Discharge Current (8/20us) 5KA
Nominal Ddischarge Current (8/20us) 10KA
Rated Load Current (IL) 500MA
Limited Voltage <15V
Response Time <1NS
Max Transmission Rate 10Mbps
Insertion Loss <0.2dB
Impedance 75Ω
Protection Circuit Unshielded Twisted Pair (UTP)
Failure LED Indication To the ground short circuit or open
Mechanical Dimensions (L*W*H) 60*25*25mm
Housing Aluminum alloy
Body Color Black
Net Weight 60g
Environmental Operating Temperature -20°C ~ 55°C
Relative Humidity 0~95% (non-condensing)
Storage Temperature -40°C ~ 70°C
