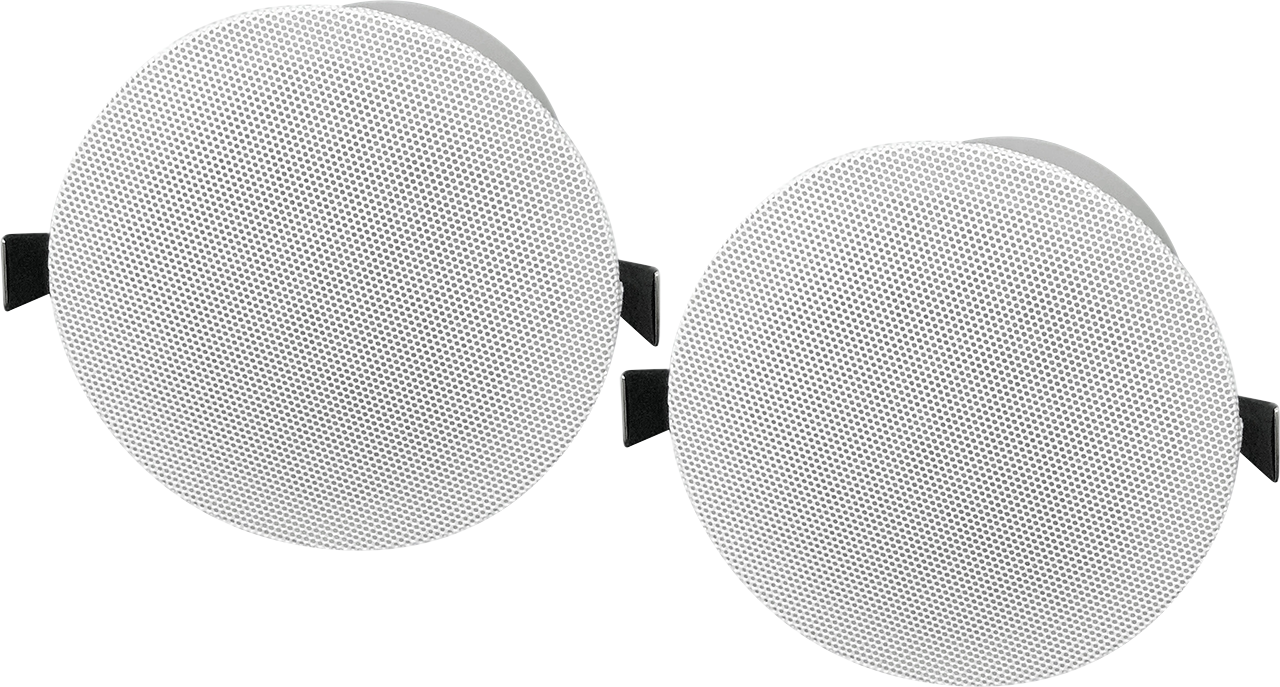

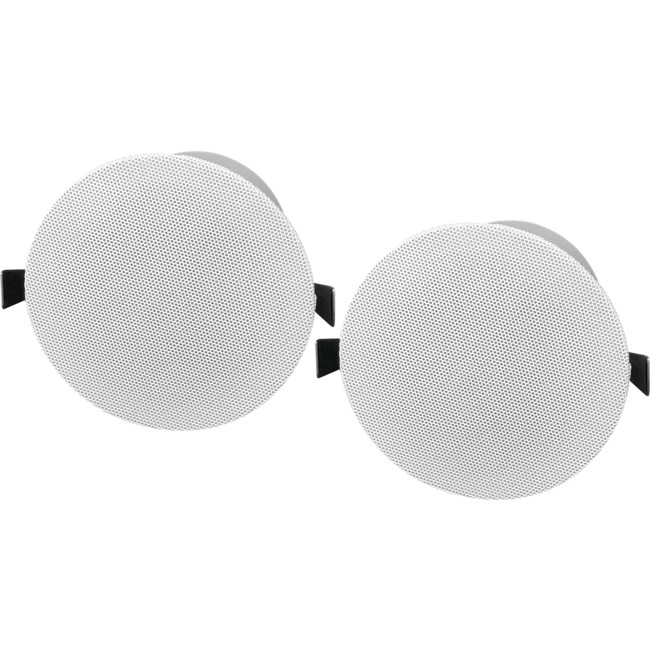

ECS 4.0 In-Ceiling Speaker Versatile and Powerful
This version has an aluminum grille, which is good for bathrooms and kitchen and covered patio.
With limitless applications and sound quality in mind, Earthquake Sound is proud to release the new ECS 4.0 Edgeless In-Ceiling Speaker. The small footprint of this 4" full-range speaker was made for a variety of indoor as well as outdoor applications. The self-enclosed design with humidity resistant components provides users with a broader range ofinstallation options such as bathrooms, kitchens, and outdoor living spaces are just a few examples.
Installation is made painless from a toolless mounting system that makes your installs faster and more efficient by simply pushing the speaker into any 99mm diameter hole with a depth of 3 inches. The edgeless and paintable grille further enhances this speaker by allowing it to vanish and not interrupt thedécor of the room. The ECS 4.0 is built to perform and complement the space in which it is placed allowing youto enjoy music and audio in your home or commercial space.
Features:
Aluminum Grille
Optimized For Dolby Atmos®
The ECS 4.0 is optimized for Dolby Atmos. The accuratereproduc’ tion of Atmos overhead code depends on isolating the room from compromising event placement with reflections. The highpass fil’ tering ensures that users willlisten to the Atmos code and not a di’ luted and altered room response.
Kitchens, Bathrooms, & Outdoor
The self-enclosed and humidity-resistant design allowsthe user to place this speaker in areas where humidity might be a concern. Enjoy audio from your bathroom, kitchen, and outdoor spaces.
Single-Handed Mounting System
Spring-loaded and tool-less mounting clips make installation simple, secure, and more efficient so your jobis done quicker.
3" Mounting Depth
The small mounting depth requirement of the ECS 4.0 gives users more mounting options for either in-ceiling or in-wall applications as well as covered outdoor environments.
Premium Neodymium Magnets
ECS 4.0 is equipped with the highest quality neodymiummagnets on the market making the speaker smaller yet more efficient than any other speaker magnet material.
Long-Lasting Rubber Surround
The long-lasting and sag-resistant rubber surround willensure that the speaker performs exceptionally well throughmany years of use.
Thermally Conductive Cone
ECS 4.0 is manufactured with aluminum cones for added thermal stability with less distortion and can greatly withstand weathering in humid environments such as bathrooms and outdoor areas.
Edgeless Paintable Grille
The edgeless, slim, and paintable grille on the ECS 4.0 allows the installer to further customize the speaker sothat it can perfectly match the decor of any room.
Specifications
- Compatible with Dolby Atmos®
- Humidity resistant design

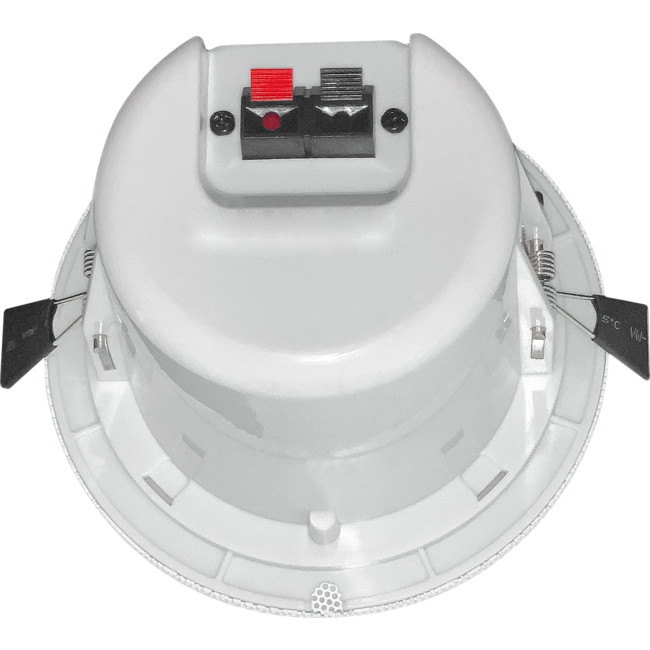

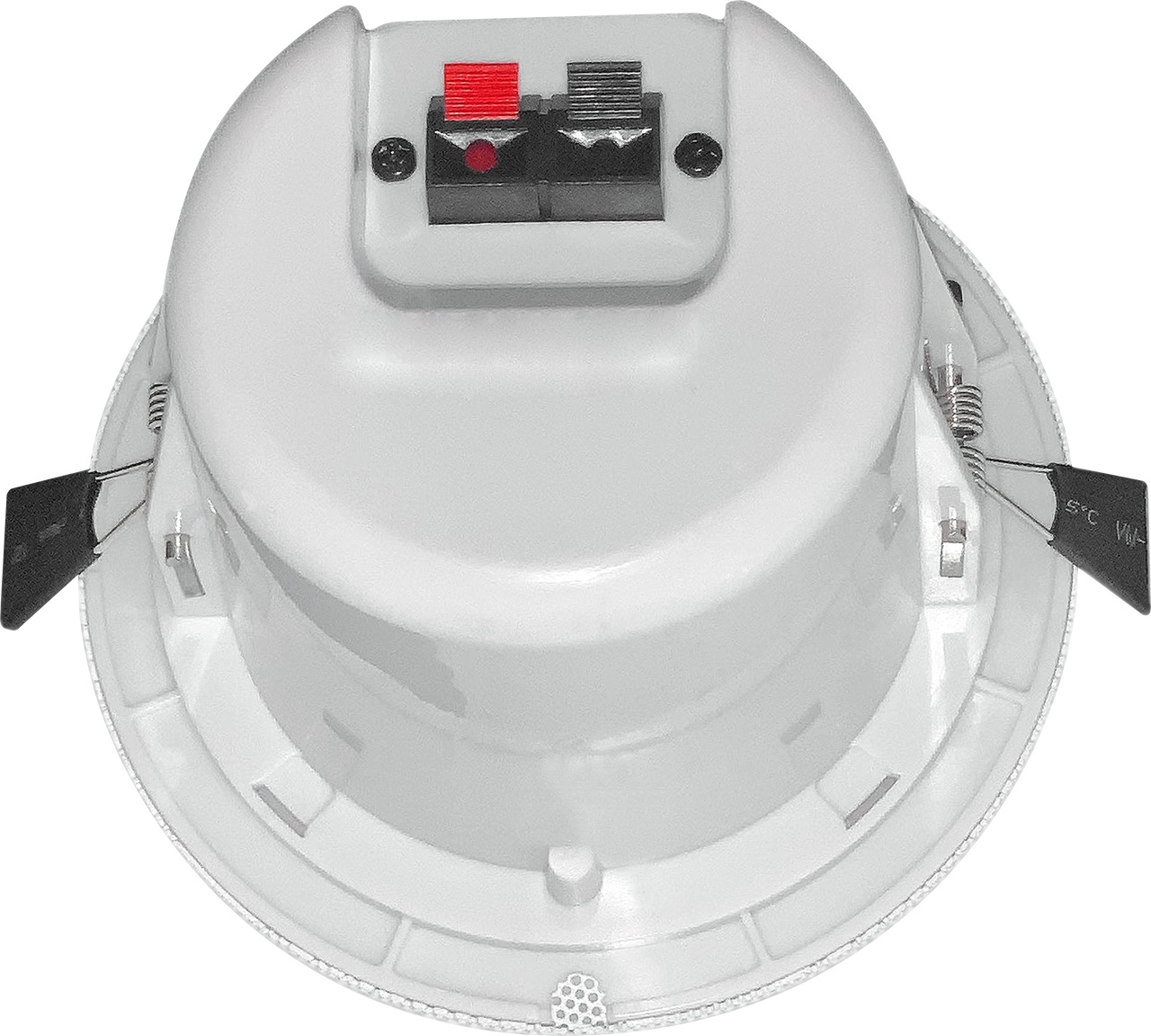

- Easy-connect push terminals
- Compact with paintable grille and frame
- Mounting clips for easy installation
- Powerful neodymium magnet
- Full range: 4"
- Impedance: 8-Ohm
- Sensitivity: 84 dB
- Voice Coil Diameter: 1" (25.2mm)
- Surround material: Butyl Rubber
- Power Handling: 50-Watts Max
- Frequency Response: 80Hz–10kHz
- Overall Diameter: 4.56" (116mm)
- Cut Out Diameter: 3.89" (99mm)
- Mounting Depth: 2.95" (75mm)
- Weight:: 1.14 lbs (0.85kgs)
