M-1 Mini Theatre Speaker B&W

Setting new standards for compact home theatre

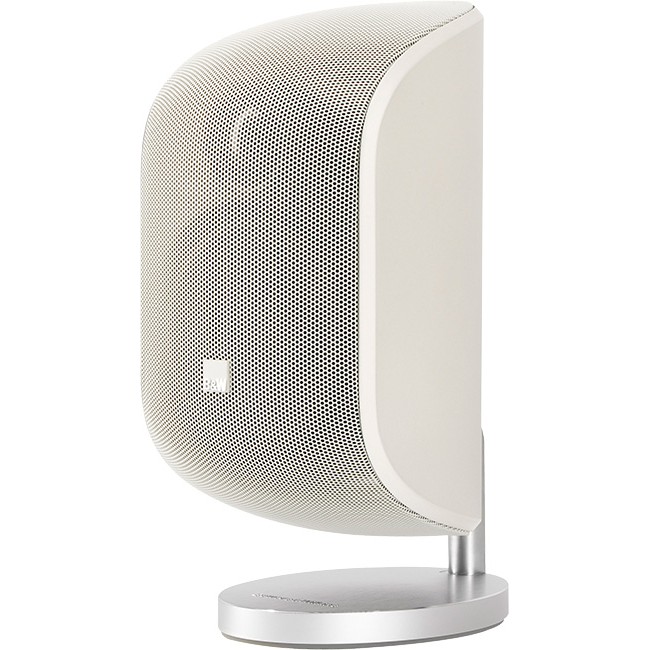

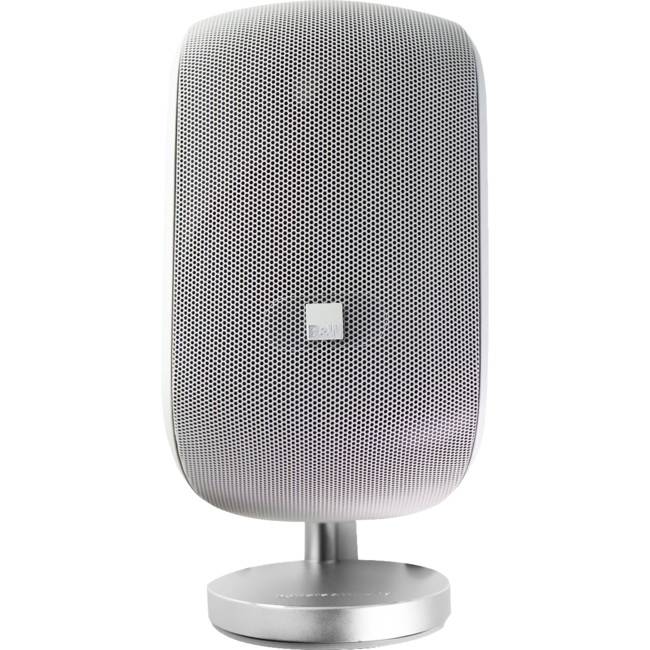

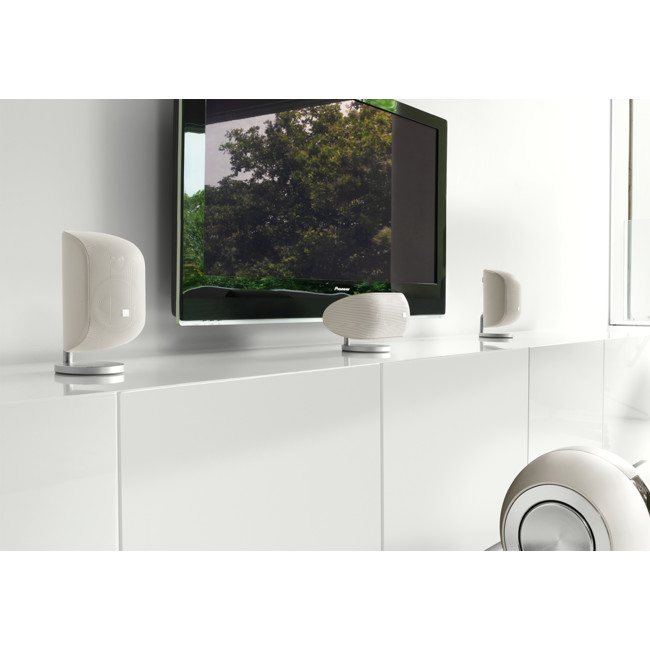

Forming the basis of a completely revised Mini Theatre concept, the new M-1 combines a cleaner aesthetic with dramatically improved performance. Combine it with either the ASW608 or the new PV1D subwoofer to create a home theatre experience with superb integration and impressive power for such a discreet system. Plus, its more extended bass response allows M-1 to be used on its own for two-channel applications. Mount the speaker as shown on a table or shelf. Alternatively, a bracket is included for wall mounting and a floor stand is available as an optional extra

Features:

• Sleek, compact, yet packing a powerful punch, the M-1 satellite speaker is the backbone of both our Mini Theatre systems, taking all five positions in a surround-sound set-up.
• From the inside out, the M-1 was conceived as a unified system.
• Its design has evolved in a totally integrated way, from the custom-made crossover to the two-piece clamshell cabinet.

• And now, following a complete technological overhaul, including all-new drive units designed in-house, it sounds better than ever.
• Dispersion has increased.
• Imaging is pin-point accurate.

• Performance is now full range.
• In fact, the improvement is such that a single pair ofM-1s could happily take on the role of your dedicated stereospeakers.

• You can put the M-1 on a bookshelf.
• Or mount it on a wall.

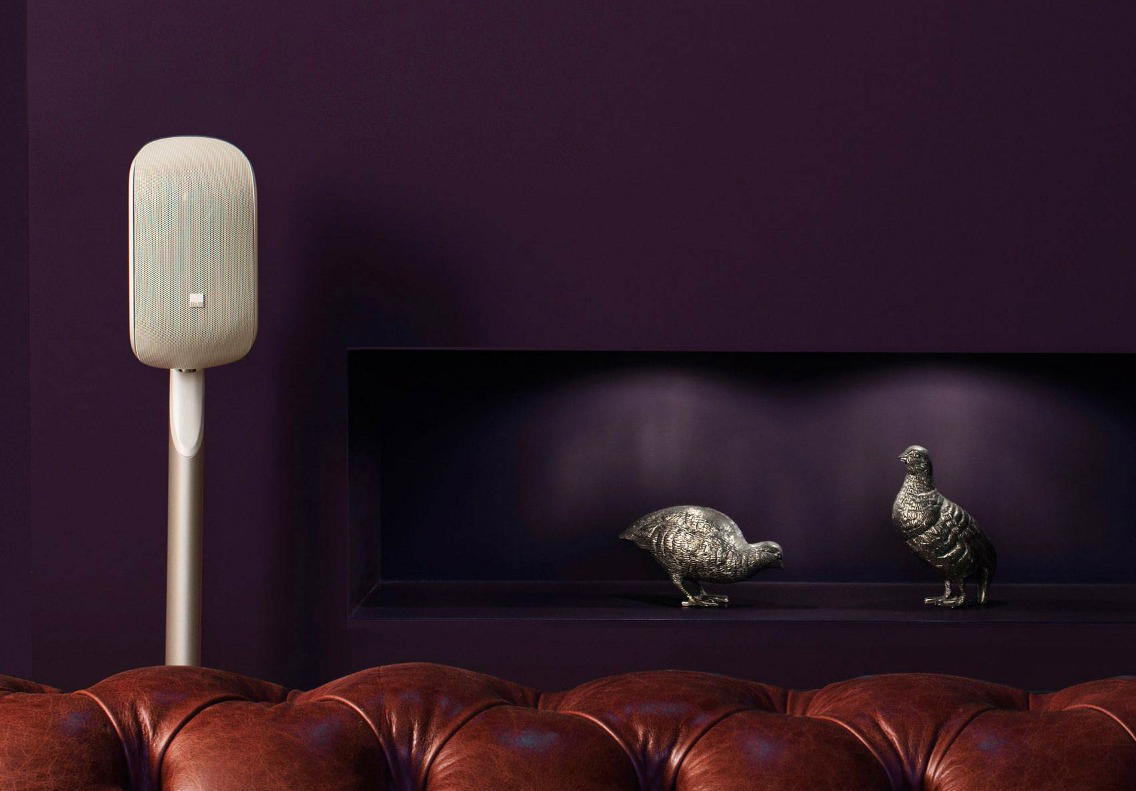

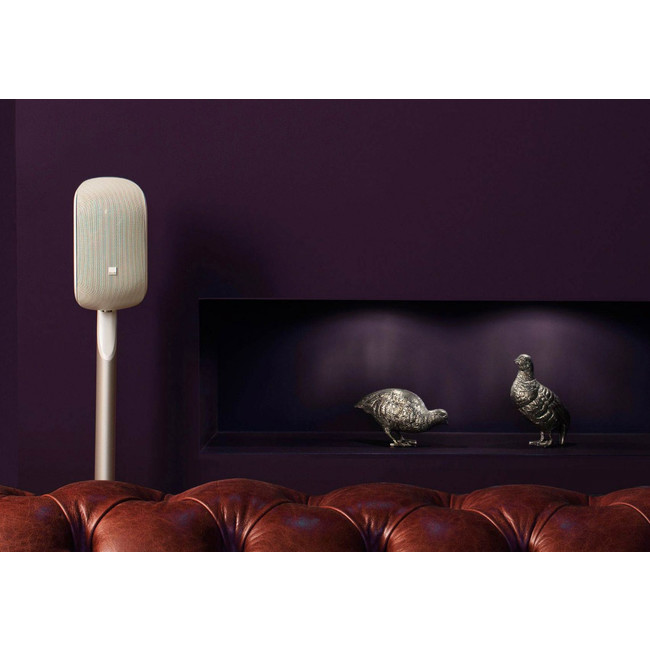

• Or position it on its own optional floor-length stand.It can even swivel to a horizontal position, for when you want to use one as a centre channel speaker.
• Available in a choice of Matte Black or Matte White finishes, its clamshell cabinet is formed from just two interlocking, continuously curving sections.
• So no hard lines to distract the eye.
• It all adds up to stunning sound, whatever you’re listening to.

Specs:

• Technical features: Nautilus™ tube loaded tweeter with aluminium dome Woven glass fibre cone bass / midrange

• Description: 2-way vented-box system

• Drive units: 1x 25mm (1in) aluminium dome high-frequency, 1x 100mm (4in) woven glass fibre cone bass /midrange

• Frequency range: -6dB at 55Hz and 50kHz

• Frequency response: 64Hz - 23kHz ±3dB on reference axis

• Dispersion: Within 2dB of reference response Horizontal: over 60º arc Vertical: over 10º arc

• Sensitivity: 85dB spl (2.83V, 1m)

• Harmonic distortion: 2nd and 3rd harmonics (90dB, 1m) <1% 120Hz - 30kHz

• Nominal impedance: 8Ω (minimum 4.0Ω)

• Crossover frequency: 4kHz

• Recommended amplifier power: 20W - 100W into 8Ω on unclipped programme

• Max. recommended cable impedance: 0.1Ω

• Dimensions: Height: 248mm (9.8in) Width: 114mm (4.5in)Depth: 162mm (6.4in) Mounted on table stand

• Net weight: 2.3kg (5lb)

• Finishes: Cabinet: Matte Black or Matte White, Grille:Matte Black or Matte White perforated steel to match
