ENWALL ENCLOSURE SYSTEM KIT

IN WALL SPEAKERS

Code: 39810254

1.64 kg
769103505040
EACH
Out of Stock!
$129 inc GST
Increase value Decrease value
Qty Each (inc GST) Each
Request Price Match
Enter 4 digit postcode

EnWall-Logo-(Web) Better Sound - Quieter living

Enwall Speaker Illustration - 2



Get Better Speaker Sound Quality!

Your wall-mounted speakers are great, but sound migratingthrough the wall cavity could be robbing you of hearing their full quality.

This sound migration could also disturb the peace and quiet in other rooms.

You need something to trap the sound and project it back where you want it. En-Wall is your solution.

En-Wall surrounds in-wall speakers with optimal acousticsthat smooth and balance the frequency response and reduces the sonic cancellations that are often created from in-wall speakers operating in long, shallow spaces.

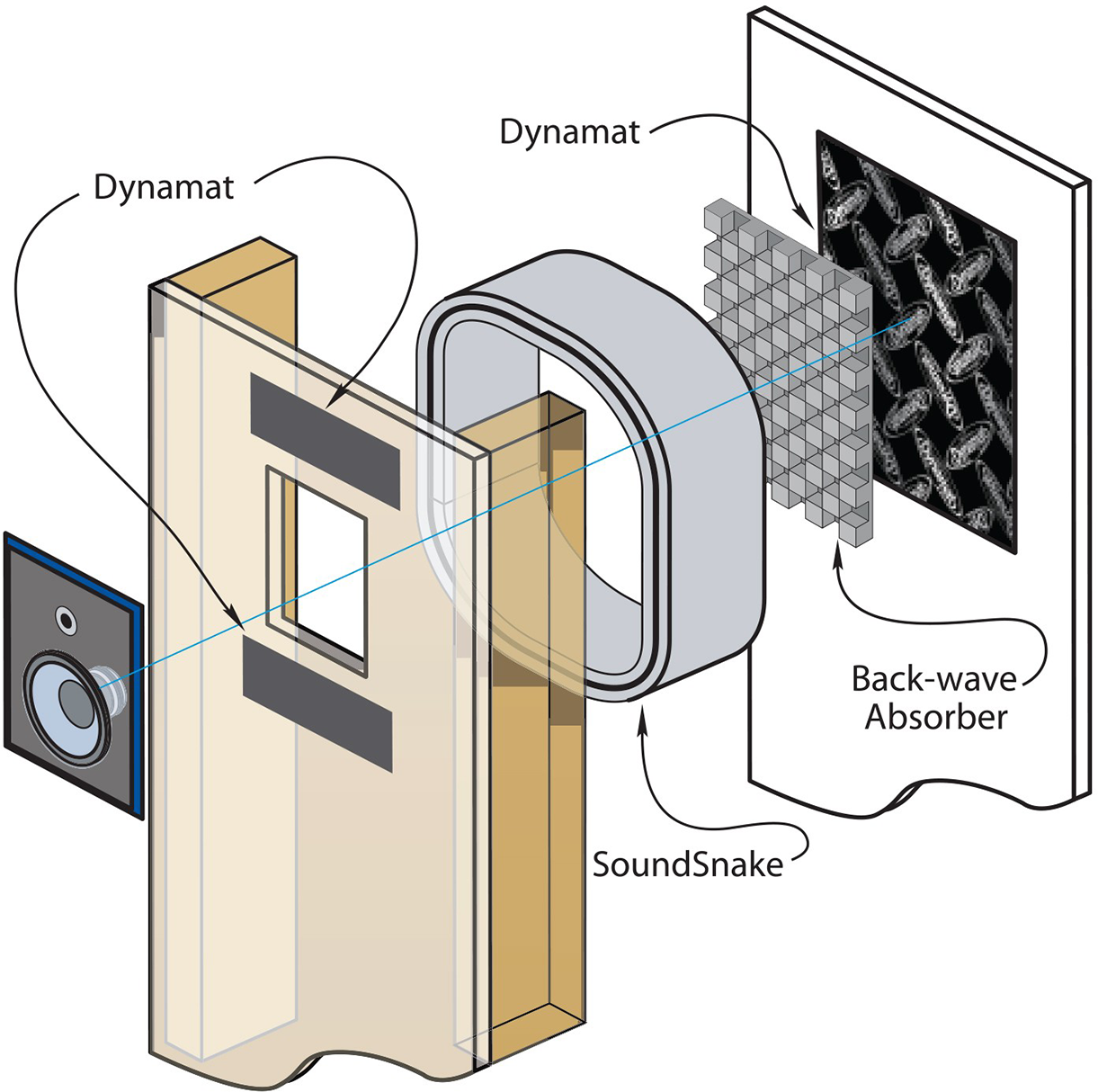

En-Wall enclosure systems use a combination of superior materials including Dynamat, Back Wave Foam and the SoundSnake to damp, diffuse and decouple in-wall speakers.

That means En-Wall significantly reduces wall vibration, projects clearer sound into the room and reduces unwanted sound traveling outside the room.

To further reduce sound migration between rooms, check out our Dynil and DynaPad products.

If you have in-ceiling speakers, DynaBox may be the solution for you.

Without En-Wall Enclosure System, even the very best speakers fail to perform to their maximum potential.

Sound resonates throughout the surrounding structure creating muddy, back-wave distortion and unwanted noise andvibration in adjacent rooms.

Installing your speakers without En-Wall is great if you want noise, vibration and distortion.

With En-Wall, every speaker will definitely sound better.

These revolutionary enclosure systems dramatically improve sound quality and reduce unwanted noise to other rooms.

In-wall speakers now sound like speakers mounted in solid, well crafted cabinets.

En-Wall delivers superior sound quality and incredible noise isolation.

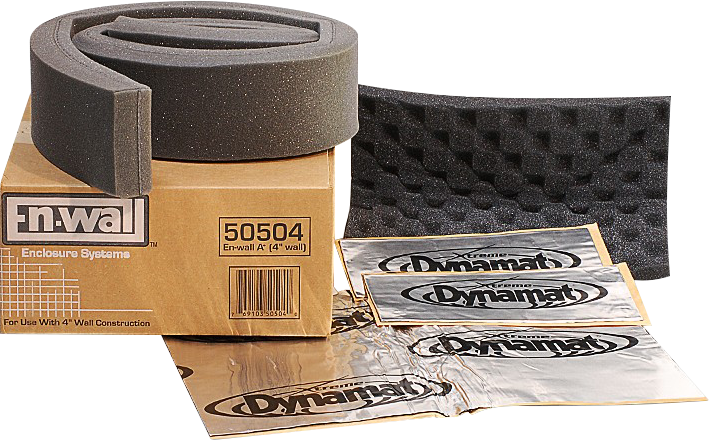

En-Wall Enclosure for 4 inch Walls

Part Number: 50504

Contains:

(1) 1.5 x 3.5 x 54 inch SoundSnake with Dynil

(1) 13 x 9 inch Back-wave foam

(1) 12 x 18 inch Dynamat Xtreme

(2) 4 x 10 inch Dynamat Xtreme.





Specifications

DAMP with DYNOMAT
  • Appearance
Black Butyl core with 4mil alumimium constraining layer, self adhesive with release liner
  • Adhesive peel strength
74.8 N/cm
  • Mass
2.20kg /m2
  • Material Thickness
1.7mm
  • Temperature Range (Resistance):
-54 C to 149 C )
  • Temperature Range (Optimal performance):
-10 C to 60 C )
SOUND SNAKE FOAM
  • Thickness
(38.1mm) total
  • Density
0.125 kg/m3
  • Tensile strength
15 psi
  • Tear strength
1.9
  • Thermal Conductivity (R)
1.9 (hr-ft -deg.F/BTU)
  • Standards
Meets UL94 HF-1
  • Temperature Range resistance
-40 F to 225 F (-40 C to 107 C )
DYNIL
  • Appearance
Black Flexivinyl Barrier
  • Color
Charcoal Gray
  • STC
28
  • Mass
4.8kg/m2
  • Thickness
2.5mm
  • Standards
Meets UL94-V0
  • Temperature Range (Resistance)
-40 C to 105 C
  • Chemical Resistance
Resistant to water and mineral oils
Diffuse with DynaXorb
  • Appearance
Black Polymer 15 x 15 square
  • Mass
168gm per 152mm square
  • Thickness
6.35mm
  • Rebound Resilience
15% Tensile strength
  • Density
1120kg/m3
  • Recommended Adhesive
Super Glue
