Dynabox barrier speaker enclosure for in ceiling speakers
DynaBox is a revolutionary acoustic barrier for in-ceiling speakers.
This revolutionary design makes the DynaBox extremely easy to retrofit through existing speaker openings or install in new construction.
DynaBox completely encases the speaker, which effectivelyreduces sound migration between rooms, ceilings and floors and projects more clear sound into the room.
DynaBox is ultraflexible which enables it to be completely collapsed for installation.
This revolutionary design makes the DynaBox extremely easy to retrofit through existing speaker openings or install in new construction.
DynaBox consists of a combination f flexible sound barrier vinyl, the SoundSnake acoustic decoupler and noise absorbing back-wave foam.
DynaBox effectively reduces sound migration between rooms, ceilings and floors.
Even the very best speaker will send the same sound into the wall structure as it does into the theater.
This migrating sound subtracts from your speaker’s sound quality, and can create annoying noise in adjacent rooms.
DynaBox acts as a moisture barrier for your speakers, and will drastically reduce unwanted noise migration into other rooms of the house, as well as dramatically improve the sound of every speaker
Key Advantages
- Reduce Noise Through Floors
- Diffuse Back-wave Distortion
- Provide Moisture Barrier
- Improve Sound Quality
Easy retrofit installation
DynaBoxSpeaker Enclosure
Part Number: 50306

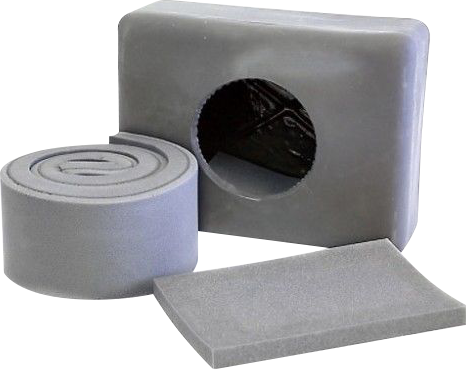

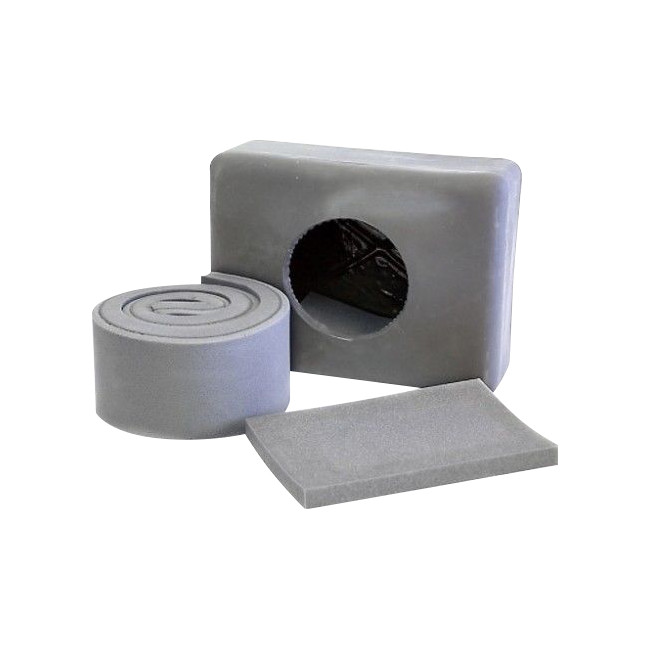

Contains:
- (1) DynaBox 17 x12 x6.5 inches
- (1) SoundSnake 1.5 x 5.5 x 54 inches
- (1) Back-Wave Foam 13.5 x 9 x 1 inch
Specifications
| DYNABOX | |
| Black Flexivinyl Barrier |
| Charcoal Gray |
| 28 |
| 1lb per square foot |
| 0.09 inches |
- Temperature Range (Resistance):
| -40 F to 220 F (-40 C to 105 C ) |
| Resistant to water and mineral oils |
| 17" x 12" x 6.5" (438mm x 311mm x 165mm) |
| SOUND SNAKE FOAM | |
| 1.5" (38.1mm) total |
| 2.0 lb/ft3 (0.125 kg/m3) |
| 15 psi |
| 1.9 |
| 1.9 (hr-ft -deg.F/BTU) |
| Meets UL94 HF-1 |
- Temperature Range resistance
| -40 F to 225 F (-40 C to 107 C ) |
| DYNIL | |
| Black Flexivinyl Barrier |
| Charcoal Gray |
| 28 |
| 1lb per square foot |
| 0.09 inches |
| Meets UL94-V0 |
- Temperature Range (Resistance)
| -40 F to 220 F (-40 C to 105 C ) |
| Resistant to water and mineral oils |
| BACK WAVE FOAM | |
| 13.5" x 9" x 1" (343mm x 229mm x 25mm) |
| 0.16 lb/ft2 (0.78 kg/m2) |
| 2.0 lb/ft3 (0.125 kg/m3) |
| 15 psi |
| 1.9 |
| 1.9 (hr-ft -deg.F/BTU) |
| Meets UL94 HF-1 |
- Temperature Range (Resistance)
| -40 F to 225 F (-40 C to 107 C ) |
| | |
