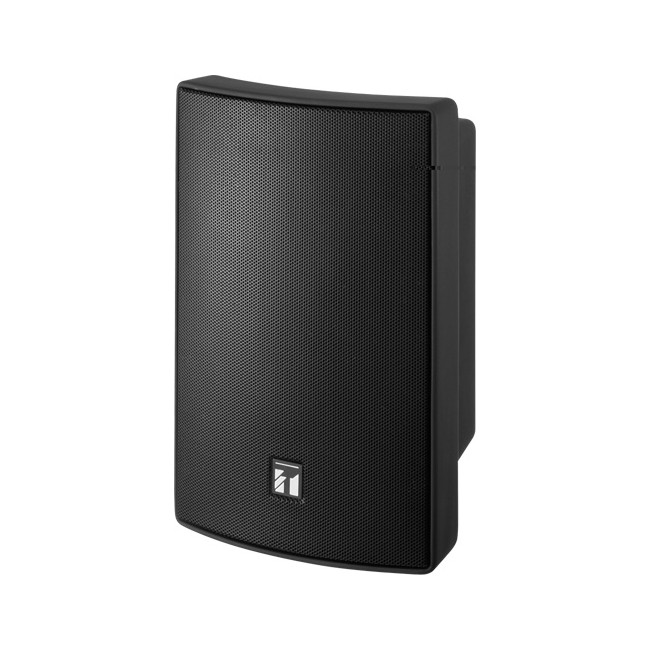

BS1030B 30W ENCLOSED PA SPEAKER BLACK

Music / Paging Speakers, Indoor/Outdoor, Two-Way, Mounting Bracket Included - TOA

THE TOA BS-1030 MUSIC/PAGING SPEAKER has exceptional sound quality and value for a wide variety of applications. Available in black and white, the versatile BS-1030 is designed for both indoor and outdoor use with a durable ABS resin enclosure and steel mesh grille.

The two-way, bass-reflex design features a 4.72” (12 cm) cone woofer, 1” (2.5 cm) dome tweeter and built-in multi-tap transformer with screwdriver-adjustable power taps. A transformer bypass setting allows direct 8-ohm operation.

Installation is fast and easy with the supplied mounting bracket or rear panel keyholes for horizontal or vertical surface-mounting.

The BS-1030 speakers are backed with a five year warranty.

• TOA's BS-1030B 2-way 12cm black dynamic cone speaker has been designed for low and midrange sound output
• The BS-1030B features a bass reflex enclosure, a2.5cm balanced dome tweeter for high frequency sound.
• A rear-panel mounted rotary switch facilitates selection of impedance (HIGH/LOW), line voltage (70V/100V), and power input(5W, 10W, 15W, 20W, 30W), permitting fine adjustment to match intended use and type ofevent.
• In addition the BS-1030 features weather-resistant construction and is available in black or white.

FEATURES:

• Compact Speaker for Music and Voice Paging Distribution
• Clear, Natural Sound Reproduction
• TOA Quality and Reliability
• Wide Variety of Indoor/Outdoor Applications
• Available in Black (BS-1030B) and White (BS-1030W)
• Weather-Resistant (IEC IP-X4 Rating)
• Mounting Bracket Included
• Horizontal or Vertical Mounting with rotatable logo badge
• Durable ABS Resin UV-Resistant Paintable Enclosure
• Two-Way, Bass-Reflex Design
• 4.72” Cone Woofer and
• 1” Dome Tweeter
• Steel Mesh Grille
• Power Handling: 90 W (Continuous Program)
• Sensitivity: 90 dB SPL (1 W/1 m)
• Frequency Response: 80 Hz to 20 kHz
• Built-in Multi-tap Transformer (70.7/100 V)
• Screwdriver-Adjustable Power Tap Settings: 5, 10, 15, 20 and 30 W
• Direct 8-Ohm Mode
• Five Year Warranty

APPLICATIONS:

• Audio/Visual
  Airports
• Bars/Lounges/Nightclubs
• Convention Centers
• Corporate Boardrooms
• Hotels/Hospitality
• Houses of Worship
• Museums
• Offices
• Patios
• Residential Spaces
• Restaurants
• Retail Stores
• Schools
• Theaters
• Theme Parks


SPECIFICATIONS:
