The SC-615BS is the voice alarm certification product to Australian Standards AS 7240.24:2018.
This speaker is ideal for a clearer announcement for voice alarm.

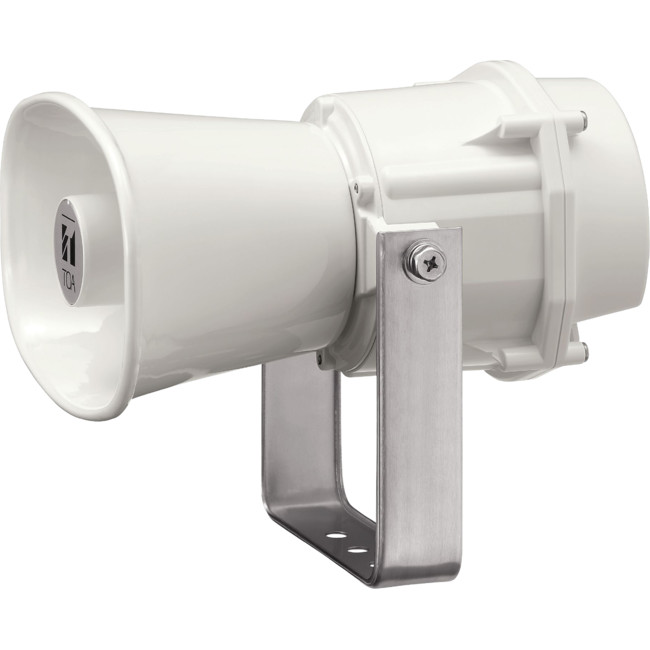

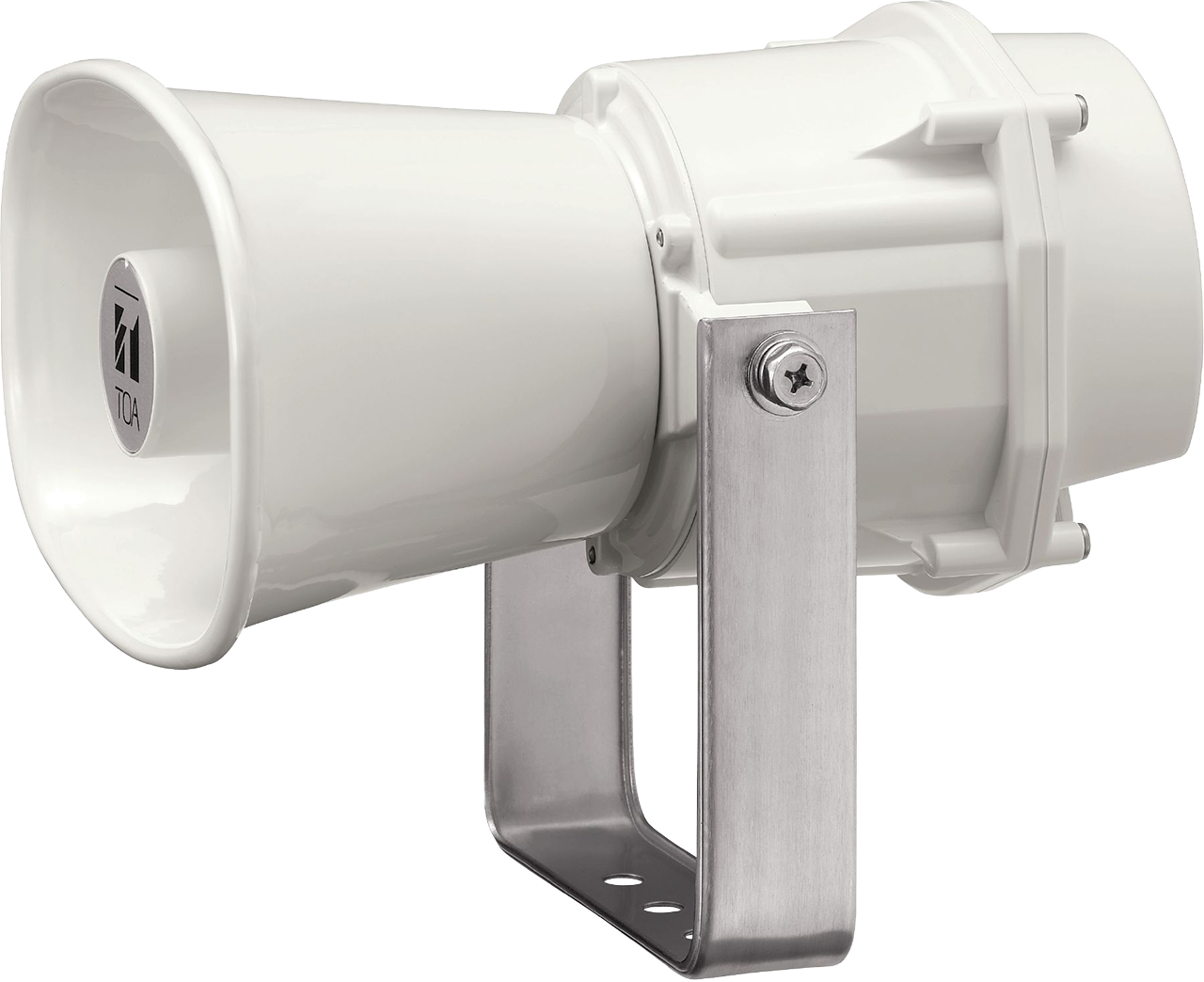

The SC-615BS Paging horn speaker features an aluminum horn flare and stainless steel bracket for all weather durability.
The SC-615BS unique oval shape horn enhances excellent speech clarity..
315 Hz - 12.5 kHz
Screw terminal (steatite), can be bridge-connected
109 dB (500 Hz - 2,5 kHz, peak level)
110 dB
15 W
100 V: 670 Ω (15 W) / 1 kΩ (10 W) /2 kΩ (5 W) / 3.3 kΩ (3 W) 70 V: 330 Ω (15 W) / 670 Ω (10 W) / 1 kΩ (5 W) / 2 kΩ (2.5 W) / 3.3 kΩ (1.5 W)
-20 °C to 55 °C (-4 °F to 131 °F)
Aluminium, powder coating, off-white (RAL 9010 or equivalent) Reflector horn, trans case and terminal cover: ABS resin, off-white (RAL 9010 or equivalent)
Bracket, screws and bolts: Stainless steel
172 x 195 x 229 mm (W x H x D)
1.5 kg
Terminal cover x 1
