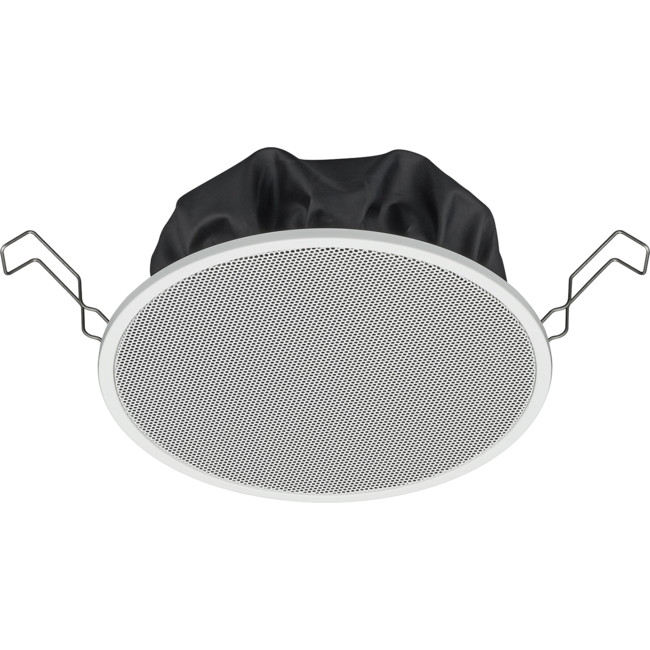

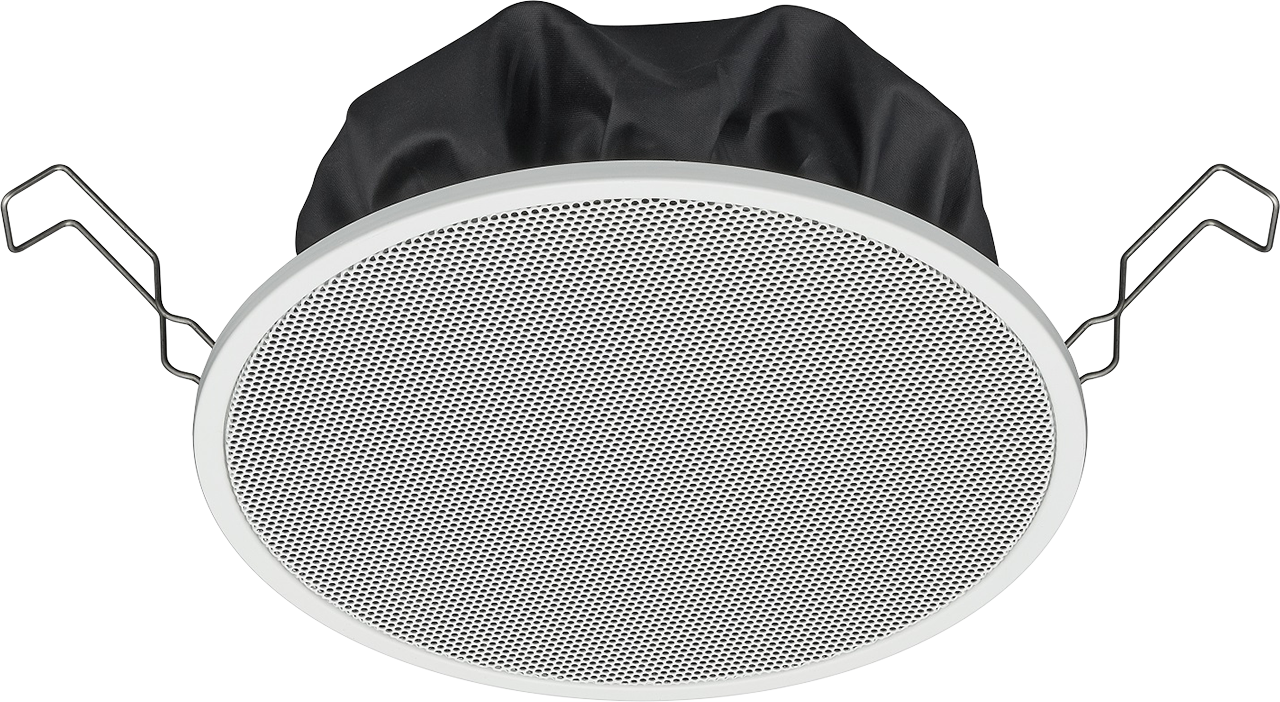

The ceiling speakers of the PC-series are suitable for announcements and BGM in high quality systems.
The speaker's design harmonizes with modern architecture and decor.
The PC-1860EN is certified to Australian Standards AS 7240.24:2018.. . 6W, 100V line.
Certified to AS 7240.24:2018.
Specifications
80 Hz - 20 kHz (peak -20 dB)
Push wire connection (Bridging terminal - 2 branch type)
94 dB (500 Hz - 5 kHz, pink noise)
99 dB
12 cm cone-type
6 W (100 V), 3 W (70 V)
100 V: 1.7 kΩ (6 W) / 3.3 kΩ (3 W) / 6.7 kΩ (1.5 W) / 13 kΩ (0.8 W) 70 V: 1.7 kΩ (3 W) / 3.3 kΩ (1.5 W) / 6.7 kΩ (0.8 W) / 13 kΩ (0.4 W)
150 mm
-10 °C to 50 °C
Steel plate, paint, traffic white (RAL 9016 or equivalent) Grille: Steel net, paint, white (RAL 9016 or equivalent)
180 x 70 mm (Ø x D)
560 g
paper pattern x 1, zip tie x 2
