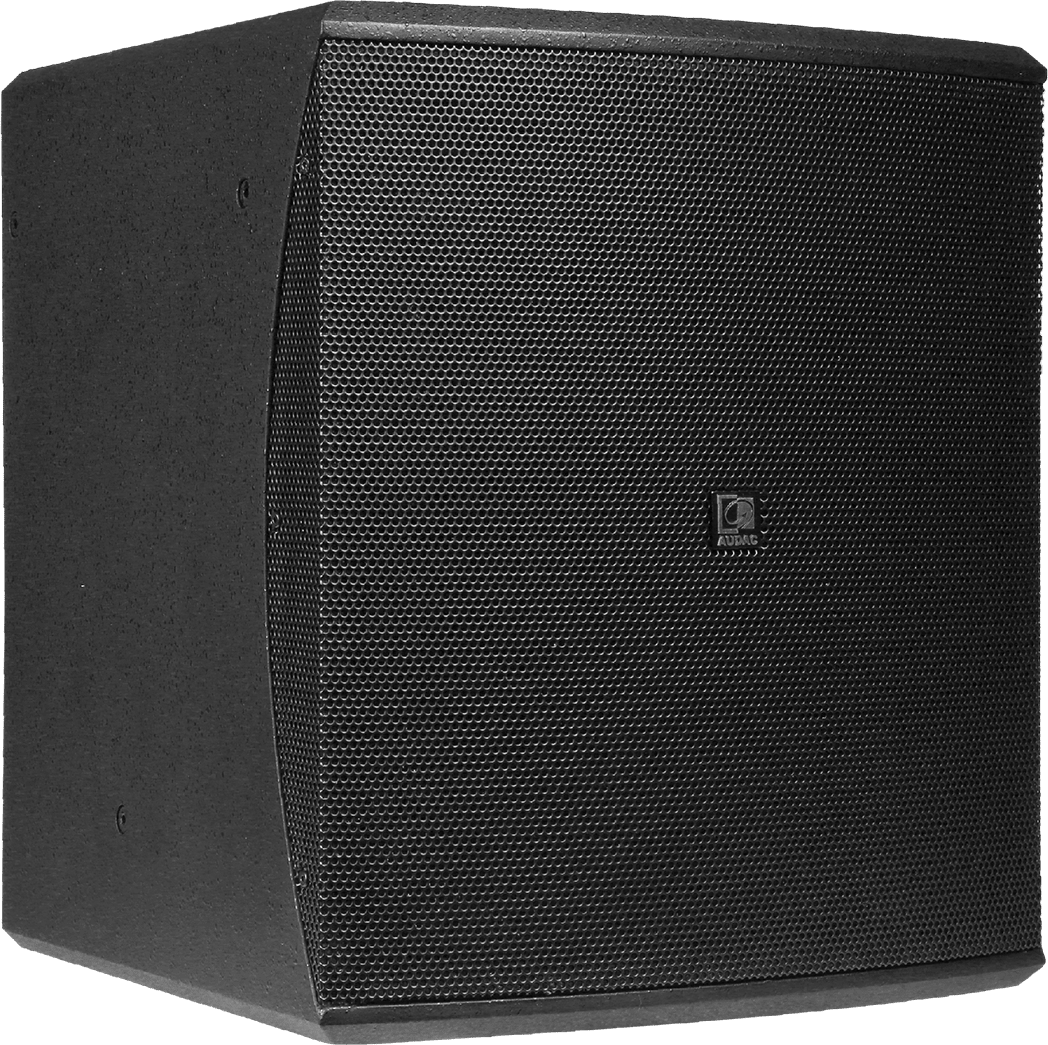

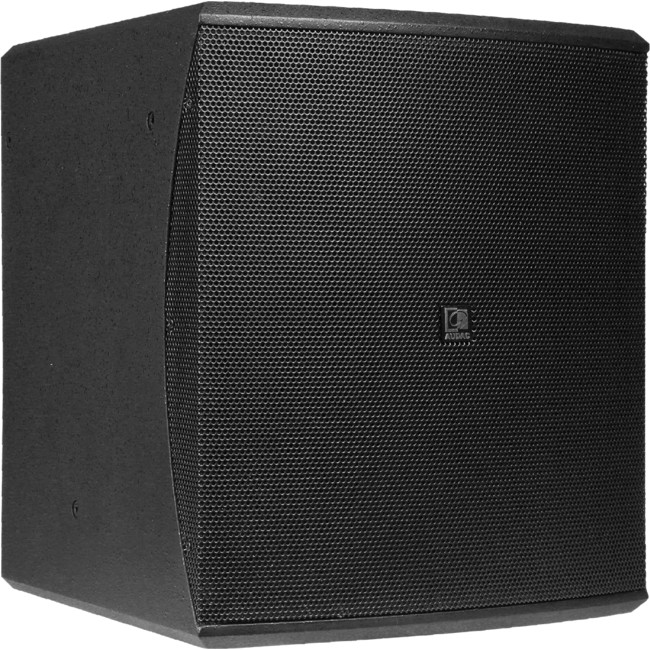

AUDAC BASO10 COMPACT 10" BASS REFLEX CABINET
The BASO cabinets are universally usable passive bass cabinets.
Their bass reflex design is engineered to be as compact as possible while giving the maximum performance in terms ofsound quality and pressure.
Their enclosures are crafted out of sturdy high-quality plywood while their elegant design enables them to be placedin any environment.
The BASO10 is loaded with a 10” high-performance woofer with an RMS power rating of 225 Watt and maximum power of 450 Watt.
The strength of this loudspeaker originates from a four layer wounded 1.5” voice coil in combination with an over-sized ferrite type magnet which provides an unusual high force factor. In combination with the low-loss suspension, this results in a linear behaviour with high efficiency and extremely wide frequency range
These carefully selected high-grade materials in collaboration with accurate acoustical craftsmanship resultsin a deep and true to nature reproduction of bass.
The highly-efficient design results in a sensitivity of 96 dB with capability of continuous sound pressure production up to 120 dB.
The frequency response ranges from 54 Hz up to 1.2 kHz while going down to 38 Hz at -10 dB.
Besides these acoustical aspects, a lot of attention has been paid to all other aspects making it as versatile as possible.
The enclosure is compact designed without any sacrifice to robustness due to the 15 mm high-quality plywood materialfinished with structured coating.
Connections are made using two SpeakON compatible connectors located in a recessed connector dish, allowing link-through to other cabinets.
This also allows close placement to any wall or corner.
VARIANTS
- BASO10/C - Cream version
- BASO10/B - Black version
- BASO10/W - White version
Key Features
- Compact design
- 15mm plywood construction
- 10" high-performance woofer
- Flat & wide frequency range
- Recessed connector dish
| SYSTEM SPECIFICATIONS |
| Speaker type | 10” Bass reflex cabinet |
| Max. Power | 450 W |
| RMS Power | 225 W |
| Impedance | 8 ? |
| Sensitivity (1W/1m) | 96 dB |
| Sound Pressure (Max. W/1m) | 120 dB |
| Bass reflex tuning frequency | 50 Hz |
| Connectors | 2 x Speakon compatible connector in recessed connector dish (linkthrough) |
| Drivers | 10” Ferrite with low-loss suspension and 1.5” 4-layer wounded voice coil |
| Frequency | Response (± 3 dB) | 54 Hz - 1.2 kHz |
| Range (-10 dB) | 38 Hz - 2 kHz |
| PRODUCT FEATURES |
| Dimensions | 320 x 380 x 380 mm (W x H x D) |
| Weight | 10 kg |
| Operating temperature | -20 °C ~ 60 °C |
| Construction | 15 mm plywood with structured coating |
| Front finish | Steel grill (18 gauge) |
| Colours | Black (RAL9004) (BASO10/B) |
| White (RAL9003) (BASO10/W) |
| Mounting & handling | Rigging points | 3 x M6 mounting bracket installation holes on bothsides |
| Accessories | Optional | MBK100 Bass cabinet mounting set |
