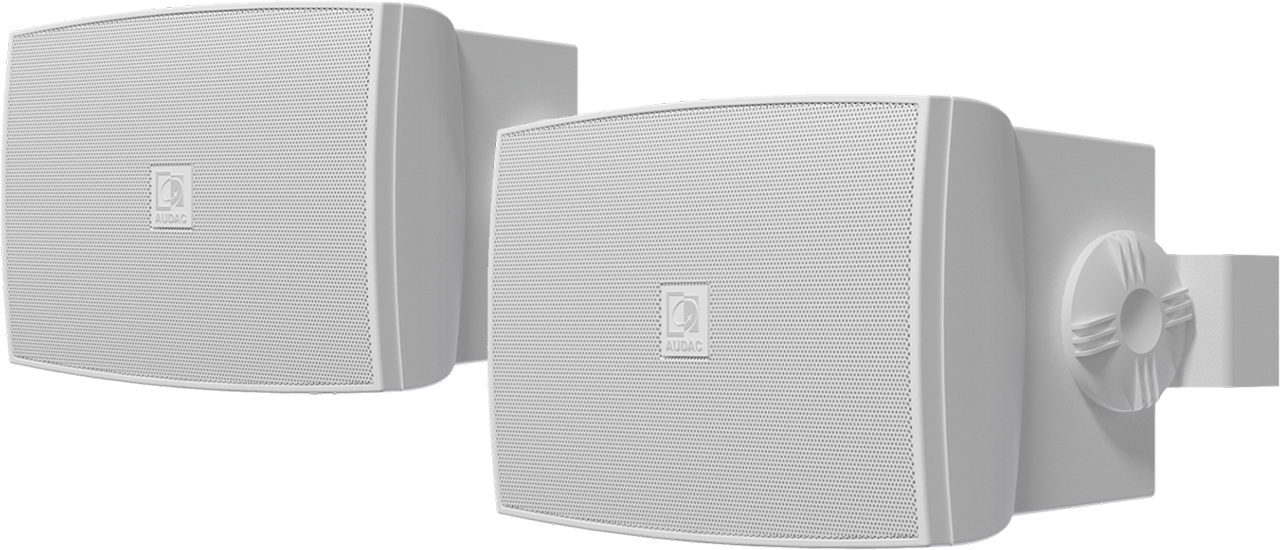

WX502OW WHITE 5" 2WAY OUTDOOR SPEAKERS

U-BRACKET -100V / 8OHM- IP55

Code: 39772040

5.44 kg
5414795043480
PR
Out of Stock!
$500 inc GST
Increase value Decrease value
Qty Each (inc GST) Each
Request Price Match
Enter 4 digit postcode

The WX502/O is a powerful 2-way performance speaker that is specially designed for outdoor use, ensuring true-to-nature, high fidelity reproduction of music and speech. It is fitted with a 1” dome tweeter and a 5 1/4”low-frequency loudspeaker, capable of delivering a power of 50 Watt. It can be used in standard 8 Ohm systems but also in 100V PA systems with power taps for 40 Watt, 20 Watt, and 10 Watt.

The material used for the mounting bracket on the outdoorversions has been improved by using aluminum, making the WX series MK2 even more resistant to extreme weather conditions. The bracket allows users to mount the WX502/O vertically as well as horizontally.

Special treatment with powder coating provides the necessary protection for all weather conditions. Because of this, the brackets can pass the 96 hours salt-spray test. A drain hole behind the aluminum grill allows water to flow out and the rotatable 5 pole waterproof connector with powertap selection makes sure that the speaker meets the IP55 standard. The included mounting bracket allows horizontal and vertical mounting as well as focusing of the speaker, and an integrated advanced protection network protects the tweeter against overload.



SYSTEM SPECIFICATIONS
Connectors Waterproof AWX™-5 connector
Impedance 8 Ω
Ingress Protection rating IP55
Max. Power 100 W
Sensitivity (1W/1m) 87 dB
Speaker type 2-way
RMS Power 50 W
Crossover Frequency 2.5 kHz
  Type Passive built-in
Drivers HF 1”
  LF 5”
Frequency Range (-10 dB) 55 Hz - 20 kHz
  Response(± 3 dB) 70 Hz - 18 kHz
Line Transformer Tappings 1 40 W / 250 Ω
  2 20 W / 500 Ω
  3 10 W / 1000 Ω
Sound Pressure (Max.W/1m) @ 100 V 102 dB
  @ 8 Ω 104 dB
Dispersion Horizontal 110°
  Vertical 110°



PRODUCT FEATURES
Dimensions 212 x 147 x 136 mm (W x H x D)
Weight 2.540 kg
Operating temperature -25 °C ~ 70 °C
Construction ABS
Mounting & handling Mounting bracket
Front finish Aluminium grill
Colours Black (RAL9005) (WX502MK2/OB)
  White (RAL9003) (WX502MK2/OW)
Accessories Included Mounting bracket
    5-pin connection cable (70 cm)
