CWM663 6" BLUE KEVLAR BASS MID CONE

1" NAUTILUS DOME TWEETER

Code: 39737025

7.40 kg
714346310425
PR
Out of Stock!
DON'T PAY $999
$944.10 inc GST
Increase value Decrease value
Qty Each (inc GST) Each
Request Price Match
Enter 4 digit postcode

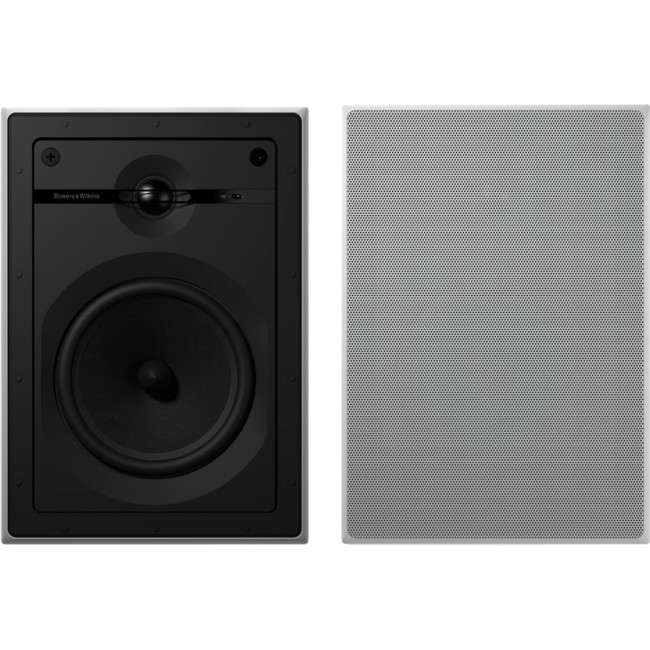

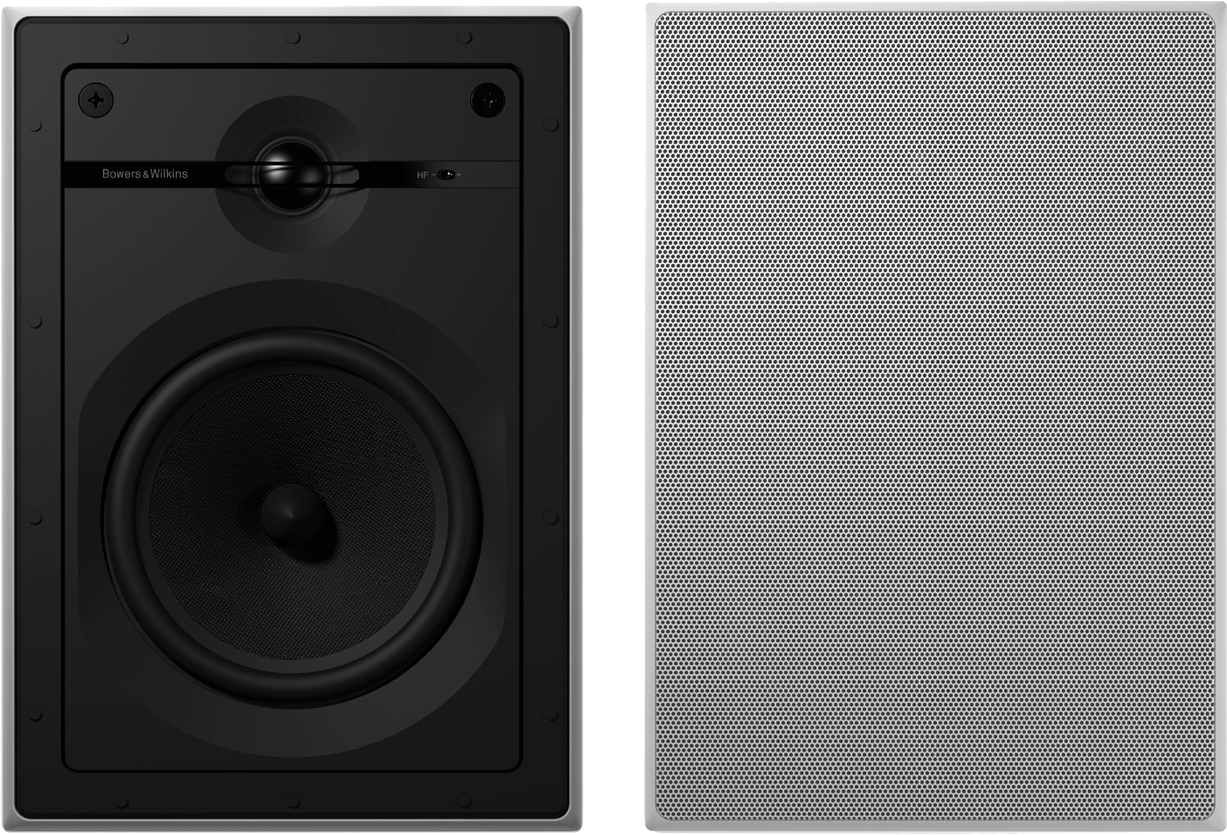

The CWM663 features a 150mm (6in) blue Kevlar® bass/midrange driver housed in a die-cast chassis, providingextra rigidity for cleaner, faster bass.

The CWM663 features a 150mm (6in) blue Kevlar® bass/midrange driver housed in a die-cast chassis, providingextra rigidity for cleaner, faster bass.

The speaker also incorporates a 25mm (1in) Nautilus™ tube-loaded aluminium dome tweeter, and a three-position high frequency switch for acoustic fine-tuning.

Installation is almost effortless, thanks to our new QuickDogs™ fixing system and plug-and-play connection.

Specifications

  • Description
 2-way in-wall system
  • Drive units
 1x 25mm (1in) Nautilus™tube loaded aluminium dome tweeter

1x 150mm (6in) blue Kevlar®cone bass/midrange
  • Frequency Range (-6dB)
 45Hz - 50kHz
  • Maximum Amp Power
 25 - 150w
  • Sensitivity SPL (2.83V, 1m)
 88dB
  • Impedance Nominal (min)
 8Ω (4.5Ω)
  • Frame height
 315mm (12.4in)
  • Frame width
 221mm (8.7in)
  • Cut-out height
 279mm (11in)
  • Cut-out width
 183mm (7.2in)
  • Depth behind surface
 95mm (3.7in)
  • Protrusion
 4mm (0.2in)
  • Pre-mount Kit
 PMK W6
  • Back Box
 BB 6W



CWM663 Brochure

CWM663 Manual
