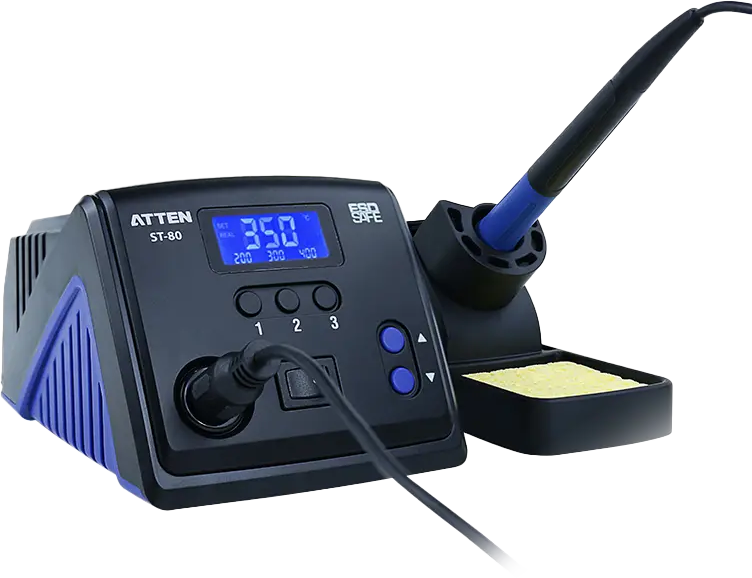

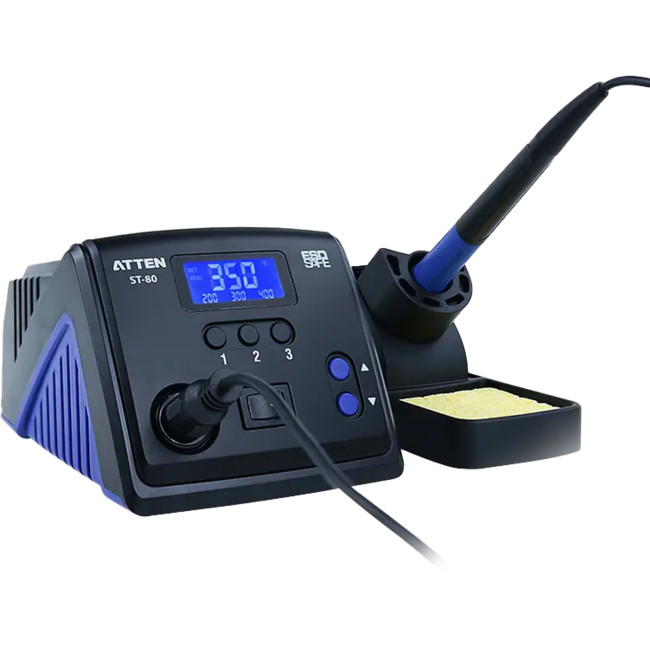

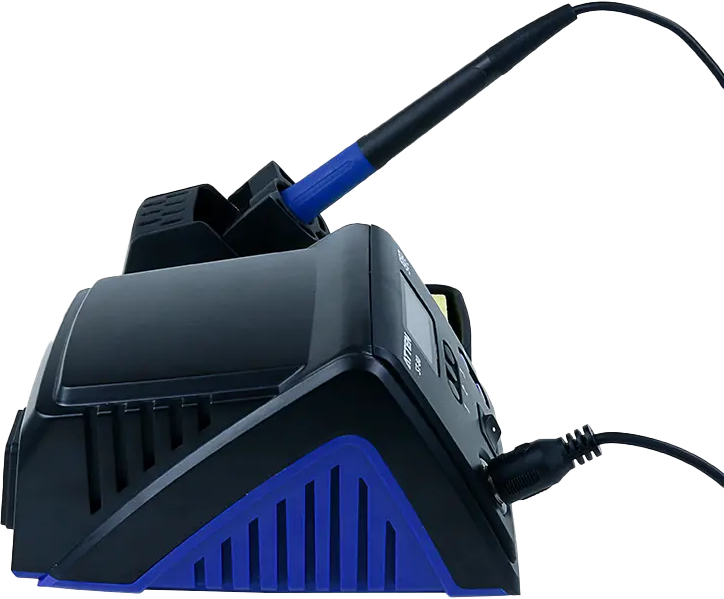

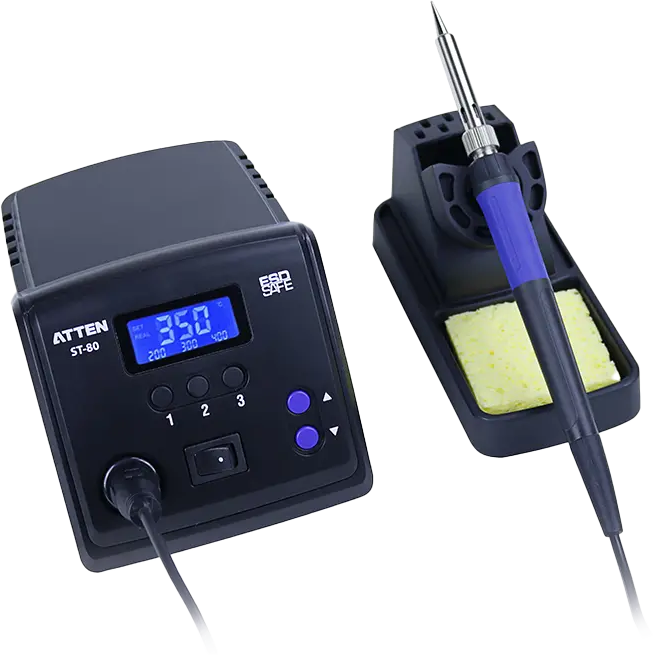

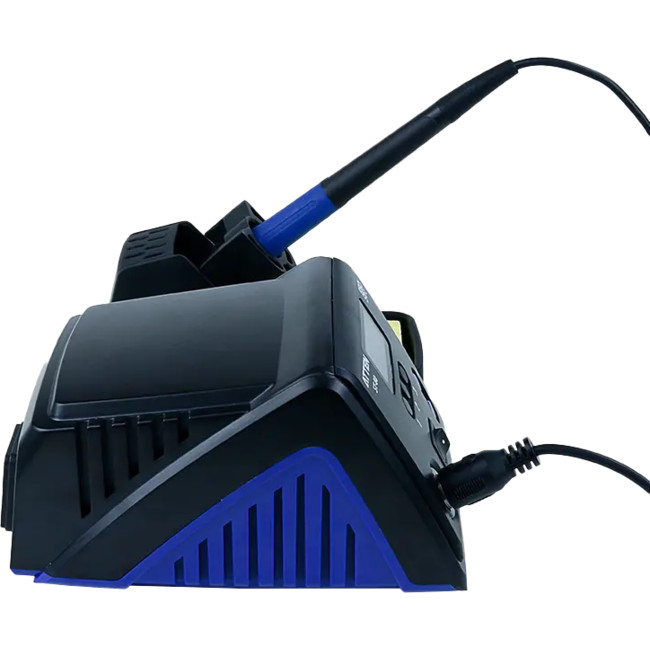

ST80 80W SOLDERING STATION WITH DISPLAY

ATTEN ST-80 80W Soldering Station is an intelligent digital soldering station with an 80W heating element for temperatures from 150 - 480°C. Its light handle is suitable for long-time operations and the stabilized and accurate temperature supports smooth operation. Rock solid stability, simple usage, and elegance in style.

Features

• High-performance four-core ceramic heater
• Smart recognition of working or non-working status
• Automatic standby and shutdown with smart time setting to ensure personal and property safety ( and extend product life )
• Intelligent cooling and temperature recovery
• Temperature locking
• The beep alarm function is available
• Temperature read out in °C and °F
• MCU-controlled temperature calibration
• Simulate bar indicating heating status
• A User-friendly menu enables system settings easier
• Separate iron stand to save room and to make easier deposit
• Complete new design with nice LCD and new user interface
• Visual overview of the heating process with status bar
• Buttons (1,2,3) for pre-setting or switching frequently used temperature
• Low-voltage heater separated from power supply to keep soldering work safer
• Soldering tip designed separate from heater and using exchangeable 900M series to save use-cost.
• 3 groups shortcut temperature. Storing and retrieving temperature values quickly.
• Temperature calibration ±50°C/±90°F.
• Fault alarm function: E-0, E-1, E-2.


 Specifications

• Voltage: 110VAC/ 220VAC ±10%, 50Hz/60Hz
• Power: 80W
• Output voltage: 28VAC
• Temperature Range: 150°C~480°C/302°F~896°F
• Display method LCD
• Temperature Offset Range: ±50°C / ±90°F
• Temperature Stability: ±2°C (in still air no load)
• Tip-to-Ground impedance: <2Ω
• Tip-to-Ground Voltage: <2mV
• Automatic Standby Time: 1-120 Minutes
• Automatic Shutdown Time: 1-120 Minutes
• Temperature Adjustment: 5 Digits (Default) / 1 Digit (Fine Tuning)
• Heater: High-quality four-core wire heater
• Dimensions: 175 x 115 x 95mm (L x W x H)

What is in the box?

• ST80 Main Unit x 1pc
• SP80 Soldering iron x 1pc
• Iron stand x 1pc
• Power Cord x 1pc
• Manual x 1pc
• Cleaning Sponge x 1pc

ST80 Soldering Station
